Lifting Equipment

0-10m Customized Height Scissor Design Hydraulic Auto Lifter

Jinan Moral International Co., Ltd.
  • Application:Workshop Crane, Warehouse Crane, Building Crane
  • Lift Mechanism:Scissor Lift
  • Carrying Capacity:Middle-Level
  • Moves:Stationary
  • Driven Type:Hydraulic
  • Running Mode:Stationary

Base Info

  • Model NO.:SJG
  • Feature:Explosion-Proof
  • Certification:CE, ISO 9001
  • Material:High Strength Steel
  • Control Method:Button, Remote Control
  • Cylinder:2 or 4 PCS
  • Lifting Speed:80-100mm,s
  • Lifting height:0-10m,customized
  • Power:4.0kw
  • Weight:2800KG
  • Usage:Indoor or Outdoor
  • Colour:White Red Blue etc
  • Warranty:5 years for main structure, 1 year for parts
  • Transport Package:Standard Export Package
  • Specification:8CBM
  • Trademark:MORAL
  • Origin:Shandong, China
  • HS Code:842890
  • Production Capacity:2000units,Year

Description

Basic Info.

Model NO. SJG Feature Explosion-Proof Certification CE, ISO 9001 Material High Strength Steel Control Method Button/ Remote Control Cylinder 2 or 4 PCS Lifting Speed 80-100mm/s Lifting height 0-10m/customized Power 4.0kw Weight 2800KG Usage Indoor or Outdoor Colour White Red Blue etc Warranty 5 years for main structure, 1 year for parts Transport Package Standard Export Package Specification 8CBM Trademark MORAL Origin Shandong, China HS Code 842890 Production Capacity 2000units/Year

Product Description

0-10m Customized Height Scissor Design Hydraulic Auto Lifter
Main feature1. The stationary scissor lift platform is generally used for lifting cargo and people to working place. Loading and unloading goods from ground to underground or to other floors.
2. It is characterized by great loading capacity.
3. Hydraulic lift system steady ascending and descending.
4. Electric or manual drive.
5. The scissor lift is heavy-carrying.
6. Lift tables are suitable for factory, institutions, shopping, garages, warehouse and other industries.
0-10m Customized Height Scissor Design Hydraulic Auto Lifter


Parameter
TypeMix height (mm)Rises height (mm)Raise weight (kg)Platform size (mm)Power (KW)Weight (KG)
SJG4.5-3.5760350045004000*20005.54500
SJG2-4.8700480020003600*20005.53800
SJG5-5.4950540050005000*16007.56000
SJG3-7.2860720030005500*3000118870
SJG0.5-585050005002000*10002.21200
SJG1-3.3840330010001900*150031300
SJG1-4.3860430010002500*25001.52500
SJG1-61230600010002200*15002.22500
SJG2-3.51000350020002200*15002.21800
SJG2-4.51070450020001600*160042500
SJG2-6.81400680020002550*220043300

Specification
1)The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden  drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety.
2) the handrail to guarantee safety .
3) equipped with 4 guide rails to ensure safety and steady.
4) the limit switch system ensure lifts stop at accurate position.
5) overload protection facility is equipped on, the lift will not work when goods is overloaded.
6) Electric control system adopt elevator system from Japan Mitsubishi ensure safety.
7) guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.

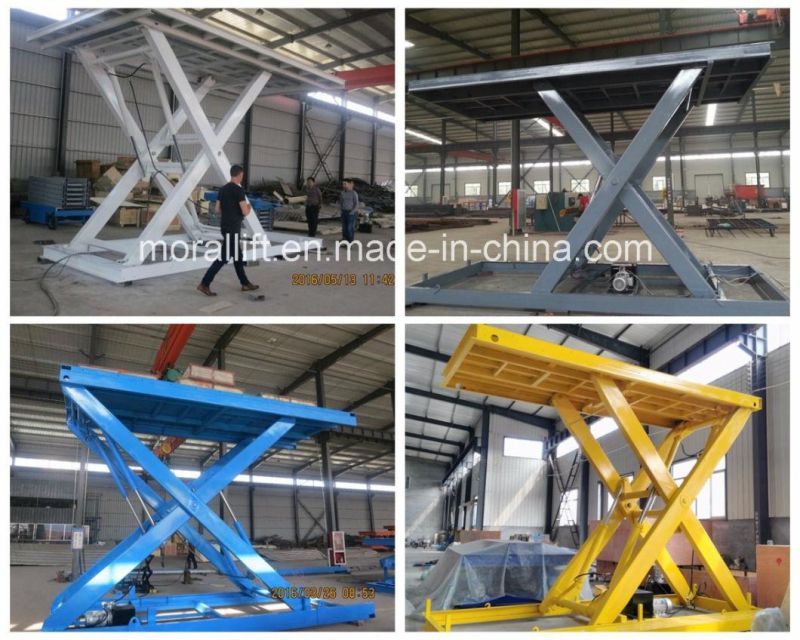

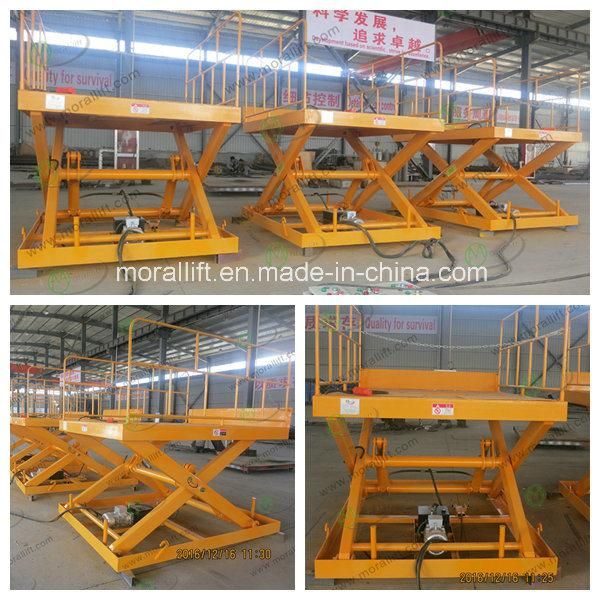

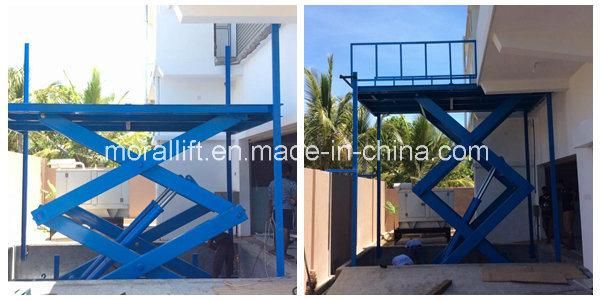

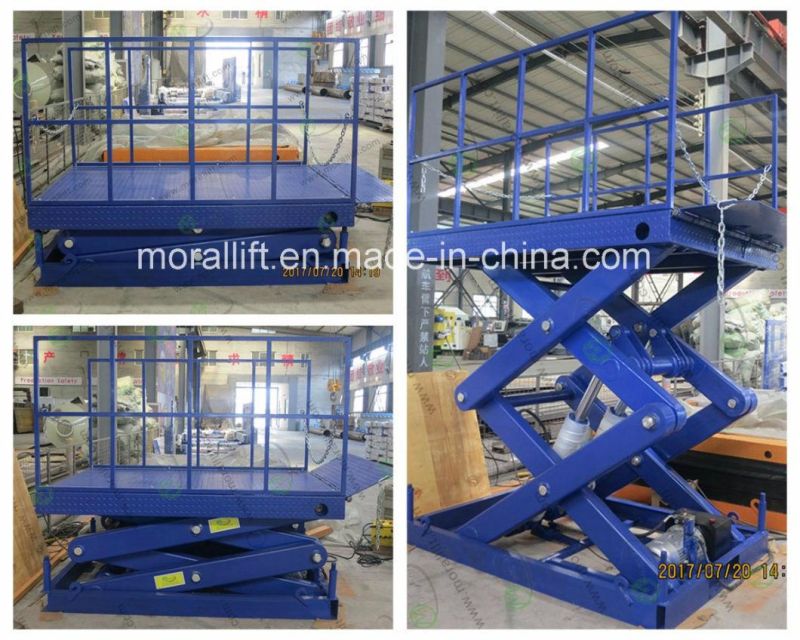

Product show
0-10m Customized Height Scissor Design Hydraulic Auto Lifter
0-10m Customized Height Scissor Design Hydraulic Auto Lifter

0-10m Customized Height Scissor Design Hydraulic Auto Lifter


After sales
1. User-friendly English manual for machine installation using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.



FAQ
1. MOQ?-1 set
2. Delivery time?-usually within 15-20 working days upon receipt of payment.
4. Trade term? ( FOB/CFR/CIF to your nearest seaport)
5. Working Height?-according to your need
6. Platform Size?-according to your need
7. load capacity?-according to your need
8. Demand power source?-electric or battery, per your need
9. OEM?-accepted


Company info
Welcome to Moral Lift, we are professional manufacturer of AUTO LIFTER with good quality and low price.Our promise: Quality first, Customer above. we have fine equipment, advanced technology and complete testing equipment. we will customize for every customer.

0-10m Customized Height Scissor Design Hydraulic Auto Lifter
