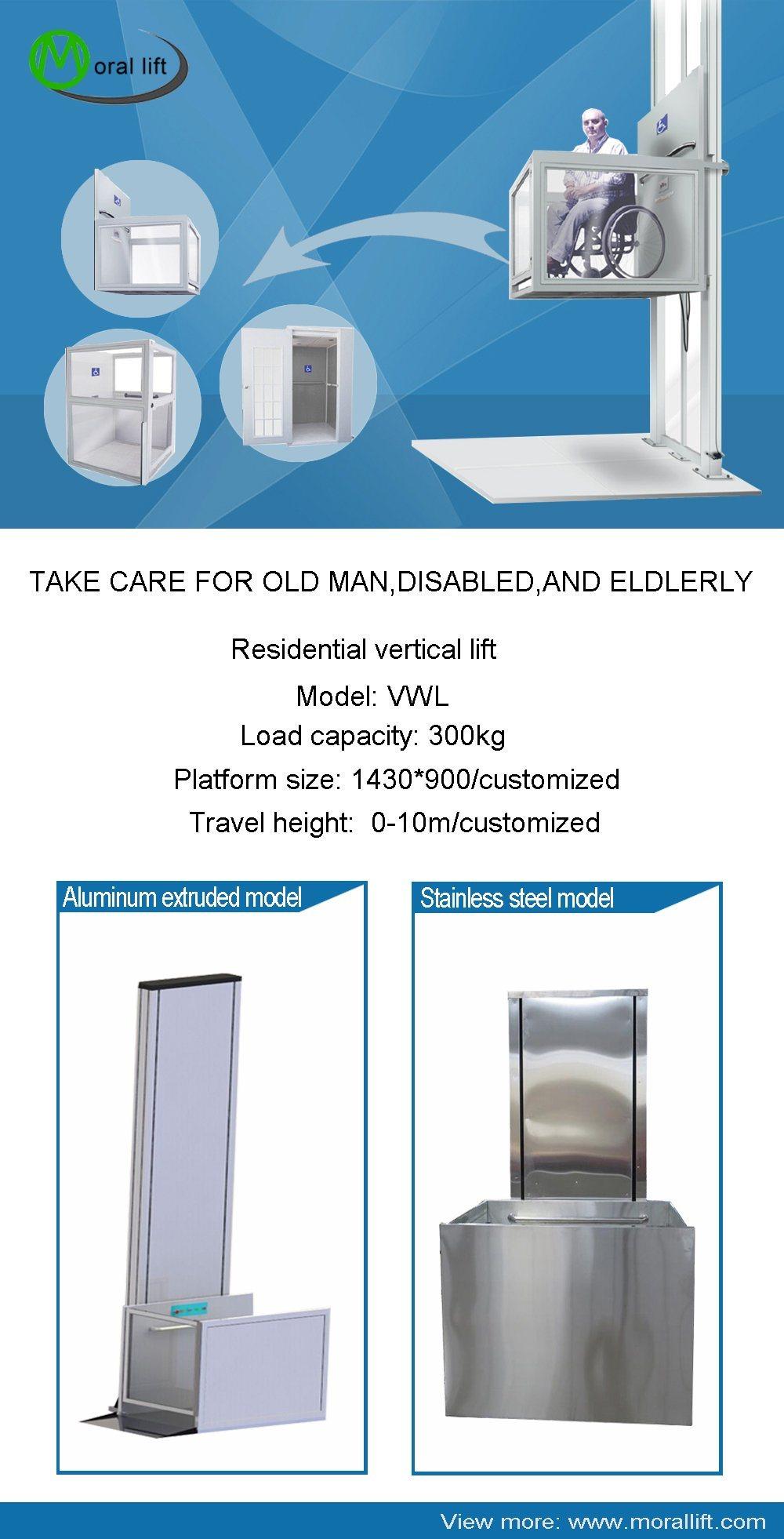

300kg Stainless Steel Lifting Table for Disabled
Jinan Moral International Co., Ltd.- Application:Building Crane, Home,Hospital
- Lift Mechanism:Lift Chain
- Carrying Capacity:Light Level
- Moves:Stationary
- Driven Type:Hydraulic
- Running Mode:Stationary
Base Info
- Model NO.:VWL
- Feature:Explosion-Proof
- Certification:CE, ISO 9001
- Entrance:90,180 degree
- Material of Platform:High Quality Stainless Steel
- Control Mode:Automatic
- Power Output:2.2KW
- Speed:80-100mm,s
- Platform Size:1200mm(L)* 900mm(W),customized
- Lifting Height:1.8m,customized
- Load Capacity:300kg
- Warranty:5 years for main structure, 1 year for parts
- Colour:White Gray etc
- Transport Package:Plywood Packaging
- Specification:10CBM
- Trademark:MORAL
- Origin:Shandong of China
- HS Code:842890
- Production Capacity:120pieces,Month
Description
Basic Info.
Model NO. VWL Feature Explosion-Proof Certification CE, ISO 9001 Entrance 90/180 degree Material of Platform High Quality Stainless Steel Control Mode Automatic Power Output 2.2KW Speed 80-100mm/s Platform Size 1200mm(L)* 900mm(W)/customized Lifting Height 1.8m/customized Load Capacity 300kg Warranty 5 years for main structure, 1 year for parts Colour White Gray etc Transport Package Plywood Packaging Specification 10CBM Trademark MORAL Origin Shandong of China HS Code 842890 Production Capacity 120pieces/MonthProduct Description
300kg Stainless Steel Lifting Table for DisabledIf you have difficulty using stairs, or use a wheelchair or mobility scooter, then a residential vertical lift is a great way to ensure that you can always safely and conveniently enter and exit your home. All of our porch lifts are designed to be completely resistant to the harshest weather conditions and are an affordable alternative to residential elevators.
Wheelchairs lift:
1.vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
2.It can be directly installed into the ground without architectural supporting pits and easy to operate.
3.Its hydraulic system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
4.Emergency Descending:When there is no power or malfunctions, manually descend the device.
5.It's suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.
6.this machine max.lifting height is 6000mm.
Parameter:
Platform size | 1200mm(L)* 900mm(W)/Customized |
Dimension | 1200mm(L)*1400mm(W) |
MaxPlatform Height | 1800mm/customzied |
Min Platform height | 80mm |
Configuration | Open through or front and side entrances |
Speed | 80-100mm/s |
Load capacity | 300KG |
Control voltage | 24V/DC |
Power Output | 2.2KW |
Power Input | 220V/50HZ/ (or customized for local power supply) |
Drive System | Hydraulic |
Control Mode | Automatic |
Drive Control | Self-resetting system |
Overload | Protection Over current relay |
Material of Platform | Checkered slip-proof aluminum alloy |
Painting | Plastic electrostatic spraying |
Guard panel & drivecabinet (framework) | 304 stainless steel |
Operation Panel | Polished aluminum Alloy |
Safety Wane WorkingRange | 75° |

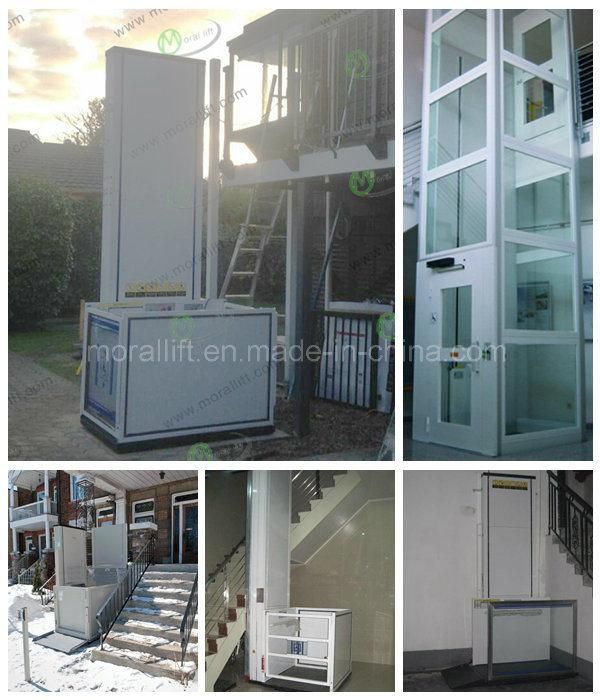

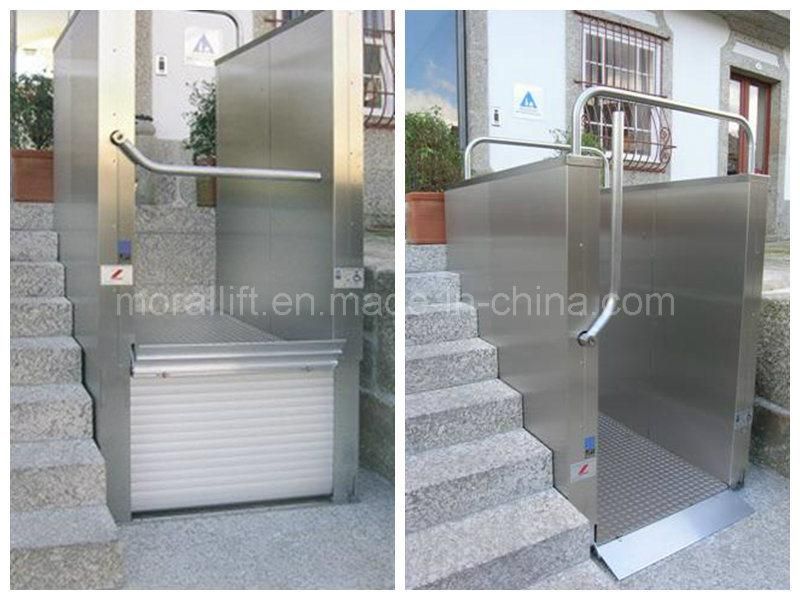

Product show
After sales
1. User-friendly English manual for machine installation using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.
Our Services
1. All the machines will b full tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.
Company
Welcome to Moral Lift, we are professional manufacturer of LIFTING TABLE with good quality and low price. our promise: Quality first, customer above. we have fine equipment, advanced technology and complete testing equipment, we will customize for your every inquiry!
You may like
If you need this model, pls tell us the lifting height you need, we can customize for you.Pls contact us with no hesitation. we are looking forward to establishing friendly relationship with you from all over the world!!!
