• Model NO.：SJG
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Power：7.5kw
• Related Loading Capacity：3000kg
• Table Size：5000*2500mm
• Overall Demensions：5000*2600*1000mm
• Weight：3200kg
• Speed：100mm,S
• Mini. Lifting Height：800mm
• Max.Lifting Height：6000mm
• Control System：Manual Control and Electric Control
• Safety：Explosion-Proof Electric Equipment
• Transport Package：Standard Export Packing.
• Specification：CE, ISO, SGS
• Trademark：Moral
• Origin：Jinan, Shandong, China
• HS Code：842890
• Production Capacity：5000sets Per Month

Basic Info.

Model NO. SJG Feature Explosion-Proof Certification CE, ISO 9001 Power 7.5kw Related Loading Capacity 3000kg Table Size 5000*2500mm Overall Demensions 5000*2600*1000mm Weight 3200kg Speed 100mm/S Mini. Lifting Height 800mm Max.Lifting Height 6000mm Control System Manual Control and Electric Control Safety Explosion-Proof Electric Equipment Transport Package Standard Export Packing. Specification CE, ISO, SGS Trademark Moral Origin Jinan, Shandong, China HS Code 842890 Production Capacity 5000sets Per Month

Product Description

Hydraulic Stationary Scissor Freight Elevators/Scissor Lift Platform


Main feature:
1. Used for lifting cargo
2. Great loading capacity
3. Hydraulic system increase safety
4. Steady working


Product introduction:
1. The stationary scissor lift platform is generally used for lifting cargo and people to working place. Loading and unloading goods from ground to underground or to other floors
2. It is characterized by great loading capacity.
3. Hydraulic lift system Steady ascending and descending
4. Scissor hydraulic lift system can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.
5. The limit switch system helps the lift to stop at accurate position.
6. The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of cargo.
7. Emergency button is available on each control box, when emergency occurs, the immediate stop can be realized.
8. Control system adopt elevator control system, very convenient and safety.

Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design for you.


Parameters:

Model	SJG
Load capacity	3000KG/Customize
Platform size	5500*2500MM/Customize
Lifting height	5000MM/Customize
speed	100mm/s
power	5.5kw/Customize
power supply	AC 220V/380V  50HZ/60HZ/Customize
weight	2950KG

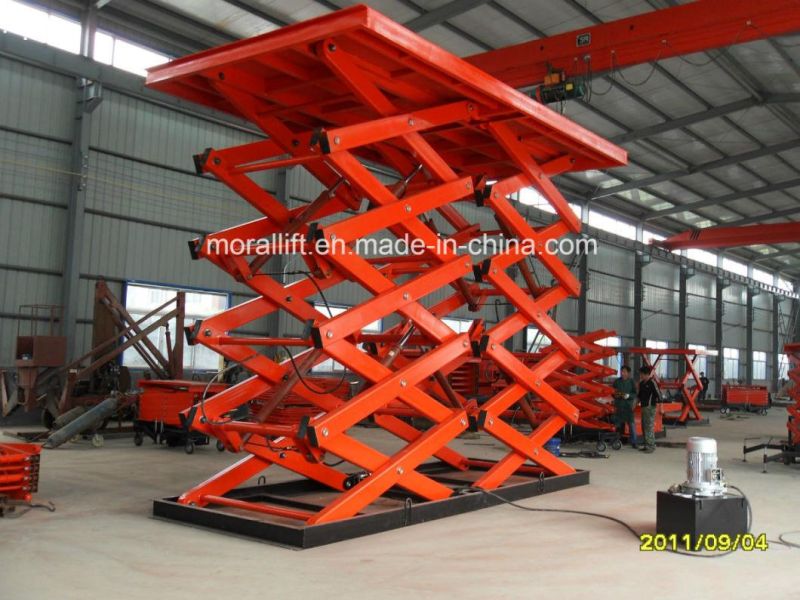

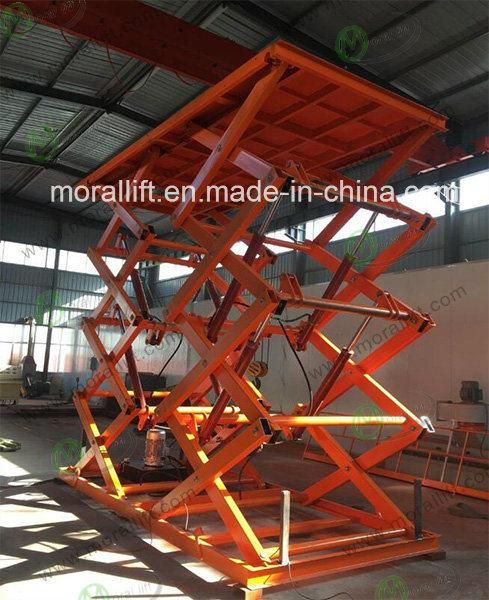

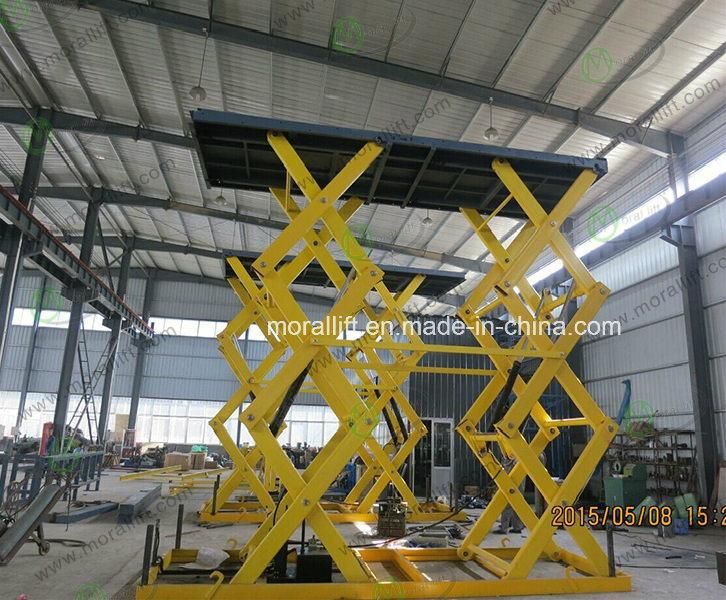

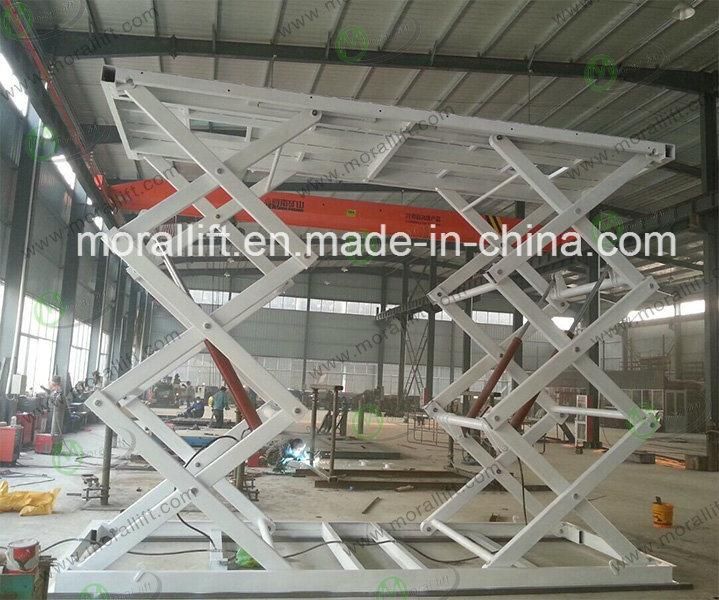

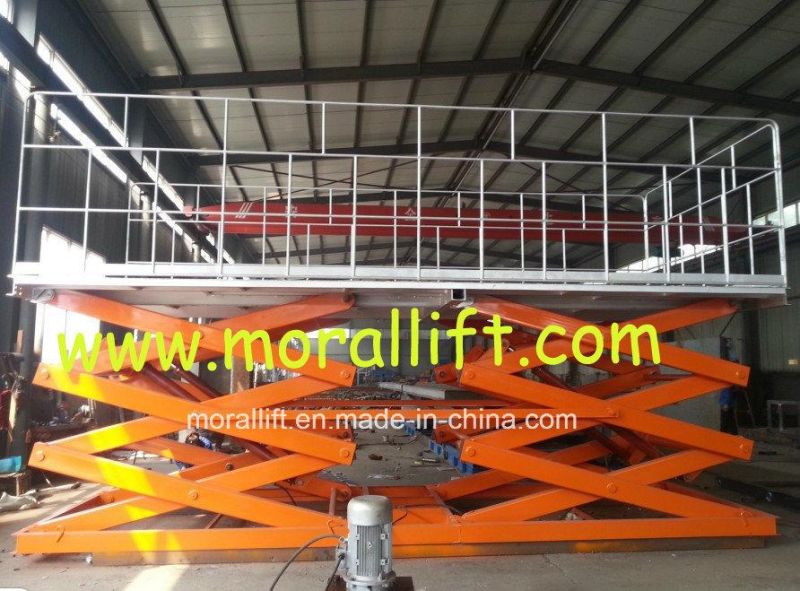

Photos:
