• Model NO.：SJG
• Feature：Explosion-Proof
• Certification：CE
• Speed：100mm,s
• Load Capacity：3000kg,customized
• Platform Size：5500mm*2500mm,customized
• Lifting Height：3000mm,customized
• Power：5.5kw
• Material：High Strength Manganese Steel
• Installation：Pit
• Control Mode：Button,remote controls
• Safety device：Emergency stop button
• Warranty：12 months
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：Moral
• Origin：Jinan, Shangdong, China
• HS Code：842890
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. SJG Feature Explosion-Proof Certification CE Speed 100mm/s Load Capacity 3000kg/customized Platform Size 5500mm*2500mm/customized Lifting Height 3000mm/customized Power 5.5kw Material High Strength Manganese Steel Installation Pit Control Mode Button/remote controls Safety device Emergency stop button Warranty 12 months Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shangdong, China HS Code 842890 Production Capacity 5000PCS/Year

Product Description

Hydraulic 10T Scissor Car Auto Lift with CE

Main features:
1)used for lifting kinds of cars
2)great loading capacity
3)hydraulic system increase safety
4)steady working

Parameter:
1. Load weight: 3000kgs/customize
2. Table size: 5.5m X 2.5m/customize
3. Travel height: 5m/customize
4. Elevator controls system
5. Structure: High-strength Mn steel


Model	SJG3-12
Load capacity	3000kg
lifting height	12000mm
platform size	5000*2500mm
speed	100mm/s
power	7.5kw
power supply	AC 220v/380v 50HZ/60HZ
weight	4600KG

Specifications and Safety:
1. The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car
2. The handrail to guarantee safety of car
3. Equipped with 4 guide rails to ensure safety and steady.
4. The limit switch system ensure lifts stop at accurate position.
5. Overload protection facility is equipped on, the lift will not work when goods is overloaded.
6. Electric control system adopt elevator system from Japan Mitsubishi ensure safety
7. Guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.

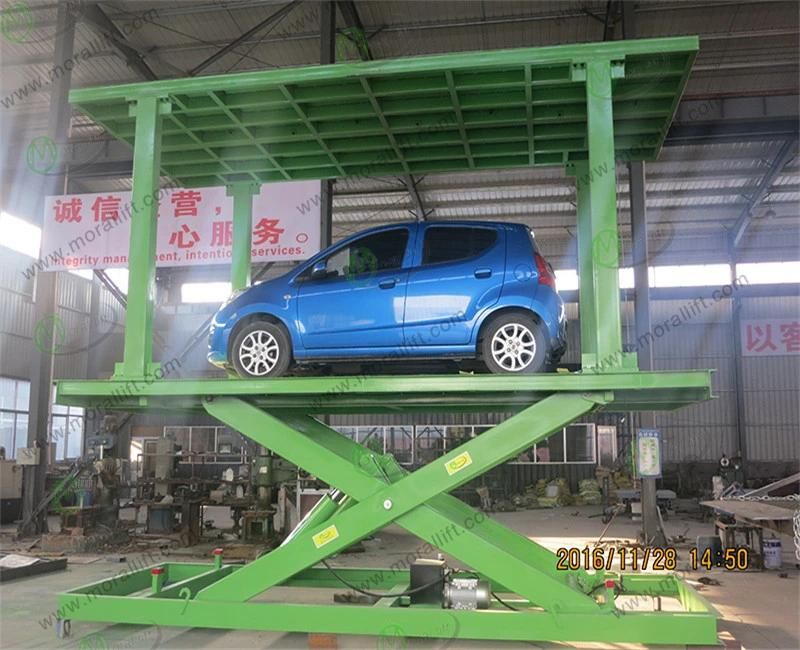

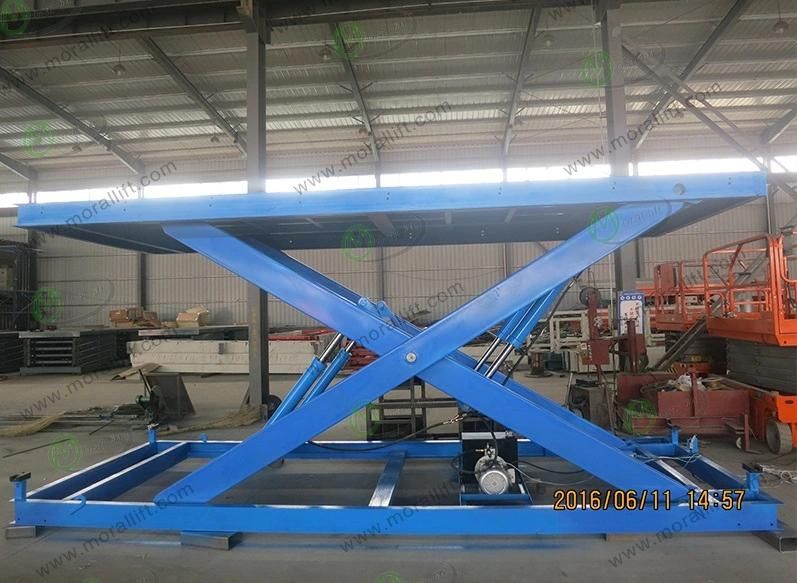

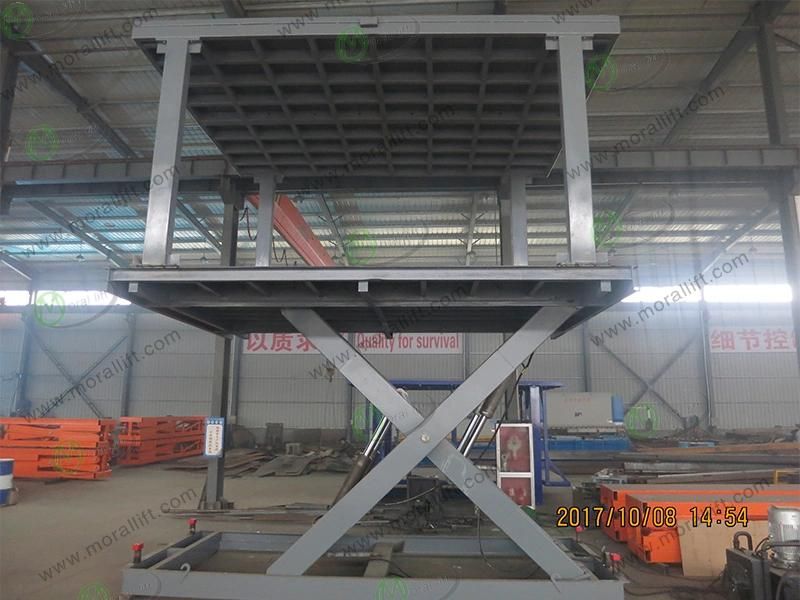

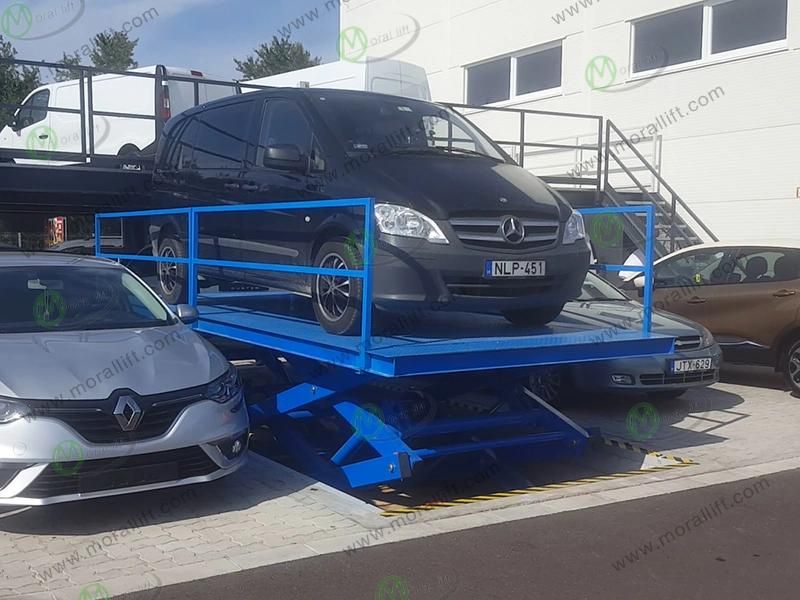

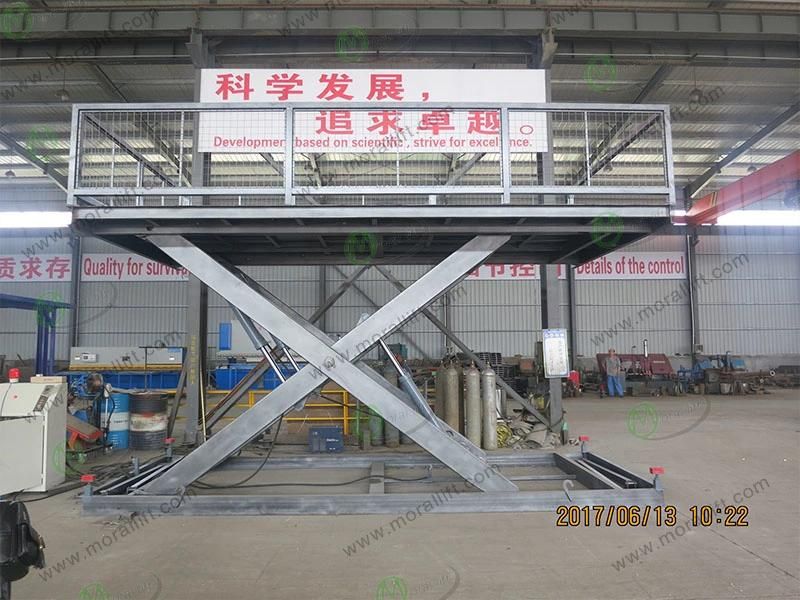

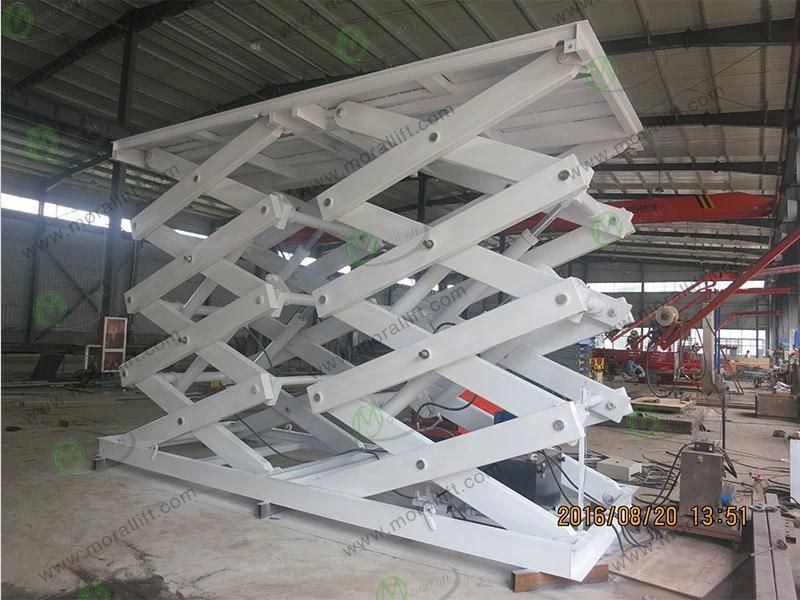

Product pictures:







Welcome to your inquiry, we can customize for your every inquiry!
