• Model NO.：SJD
• Feature：Explosion-Proof
• Speed：100mm,s
• Load Capacity：3000kg,customized
• Table Size：1500*1200mm,customized
• Lifting Height：3000mm,customized
• Power：3kw
• Material：Double T Steel
• Control Mode：Buttons,remote control
• Safety Device：Emergency Stop Button
• Warranty：12 months
• Color：Optional
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：Moral
• Origin：Jinan, Shangdong, China
• HS Code：842890
• Production Capacity：50, 000 PCS,Year

Basic Info.

Model NO. SJD Feature Explosion-Proof Speed 100mm/s Load Capacity 3000kg/customized Table Size 1500*1200mm/customized Lifting Height 3000mm/customized Power 3kw Material Double T Steel Control Mode Buttons/remote control Safety Device Emergency Stop Button Warranty 12 months Color Optional Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shangdong, China HS Code 842890 Production Capacity 50, 000 PCS/Year

Product Description

Hydraulic Warehouse Elevator Lift with CE Approval
Main feature
1)chain features lifting goods
2)hydraulic driven and lift by chain
3)steady up and down

Product introduction

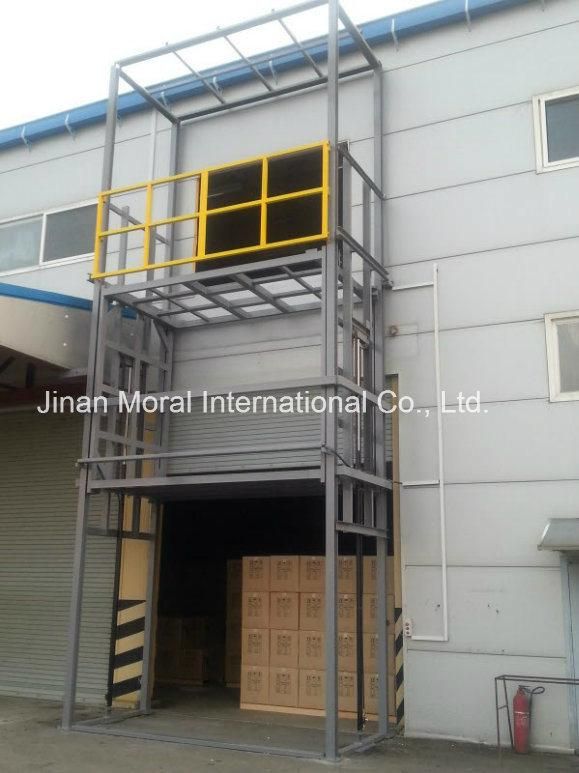

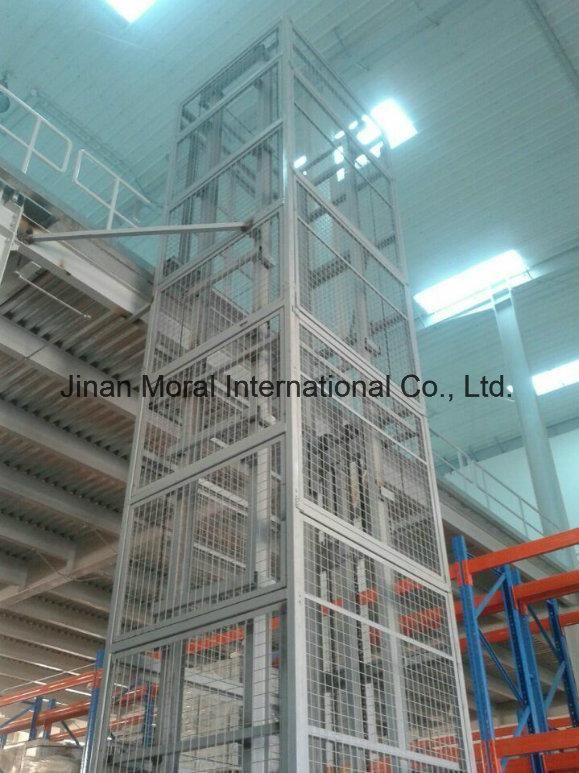

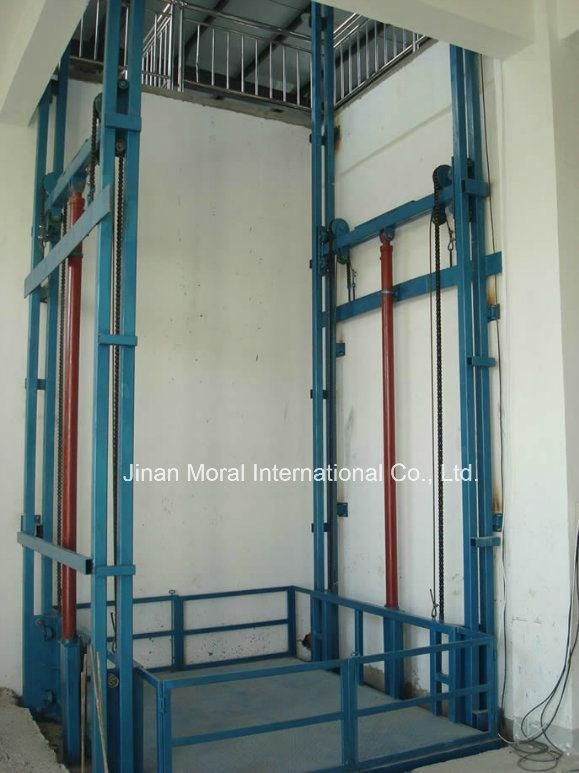

Vertical lift--Lead rail hydraulic lifting platform is used for transfer cargo between different floors. Self-height is about 150-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operate.

This machine provide fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications. The principle components of machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.

We offer the most complete line of machine from mechanical to hydraulic to fully automatic, customized systems for automated manufacturing and warehousing operations. Machine are available in capacities from 100kg. To 100, 000kg.

1) chain lifting platform features lifting the goods through the different floors.
2) chain lifting platform----hydraulic driven and lift by chain.
3) special lifting chain and have long use life.
4) the close height is low so don not need pit installation.
5) closed type structure, safe and easy to clean.


Model	Load	Platform size	Lifting height	Pit depth	Dimension
SJD 3-2.4	3T	2.0*2.0M	2.4M	300 MM	2.0*2.0*0.63M
SJD 2-5	2T	2.1*1.2M	5.0M	200 MM	2.1*1.2*0.87M
SJD 1-4.5	1T	2.1*1.5M	4.5M	200 MM	2.1*1.5*0.80M
SJD 5-6.5	5T	2.2*1.6M	6.5M	300 MM	2.2*1.6*1.28M
SJD3-6.5	3T	2.2*1.9M	6.5M	300 MM	2.2*1.9*1.52M
