• Model NO.：VWL
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Loading Capacity：300kg
• Platform Size：1200mm(L)* 900mm(W) or Customize
• Platform Material：Non-Skid Diamond Aluminum Platform
• Travel Height：4000mm
• Drive：Hydraulic
• Power Output：2.2kw
• Lead Rails：Double-T Steel
• Chain：20A
• Noise：50dB
• Work Conditions：Both Indoor and Outdoor
• Overload：Protection over current relay
• Power Input：120V50Hz,1Phase
• Transport Package：Steel Frame with Plywood Cases
• Specification：CE, ISO, SGS
• Trademark：Moral
• Origin：China(Mainland), Shandong, Jinan
• HS Code：842890
• Production Capacity：100sets Per Month

1200mm(L)* 900mm(W) or customizedMax Platform Height6000mmMin Platform height80mmSpeed80-100mm/sLoad capacity250KG~350KGControl voltage24V/DCPower Output2.2KWPower Input220V/50HZ/25A (or customized for local power supply)Drive SystemHydraulic or screwControl ModeInching Switch or AutomaticDrive ControlSelf-resetting systemOverloadProtection overcurrent relayMaterial of PlatformCheckered slip-proof aluminum alloyPaintingPlastic electrostatic sprayingGuard panel & drive cabinet (framework)Aluminum Alloy / 304 stainless steelOperation PanelPolished aluminum AlloyWorking ConditionBoth indoors and outdoorsWorking temperatureFrom -50°~60°CInstallationNon-pit installation, directly fixed to the concrete floor (the concrete
Floor below the platform shall not be lower than the ground)Emergency StopThe lifting and lowering process can be stopped immediately
By pressing the emergency button.Safety deviceSafety InterlockLock the platform when it is out of control Safety SensorThe operation must be stopped immediately the safety edge meets obstacles during operation. Emergency loweringThe platform can be lowered by opening
Hydraulic valve manually or rolling screw rod. Auto-flapTurn up after lifting

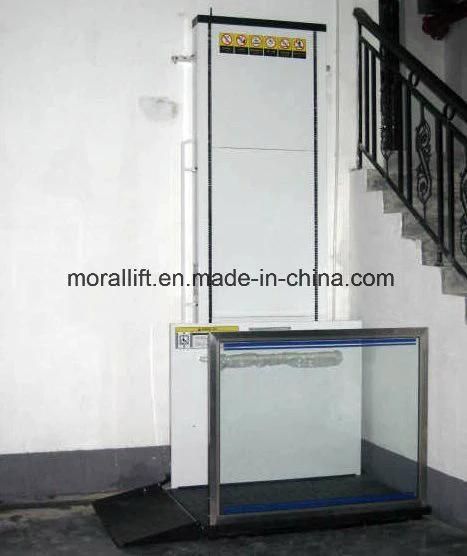

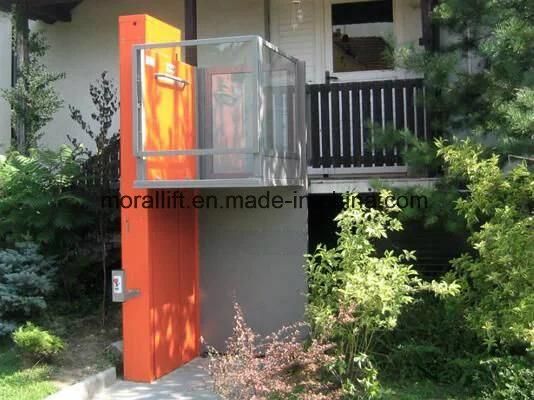

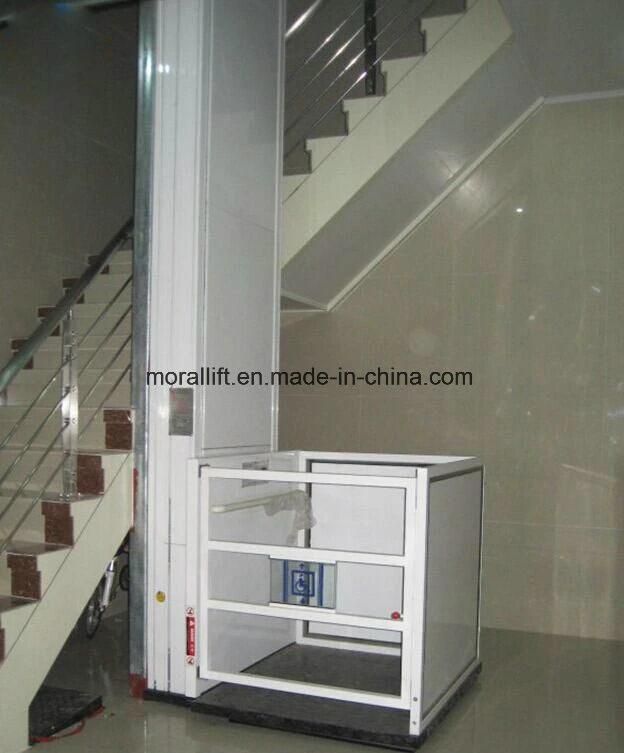

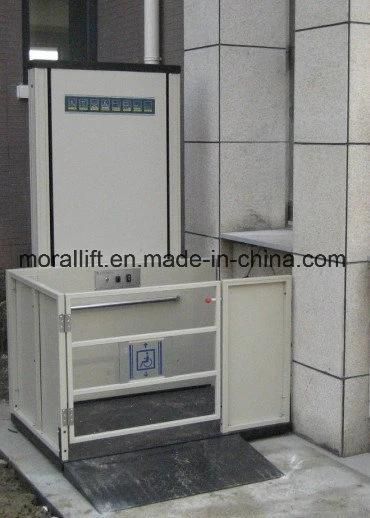

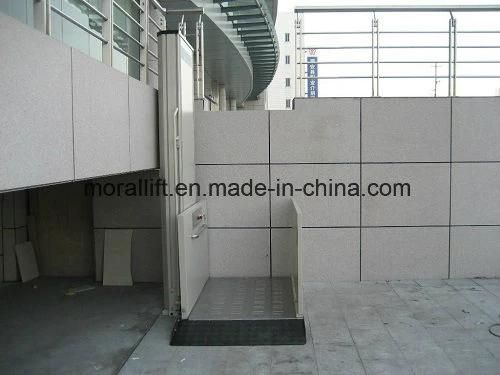

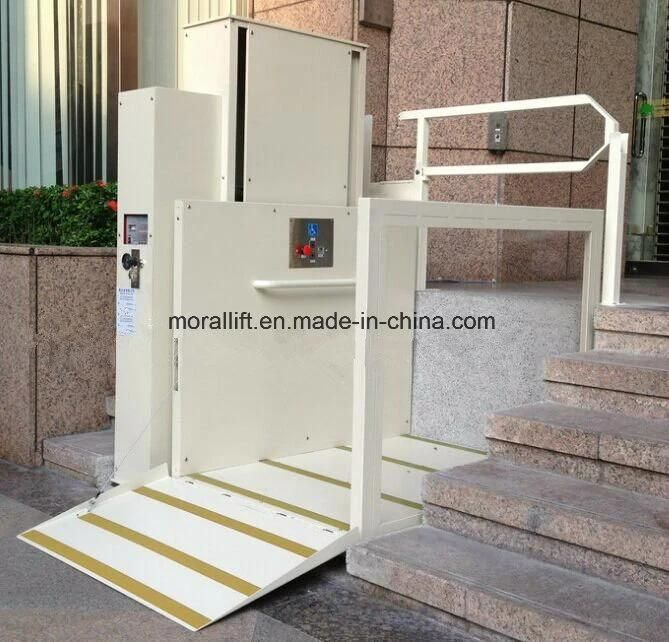

IV. Photos:








V. Our services:
A Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

VI. After-sales services:
The normal machine is properly adjusted before dispatch.
You will be able to get free training advice for our machine in our factory.
You will also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.


VII. FAQ:
A. This is the first time I use this kind of machine, is it easy to operate?
There are English manuals or teaching videos that show how to use a machine.
If there is still have any question, please contact us by e-mail/skype/ phone /trademanager online service at any time.

B. If the machine has any problem after I receive it, what can I do?
Free parts send to you in the machine warranty period if the machine has any problem.

C. MOQ?
The minimum order is 1 set machine; if you order more one time, the price will be better.

D. How can I buy this machine from you?   ( Very easy and flexible !)
1. Consult us about this product online or by e-mail.
2. Negotiate and confirm the final price, shipping, payment methods, and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on the proforma invoice.

E. Nine good reasons why you should buy from us?
1. We are a real factory offering products
2. Free technical advice by QUALIFIED MECHANICAL ENGINEERS
3. Company in business for many years
4. Over 50 countries' customers served!
5. Buy direct saving your money!
6. All machines with CE, ISO, BV certificate.
7. Our engineer can go to your country to provide technical guidance
8. We have phone support in English, if you have any questions, pls feel free to contact us.
We can give you the best solution within 24 hours.
9. Fast delivery, save your time.

Thank you for visiting our products!

Welcome to patronize!
