• Model NO.：YZCQ10-0.9
• Supporting Legs：Optional
• Tyres：Solid Tyre
• Transport Package：Iron Case
• Specification：ISO9001
• Trademark：SDLIFT or OEM
• Origin：China
• HS Code：842890
• Production Capacity：2800PCS,Year

Basic Info.

Model NO. YZCQ10-0.9 Supporting Legs Optional Tyres Solid Tyre Transport Package Iron Case Specification ISO9001 Trademark SDLIFT or OEM Origin China HS Code 842890 Production Capacity 2800PCS/Year

Product Description

Container unloading ramp / Truck unloading ramps / Container load ramp


The mobile container load ramp is ancillary equipment which can be used with forklift to load and unload goods to container.
The work height can be adjusted to equal height of container, in order to help forklift to move goods into container directly.
It will save much labor force, increase the efficiency, speed up the circulation of goods and get more economic benefit.
Operation:
1. Fasten the return vavle (screw the return valve clockwise) and press the hand pump to lift the ramp over container soleplate, then unfold the landing legs to working height.
2. Release the return valve (screw the return valve counterclockwise), and the ramp will fall down onto the container soleplate, then fasten the ramp and container with chains.
Please keep the hyraulic system and ramp tyres no bearing loading weight.
3. Loading or unloading work starts.
4. After work, untie the fixing chains. Lifting the ramp by the hand pump, then drive out the container.
5. Uplifting the afterbody of the ramp by a forklift, then to move it around the yard, or towed it away by a truck for long-distance moving.


Model	load weight (kgs)	min. height (mm)	max. height (mm)	Length(mm)	Width(mm)	Operation method	Total weight (kgs)
YZCQ6-0.9	6000	900	1800	10500	2000	manual or motor	2400
YZCQ8-0.9	8000	900	1800	10500	2000	manual or motor	2500
YZCQ10-0.9	10000	900	1800	10500	2000	manual or motor	2600

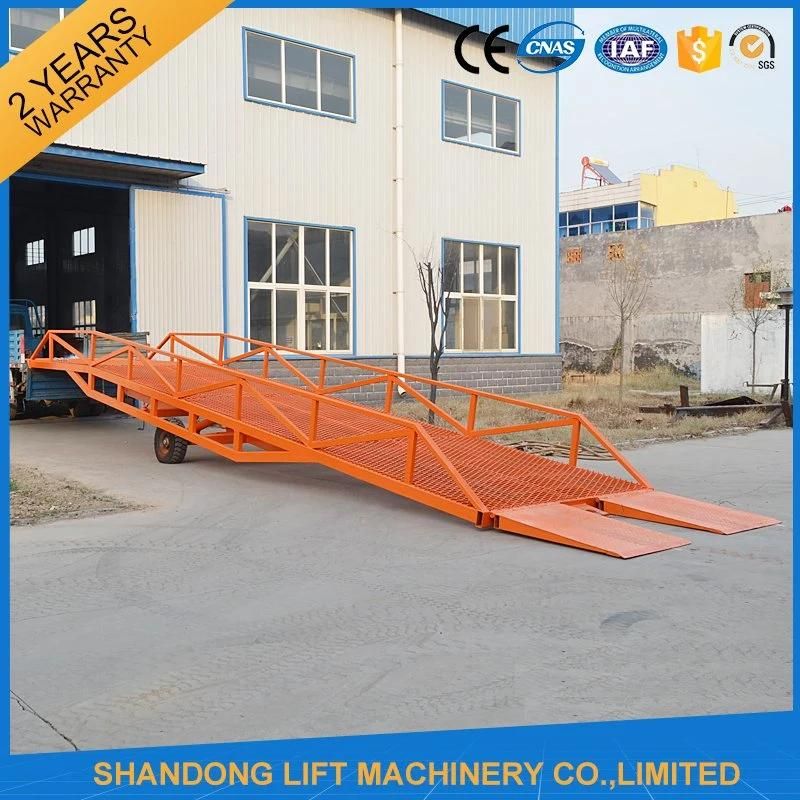

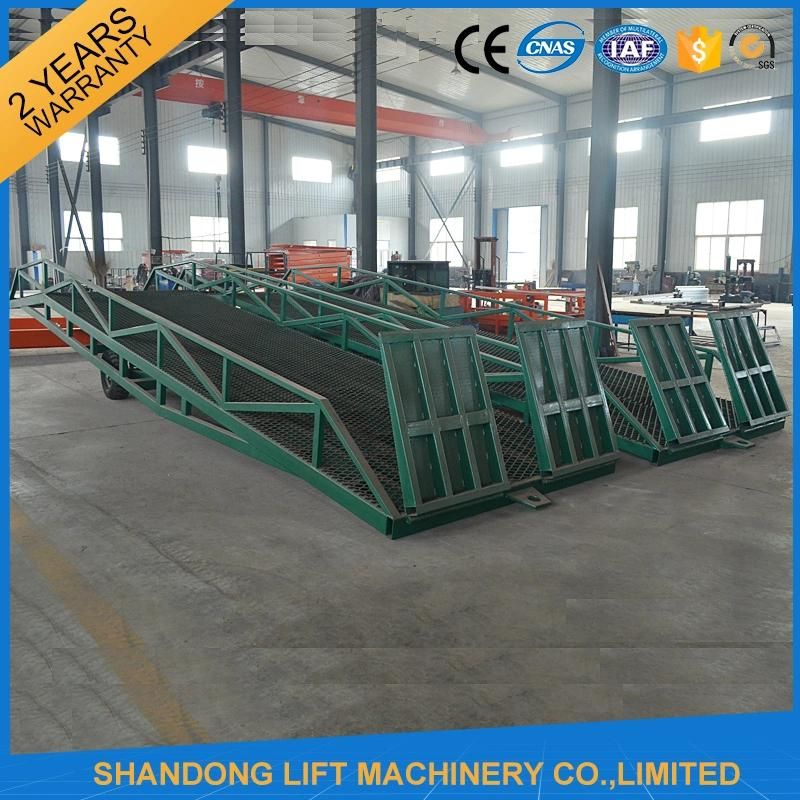

Photos Show:
