High Rise Window Cleaning Equipment with Ce

Shandong Lift Machinery Co., Ltd.
  • Application：Maintenance of Street Lamp
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Light Level
  • Moves：Moving
  • Driven Type：Hydraulic
  • Running Mode：Stationary

Base Info

  • Model NO.：SJG0.3-10
  • Feature：Explosion-Proof
  • Certification：CE, ISO 9001
  • Safety Device：Explosion-Proof Lock Valve
  • Mobile：4 Wheels
  • Power：Electric and Hyraulic
  • Style：Scissor Aerial Work Platform
  • Lift System：Hydraulic System
  • Voltage：110V 220V 240V 380V Optional
  • Material：High Strength Manganese Steel
  • Lifting Capacity：300kg
  • Platform：Anti-Skid Checkered Plate
  • Lifting Height：8m
  • Transport Package：Iron Case or Plywood Case Package
  • Specification：CE
  • Trademark：SDLIFT
  • Origin：China Shandong
  • HS Code：84289090
  • Production Capacity：3800 Set Per Year

Description

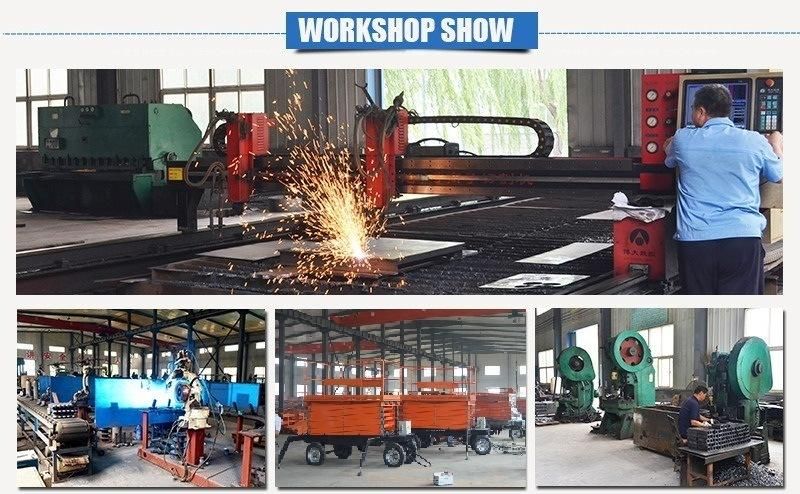

ModelCapacityTable sizeMax heightWork heightTotal dimensionNet weightSJY0.3-4300Kgs1500×750mm4m5.7m1850×900×1900mm400KgsSJY0.3-6300Kgs1500×750mm6m7.7m1850×900×1970mm650KgsSJY0.3-8300Kgs1650×1000mm8m9.7m2100×1200×2460mm1200KgsSJY0.5-8500Kgs1980×1220mm8m9.7m2500×1550×2380mm1400KgsSJY0.8-8800Kgs2000×1220mm8m9.7m2600×1550×2640mm1700KgsSJY0.3-10300Kgs2100×1220mm10m11.7m2700×1550×2380mm1500KgsSJY0.5-10500Kgs2100×1220mm10m11.7m2700×1550×2380mm1600KgsSJY1.0-101000Kgs2220×1220mm10m11.7m2820×1720×2850mm2380KgsSIY0.3-12300Kgs2550×1500mm12m13.7m3150×1860×2850mm2580KgsSIY0.5-12500Kgs2550×1500mm12m13.7m3150×1860×2850mm2780KgsSJY1.0-121000Kgs2600×1500mm12m13.7m3200×2015×3090mm3580KgsSJY0.3-14300Kgs2990×1600mm14m15.7m3600×2000×2850mm3000KgsSJY0.5-14500Kgs2990×1600mm14m15.7m3600×2000×2850mm3200KgsSJY0.3-16300Kgs3230×1600mm16m17.7m3700×2000×3030mm3900KgsSJY0.3-18300Kgs3230×1600mm18m19.7m3700×2000×3250mm4500KgsSJY0.3-20300Kgs3230×1600mm20m21.7m3700×2000×3450mm 5100Kgs Our Factory
High Rise Window Cleaning Equipment with Ce

Our Services
1) We can design the customerized telescopic ladder as per your requirement.
2) The most suitable telescopic ladder will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
 Engineers are available to your country if necessary.
