• Model NO.：SOV-SMTB series
• Certification：CE, ISO 9001:2008
• Condition：New
• Name：Hydraulic Synchronous Lifting System
• Load Capacity：up to 128, 000 Ton
• System：Window Interface
• Function：Multi-Functions
• Control：Romote Control
• Voltage：220V-380V
• Computer Language：PLC
• Color：Yellow or Customized
• Lifting Type：4, 8, 16, 24, 64 Points
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO9001, SGS
• Trademark：SOV
• Origin：China
• HS Code：8425421000
• Production Capacity：60 Sets Per Month

Basic Info.

Model NO. SOV-SMTB series Certification CE, ISO 9001:2008 Condition New Name Hydraulic Synchronous Lifting System Load Capacity up to 128, 000 Ton System Window Interface Function Multi-Functions Control Romote Control Voltage 220V-380V Computer Language PLC Color Yellow or Customized Lifting Type 4, 8, 16, 24, 64 Points Transport Package Standard Export Wooden Case Specification CE, ISO9001, SGS Trademark SOV Origin China HS Code 8425421000 Production Capacity 60 Sets Per Month

Product Description

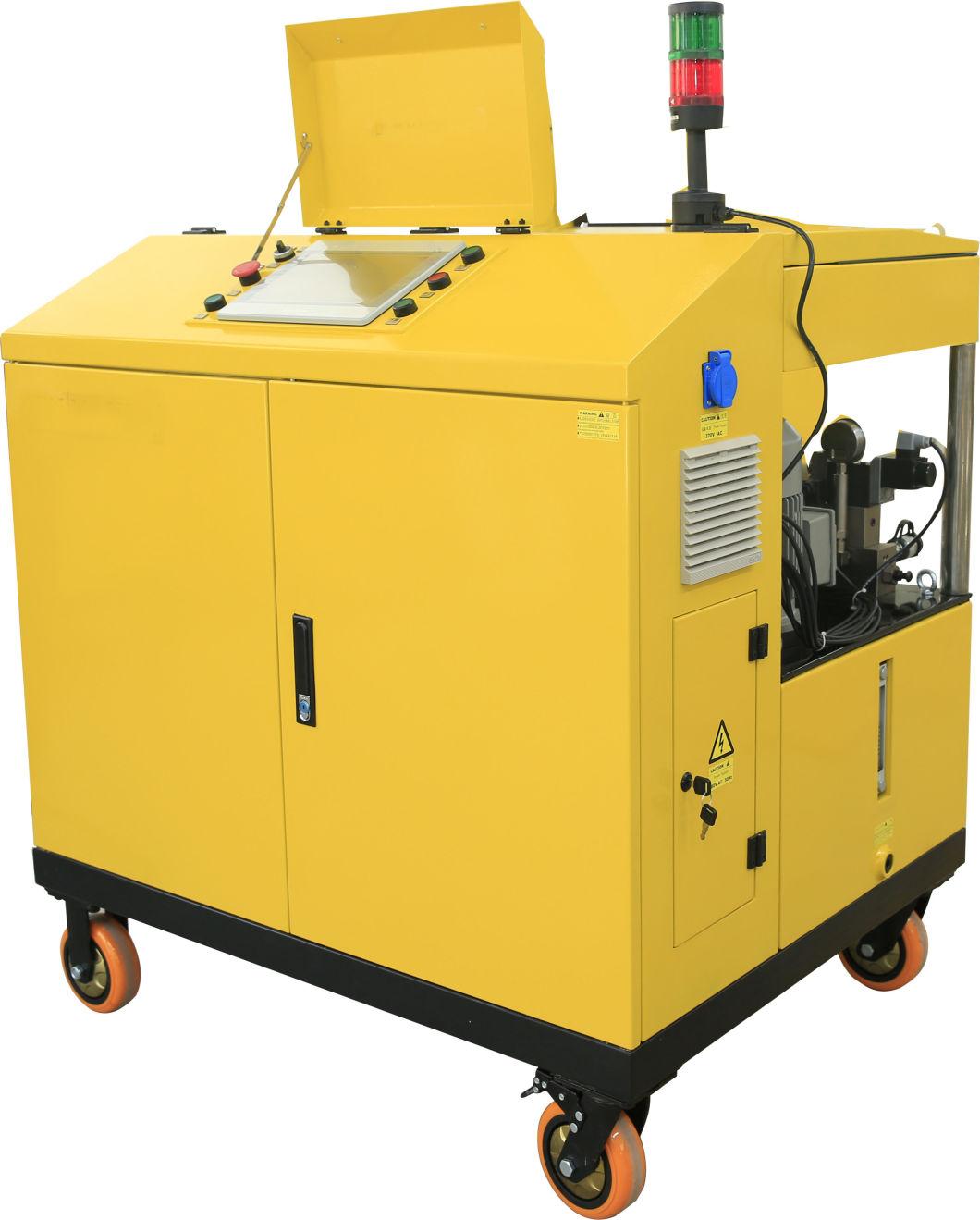

                                         PLC Multi Points Hydraulic Synchronous Lifting System

Features:


1. Number of Lifting Points: 4, 8, 12 or 16,24, 32,64
2. Accuracy Over Full Stroke: ± 0.5 mm
3. Each point support up to 2,000 tons, with 64 points system, the total max 4. lifting capacity up to 128,000 ton. Customized cylinder capacity offered.
4. Maximum Operating Pressure: 700 bar
5. Frequency conversion, closed hydraulic oil circuit, self-adjusting electronic pulse control
6. Valve control button to averagely distribute jack loading to avoid overloading or slippery,
7. Advanced hydraulic oil speed control to maintain height precision, fast speed lifting and coming back, speed controllable
8. Load and stroke alarms for optimal safety
9. Colored touchable screen, Microsoft Window Interface to make settings, monitor all distribution of loading and data storage and recording capabilities

Parameter

Model No.	Points	Synchronous Accuracy(mm)	Motor (kW)	Voltage (V)	Working Pressure (MPa)	Flow (L/min)	Oil Tank Capacity  (L)	Weight (kg)	Size (mm)
SOV-SMTB-4	4	<=±0.5	2.2	380	70	2	130	220	760×870×1210
SOV-SMTB-8	8	<=±0.5	2.2	380	70	2	130	240	760×870×1210
SOV-SMTB-12	12	<=±0.5	2.2	380	70	2	130	260	760×870×1210
SOV-SMTB-16	16	<=±0.5	5.5	380	70	5	200	380	1100×960×1130
SOV-SMTB-24	24	<=±0.5	5.5	380	70	5	200	432	1100×960×1130

Pictures






Application Area




Multi purpose: house translation/bridge construction or supporting,
Off-shore oil plant drilling platform supporting and equipment testing.

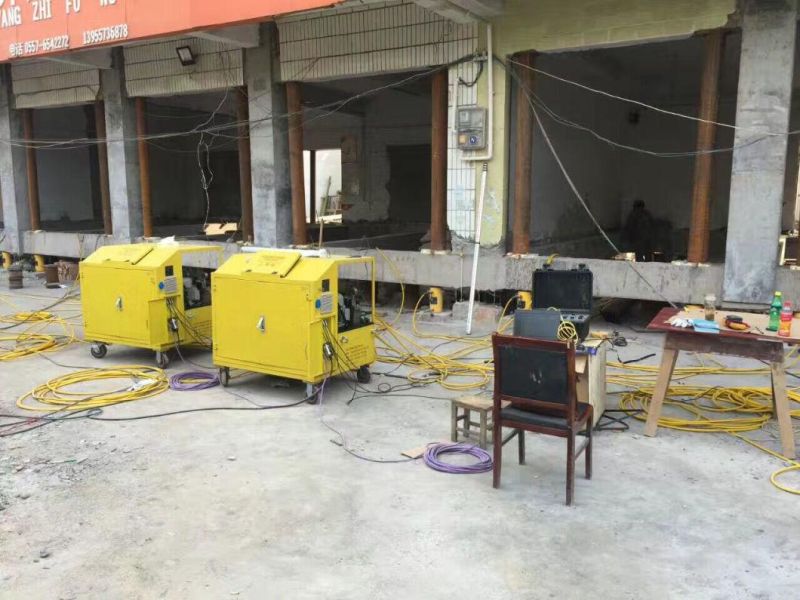

Antique pagoda, building leveling translation
Crude oil Tank wielding support

Application Case

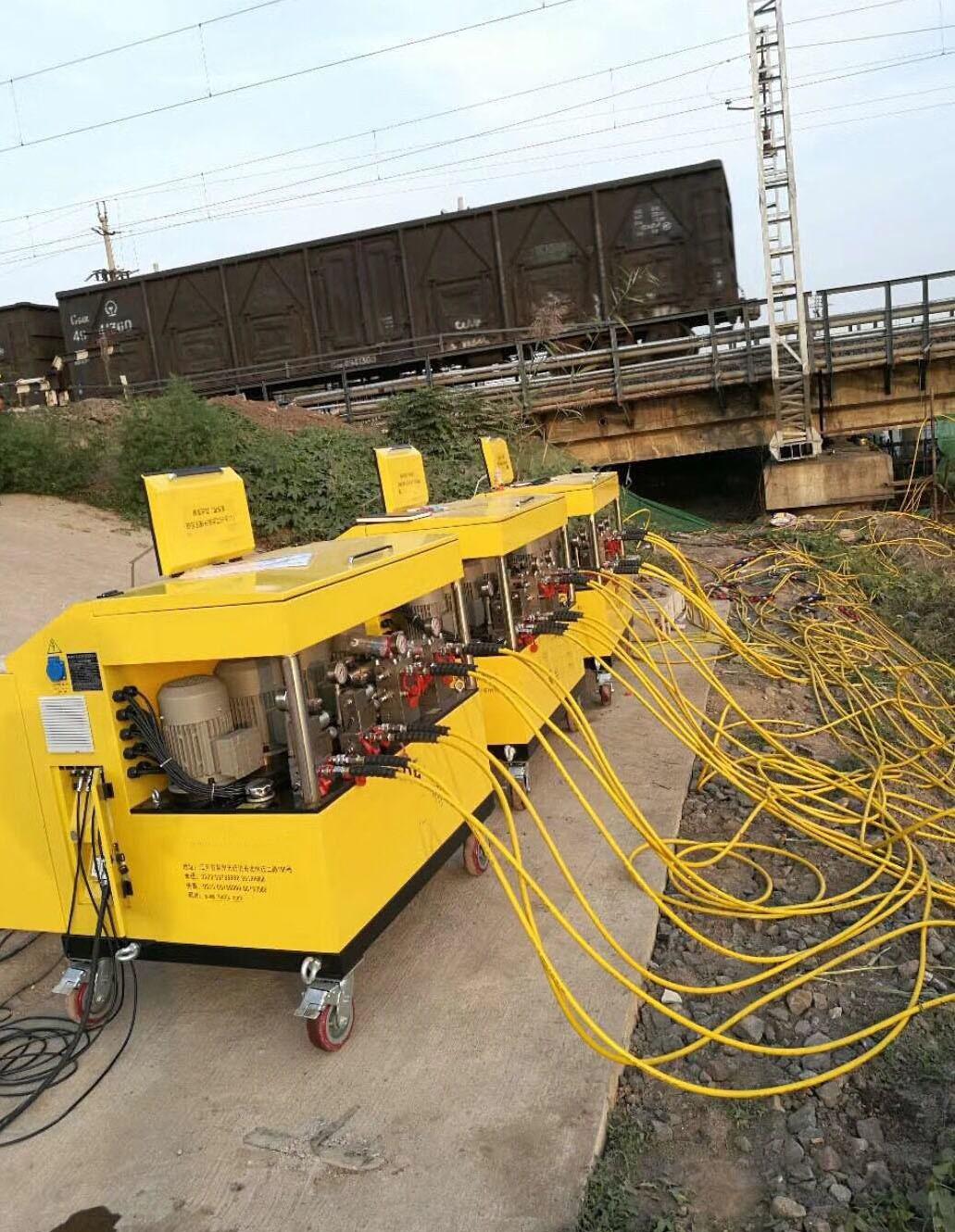

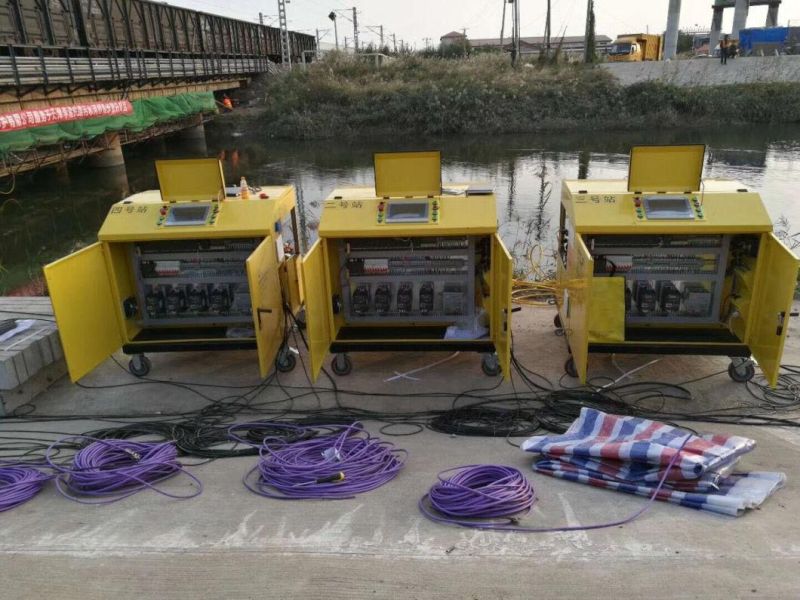

1. Shanghai - Beijing High Speed Railway Yangtze River Bridge Project
2. Shanghai Baosteel testing and installing
3. The three Gorge Dam, hydropower plant installing
4. Zhangfei Temple translation in Sichuan

Shipping

1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.

Our Service

1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company Information

SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Our products include:
Hydraulic cylinders, jacks (5-3000ton);
Hydraulic/ electric /pneumatic torque wrench (100-160000Nm);
Hydraulic bolt tensioner (M24-M600);
Hydraulic pullers (5-1000ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.
