• Model NO.：MDR
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating, Spillover Valve
• Certification：GS, CE, RoHS, ISO 9001
• Load Capacity：6ton, 8ton, 10ton, 12ton
• Lifting Rage：900-1800mm
• Bridge Length：10500mm
• Bridge Width：2080mm
• Tread：1500mm
• Power：Manual or AC
• Quanlity Warranty：18month
• Failure Rate：Extremely Low
• Delivery Time：10days
• Product Name：8ton 10ton Warehouse Mobile Container Ramp with Pr
• Transport Package：High Quality Seaworthy Package
• Specification：CE, ISO, SGS
• Trademark：SAGAFIRST
• Origin：China
• HS Code：8428909090
• Production Capacity：10000

Basic Info.

Model NO. MDR Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating, Spillover Valve Certification GS, CE, RoHS, ISO 9001 Load Capacity 6ton, 8ton, 10ton, 12ton Lifting Rage 900-1800mm Bridge Length 10500mm Bridge Width 2080mm Tread 1500mm Power Manual or AC Quanlity Warranty 18month Failure Rate Extremely Low Delivery Time 10days Product Name 8ton 10ton Warehouse Mobile Container Ramp with Pr Transport Package High Quality Seaworthy Package Specification CE, ISO, SGS Trademark SAGAFIRST Origin China HS Code 8428909090 Production Capacity 10000

Product Description

6ton to 12ton Warehouse Mobile Container Loading Dock Yard Ramp


Introduction:1. No need installation and easy operation
2. Almost no need maintenance.
3. Adopting high strength steel, strong dual structure.
4. Improving  working efficiency, reducing the manpower cost
5. Load capacity from 6T to 12T available.
6. Suitable for various height of truck.
Specification for Dock Ramp:


Model No.	MDR-6	MDR-8	MDR-10	MDR-12
Load Capacity (ton)	6	8	10	12
Platform Size (mm)	11000*2000	11000*2000	11000*2000	11000*2000
Overall Size(mm)	11000*2000*1400	11000*2000*1400	11000*2000*1400	11000*2000*1400
Lip Width (mm)	400	400	400	400
Tail Board Length (mm)	800	800	800	800
Platform Length(mm)	2900	2900	2900	2900
Slope Length(mm)	7500	7500	7500	7500
Adjustable Range of Lifting Height(mm)	1000~1800	1000~1800	1000~1800	1000~1800
Operating	Manually	Manually	Manually	Manually
Pit Size (mm)	2080*2040*600	2080*2040*600	2080*2040*600	2080*2040*600
Platform Materials	3mm checked steel plate +7mm steel screen	4mm checked steel plate +7mm steel screen	4mm checked steel plate +7mm steel screen	5mm checked steel plate +8mm steel screen
Lip Materials	14mm Q235B plate	16mm Q235B plate	18mm Q235B plate	20mm Q235B plate
Lifting Frame	120×60×4.5 profile steel	120×60×4.5 profile steel	160×80×4.5 profile steel	200×100×6 profile steel
Bed Frame	120×60×4.5 profile steel	120×60×4.5 profile steel	120×60×4.5 profile steel	160×80×4.5 profile steel
Lower Truss	100*50*3 rectangle tube Q235B	100*50*3 rectangle tube Q235B	100*50*3 rectangle tube Q235B	100*50*3 rectangle tube Q235B
Guardrails	60*40*3 rectangle tube Q235B	60*40*3 rectangle tube Q235B	60*40*3 rectangle tube Q235B	60*40*3 rectangle tube Q235B
Tyre	500-8 solid tyre	500-8 solid tyre	600-9 solid tyre	600-9 solid tyre
Cylinder Pin	45# Ø50 rod steel*4	45# Ø50 rod steel*4	45# Ø50 rod steel*4	45# Ø50 rod steel*4
Lifting Hydraulic Cylinder	HGS series Ø80/45	HGS series Ø80/45	HGS series Ø80/45	HGS series Ø80/45
Lip Hydraulic Cylinder	HGS series Ø40/25	HGS series Ø40/25	HGS series Ø40/25	HGS series Ø40/25
Hydraulic Oil Pipe	Double wire mesh high pressure tubing 2-10-43MPa	Double wire mesh high pressure tubing 2-10-43MPa	Double wire mesh high pressure tubing 2-10-43MPa	Double wire mesh high pressure tubing 2-10-43MPa
Electrical appliance	Delixi	Delixi	Delixi	Delixi
Hydraulic Oil	ML series antiwear hydraulic oil 6L	ML series antiwear hydraulic oil 6L	ML series antiwear hydraulic oil 6L	ML series antiwear hydraulic oil 6L
Net Weight(kg)	2350	2480	2750	3100
40'container Load Qty	3sets	3sets	3sets	3sets

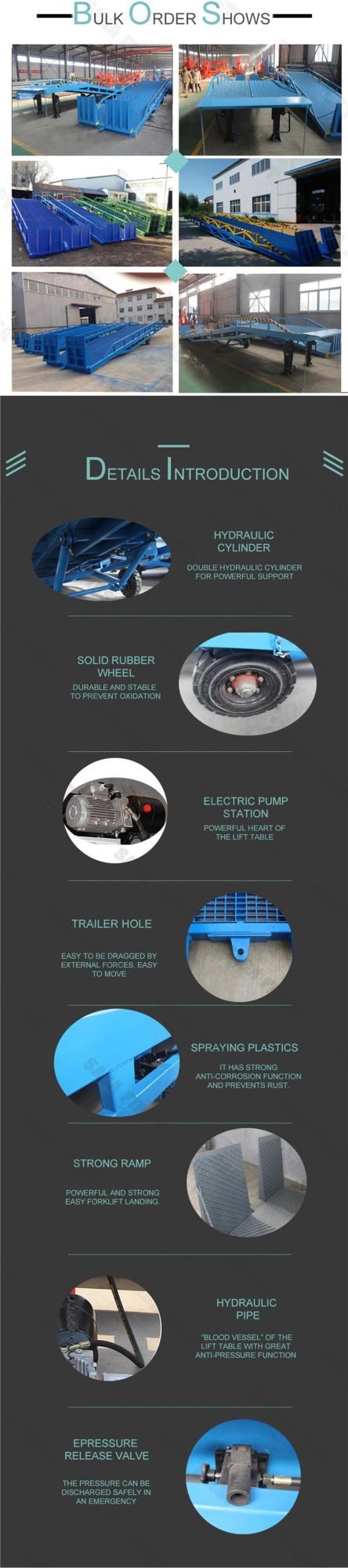

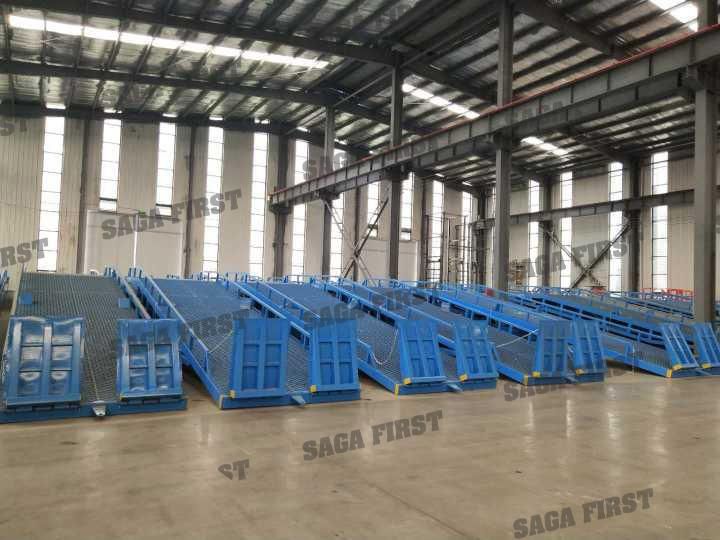

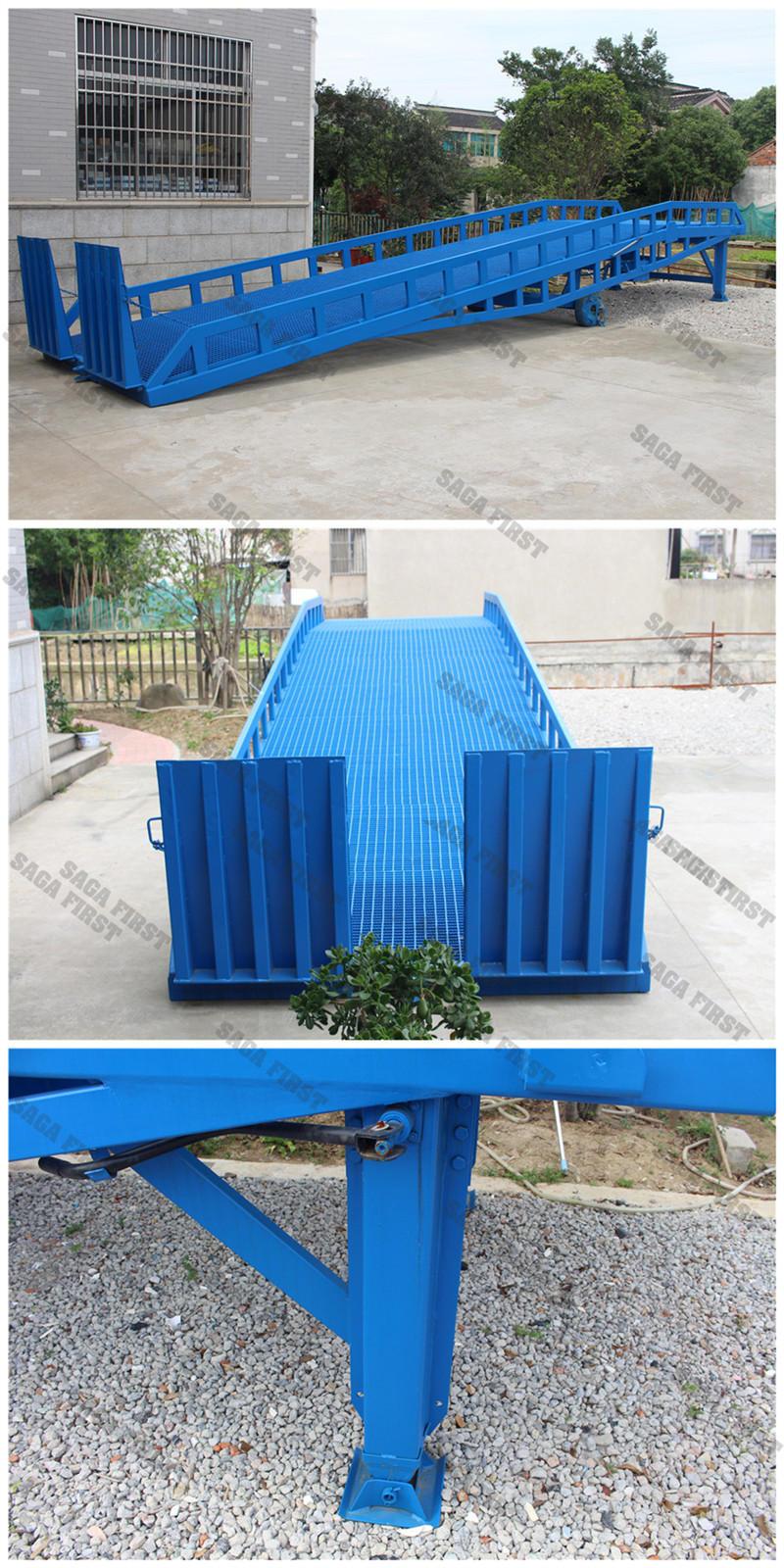

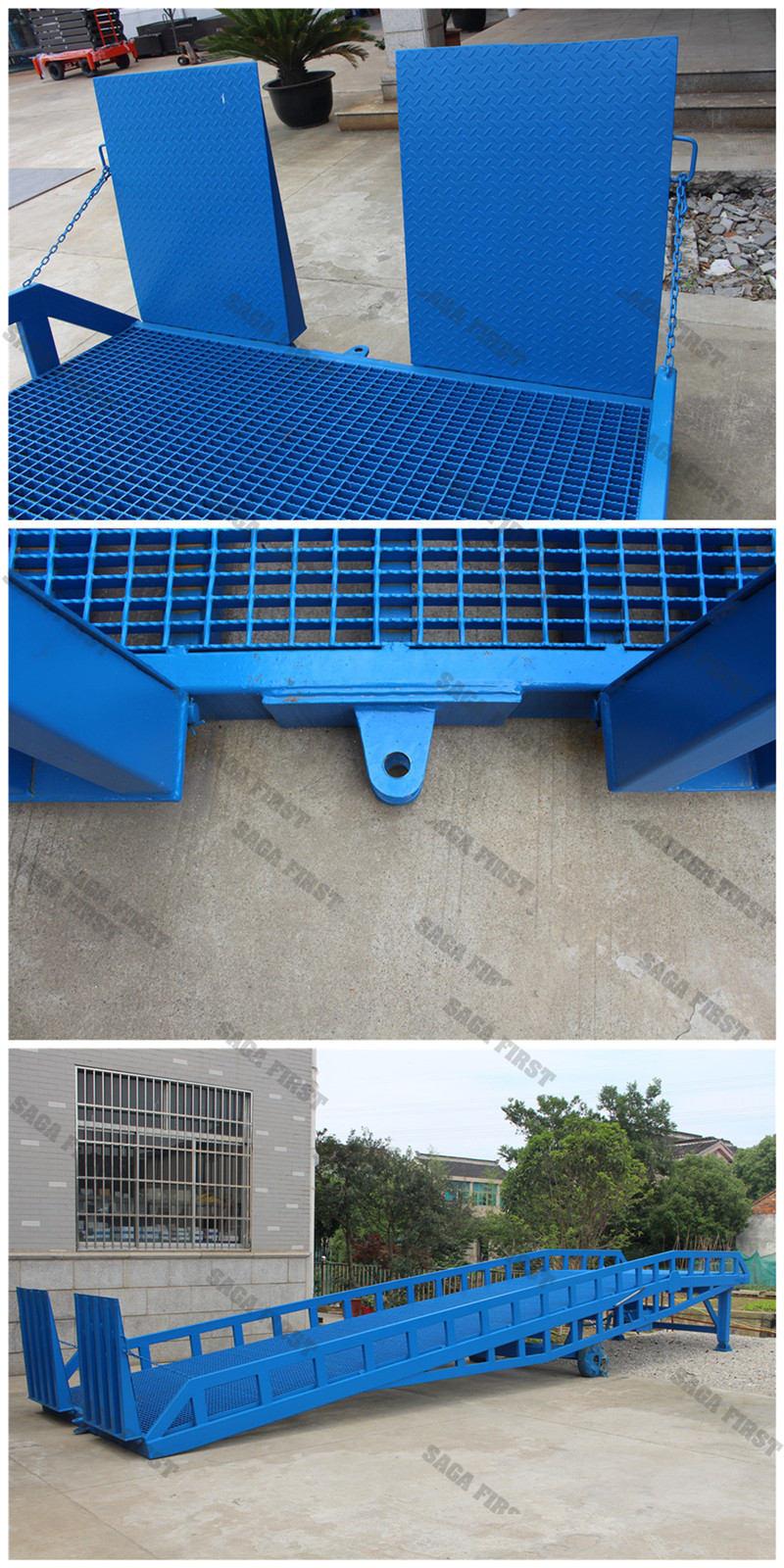

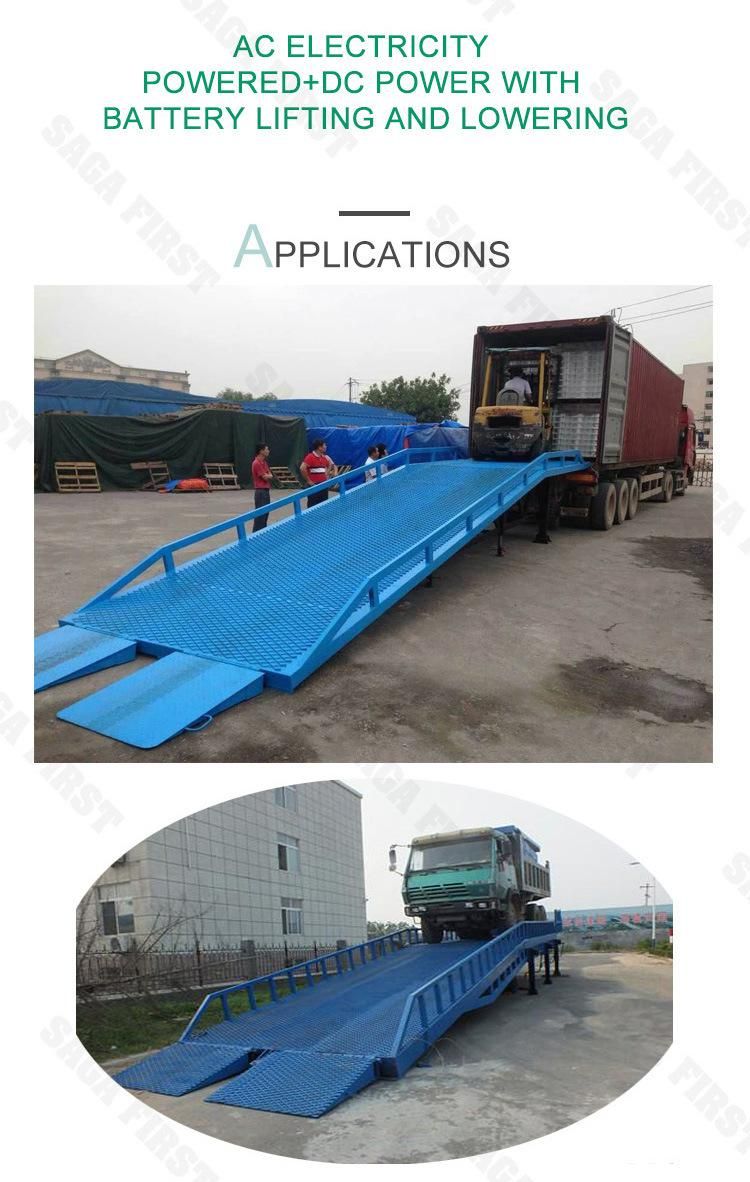

Pictures for Your Review:






Our Service for Container Dock Ramp Price:

1.We can design the customerized container dock ramp as per your requirement.

2.The most suitable model will be recommended to you once we know about your requirement.

3.Shipment can be arranged from our port to your destination port.

4.Operation video can be sent to you if needed.

5.Maintenance video will be given once the container dock ramp break down to help you repair.

6.Parts of container dock ramp can be sent to you by express within 7 days if needed.

Frequently Asked Questions:

1.How can customer  buy parts once it break down?

The container dock ramp adopt most of the common parts of hardware.You can buy the parts in your local hardware market.

2.How can customer repair the container dock ramp.

One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.

3.How long is the quality guarantee?

One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.

Certificate:CE ROHS SGS IOS ETC.

Our Service:
1.We can design the customerized the lifter as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port or home.
4.Opetion video can be sent to you if needed.
5.Maintenance and user manual.
6.Parts of the lifting equipment can be sent to you by express within 7 days if needed.

Frequently Asked Questions:
1.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
one year quality guarantee.send the parts free of charge

Frequent Asked Questions	Answers
Are you a factory or trading company?	We're factory with over 12years exporting experience.
What's the MOQ?	1UNIT,the more,the better.
What's the payment terms?	<USD4999: 100%TT in advance.  >USD5000:  30%TT in advance,balance before shipment.  >USD10,000: TT or Irrevocable L/C At Sight.
Do you offer OEM&ODM service?	Yes,like lifting capacity, lifting height, size of platform,painting  color,logo,manual etc.
What's the delivery time?	15~20days after down payment
What's the quality warranty?	24 months.Offer free parts for replacement.
How can I get the after-sales service?	We offer videos,pictures and technical guidance immediately.
What's your QA&QC policy?	3times 100% inspection before shipping.
Can you tell me your clients in my country?	Of course. But only after the permittance of customers.

Feel free to contact us anytime. Our professional salesmen are 24hours online.
