Sc200/200 Construction Elevator 2t Double Cages Passenger Lift Building Hoist
Shandong Xingdou Intelligent Equipment Co., Ltd.- After-sales Service：Oversea Service
- Warranty：12 Months
- Application：Double Beam Crane, Bridge Crane, Single Grinder Crane, Lifting Platform
- Type：Rack and Pinion
- Sling Type：Cable
- Lift Speed：0-36m,Min, 0-63m,Min
Base Info
- Model NO.：SC200,200, SC100,100, SC200, SC100
- Maximum Lifting Height：300m
- Chain Falls：Without
- Certification：CE, ISO9001:2000
- Condition：New
- Color：Red
- Product Name：2t Double Cages Passenger Lift Building Hoist
- Dimension(L*W*H)：3.0 X1.5 X2.2 (M)

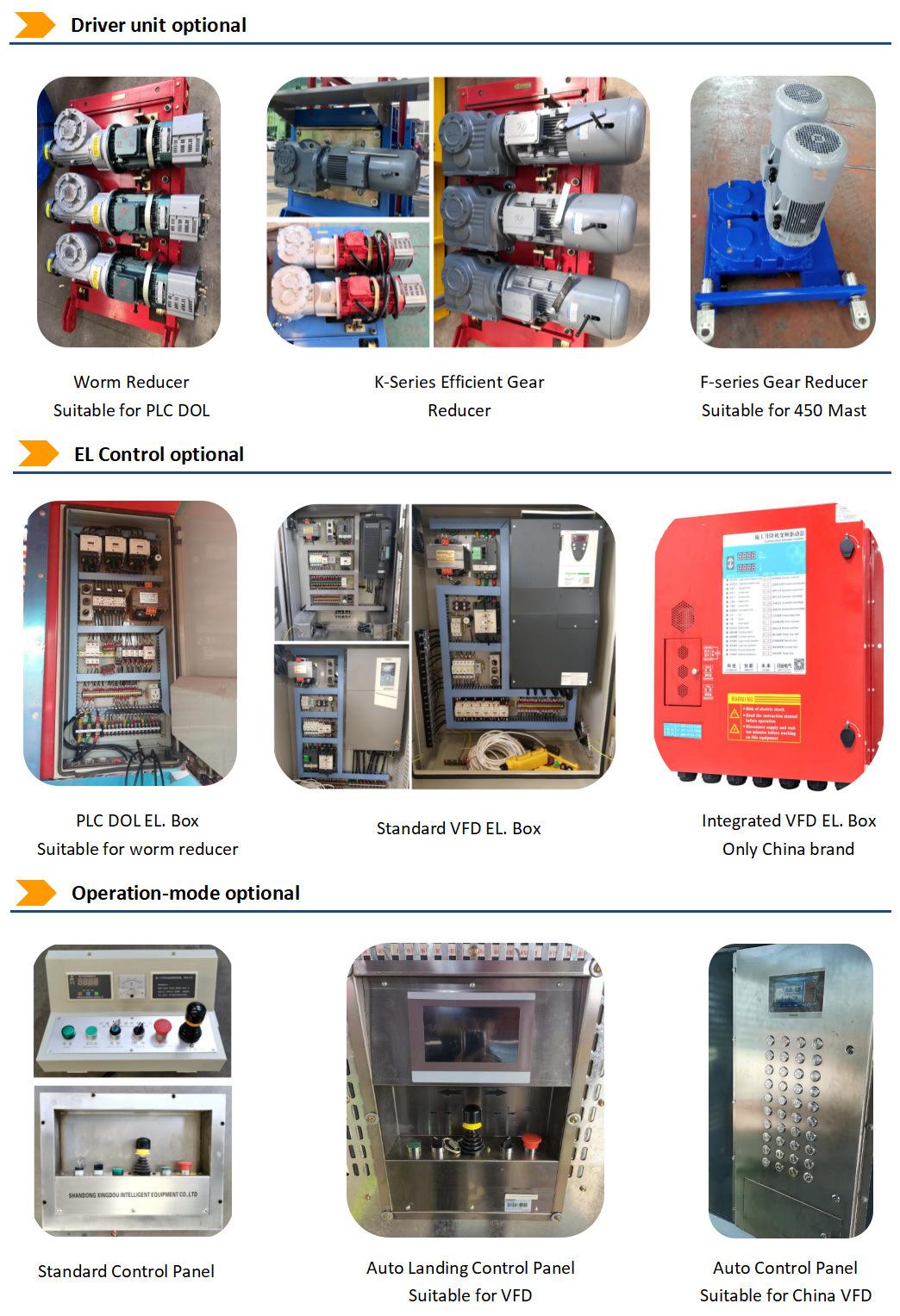

- Driving Motor：2X13kw, 2X15kw, 2X23kw, 3X15kw
- Lifting Speed：33m,Min, 0-36m,Min, 0-63m,Min
- Surface Treatment：Blasting, Baking Finished, Painting, Galvanizing
- Rated Capacity：500kg to 2000kg

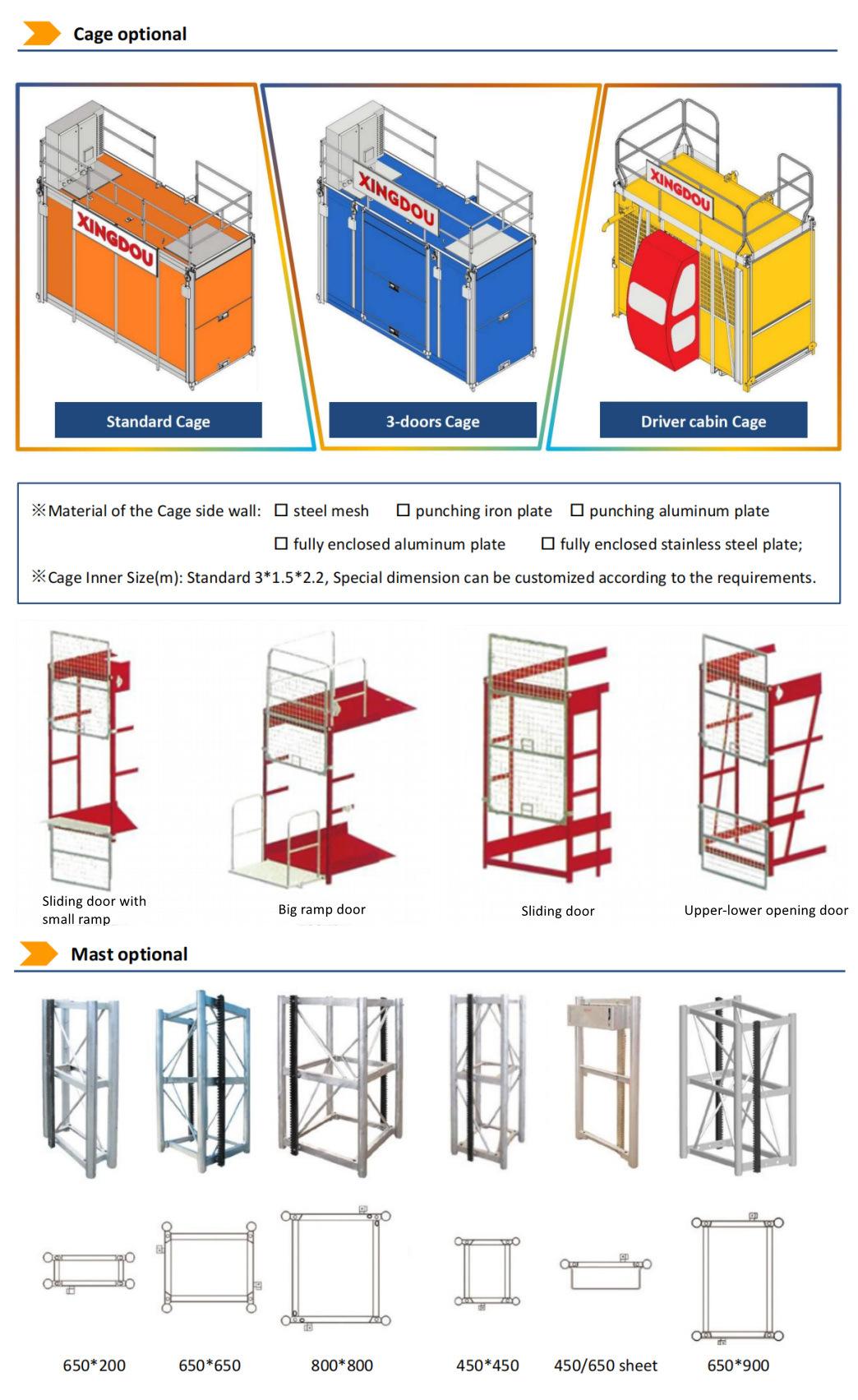

- Mast Section：650*650*1508(mm) Weight:145kg
- Voltage Frequency：380-50Hz (Can Be Arranged Client′s Equiremen)
- Size：OEM as Customers Building
- Control System：PLC, Vfc with World Leading Brand
- Delivery：7-10days Production Period
- Transport Package：Container
- Specification：According to Model
- Trademark：XINGDOU
- Origin：Shandong, China (Mainland)
- HS Code：84281090
- Production Capacity：1000sets,Year
Description
Mid speedSC200Z 2000kg 0-63m/min 2x23kw 3X15kw SC100Z 1000kg 0-63m/min 2x16kw
Main Technology of Construction Lift
1. Mast section welded by welding Robot ensures reliable quality and elegant appearance.
2. All the steel structures are processed with blasting technology to remove rust. The adhesion of
surface painting is outstanding.
3. Suspension cage guarding board adopts figured aluminum plate and numerical control punched
aluminum plate. The suspension cage is lightweight and artistic in appearance.
4. Transmission mechanism supplied by the professional manufacturer has high efficiency, long
service life and stability in performance.
5. Complete set of overload protection devices, variety of limiters and mechanical chain devices
ensure its reliability. Anti-falling safety device adopts SAJ40-1.2, which restricts the excessive
downward movement of the cage, preventing and eliminating accidents.
6. Frequency conversional construction elevator is safe, stable and comfortable. Starting electricity is smaller than working electricity, energy-saving and high efficient.
The Mast section(color is variable) is made of seamless pipe.
(The high quality seamless steel pipe is good verticality, anti-pressure, anti-aging, thickness and so on)
Completed safety measures1. Equiping with Anti-falling govenor
2. Electrical and Mechanical interloc,Door safety switches, Trap door limit switch
3. Safety hook
4. Upper and bottom limit swithes, 3P limit switch, Emergency Stop
5. Overload limiter protector
6. Power Keylock
7. Phase failure Protection
8. Bottom Buffer
9. Top mast No rack Cage ride out Protection
10. Ramp door form a safety passage
11. Frequecy Conversion (Inverter) can be choose
12. PLC Control system can be choose

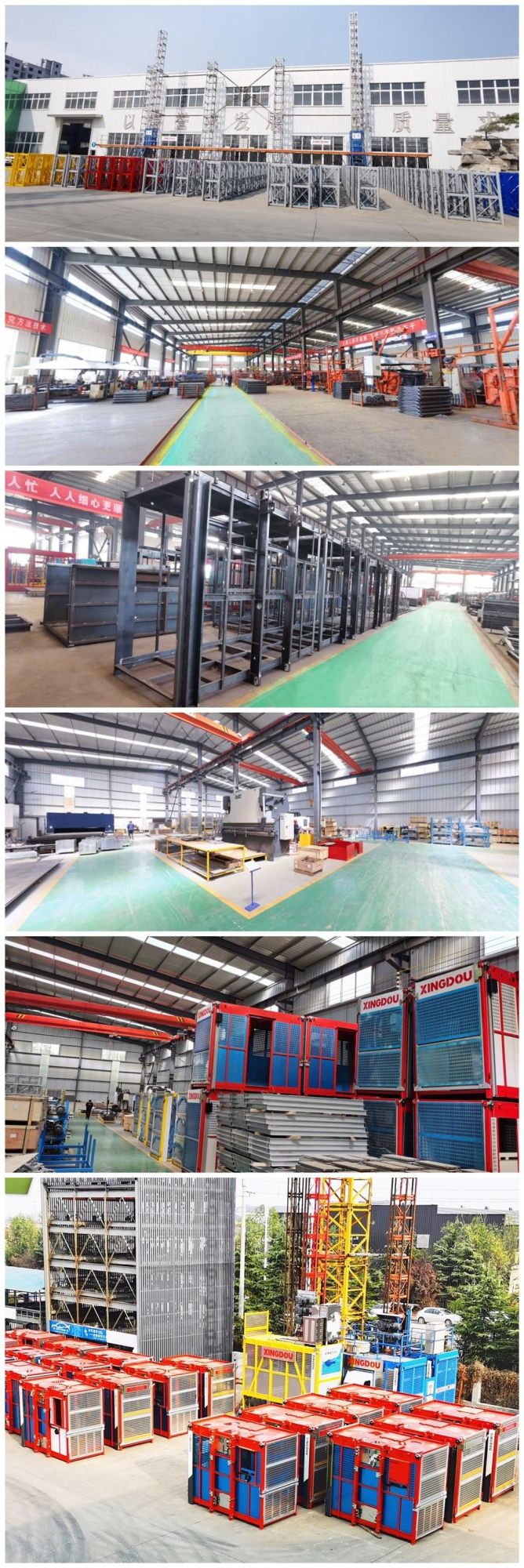

13. Level Calling system and Auto leveling device to be choose II. Manufacturing Workshop

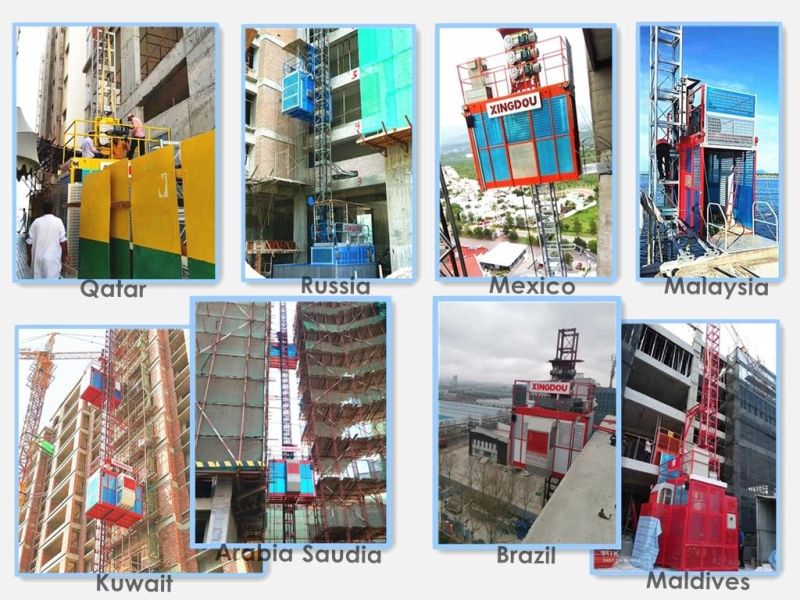

III. Oversea Project
We have rapidly developed domestic and foreign markets because of the integrity of the Company and its high-quality product. Starting in 2007 the Company began to develop foreign markets. Since then it has exported to more than 50 countries and regions.
IV. Company ProfileWe are focus on all kinds of rack and pinion driving vertical access machinery and Supply design, solution and OEM to all customers all over the world!
V. Certificate
Our company is a Chinese goverment certified Special equipment production manufacturer, we have got Chinese Goverment Hi-Tech Certificate, Special equipment Production certificate, ISO9001, ISO14001, CE approved, EAC approved...
VI. RFQ
1. What are your main products?
We produce construction hoist (also called construction elevator, construction lift) and spare parts of it.
2. Are all construction hoists the same from all Vendors & Manufacturers?
Our construction hoist has been improved better than some others. Firstly, the mast section stulls are changed to U-shape structure, the diagonal bracing adopt solid round steel instead of hollow. So the mast section becomes more stable than the old type. Secondly, in the configuration, we adopt famous brand motor, world famous electric and Huaye Rongcheng brand gear reducer.
3. Do your products have some certificates?
Yes. Our products have CE, ISO and BV Certificates.
4. What are the payment terms and the delivery time?
Payment terms are T/T and LC. We will ship the cargo within 20-30 days after receiving the 30% deposit.
5. Are you manufacturer or the trader?
We are manufacturer,have our own factory and Research and development team.
6. Will you develop distributor and sole agent?
Yes, should you have any interest to be our distributor and agent, please let us know in any ways. Sole agent is available depend on the sales turnover.
7. Where do you ship to and what countries have you done business in?
We provide quick and efficient shipping to countries all over the world from Qingdao port.
We have done business with customers in many countries, such as Brazil, Korea, Malaysia, Thailand, India, Vietnam, and Indonesia etc.
8.Quotation request:
If you are interested in our products, please provide the following parameters:
1) Lift height (m)
2) Load capacity (ton)
3) Double cage or single cage
3) Local power supply (kV, Hz)
4) Other special equipments
We will provide best price once confirmed the above. Welcome distributors, agent, or endusers contact us for further negotiation and cooperation !
Any questions or inquiries will be replied within 24 hours.
Main Technology of Construction Lift
1. Mast section welded by welding Robot ensures reliable quality and elegant appearance.
2. All the steel structures are processed with blasting technology to remove rust. The adhesion of
surface painting is outstanding.
3. Suspension cage guarding board adopts figured aluminum plate and numerical control punched
aluminum plate. The suspension cage is lightweight and artistic in appearance.
4. Transmission mechanism supplied by the professional manufacturer has high efficiency, long
service life and stability in performance.
5. Complete set of overload protection devices, variety of limiters and mechanical chain devices
ensure its reliability. Anti-falling safety device adopts SAJ40-1.2, which restricts the excessive
downward movement of the cage, preventing and eliminating accidents.
6. Frequency conversional construction elevator is safe, stable and comfortable. Starting electricity is smaller than working electricity, energy-saving and high efficient.
The Mast section(color is variable) is made of seamless pipe.
(The high quality seamless steel pipe is good verticality, anti-pressure, anti-aging, thickness and so on)
Completed safety measures1. Equiping with Anti-falling govenor 2. Electrical and Mechanical interloc,Door safety switches, Trap door limit switch
3. Safety hook
4. Upper and bottom limit swithes, 3P limit switch, Emergency Stop
5. Overload limiter protector
6. Power Keylock
7. Phase failure Protection
8. Bottom Buffer
9. Top mast No rack Cage ride out Protection
10. Ramp door form a safety passage
11. Frequecy Conversion (Inverter) can be choose
12. PLC Control system can be choose
13. Level Calling system and Auto leveling device to be choose II. Manufacturing Workshop
III. Oversea Project
We have rapidly developed domestic and foreign markets because of the integrity of the Company and its high-quality product. Starting in 2007 the Company began to develop foreign markets. Since then it has exported to more than 50 countries and regions.
IV. Company ProfileWe are focus on all kinds of rack and pinion driving vertical access machinery and Supply design, solution and OEM to all customers all over the world!
Builder's hoist, Tower crane mini hoist, industrial lift, mast climbing platform, Mast climber.
V. CertificateOur company is a Chinese goverment certified Special equipment production manufacturer, we have got Chinese Goverment Hi-Tech Certificate, Special equipment Production certificate, ISO9001, ISO14001, CE approved, EAC approved...
VI. RFQ1. What are your main products?
We produce construction hoist (also called construction elevator, construction lift) and spare parts of it.
2. Are all construction hoists the same from all Vendors & Manufacturers?
Our construction hoist has been improved better than some others. Firstly, the mast section stulls are changed to U-shape structure, the diagonal bracing adopt solid round steel instead of hollow. So the mast section becomes more stable than the old type. Secondly, in the configuration, we adopt famous brand motor, world famous electric and Huaye Rongcheng brand gear reducer.
3. Do your products have some certificates?
Yes. Our products have CE, ISO and BV Certificates.
4. What are the payment terms and the delivery time?
Payment terms are T/T and LC. We will ship the cargo within 20-30 days after receiving the 30% deposit.
5. Are you manufacturer or the trader?
We are manufacturer,have our own factory and Research and development team.
6. Will you develop distributor and sole agent?
Yes, should you have any interest to be our distributor and agent, please let us know in any ways. Sole agent is available depend on the sales turnover.
7. Where do you ship to and what countries have you done business in?
We provide quick and efficient shipping to countries all over the world from Qingdao port.
We have done business with customers in many countries, such as Brazil, Korea, Malaysia, Thailand, India, Vietnam, and Indonesia etc.
8.Quotation request:
If you are interested in our products, please provide the following parameters:
1) Lift height (m)
2) Load capacity (ton)
3) Double cage or single cage
3) Local power supply (kV, Hz)
4) Other special equipments
We will provide best price once confirmed the above. Welcome distributors, agent, or endusers contact us for further negotiation and cooperation !
Any questions or inquiries will be replied within 24 hours.
