• Model NO.：SJG3.5-3
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Installation：Underground
• Safety Device：Explosion Proof Lock Valve, Emergency
• Stationary Hydraulic Scissor Lift：Scissor Lift
• Motor：Customer Required Brand or Chinese Famous Brand
• Color：Red, Blue, Orange, Gray or Other
• Power：220V, 240V, 380V, 400V or Other
• Lift Height：3000mm
• Lift Capacity：3000kg
• Warranty：24monthes
• Transport Package：Iron Case or Plywood Case Package
• Specification：CE
• Trademark：SDLIFT
• Origin：China Shandong
• HS Code：84289090
• Production Capacity：5000 Set Per Year

 The car elevator can be customized as your detailed size, our car lift is customized for every clients.

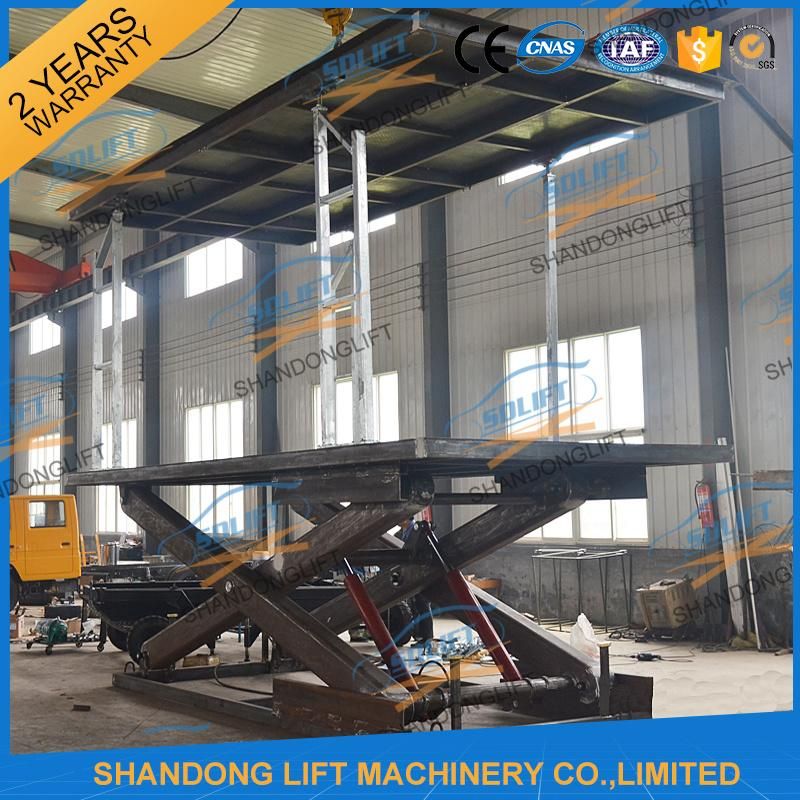

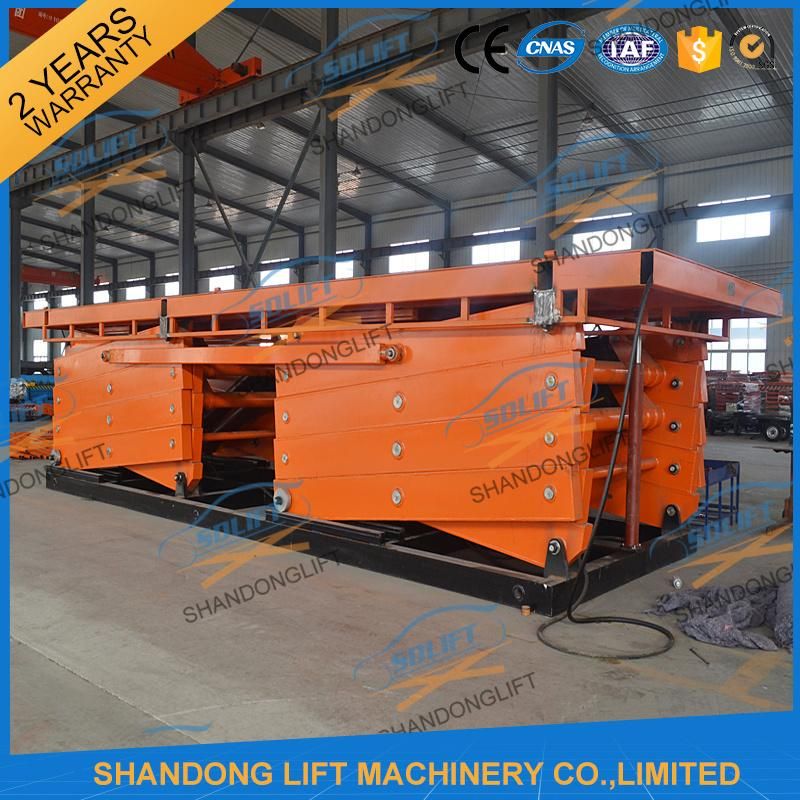

The car lift designed for our clients in the pass, photos as below,

Configuration:

1) Load capacity: 3500kgs (below platform)
                            3500kgs (upper platform)
2) Platform size: 5.5m x 2.8m (below platform)
                         5.5m x 2.8m (upper platform)
3) Lift height: 3m
4) Height between platforms: 3m

5) Platform Material: rectangular tube + checkered iron

6) Scissor material:  high strength Manganese Steel.

7) Hydraulic system: 380V/3.0Kw or as your requests.

8) High Precision Hydraulic Cylinder

9) Piston Rod: hard chromium plating surface.

10) High-pressure oil pump

11) Hydraulic oil: summer 46#, winter 32#

12) Controller: 1 control box below, 1 control panel above platform

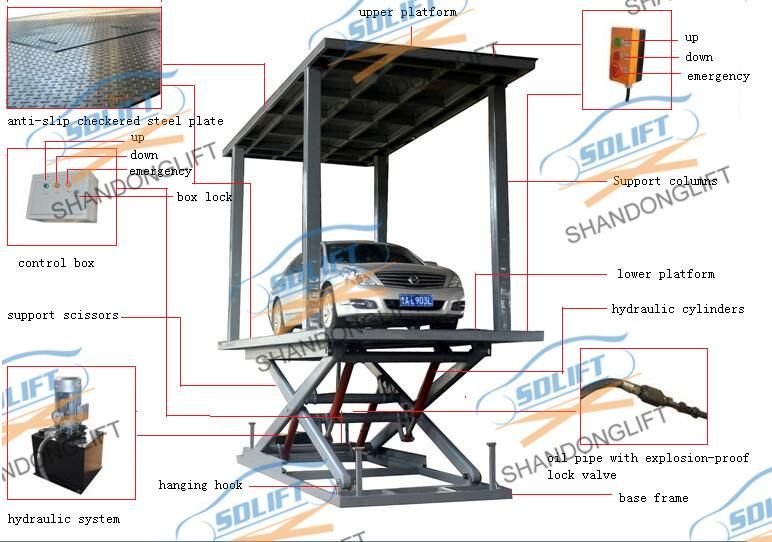

Parts Showing:

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above lift platform.
3) The limit switch system helps the car elevator to stop at accurate position.
4) Electricity leakage protection device is equipped on , all electric components are CE certified.
5) All the car elevator are passed 1.2 times loading test before leaving factory.

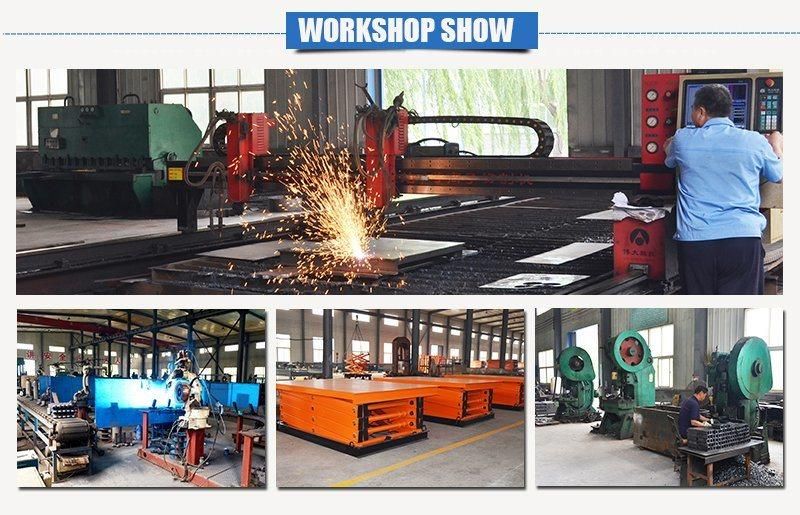

The workshop: ( welcome to our factory )

Our Services

1. User-friendly English manual for machine installation using and maintenance.
2. 2 sets spare parts as additional and free for you together with lift in shipment.
3. 2 year warranty for whole machine without man-made faults.
4. We will send you parts for free if there are any non-human factors faults during warranty time.
5.  Supply 24-hour
6. s technical assistance by email, telephone or other communication online.
7.  We could reply you in 2 hours after received your any questions even on weekend and holiday.Engineers are available to your country if necessary.
