• Model NO.：DCL
• Driven Type：AC
• Running Mode：Stationary
• Feature：Explosion-Proof, Insulating, Spillover Valve
• Certification：GS, CE, RoHS, ISO 9001
• Load Capacity：500kg
• Lifting Height：as Per Customers′ Requiement
• Platform Size：as Per Customers′ Requiement
• Structure：Vertical
• Power：AC
• Quanlity Warranty：18month
• Failure Rate：Extremely Low
• Lead Time：15days
• Name：Cargo Lift
• Series：Cargo Lift

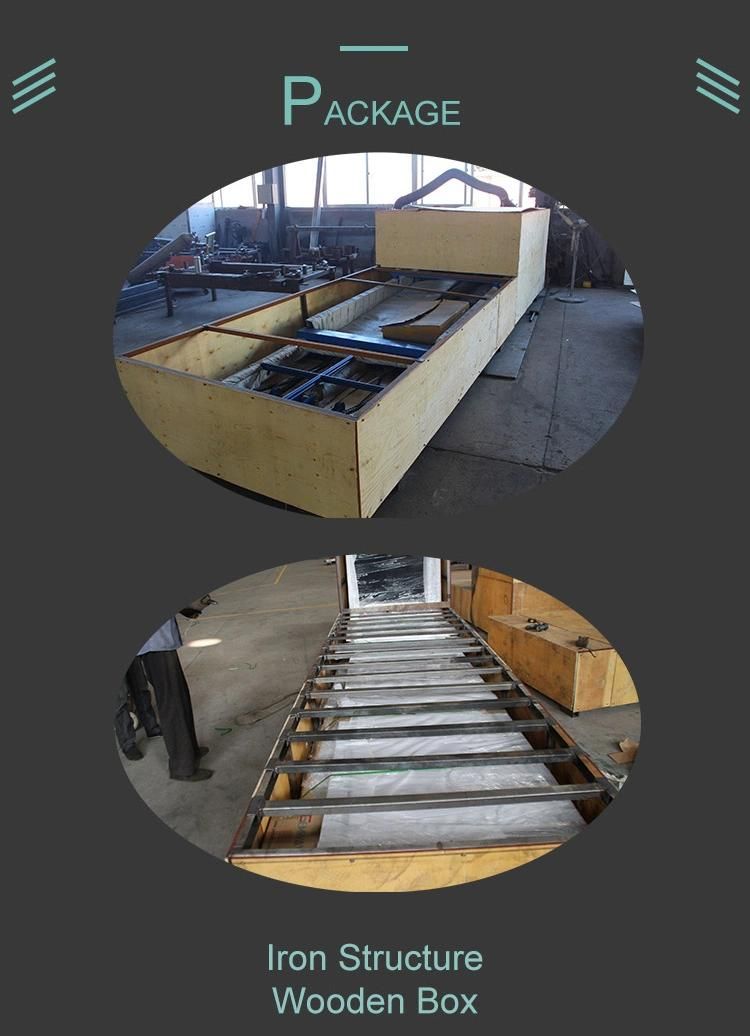

• Transport Package：High Quality Seaworthy Package
• Specification：CE, ISO, SGS
• Trademark：SAGAFIRST
• Origin：China
• HS Code：8428909090
• Production Capacity：10000

SpecificationVertical travel (mm)Lowered
 Height (mm)Capacity
(mm)Platform size
(L*W, mm)Power (Kw)VCL0.3-4.5 (2 layers)45001503001000×8001.5VCL 0.5-4.5 (2 layers)45001505001500×10001.5VCL 1.0-4.5 (2 layers)450015010001500×15002.2VCL 2.0-4.5 (2 layers)450015020002000×10002.2VCL 3.0-4.5 (2 layers)450016030002000×12003.0VCL 0.3-7.5 (3 layers)75001503001000×10001.5VCL 0.5-7.5 (3 layers)75001505001200×12001.5VCL 1.0-7.5 (3 layers)750015010001800×14002.2VCL 2.0-7.5 (3 layers)750015020002000×15002.2VCL 3.0-7.5 (3 layers)750016030002000×16003.0VCL 1.0-10.5 (4 layers)1050015010001800×14002.2VCL 1.0-14 (5 layers)1400015010001800×15002.2VCL 3.0-4.5 (Special for lifting cars)450016030005000×30004.0




Our Service:

1.We can design the customerized vertical cargo lift as per your requirement.

2.The most suitable model will be recommended to you once we know about your requirement.

3.Shipment can be arranged from our port to your destination port.

4.Operation video can be sent to you if needed.

5.Maintenance video will be given once the vertical cargo lift breaks down to help you repair.

6.Parts of vertical cargo lift can be sent to you by express within 7 days if needed.

Frequently Asked Questions:

1.How can customer  buy parts once it break down?

The vertical cargo lift adopt most of the common parts of hardware.You can buy the parts in your local hardware market.

2.How can customer repair the vertical cargo lift.

One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.

3.How long is the quality guarantee?

One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.

Certificate:CE ROHS SGS IOS ETC.

Availabilities:
Lifting height:1.6-20m; load:0.1-10T(as per customer's requiements)

Description:
1.     Equipped with four guide rails to keep platform very stable and safe.
2.     Emergent stop button can cut off power in emergency situation.
3.     Pit height will be 15 to 30cm.
4.     Flexible production technic: load capacity, platform height and platform size all as per customer's requirements.
5.     Imported controlling system is optional(Schneider, Siemens, ect.)
6.     Multilayer control panels and Multilayer interlock are available.

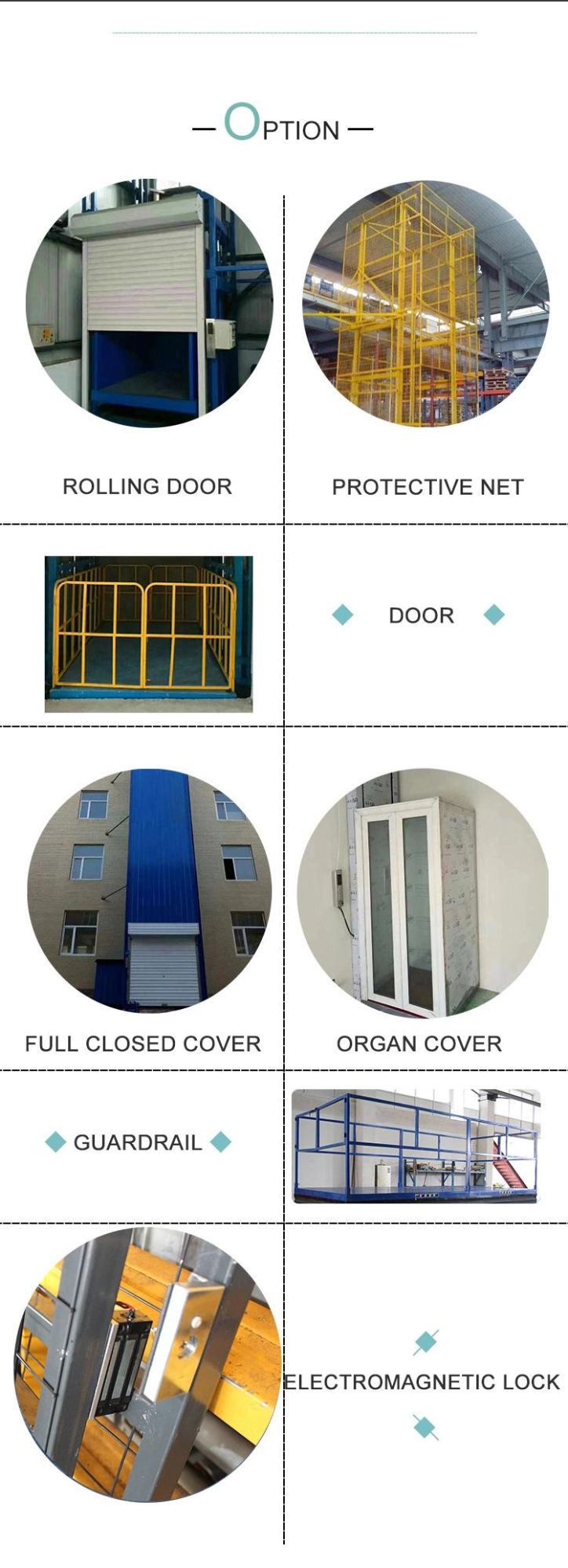

7.     Outside protecting net is optional if needed.

Safety
1.Spillover valve, it can prevent high pressure when the machine moves up.
2.Manual emergency valve, it can go down to the nearest floor and open the door when you meet an emergency.
3.Pipe explosion valve, when the hydraulic system pipe fractures, it can cut down the channel of the oil to stop it falling.
4.Temperature protection, when the temperature of the hydraulic oil exceed standard, the machine will stop working until the temperature gets back to standard.


Qingdao Sinofirst Machinery Co., Ltd is specialized in Aerial Work Platform and Material Lift Platform, we are one of the leading manufactures of lifting equipment in China.

SINOFIRST is established in 2000 with great experience in manufacturing and exporting. Sincerely hope the cooperation with you!

Any questions please feel free to contact us any time.


Contact Information:
Eva Li
Qingdao Sinofirst Machinery Co.,Ltd
Add: Danshan Industrial Park,Chengyang,Qingdao,China
Website: sinofirst.en.made-in-china.com
