• Model NO.：HE1000, HE1500, HE2000
• Moves：Stationary
• Driven Type：AC
• Running Mode：Stationary
• Feature：Explosion-Proof
• Certification：CE
• Capacity：500kg, 1000kg, 1500kg, 2000kg
• Min. Height：85-100mm
• Max. Height：820-885mm
• Table Size：1400*1200mm
• Lift Time：25-30s
• Color：Customizable
• Net Weight：207-500kg
• Type：Stationary Lift Table
• Certificate：Ce Approved
• Scissor：Single Scissor Lift Table
• Power：380V,50Hz
• Stroke：720-800mm
• Delivery Time：One Month
• Usage：Warehouse Material Handling
• Model：He Series
• Transport Package：1PC,Wooden Case
• Specification：customizable
• Trademark：Buytool
• Origin：Made in China
• HS Code：8427900000
• Production Capacity：1000PCS,Month
• Package size per unit product：150.00cm * 125.00cm * 235.00cm
• Gross weight per unit product：300.000kg

Basic Info.

Model NO. HE1000, HE1500, HE2000 Moves Stationary Driven Type AC Running Mode Stationary Feature Explosion-Proof Certification CE Capacity 500kg, 1000kg, 1500kg, 2000kg Min. Height 85-100mm Max. Height 820-885mm Table Size 1400*1200mm Lift Time 25-30s Color Customizable Net Weight 207-500kg Type Stationary Lift Table Certificate Ce Approved Scissor Single Scissor Lift Table Power 380V/50Hz Stroke 720-800mm Delivery Time One Month Usage Warehouse Material Handling Model He Series Transport Package 1PC/Wooden Case Specification customizable Trademark Buytool Origin Made in China HS Code 8427900000 Production Capacity 1000PCS/Month

Packaging & Delivery

Package size per unit product 150.00cm * 125.00cm * 235.00cm Gross weight per unit product 300.000kg

Product Description

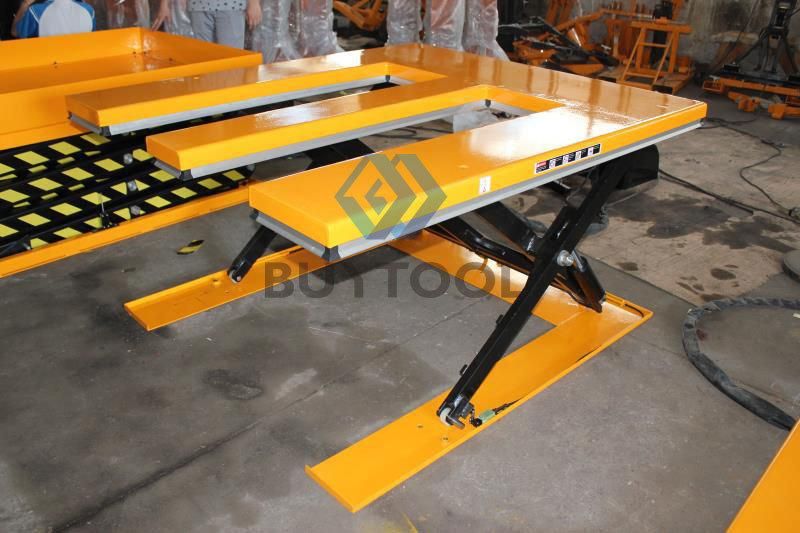

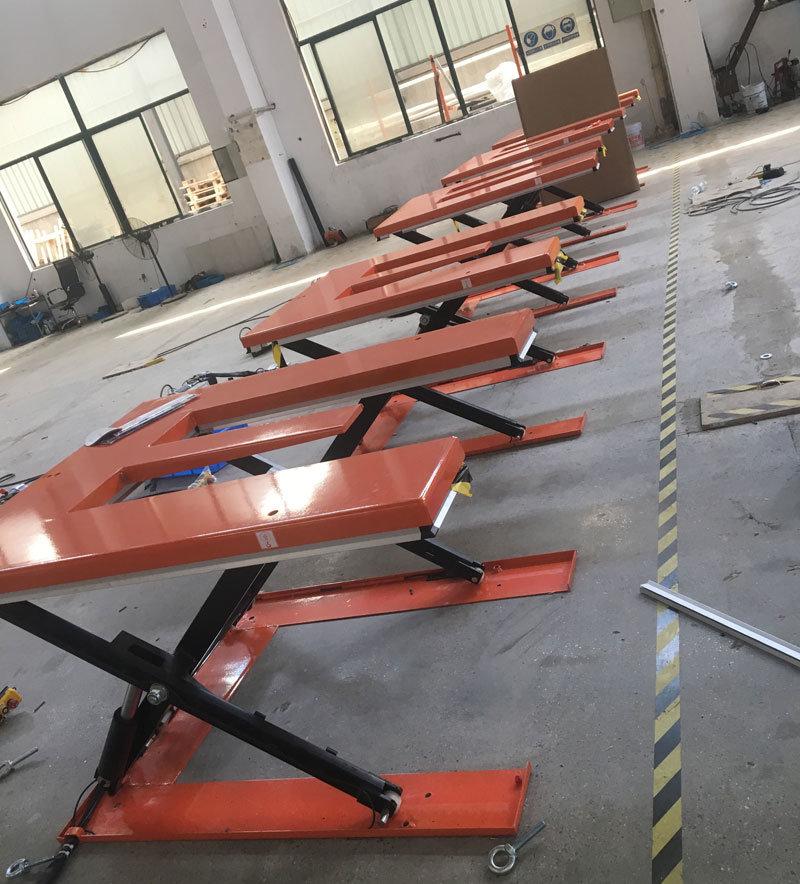

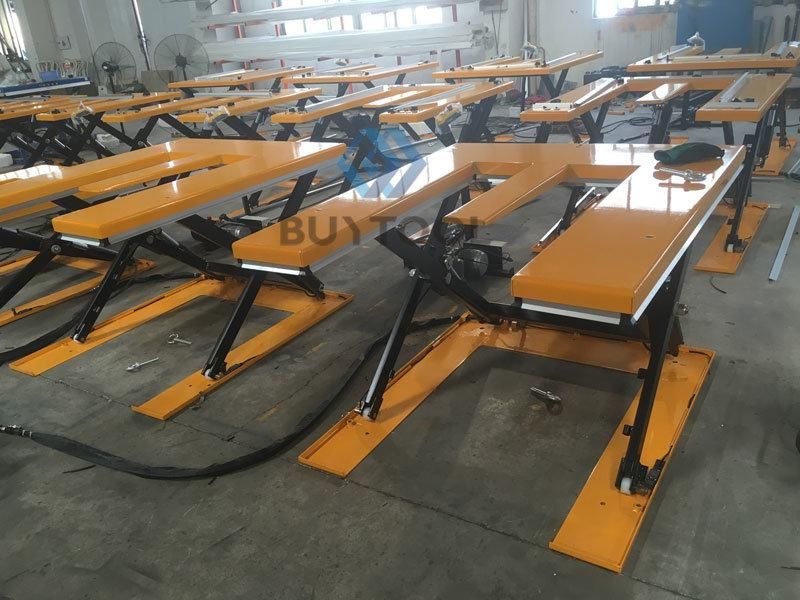

'E' Shaped Top Platform
Specially for handling pallets, no need for a pit or load ramps.
They are manufactured to all European safety standards including EN1570: 1990.
Remote power pack with pedestal and controls, pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting eyes to facilitate handling and installation of the lift table.
Mechanical safety chocks for maintenance.
Oiless bushings on pivot points.
Quick assembly joint for oil hose.


Model	HE500	HE1000	HE1500	HE2000
Capacity (kg)	500	1000	1500	2000
Max. height (mm)	860	860	860	820
Min. height (mm)	85	85	105	100
Platform L×W(mm)	1450×985	1450×1200	1600×1180	1500x1300
Lifting Time (second)	25~35	25~35	30~40	30~40
Power Pack (KW)	380V/50Hz, AC0.75KW	380V/50Hz, AC0.75KW	380V/50Hz, AC1.5KW	380V/50Hz, AC2.2KW
Net Weight (kg)	207	280	380	500

FAQ:

Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.

Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.

Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
