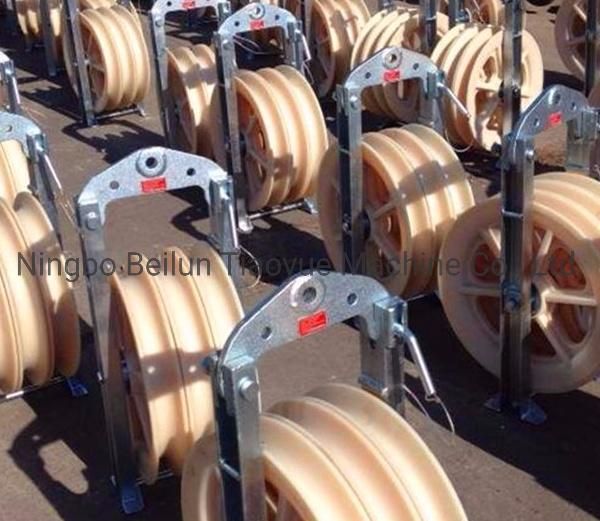

High Quality Major Diameter Stringing Block
NINGBO ONEREEL MACHINE CO., LTD.- After-sales Service:Forever
- Warranty:One Year
- Application:Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type:Electric Hoist
- Sling Type:Cable
- Lift Speed:2~8m,min
Base Info
- Model NO.:TYC1706092507
- Maximum Lifting Height:>20m
- Chain Falls:2
- Certification:CE
- Condition:New
- Color:Brown
- Model No.:Shd508
- Rated Load:20kn
- Wheels:Single Wheel
- Sheave Features:Aluminum Wheel with Rubber Liner
- Net Weight:18kg
- Packing:Bulk Pack with Wooden Board Carton
- Delivery Time:Within 30 Days After Receiving The Payment
- Transport Package:Bulk Pack with Wooden Board Carton
- Specification:Applicable Steel Rope Diameter Ф 7.7mm
- Trademark:ONEREEL
- Origin:Ningbo China
- HS Code:8467890000
- Production Capacity:5000pieces,Month
Description
Middle: MC nylon wheel
Conductor: Aluminum wheel with rubber liner0360 SHWLN508 Five
Wheels 60 79 0361 SHSQN508 Three
Wheels 40 43 MC Nylon Wheel 0362 SHWQN508 Five
Wheels 60 70
Note: 1. Max applicable conductor is ACSR400.
2. Sheave diameter(external diamter x groove diameter x width) is Ф508 x Ф408 x 75 mm.
Middle: MC nylon wheel
Conductor: Aluminum wheel with rubber liner0366 SHWLN660 Five Wheels 60 120 0367 SHSQN660 Three Wheels 40 76 MC Nylon Wheel 0368 SHWQN660 Five Wheels 60 110 Note: 1. Max applicable conductor is ACSR500.
2. Sheave diameter(external diamter x groove diameter x width) is Ф660 x Ф560 x 100 mm.
MC Nylon Wheel0370 SHSQN822 Three Wheels 60 118 0371 SHWQN822 Five Wheels 120 180 Note: 1. Max applicable conductor is ACSR630.
2. Sheave diameter(external diamter x groove diameter x width) is Ф822x Ф710 x 110 mm.
Uses:
Apply to paying off single conductor, twin bundled conductor or four bundled conductor on
overhead transmission line construction.
Specification:
Product can be made of aluminum wheel with rubber liner, MC nylon wheel with rubber liner or strengther nylon wheel with PU liner.
Packing&Delivery Time
1. Bulk Pack With Wooden Board Carton
2. Delivery time: Within 30 Days After Receiving The Payment
Company Information:
Business Type :Manufacturer.Year Established :2011
Certificate :GS , CE , GB , ISO14001 , CCC.
Product Range :To support the Transmission work, our company has Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block , Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like Emergency Restoration Tower and crossing structure, we can customized, and the Safety Tools And Accessories, are not demanded the MOQ.
You can freely help you out either Tech issue or Products requirements. Pls contact with us. Thanks.
Conductor: Aluminum wheel with rubber liner
Wheels
Wheels
Wheels
Note: 1. Max applicable conductor is ACSR400.
2. Sheave diameter(external diamter x groove diameter x width) is Ф508 x Ф408 x 75 mm.
Middle: MC nylon wheel
Conductor: Aluminum wheel with rubber liner
2. Sheave diameter(external diamter x groove diameter x width) is Ф660 x Ф560 x 100 mm.
MC Nylon Wheel
2. Sheave diameter(external diamter x groove diameter x width) is Ф822x Ф710 x 110 mm.
Uses:
Apply to paying off single conductor, twin bundled conductor or four bundled conductor on
overhead transmission line construction.
Specification:
Product can be made of aluminum wheel with rubber liner, MC nylon wheel with rubber liner or strengther nylon wheel with PU liner.
Packing&Delivery Time
1. Bulk Pack With Wooden Board Carton
2. Delivery time: Within 30 Days After Receiving The Payment
Company Information:
Business Type :Manufacturer.Year Established :2011
Certificate :GS , CE , GB , ISO14001 , CCC.
Product Range :To support the Transmission work, our company has Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block , Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like Emergency Restoration Tower and crossing structure, we can customized, and the Safety Tools And Accessories, are not demanded the MOQ.
You can freely help you out either Tech issue or Products requirements. Pls contact with us. Thanks.
