2t Hydraulic Material Hoist Lift for Sale
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online Service, Free Express Accessories.
- Warranty：12 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Stationary
Base Info
- Model NO.：HW
- Driven Type：Hydraulic
- Running Mode：Stationary
- Feature：Explosion-Proof
- Certification：GS, CE, RoHS, ISO 9001
- Voltage：110V, 220V, 380V, 400V, Customized
- Color：Red, Yellow, Orange, Blue, Green, Customized
- Load Capacity：1000kg, 2000kg, 4000kg, Customized
- Lifting Height：1m, 1.3m, 1.4m, 1.5m, Customized
- Platform Size：Standard Models, Customized Models
- Safety Precautions 1：Aluminum Safety Sensor
- Safety Precautions 2：Explosion Proof Valve
- Safety Precautions 3：Spillover Valve
- Safety Precautions 4：Emergency Decline Valve
- Customization 1：with Rollers on Top
- Customization 2：with Protective Curtains
- Customization 3：with Wheels for Easy Moving
- Customization 4：with Guardrails
- Customization 5：Battery Operated Moving
- Customization 6：One Controller for Two Units Working Together
- Transport Package：High Quality Box
- Specification：1300*820*2000mm 320kg
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：1000 Set,Month
Description
4000Kg Load Capacity Standard Scissor LiftHW4001 1050 1700×1200 240 2.2 375 HW4002 1050 2000×1200 240 2.2 405 HW4003 1400 2000×1000 300 2.2 470 HW4004 1400 2000×1200 300 2.2 490 HW4005 1400 2200×1000 300 2.2 480 HW4006 1400 2200×1200 300 2.2 505 HW4007 1300 1700×1500 350 2.2 570 HW4008 1300 2200×1800 350 2.2 655

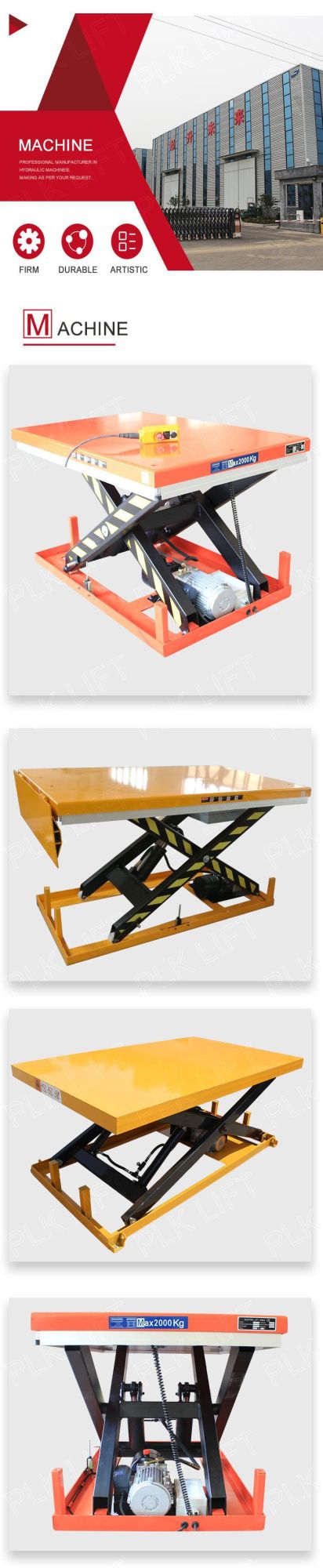

Photos Display:
Features & Advantages:
All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
Photos Display:
Features & Advantages:
- Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
- High quality pump station makes scissor lift table lifts and fall very stable.
- Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
- Removable lifting eye to help lift the table and install.
- Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
- Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
- Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
- Up to American standard ANSI/ASME and Europe standard EN1570
- Safe clearance between scissor to prevent damages during operation.
- Brief structure make it much easier to operate and maintain.
- Stop at the per-concerted and accurate location point.
- Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
- Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
- Emergency decline valve: it can go down when you meet an emergency or the power off.
- Overload protection locking device: in case of dangerous overload.
- Anti-dropping device: Prevent falling of platform.
- Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.
All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
