• Model NO.：VCL
• Driven Type：AC
• Running Mode：Stationary
• Feature：Explosion-Proof, Insulating, Spillover Valve
• Certification：GS, CE, RoHS, ISO 9001
• Load Capacity：500kg
• Lifting Height：as Per Customers′ Requiement
• Platform Size：as Per Customers′ Requiement
• Structure：Vertical
• Power：AC
• Quanlity Warranty：18month
• Failure Rate：Extremely Low
• Delivery Time：15days
• Transport Package：High Quality Seaworthy Package
• Specification：CE, ISO, SGS
• Trademark：SINOFIRST
• Origin：China
• HS Code：8428909090
• Production Capacity：10000

Basic Info.

Model NO. VCL Driven Type AC Running Mode Stationary Feature Explosion-Proof, Insulating, Spillover Valve Certification GS, CE, RoHS, ISO 9001 Load Capacity 500kg Lifting Height as Per Customers′ Requiement Platform Size as Per Customers′ Requiement Structure Vertical Power AC Quanlity Warranty 18month Failure Rate Extremely Low Delivery Time 15days Transport Package High Quality Seaworthy Package Specification CE, ISO, SGS Trademark SINOFIRST Origin China HS Code 8428909090 Production Capacity 10000

Product Description

Two Guide Rails Cargo Lift belongs to material handling hydraulic equipment. It is used to transport cargo between first floor
to higher floors. It is widely used in warehouse, home and factory. Two Guide Rails Cargo Lift is famous for its simple structure,
convenient operation and easy installation. Customers only need to fixed the two guide rails to the ground and wall by
expansion bolt. Thee main parts includes electric motor ,hydraulic pump station and hydraulic cylinder. So it is very easy to
maintain. And the failure rate is extremely low. This kind of cargo lift will save much maintenance cost for customers.

Load capacity from 200kg to 2000kg,lifting height from 2m to 15m.Two guide rails cargo lift platform doesn't have standard
model. We all make the platform size, load capacity and max platform height as per customer's requirement.

Introduction:
Availabilities: Stationary Vertical Guide Rail Lift Platform
Lifting height:1.6-6m; load:500kg(as per customer's requiements)

Description:
1.Equipped with two guide rails and installed on the wall.
2.Emergent stop button can cut off power in emergency situation.
3.Pit height will be 15 to 30cm.
4.Flexible production technic: load capacity, platform height and platform size all as per customer's requirements.
5.Imported controlling system is optional(Schneider, Siemens, ect.)
6.Multilayer control panels and Multilayer interlock are available.

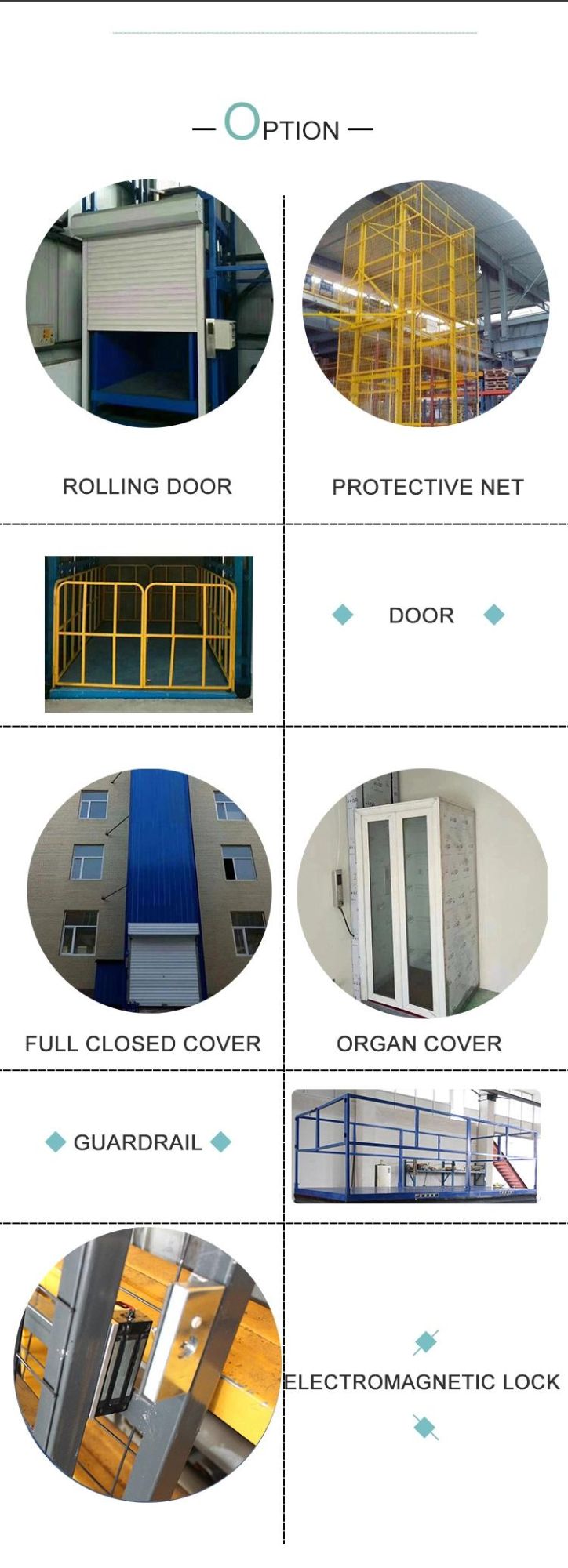

7.Outside protecting net is optional if needed.

Safety:
1.Spillover valve, it can prevent high pressure when the machine moves up.
2.Manual emergency valve, it can go down to the nearest floor and open the door when you meet an emergency.
3.Pipe explosion valve, when the hydraulic system pipe fractures, it can cut down the channel of the oil to stop it falling.
4.Temperature protection, when the temperature of the hydraulic oil exceed standard, the machine will stop working until the
temperature gets back to standard.

Lowest Operation and Maintenance Cost:
1.Low failure rate, progressive and safe hydraulic system with good control mode.
2.Low power consumption, hydraulic move down depend on the deadweight to gain energy conservation.


Company information:
Qingdao Sinofirst Machinery Co.,Ltd is specialized in Aerial Work Platform and Material Lift Platform.
SINOFIRST is established in 2000 with great experience in manufacturing and exporting.
SINOFIRST facotry covers more than 300 acres and a building area of up to 10,000m2.
SINOFIRST is famous for high-end aerial equipment.Each year, we invest more than 10 million to develop new
technology and new products. Great development and research team guarantee the high quality of SINOFIRST
produdcts.Now products are widely used in all over the world. After service certer is under contruction in foreign countries.

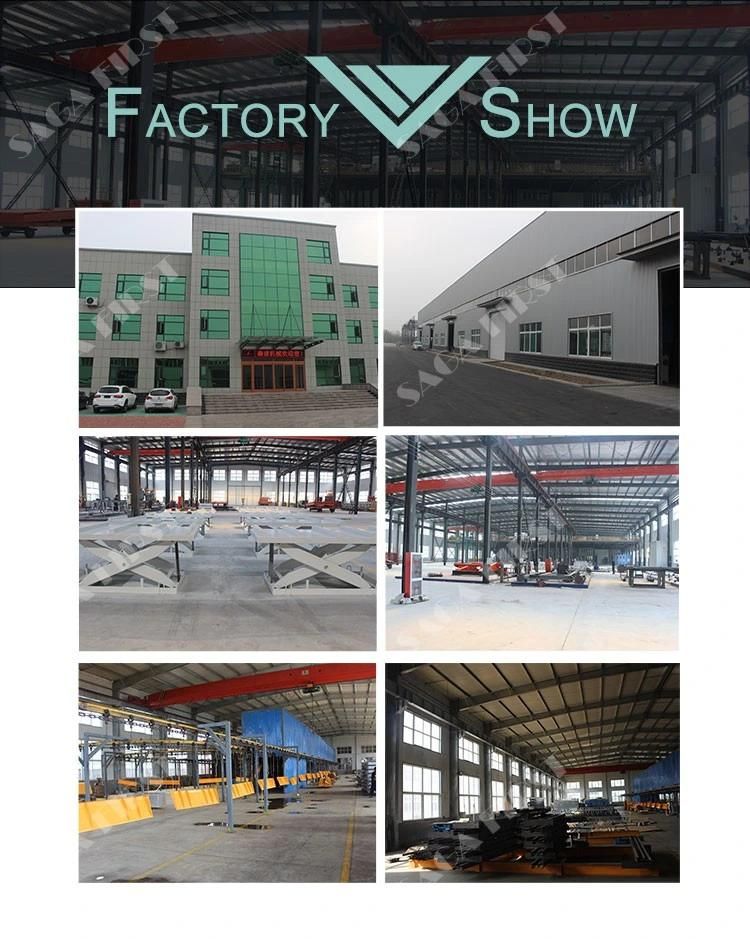

Factory show:

Our Service:
1.We can design the customerized the lifter as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port or home.
4.Opetion video can be sent to you if needed.
5.Maintenance and user manual.
6.Parts of the lifting equipment can be sent to you by express within 7 days if needed.

Frequently Asked Questions:
1.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
one year quality guarantee.send the parts free of charge

Frequent Asked Questions	Answers
Are you a factory or trading company?	We're factory with over 12years exporting experience.
What's the MOQ?	1UNIT,the more,the better.
What's the payment terms?	<USD4999: 100%TT in advance.  >USD5000:  30%TT in advance,balance before shipment.  >USD10,000: TT or Irrevocable L/C At Sight.
Do you offer OEM&ODM service?	Yes,like lifting capacity, lifting height, size of platform,painting  color,logo,manual etc.
What's the delivery time?	15~20days after down payment
What's the quality warranty?	24 months.Offer free parts for replacement.
How can I get the after-sales service?	We offer videos,pictures and technical guidance immediately.
What's your QA&QC policy?	3times 100% inspection before shipping.
Can you tell me your clients in my country?	Of course. But only after the permittance of customers.

Feel free to contact us anytime. Our professional salesmen are 24hours online.
