• Model NO.：HW
• Driven Type：Hydraulic
• Running Mode：Stationary
• Feature：Explosion-Proof, Insulating
• Certification：CE, RoHS, ISO 9001
• Load Capacity：1000kg, 1500kg, 2000kg
• Max. Lifting Height：Around 860mm to 870mm
• Platform Size：1325X1074mm
• Self Height：85mm
• Lifting Time：25s
• Work Principle：Hydraulic Lifting System
• Voltage：110V, 220V, 380V, 400V, Customized
• Color：Red, Yellow, Orange, Blue, Green, Customized
• Safety Precautions 1：Aluminum Safety Sensor
• Certificates：CE, RoHS, ISO, SGS
• Usage：Industrial Production Line
• Using 2：Low Height Goods Loading Unloading
• Usage 3：Ware House Pallet Goods Lifting
• Safety Precautions 2：Explosion Proof Valve
• Safety Precautions 3：Emergency Decline Valve
• Transport Package：Wooden Pallet and High Quality Paper Boxes with St
• Specification：1450*985*100
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：5000

Basic Info.

Model NO. HW Driven Type Hydraulic Running Mode Stationary Feature Explosion-Proof, Insulating Certification CE, RoHS, ISO 9001 Load Capacity 1000kg, 1500kg, 2000kg Max. Lifting Height Around 860mm to 870mm Platform Size 1325X1074mm Self Height 85mm Lifting Time 25s Work Principle Hydraulic Lifting System Voltage 110V, 220V, 380V, 400V, Customized Color Red, Yellow, Orange, Blue, Green, Customized Safety Precautions 1 Aluminum Safety Sensor Certificates CE, RoHS, ISO, SGS Usage Industrial Production Line Using 2 Low Height Goods Loading Unloading Usage 3 Ware House Pallet Goods Lifting Safety Precautions 2 Explosion Proof Valve Safety Precautions 3 Emergency Decline Valve Transport Package Wooden Pallet and High Quality Paper Boxes with St Specification 1450*985*100 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 5000

Product Description

 Hydraulic Electric Low Profile Scissor Lift Table


PLK LIFT Brands Low Profile Scissor Lift Table are one of the most ideal equipment for loading and unloading goods.

Lowest platform height can make goods loading more convenient, peopled can put down the goods easily. And its load capacity are 1000kg, 1500kg and 2000kg.

It is widely used in the warehouse, small shop and other place, to help people lifting the wooden or plastic pallet, goods and material etc.

Data Sheet

Model	Load Capacity(kg)	Max. Platform Height(mm)	Platform Size (mm)	Base Size (mm)	Self Height (mm)	Lifting Time(s)	Voltage	Net weight (KG)
HY1001	1000	860	1325x1074	1325x1074	85	25	customized	357
HY1002	1000	860	1325x1074	1325x1074	85	25	customized	364
HY1003	1000	860	1325x734	1325x734	85	25	customized	326
HY1004	1000	860	1325x734	1325x734	85	25	customized	332
HY1005	1000	860	1325x734	1325x734	85	25	customized	352
HY1501	1500	870	1325x734	1325x734	105	30	customized	302
HY1502	1500	870	1325x734	1325x734	105	30	customized	401
HY1503	1500	870	1325x734	1325x734	105	30	customized	415
HY2001	2000	870	1427x1114	1427x1114	105	35	customized	419
HY2002	2000	870	1427x734	1427x734	105	35	customized	405

This scissor lift table equipped with safety valve, to protect the safety both for goods and user.

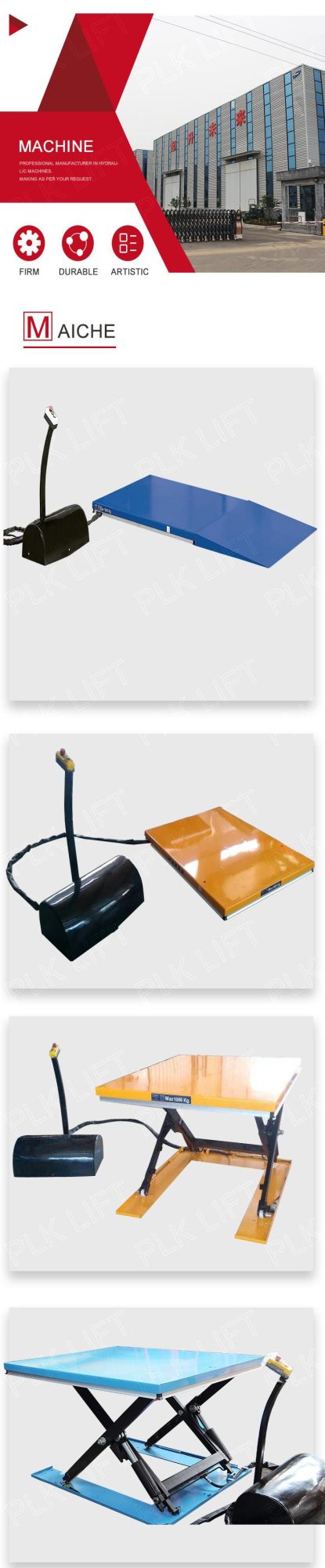

Product Show

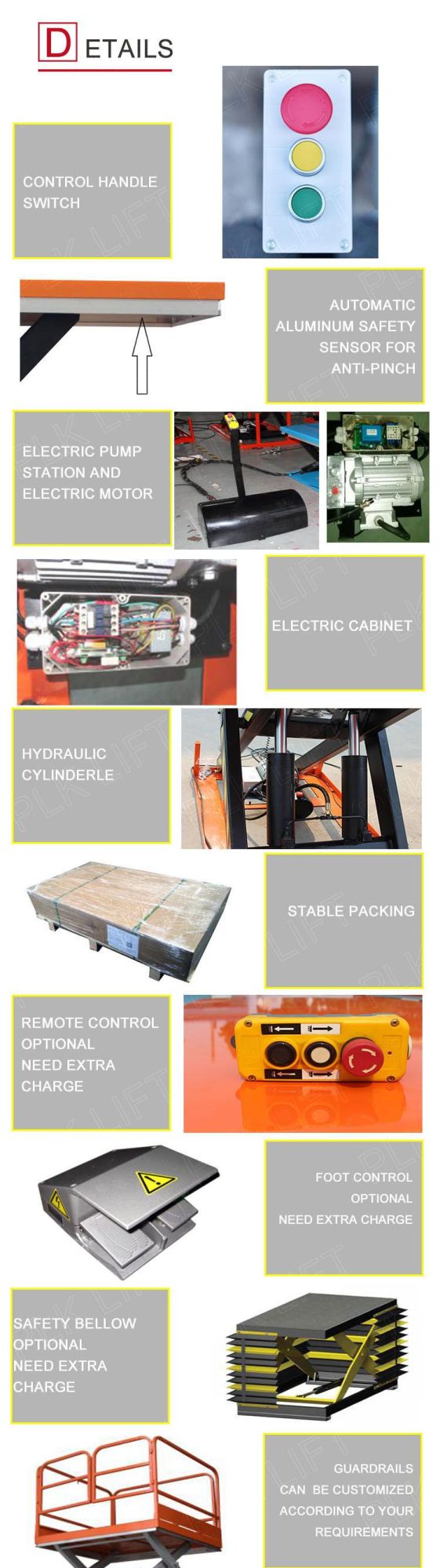

Details Show

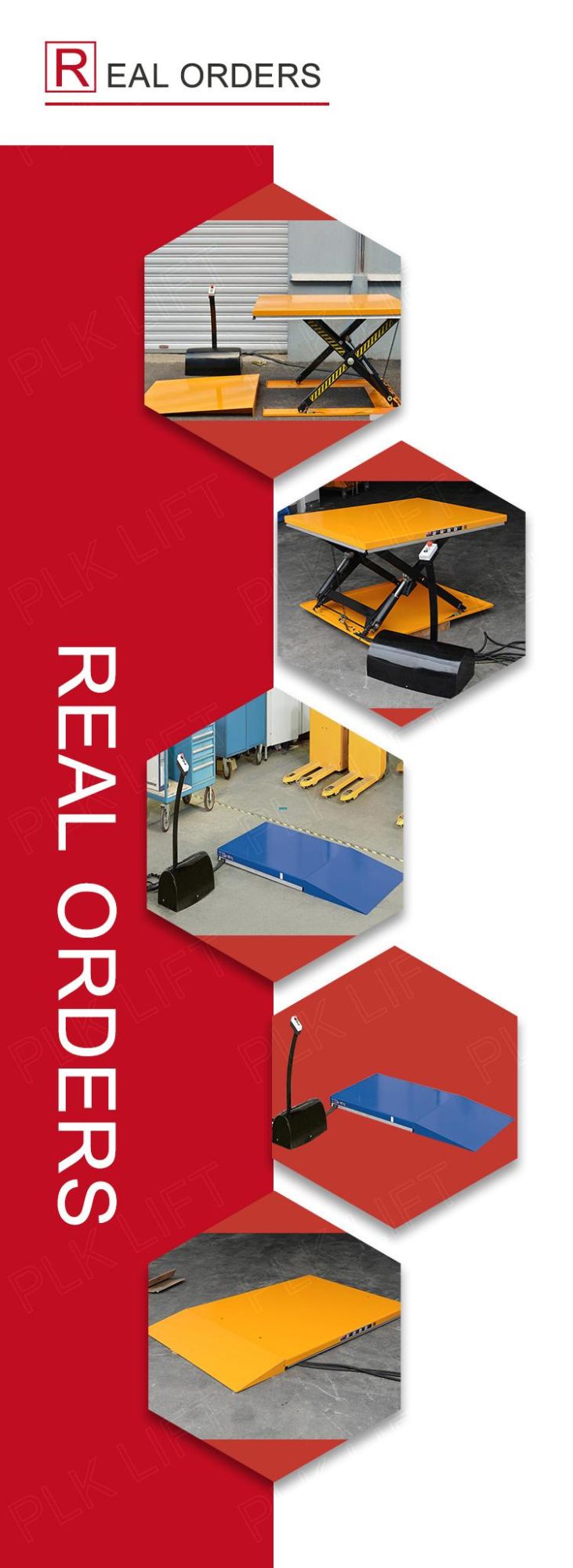

Bulk Order Show
