• Model NO.：As your drawings
• Lifting Eye Type：Flat Eye
• Rope Core Type：Steel Core
• Power Source：Lever
• Shape：Flat
• Certification：ISO 9001
• Sling Color：Red
• Name：Load Binder
• Technics：Forging
• Quality Certification：ISO9001:2008
• OEM and ODM：100%
• Welcome：Custom Design
• Export Markets：Global
• Shipping Port：Qingdao Port
• Unique：China Gold Supplier
• Packaging：Wood Case
• MOQ：10-1000PCS
• Free Sample：Yes
• Logo Printing：Customized
• Custom Made：Yes
• Inner Package：Carton Box, Plastic Bag
• OEM Service：Yes
• Transport Package：Plywood Box

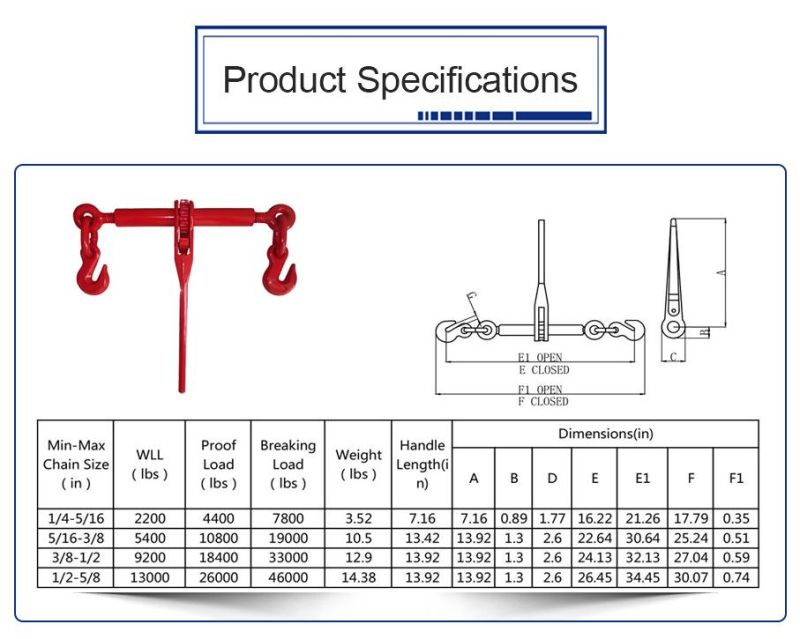

• Specification：1,4-5,16, 5,16-3,8, 3,8-1,2, 1,2-5,8
• Trademark：ShengAo
• Origin：Shangdong, China
• HS Code：7325109000
• Production Capacity：500ton,Month

Basic Info.

Model NO. As your drawings Lifting Eye Type Flat Eye Rope Core Type Steel Core Power Source Lever Shape Flat Certification ISO 9001 Sling Color Red Name Load Binder Technics Forging Quality Certification ISO9001:2008 OEM and ODM 100% Welcome Custom Design Export Markets Global Shipping Port Qingdao Port Unique China Gold Supplier Packaging Wood Case MOQ 10-1000PCS Free Sample Yes Logo Printing Customized Custom Made Yes Inner Package Carton Box/ Plastic Bag OEM Service Yes Transport Package Plywood Box Specification 1/4-5/16, 5/16-3/8, 3/8-1/2, 1/2-5/8 Trademark ShengAo Origin Shangdong, China HS Code 7325109000 Production Capacity 500ton/Month

Product Description

                                                Forged Ratchet Buckle type Load binder with safety hooks


    1. Chain size: 8~16mm
    2. W. L. L.: 4000~16000daN
    3. MBL: 8000~32000daN
    4. Standard: EN12195-3
    5. Hooks c/w safety latches
    6. Easy functioning.
    7. In combination with Grade 80 chain.

Forging refers to the forging method of obtaining forgings by using molds to mold blanks on special die-forging equipment. This method produces forgings with precise size, small processing margin, and high complex productivity.The process of forging and forming metal billets with forging molds on a die-forged hammer or press. The mold forging process has high production efficiency, low labor intensity, precise size, small processing capacity, and forging of forgings with complex shapes; However, the high cost of molds, the need for special forging equipment, not suitable for single-piece or small-scale production.

Open die forging is the deformation flow of metal in an incompletely restricted chamber with a fly-edge groove that holds excess metal.
 Advantages of open-die forging:Reduced chance of voids Better fatigue resistance Improved microstructure Continuous grain flow Finer grain size Greater strengthBetter response to thermal treatment Improvement of internal quality Greater reliability of mechanical properties, ductility, and impact resistance

Closed die forging is no fly edge mold forging, generally in the forging process of the gap between the upper and lower mold unchanged, blanks in the enclosed mold around the molding, do not produce horizontal fly edge, a small amount of excess material will form a vertical fly thorn, flying thorn in the follow-up process to remove. The main advantages: Forging geometry, dimensional accuracy, and surface quality to maximize close to the product, the loss of flying edge, compared with open die forging, closed die forging can greatly improve the utilization of metal materials.

        * Type: ratchet  type.with hook and pin
        * Material: Alloy steel / Carbon steel.
        * Surface finish: Painted.
        * High quality load binder with drop Forged steel body
        * Alloy Grab hook is durable for lashing chain.
        * Hot-Treated ratchet is more robust. Heavy duty steel safety hooks.
        * Simple to assemble with chains without using any intermediate coupling links
        * Customized sizes are welcome
        * Any other types: EN12195-3 Ratchet load binder, lever type load binder, spring load binder,
        Indirect load binder, claw type load binder, chain tie down...Etc.



       European type ratchet load binder:
       1. Safety, reliable design for easy operation.
       2. No requirement for locking of handle than lever type load binders.
       3. High quality drop forged construction.
       4. Heat treated for extra strength.
       5. Short reach hooks provide optimum take-up.

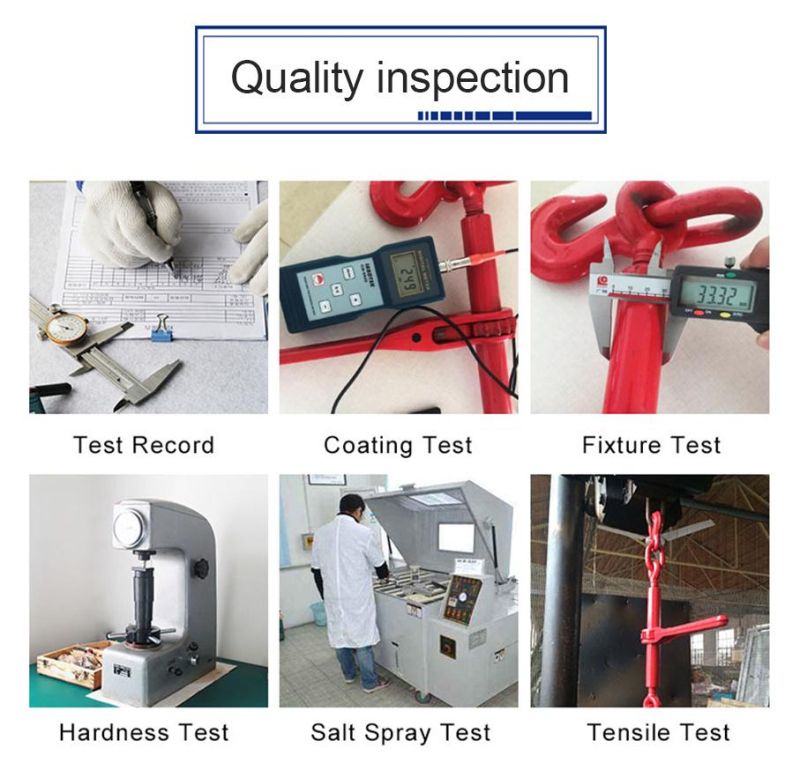

       6. Each binder individually proof tested.
       7. Cradle grab hook with safety pin is available upon request



       Q: Why choose Shengao product?
       A: We shengao have our own plant Weifang Shengao machinery Co., Ltd, therefore, we
       can surely promise the quality of every product and provide you comparable price.

       Q: Do you provide OEM Service?
       A: Yes, we provide OEM Service.

       Q: Do you provide customized products?
       A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.

       Q: What is your payment term?
       A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.


     Our Advantage:

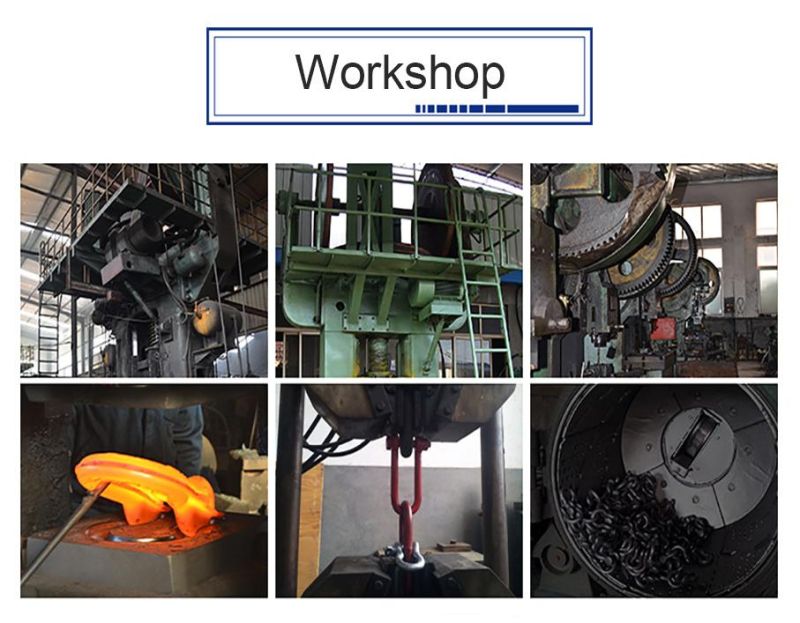

a) Over 16 years experience in producing. 300T/400T/630T/800T advanced forging machine and other machines.
b) Factory supply directly, can give clients best reasonable price and quality.
c) OEM service. We can produce as your samples or drawing draft.
d) Excellent service. Your requirement will be treated carefully and quick feedback by our staff. Also the quality will be highly controlled by our skilled QC team

If there's anything we can help, please feel free to contact with us.
