• Model NO.：TBL
• Certification：CE
• Load Capacity：200kg
• Working Height：4-15m
• Motor：3kw
• Power：Electric or Diesel
• Lifting Speed：50-90mm,S
• Dimension：5000*2000*3000mm
• Color：Customized
• Tower Crane Type：Slewing Tower Crane
• Power Source：Electric
• Moving Type：Wheel
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：Moral
• Origin：Jinan, Shandong, China
• HS Code：84289090
• Production Capacity：50.000 PCS,Year

Basic Info.

Model NO. TBL Certification CE Load Capacity 200kg Working Height 4-15m Motor 3kw Power Electric or Diesel Lifting Speed 50-90mm/S Dimension 5000*2000*3000mm Color Customized Tower Crane Type Slewing Tower Crane Power Source Electric Moving Type Wheel Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shandong, China HS Code 84289090 Production Capacity 50.000 PCS/Year

Product Description

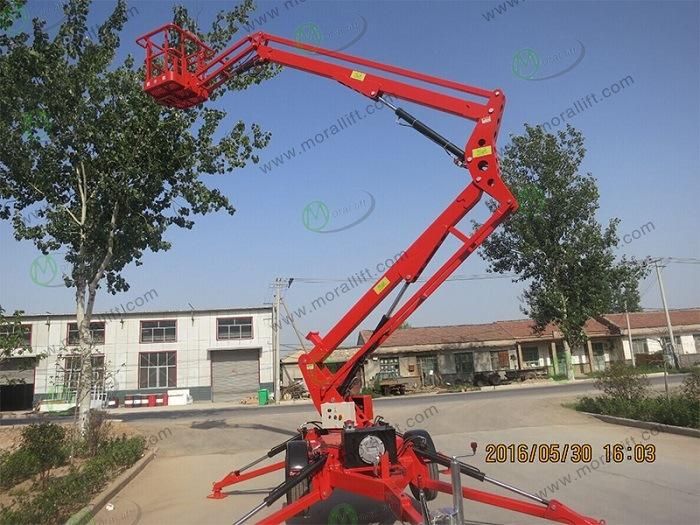

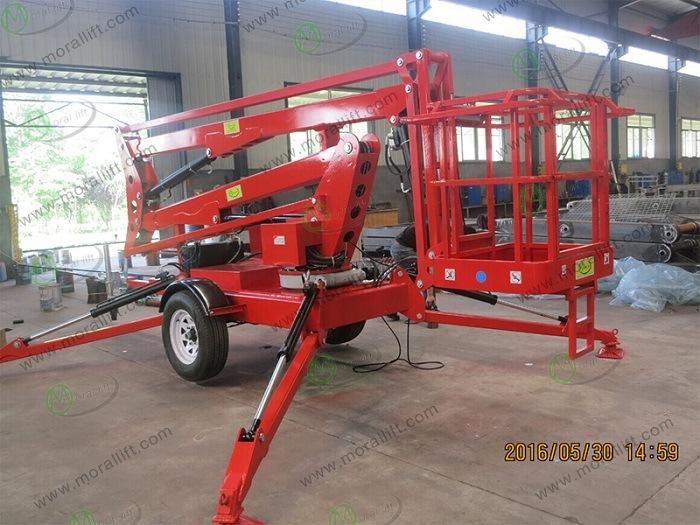

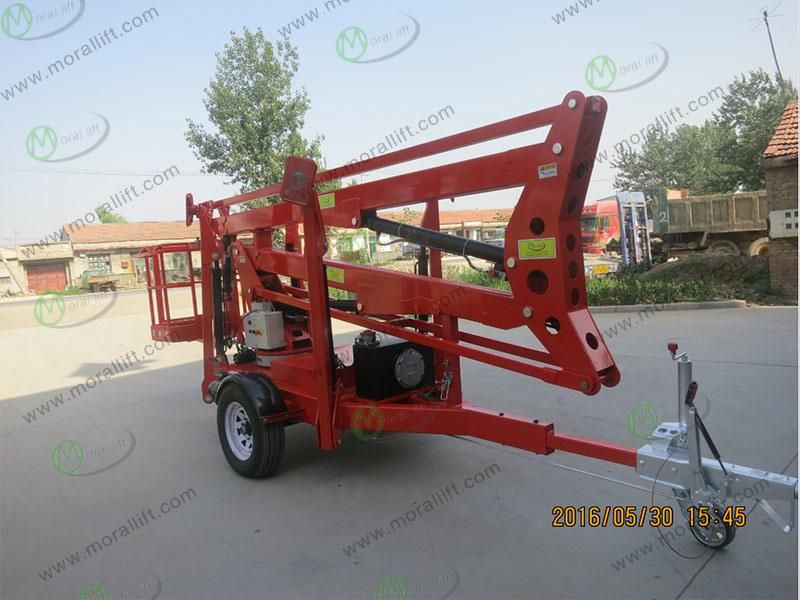

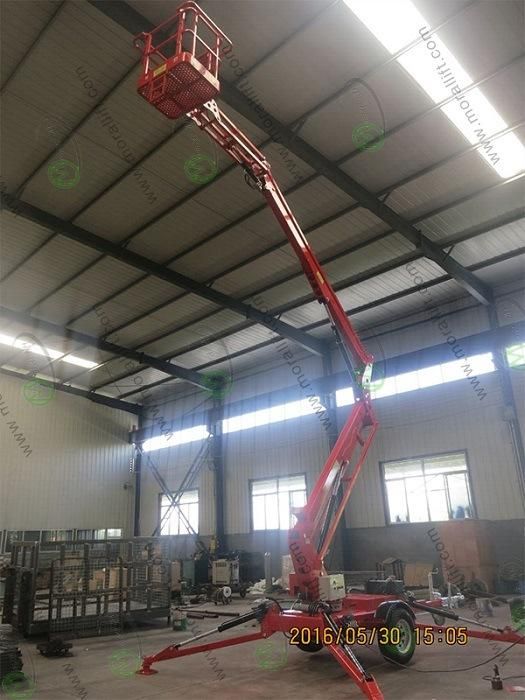

Hot! ! ! Aerial Work Platform Truck Mounted Boom Lift

Specifications:
1.Compact, narrow design is easy to maneuver in congested work areas
2.Big Horizontal working reach
3.Automatic leveling system and tilt alarm
4.Easily towed behind a pickup or SUV
5.Safe, easy to operate
6.359˚non-continuous turntable rotation
7.Articulating boom
8.Multiple job site application, indoors and outdoors
9.High and low operation panel
10.Hydraulic outriggers and outrigger interlocks
11.Made of high strength steel, famous china brand
12.All pipelines put inside the machine, to aviod tangled sun and rain or other objects

Application:
Trailer boom lifts are widely used in highways, boat yards shopping walls, stadiums, dock, station, marketplaces, gymnasiums and residential property, workshop,residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction  and other large range homework place.


Parameter:

Model		TBL
Max.working height		16.00M
Max.platform height		14.00M
Loading Capacity		200KG
Lateral Outreach		8.0M
Jib Rotation		100°
Turntable Rotation		359°
Size of basket		0.9×0.8×1.1 M
Overall stowed length		5.60M
Overall stowed width		1.82M
Overall stowed height		2.2M
Total weight		2500KG
Traveling speed		40KM/H
Standard power source		220V AC power
Optional power source		Battery
Optional power source		Diesel engine
Optional power source		Gasoline
