CE Electric Disabled Wheelchair Platform Lift
Jinan Moral International Co., Ltd.- Application：Disabled Lift
- Lift Mechanism：Lift Chain
- Carrying Capacity：Light Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：VWL
- Feature：Explosion-Proof
- Certification：CE
- Platform Size：1430*900mm
- Lifting Height：Max 10m
- Speed：100mm,s
- Drive：Hydraulic
- Load Capacity：300kg
- Safety：Emergency Down
- Installation：No Pit
- Working Condition：Both indoor and outdoor
- Control：Buttons,Remote
- Warranty：12 Months
- Transport Package：Standard Export Packing
- Specification：CE
- Trademark：Moral
- Origin：Jinan, Shangdong, China
- HS Code：842890
- Production Capacity：50, 000 PCS,Year
Description
Mainly material:Platform Non-skid Diamond Aluminum Platform Lead rails Aluminum extruded sections Hydraulic cylinder φ80*1pcs Chain 16A Surface material Aluminum plate with plastic spraying finished Controls parts Schneider/Delixi Installation Non-pit installation Working Condition Both indoor and outdoor
Safety deviceHigh pressure hydraulic oil pipe with double steel net Explosion proof value for cylinder Emergency stop button Emergency down valve when power failure The operation must be stopped immediately the safety edge meets obstacles during operation Machine can working when door completely closed Upper final limit safety switch Packing Steel frame with plywood cases Certificate CE/ISO/SGS/CCC

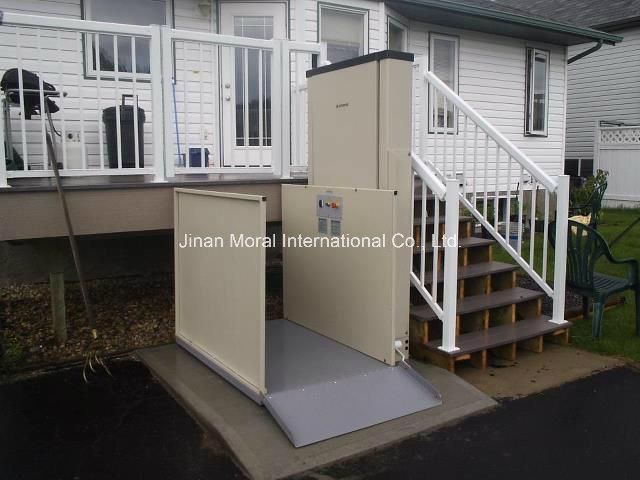

Product Photos:
Safety device

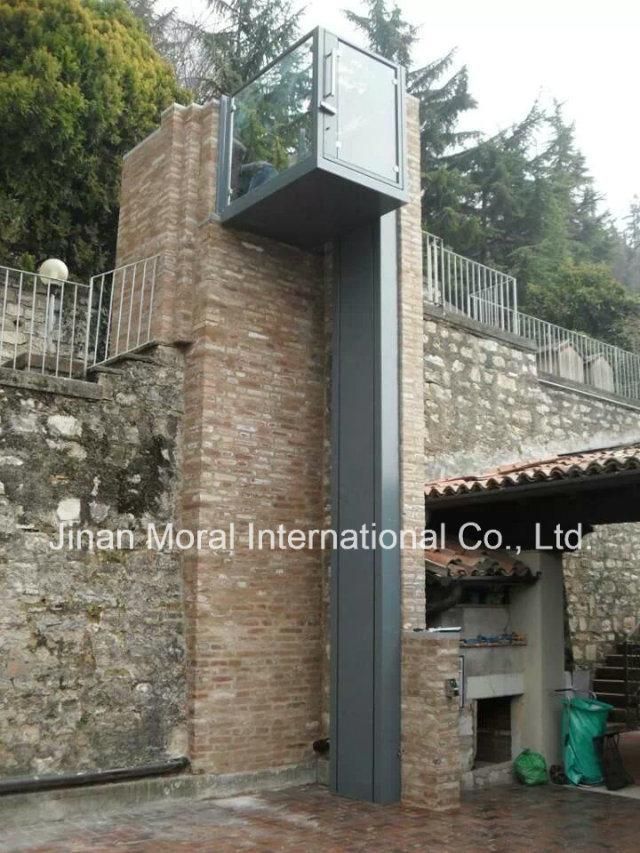

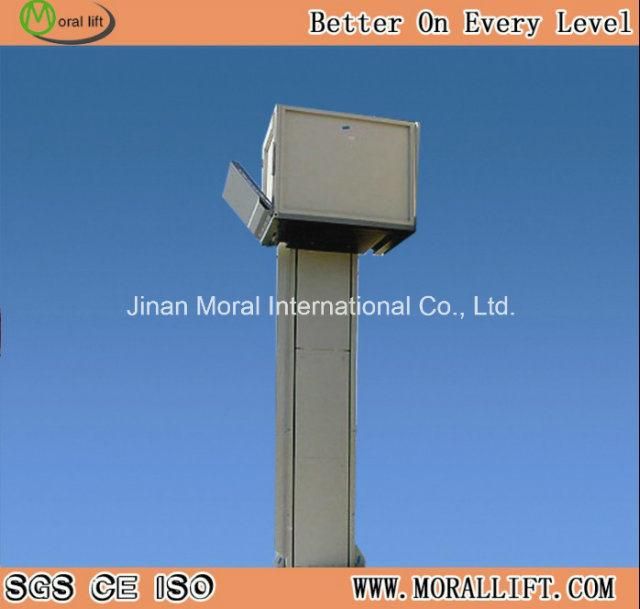

Product Photos:
