Low Profile Hydraulic Table Scissor Lift

Jinan PLK Machinery Co., Ltd.
  • After-sales Service：Free Spare Parts; Life Technical Support
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Weight Level
  • Moves：Stationary
  • Driven Type：Hydraulic

Base Info

  • Model NO.：HW
  • Running Mode：Stationary
  • Feature：Explosion-Proof, Insulating
  • Certification：GS, CE, RoHS, ISO 9001
  • Load Capacity：600kg 1000kg
  • Material：Steel
  • Transport Package：Wooden Pallet and High Quality Paper Boxes with St
  • Specification：1450*985*100
  • Trademark：PLK LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：5000

Description

Basic Info.

Model NO. HW Running Mode Stationary Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Load Capacity 600kg 1000kg Material Steel Transport Package Wooden Pallet and High Quality Paper Boxes with St Specification 1450*985*100 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 5000

Product Description

Low Profile Mini Scissor Lift
 PLKLIFT Brand Low Profile Scissor Lift Table is one of the most ideal equipment for loading and unloading goods.

With the near-ground platform height, the goods loading becomes more convenient and saves labor. Compact yet powerful, the low profile lift can be moved around quite easily and perform tasks weighing up to 2000kg.
If you find it not agreeing with your needs, here comes good news: we also accept customization! Out with your needs including platform size, lifting height and capacity, and we are on the go.
It is widely used in warehouses, small shops and other places, greatly helping people in their daily tasks, like lifting wooden or plastic pallets, goods and materials.



Data Sheet
ModelLoad Capacity(kg)Max. Platform Height(mm)Platform Size
(mm)		Base Size
(mm)		Self Height
(mm)		Lifting Time(s)VoltageNet weight
(KG)
HY100110008601325x10741325x10748525customized357
HY100210008601325x10741325x10748525customized364
HY100310008601325x7341325x7348525customized326
HY100410008601325x7341325x7348525customized332
HY100510008601325x7341325x7348525customized352
HY150115008701325x7341325x73410530customized302
HY150215008701325x7341325x73410530customized401
HY150315008701325x7341325x73410530customized415
HY200120008701427x11141427x111410535customized419
HY200220008701427x7341427x73410535customized405

This scissor lift table equipped with safety valve, to protect the safety both for goods and user.

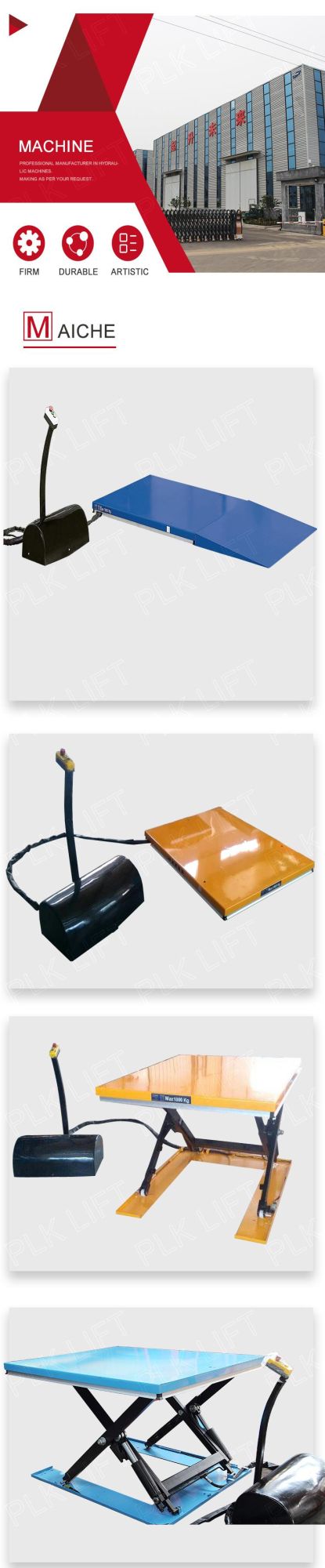

Product Show
Low Profile Hydraulic Table Scissor Lift

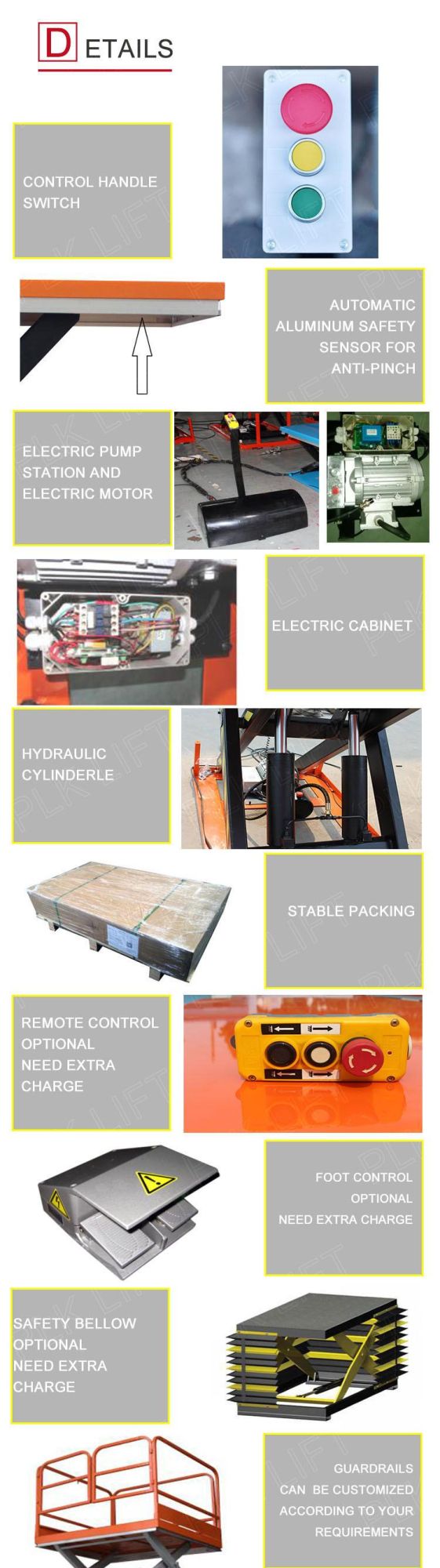

Details Show
Low Profile Hydraulic Table Scissor Lift

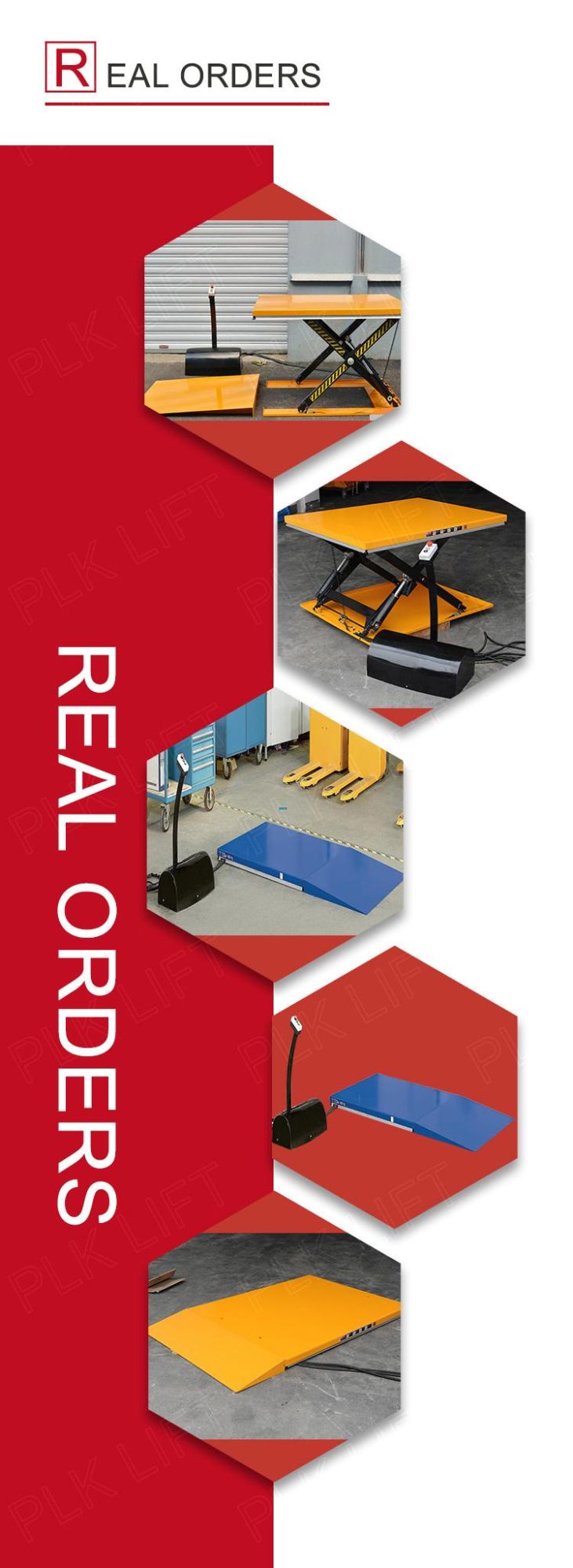

Bulk Order Show

Low Profile Hydraulic Table Scissor Lift


Factory Show
Low Profile Hydraulic Table Scissor Lift
