• Model NO.：HW
• Driven Type：Spring
• Running Mode：Stationary
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Lifting：Auto
• Material：Steel
• Voltage：Customized
• Transport Package：Pallet
• Specification：1.5CBM
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：5000 PCS,Month

Basic Info.

Model NO. HW Driven Type Spring Running Mode Stationary Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Lifting Auto Material Steel Voltage Customized Transport Package Pallet Specification 1.5CBM Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 5000 PCS/Month

Product Description

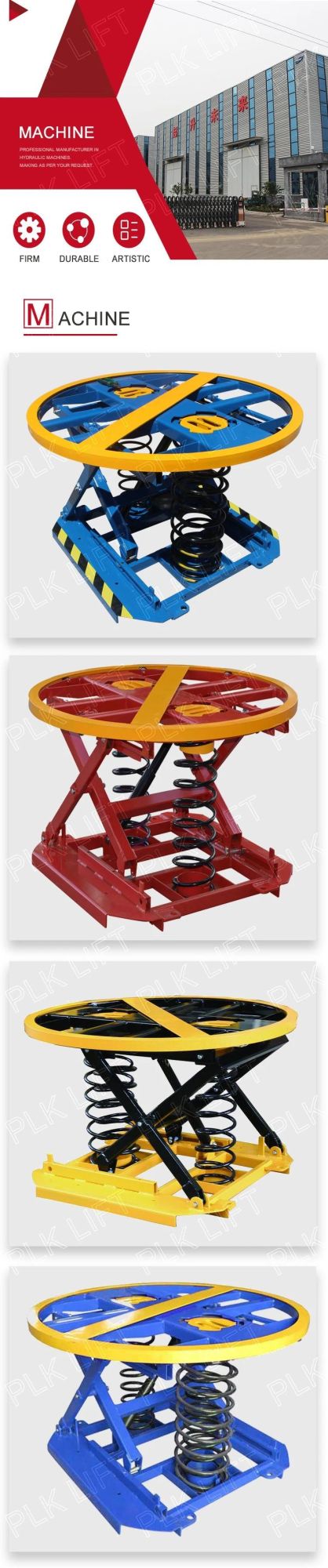

Pallet Scissor Lifter Spring Pallet PositionerThe lifter is widely used in warehouse and workshop scenarios to help lift the pallet goods. The lifting power is from spring, needless to be plugged for electricity which means the possibility of electric shock is eliminated.The platform is conveniently and automatically raised to the appropriate height to pick up goods with different weights.

Model	HS2000A
Load Capacity (kg)	182-2000kg
Max. Pallet Size(mm)	1270*1270*1820
Base Size(mm)	920*933
Lowered Platform Height(mm)	242
Max Platform Height(mm)	705
Rotary Platform Diameter(mm)	1108
G.W.:(kg)	185
Construction	Steel
Operation	Spring Lift
Package size	140*114*45

Advantage:

1. Rugged scissor construction, the max. Load capacity can reach 2000kg.
2. Spring self-balancing design makes the pallet always at the most convenient height.
3. The connecting rod structure is designed to keep the plane level when the load is weight unevenly distributed.
4. Equipped with high quality bearings. 360 degree rotating platform enables workers to quickly pack or assemble their loads.
5. Equipped with forklift hole, easy to be moved elsewhere. At the same time, platform base stability is enhanced.
6. No hydraulic or electrical control is required, efficient maintenance and cost reducible.
7. Widely used in logistics warehouse packaging, workshop packaging, etc.
