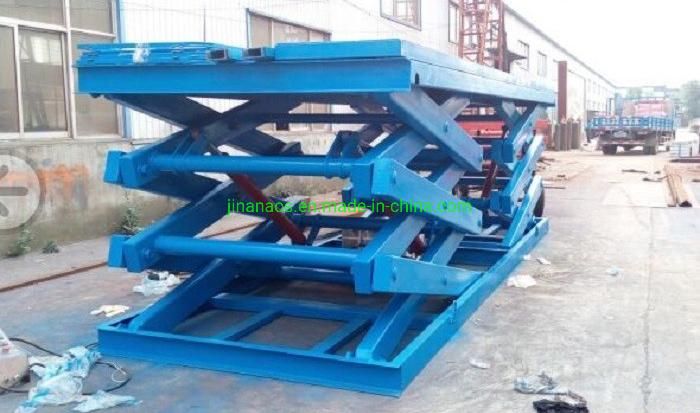

Hydraulic Scissor Cargo Lift Platform Designed with Two-Scissor Structure
Jinan Aos International Co., Ltd- After-sales Service：Free Spare Parts Wihin One Year
- Warranty：1year
- Application：Warehouse Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Special Weight Level
- Moves：Stationary
Base Info
- Model NO.：SJG3-2.6
- Driven Type：Hydraulic
- Running Mode：Stationary
- Feature：Explosion-Proof
- Certification：CE, ISO 9001
- Lifting Height：2600mm
- Table Size：5150*2950mm
- Capacity：2600kg
- Closed Height：500mm
- Cylinder：Dia.100*4PCS
- Main Material：160*80*6mm Steel Tubes
- up Frame Size：14# Heavy Steel, Q235
- Platform Thickness：5mm Checkered Plate
- Handrail Height：100mm, 4PCS
- Power：4kw,380V,50Hz
- Control：Delixi Electrics, Two Control Boxes
- Spare Parts：Oil Pipes &Gasket, Seal Ring, Travel Switch
- Delivery：About 15 Working Days
- Payment：T,T;50%Deposit in Advance and 50% Before Shipment.
- Transport Package：Plywood Case Packing
- Specification：SJG3-2.6
- Origin：China
- HS Code：8428909090
- Production Capacity：50000PCS,Year
Description
Hydraulic Stationary scissor lift platforms are widely used machines for many fields, the most popular using are in warehouse,basement, first floor,etc, which for carrying the cargos,cars and so on to the high floors.
It is design and produce as clients' requirements, as long as telling us the requirements of capacity, platform size, lifting height, we can design, supply drawing and give offer.
..............
------
These are the types which we exported to the customers following:
| Model | Capacity(kg) | Table size(m) | Lifting height (m) | Closed height(m) | Power |
| SJG3-4.5 | 3000 | 5.7*2.0 | 4.5 | 0.85 | 4KW/380V |
| SJG0.5-2.7 | 500 | 1.5*1.0 | 2.7 | 0.5 | 1.5KW/380V |
| SJG2-5 | 2000 | 1.75*1.2 | 5 | 1.03 | 3KW/380V |
| SJG1.5-2.4 | 1500 | 2.2*1.5 | 2.4 | 0.45 | 3KW/380V |
| SJG5-3 | 5000 | 3 * 2 | 3 | 0.8 | 4KW/380V |
| SJG1.5-4 | 1500 | 2.5*1.5 | 4 | 1.0 | 3KW/380V |
| SJG4-4.4 | 4000 | 2 * 1 | 4.4 | 1.1 | 4KW/380V |
| SJG2-11 | 2000 | 5.5 * 2.2 | 11 | 1.2 | 5.5KW/380V |
| SJG1.5-4 | 1500 | 1.8 * 2 | 4 | 0.86 | 4KW/380V |
| SJG0.7-0.95 | 700 | 0.95*0.8 | 0.95 | 0.4 | 2.2KW/380V |
| SJG0.2-2.3 | 200 | 1.3*1.0 | 2.3 | 0.48 | 2.2KW/380V |
| SJG3-2.3 | 3000 | 1.6*1.4 | 2.3 | 0.66 | 2.2KW/380V |
| SJG1-5 | 1000 | 1.6*1.5 | 5 | 0.92 | 2.2KW/380V |
| SJG2-6 | 2000 | 2.0*2.0 | 6 | 1.03 | 4KW/380V |
| SJG2-5 | 2000 | 2.1*1.2 | 5 | 0.87 | 4KW/380V |
| SJG3-6.5 | 3000 | 2.2*1.9 | 6.5 | 1.52 | 5.5KW/380V |
| SJG2-5 | 2000 | 2.3*1.4 | 5 | 0.87 | 4KW/380V |
| SJG2-5.15 | 2000 | 2.3*1.44 | 5.15 | 0.87 | 4KW/380V |
| SJG2-4 | 2000 | 2.5*1.5 | 4 | 0.86 | 4KW/380V |
| SJG2-9 | 2000 | 2.5*2.0 | 7.5 | 1.43 | 4KW/380V |
| SJG1.5-7.9 | 1500 | 2.6*2.0 | 7.9 | 1.2 | 4KW/380V |
| SJG2-5.4 | 2000 | 2.9*2.0 | 5.4 | 0.82 | 4KW/380V |
| SJG2-4 | 2000 | 3.0*1.6 | 4 | 0.83 | 4KW/380V |
| SJG2-4.5 | 2000 | 3.0*2.5 | 4.5 | 0.82 | 3KW/380V |
| SJG3-4.5 | 3000 | 4.3*2.8 | 3 | 1.03 | 5.5KW/380V |
| SJG1.5-8.5 | 1500 | 2.25 *1.6 | 8.5 | 1.2 | 4KW/380V |
----
Main features:
★ Design according to clients' requirements, the max load capacity can be 30 tons.
★ Emergency and overload protection devices.
★ Anti-slip checkered steel plate of the paltform surface.
★ Imported or domestic joint venture hydraulic pump, cylinder and seal ring, and other spare parts are available.
★ Controls on the different floors or levels for customers if they need.
★Supply for detailed installation drawings, operation and maintainance manual, hydraulic diagram, electric diagram. Good warranty and service.
----

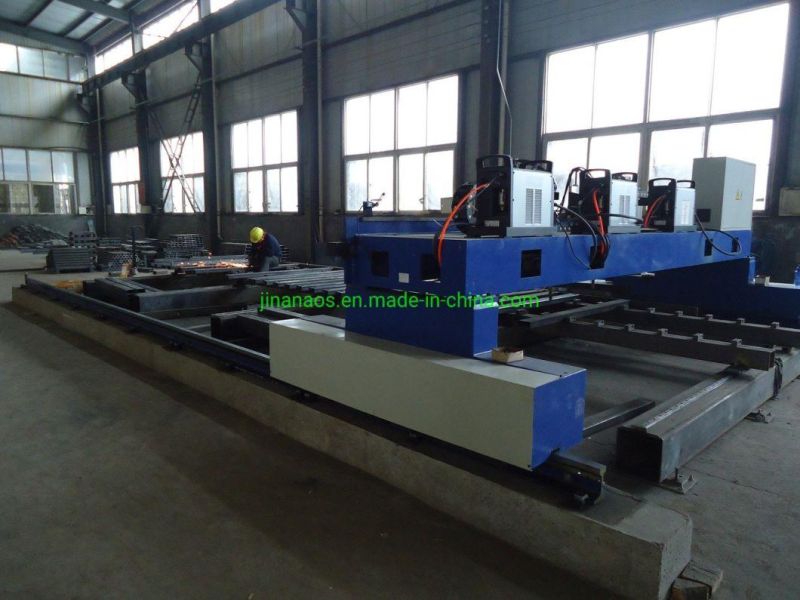

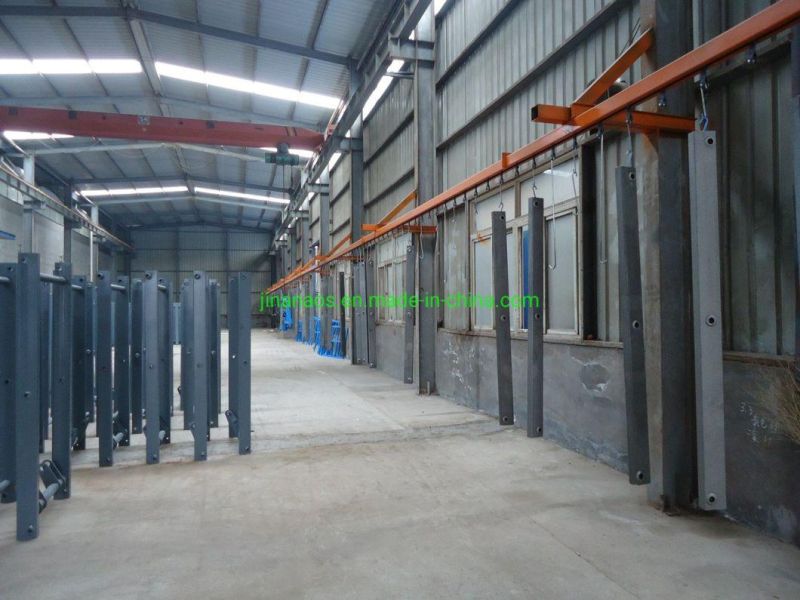

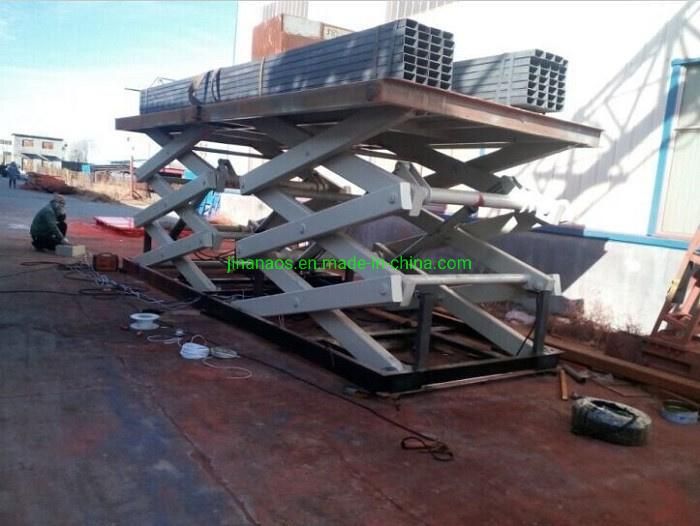

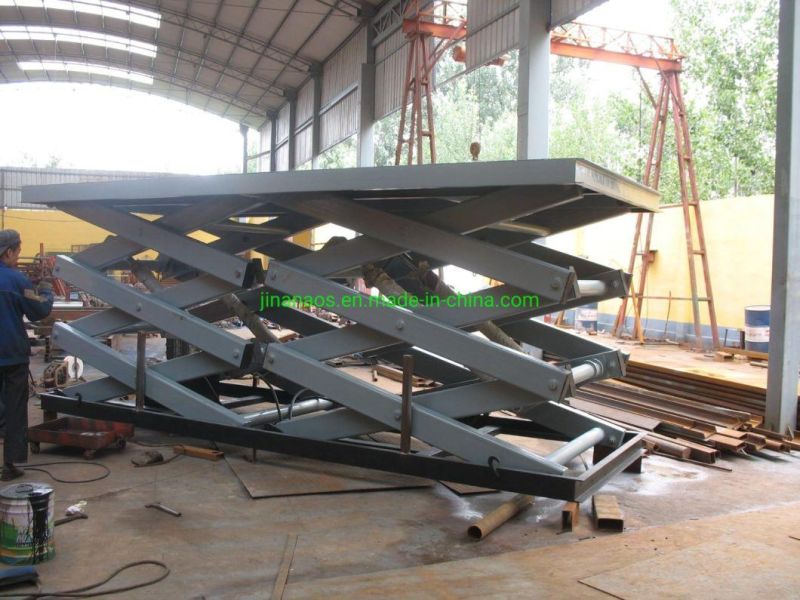

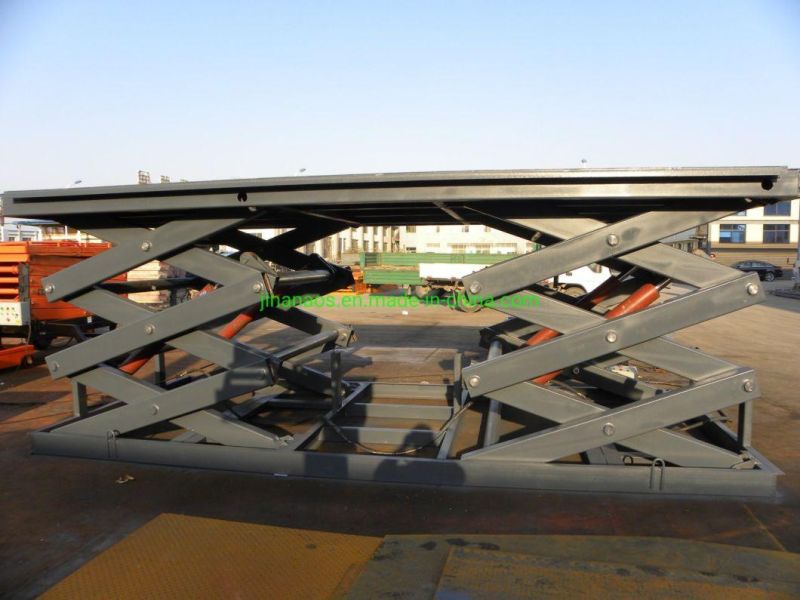

Workshop shows:
----

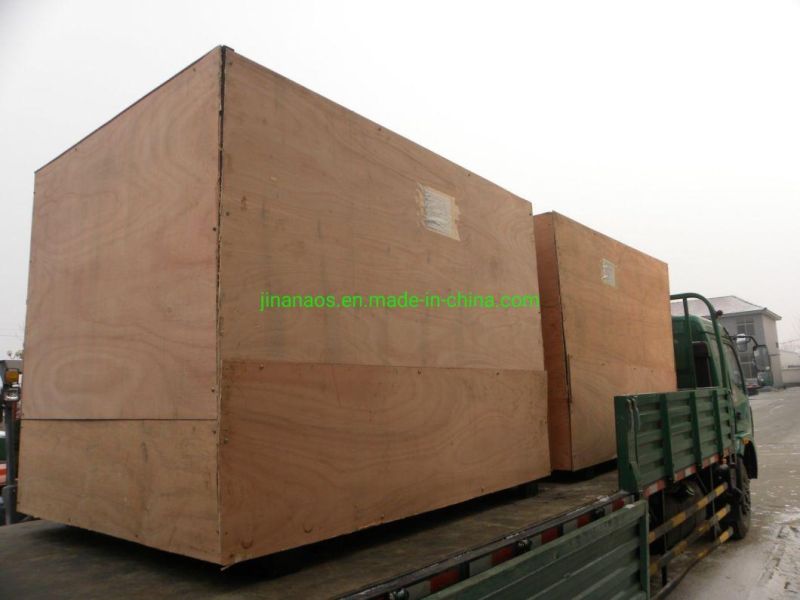

Loading and packing show:
