Hydraulic Guide Rail Car Elevator Lift with CE
Jinan Moral International Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Light Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：SJD
- Feature：Explosion-Proof
- Certification：CE
- Speed：100mm,S
- Materials：Double T
- Load Capacity：3000kg
- Lifting Height：5000mm
- Platform Size：4500*2000mm
- Control：Buttons or Remote Control
- Color：Optional
- Transport Package：Standard Export Packing
- Specification：CE
- Trademark：Moral
- Origin：Jinan, Shangdong, China
- HS Code：842890
- Production Capacity：50, 000 PCS,Year
Description
Basic Info.
Model NO. SJD Feature Explosion-Proof Certification CE Speed 100mm/S Materials Double T Load Capacity 3000kg Lifting Height 5000mm Platform Size 4500*2000mm Control Buttons or Remote Control Color Optional Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shangdong, China HS Code 842890 Production Capacity 50, 000 PCS/YearProduct Description

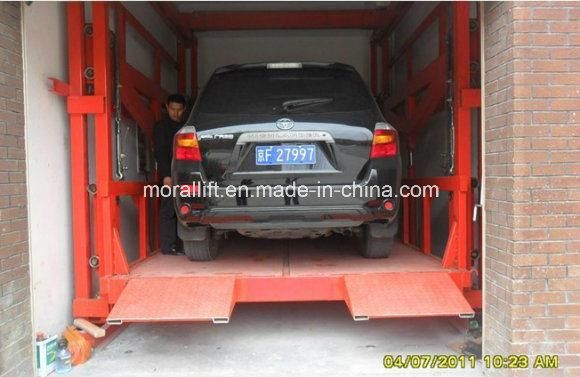

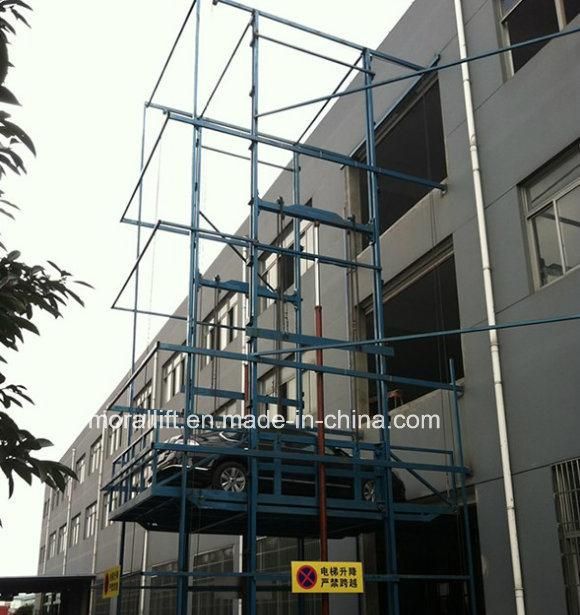

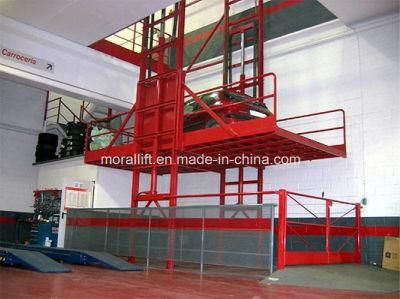

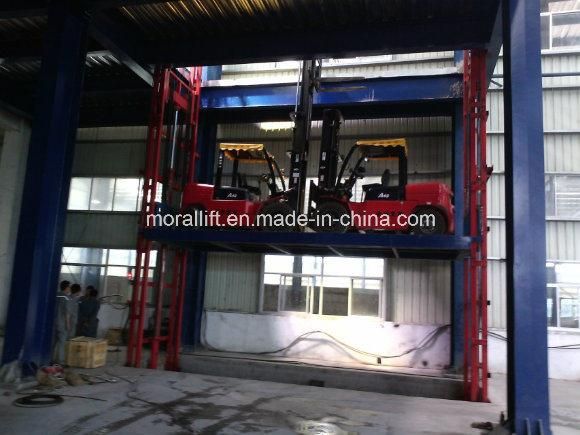

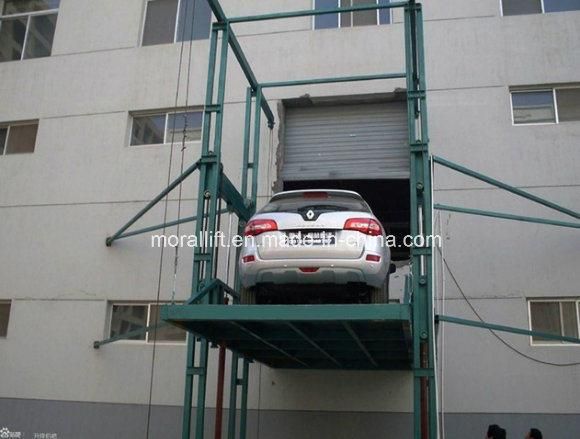

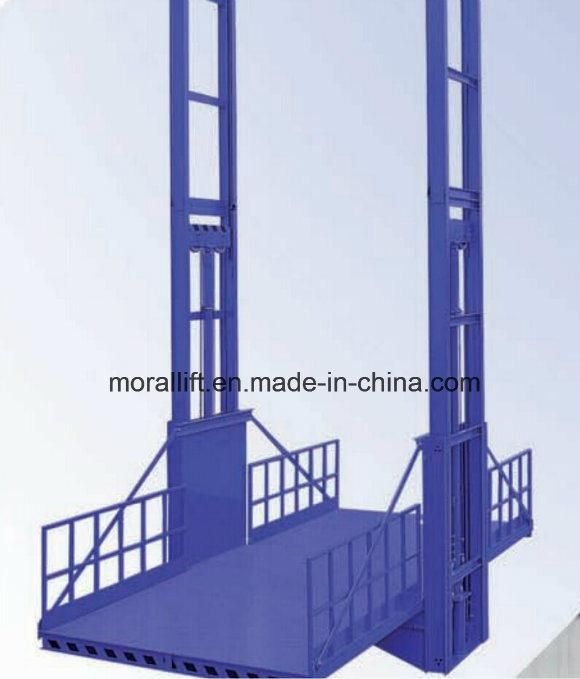

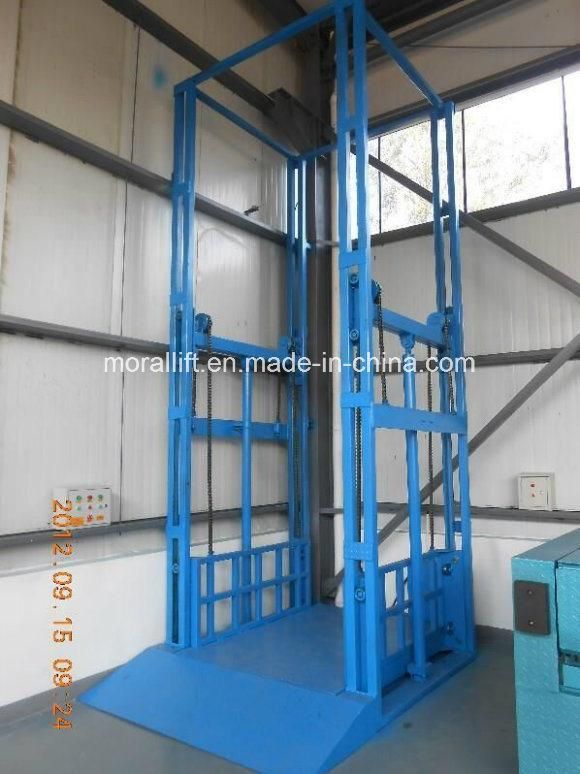

Hydraulic Guide Rail Car Elevator Lift with CEVertical lift--Lead rail hydraulic lifting platform is used for transfer cargo between different floors. Self-height is about 150-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operate.
This machine provide fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications. The principle components of machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.
We offer the most complete line of machine from mechanical to hydraulic to fully automatic, customized systems for automated manufacturing and warehousing operations. Machine are available in capacities from 100kg. To 100, 000kg.
1) chain lifting platform features lifting the goods through the different floors.
2) chain lifting platform----hydraulic driven and lift by chain.
3) special lifting chain and have long use life.
4) the close height is low so don not need pit installation.
5) closed type structure, safe and easy to clean.
| Model | SJD |
| Load capacity | 500--10,000KG |
| Platform size | 1500*1200MM/optional |
| Lifting height | 10000MM |
| speed | 100mm/s |
| power | 3kw |
| power supply | AC 220V/380V 50HZ/60HZ |
| weight | 800KG |
