Hydraulic Scissor Car Lift Auto Lift
Jinan Moral International Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Weight Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：SJG
- Feature：Explosion-Proof
- Certification：CE
- Material：High Strength Manganese Steel
- Motor：Hydr-APP
- Speed：100mm,s
- Load Capacity：3000kg or Customized
- Lifting Height：3500mm or Customized
- Platform Size：5000*2500mm or Customized
- Power：5.5kw
- Control Mode：Buttons,Remote Control
- Warranty：12 months
- Installation：Need Pit Installation
- Transport Package：Standard Export Packing
- Specification：CE
- Trademark：Moral
- Origin：Jinan, Shangdong, China
- HS Code：842890
- Production Capacity：50, 000 PCS,Year
Description
Basic Info.
Model NO. SJG Feature Explosion-Proof Certification CE Material High Strength Manganese Steel Motor Hydr-APP Speed 100mm/s Load Capacity 3000kg or Customized Lifting Height 3500mm or Customized Platform Size 5000*2500mm or Customized Power 5.5kw Control Mode Buttons/Remote Control Warranty 12 months Installation Need Pit Installation Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shangdong, China HS Code 842890 Production Capacity 50, 000 PCS/YearProduct Description

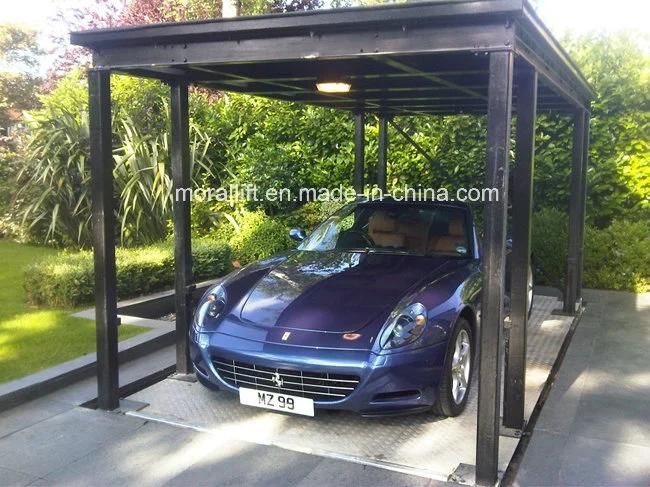

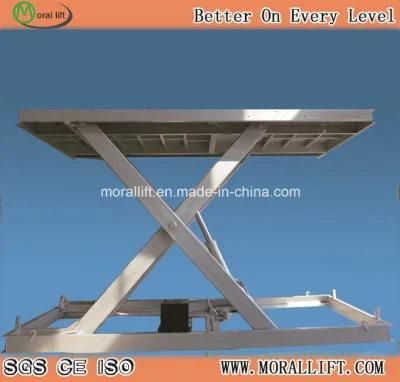

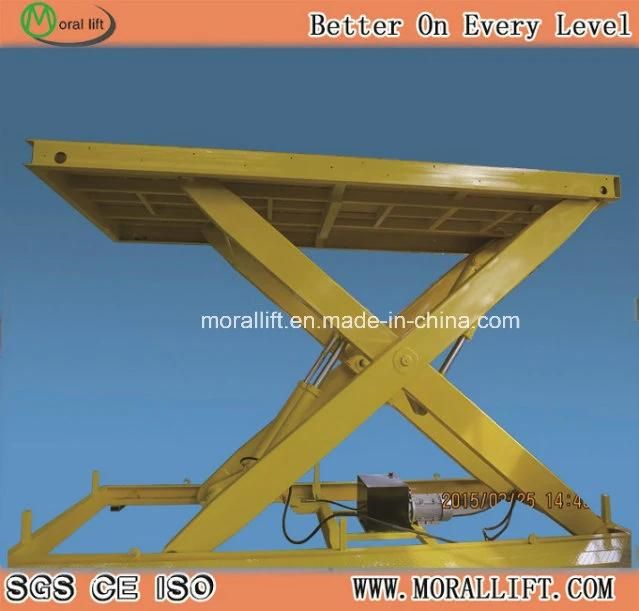

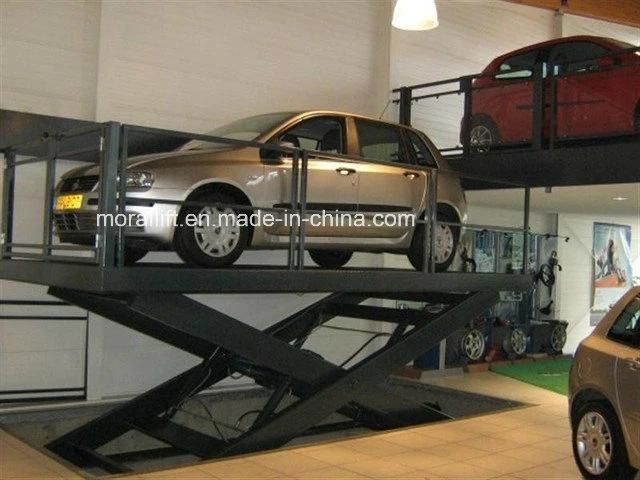

Hydraulic Scissor Car Lift Auto LiftMain feature:
1)used for lifting kinds of car
2)great loading capacity
3)hydraulic system increase safety
4)steady working
Specifications and Safety:
1.The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to
ensure safety of car
2. the handrail to guarantee safety of car
3. equipped with 4 guide rails to ensure safety and steady.
4. the limit switch system ensure lifts stop at accurate position.
5. overload protection facility is equipped on, the lift will not work when goods is overloaded.
6. Electric control system adopt elevator system from Japan Mitsubishi ensure safety
7. guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.
Parameter:
1. load weight: 3000kgs/customize
2. table size: 5.5m x 2.5m/customize
3. travel height: 5m/customize
4. Elevator controls system
5. structure: high-strength Mn steel
| Model | SJG3-5 |
| Load capacity | 3000KG |
| Platform size | 5500*2500MM |
| Lifting height | 5000MM |
| speed | 100mm/s |
| power | 5.5kw |
| power supply | AC 220V/380V 50HZ/60HZ |
| weight | 2950KG |
Welcome to your inquiry, we can customize for your every inquiry, thanks
