• Model NO.：JKMD-5*4P
• Reel Number：1
• Running Mode：Stationary
• Feature：Explosion-Proof
• Certification：ISO 9001
• Standard：National Standards
• Friction Wheel：5 M
• Number of Steel Wire Rope：4 Piece
• Friction Coefficient：0.25
• Max Static Tension Difference：400 Kn
• Max Diameter of Wire Rope：54 mm
• Rope Interval：350 mm
• Hoisting Sheave：5 M
• Wire Rope Elevation Angle (Degree)：>=40 and <90
• Transport Package：Null
• Trademark：CSME
• Origin：Changsha, China(Mainland)
• HS Code：8425110000
• Production Capacity：50 Sets,Month

product modelfriction wheelNumber of Steel
 Wire Ropefriction
coefficientMaximum static tension difference of wire ropeMaximum static tension of wire ropeMaximum diameter of wire ropeRope
intervalMaximum hoisting speedhoisting
 sheaveWire rope elevation
 anglespeed reducerno speed reducermpieceKNKNmmmmm/sm( °)JKMD-1.6×4P1.6040.2530105162508.0≥40

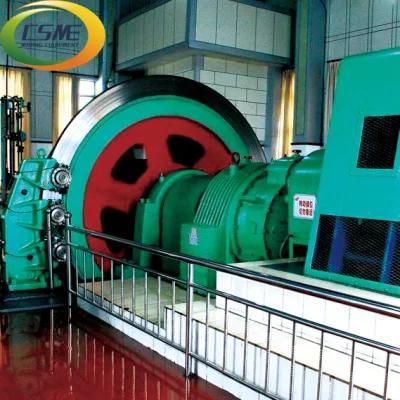

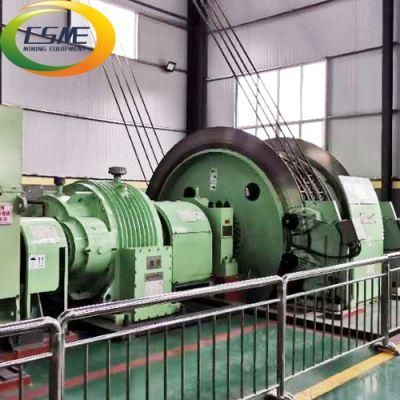

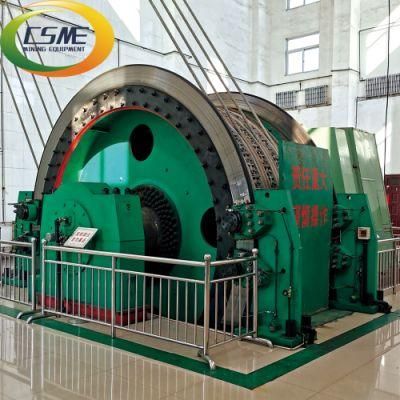

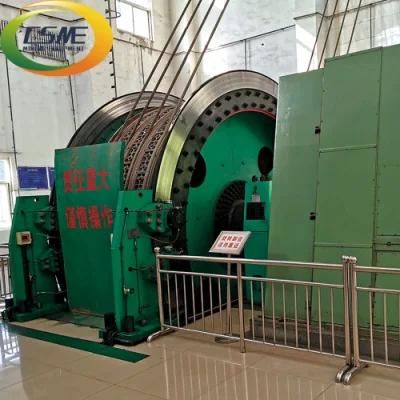

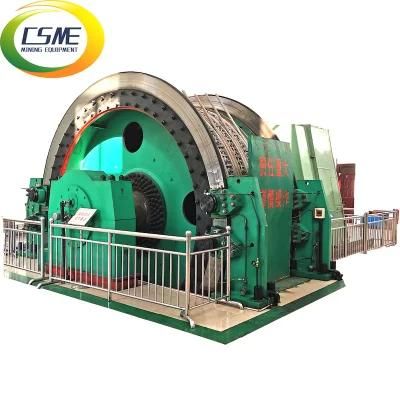

and10.016.030015.0350___4.00 JKMD-4.5×4P4.50 340980504.50 JKMD-5×4P5.00 4001250545.00 JKMD-5.5×4P5.50 4501450605.50 JKMD-5.7×4P5.70 4701550625.70 JKMD-6×4P6.00 5001650646.00 Product Photo:

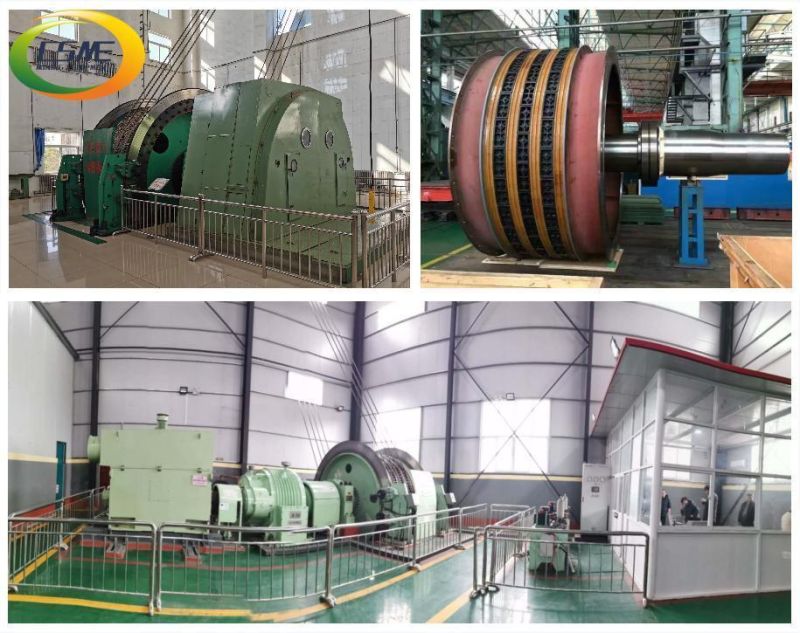

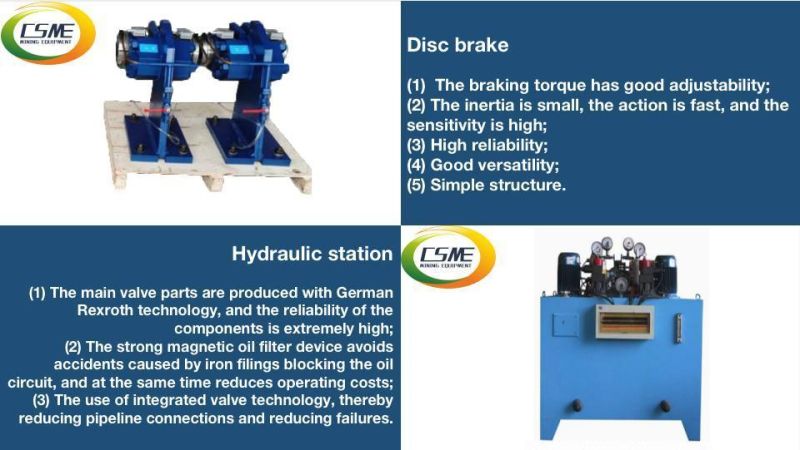

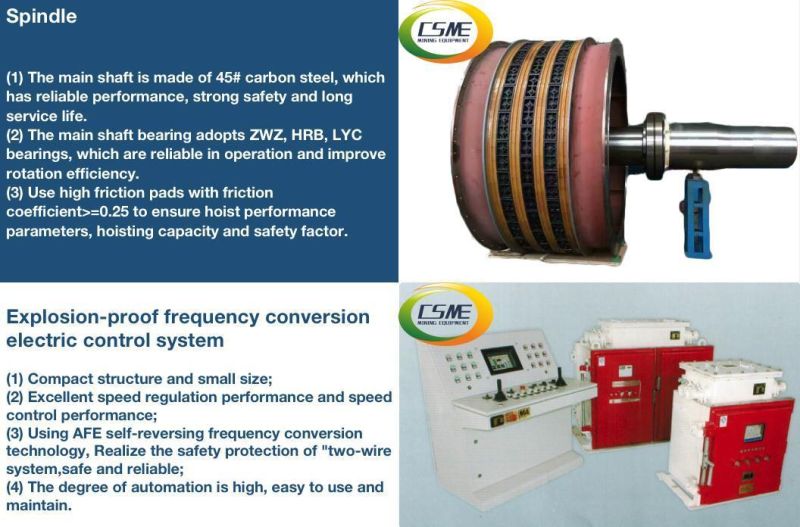

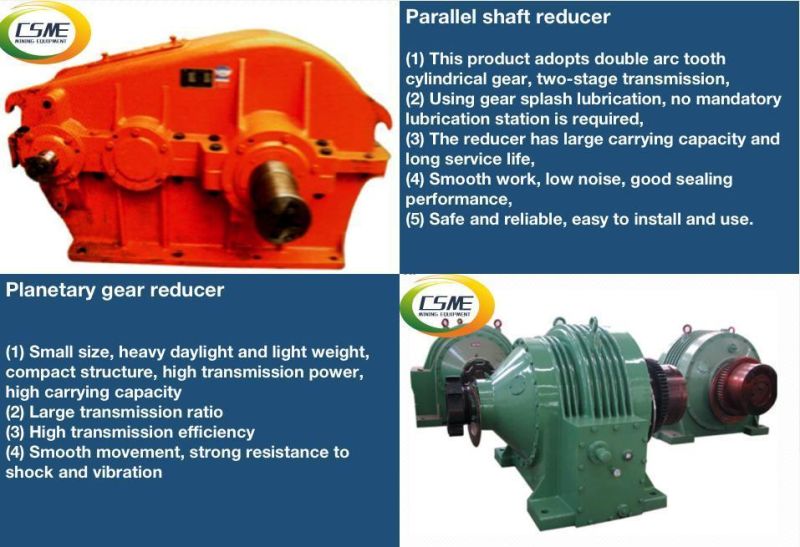

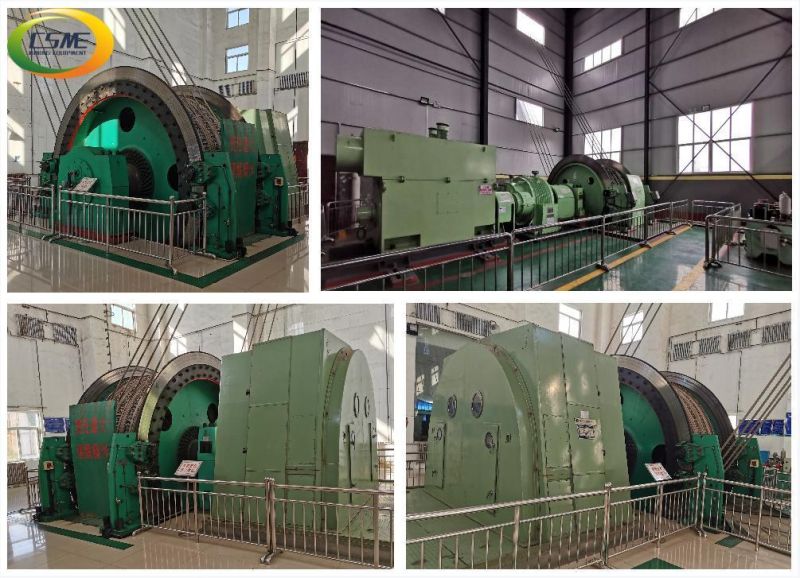

Product Details:


Factory workshop:

Pakage:

Our Service:
1. If you have specific requirements, we will actively discuss the details and implementable solutions with you, and then produce high quality products for you.
2. The company has professional engineers. Provide you with costomized services.
3. The company has professional business staff to answer your questions online 24 hours a day.
4. The after-sales service system is perfect, and solve problems for you in time.

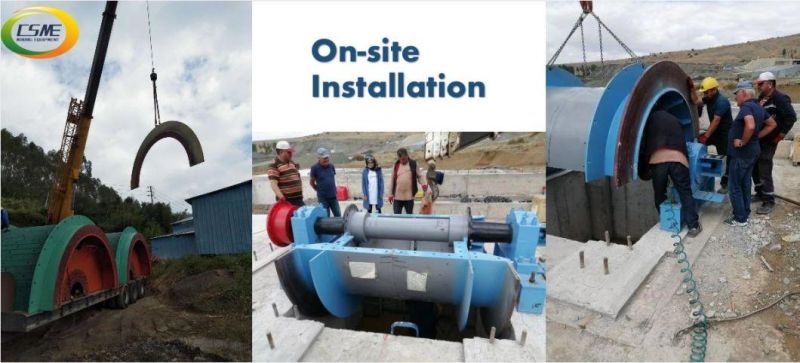

5. If you have installation requirements, we have a dedicated engineer to provide you with overseas guidance installation services.
