Jkmd Type Safe and Reliable Lifting Hoist for Underground Mine

Changsha Mining Equipment Co., Ltd.
  • After-sales Service：Video Training or Send Engineer to The Site
  • Warranty：12 Months
  • Type：Electric Winch
  • Driven Type：AC
  • Speed：16 M,S
  • Carrying Capacity：980 Kn

Base Info

  • Model NO.：JKMD-4.5*4P
  • Reel Number：1
  • Running Mode：Stationary
  • Feature：Explosion-Proof
  • Certification：ISO 9001
  • Standard：National Standards
  • Friction Wheel：4.5 M
  • Number of Steel Wire Rope：4 Piece
  • Friction Coefficient：0.25
  • Max Static Tension Difference：340 Kn
  • Max Diameter of Wire Rope：50 mm
  • Rope Interval：350 mm
  • Hoisting Sheave：4.5 M
  • Wire Rope Elevation Angle (Degree)：>=40 and <90
  • Transport Package：Null
  • Trademark：CSME
  • Origin：Changsha, China(Mainland)
  • HS Code：8425110000
  • Production Capacity：50 Sets,Month

Description

40.2530105162508.0≥40
and10.016.030015.0350___4.00 JKMD-4.5×4P4.50 340980504.50 JKMD-5×4P5.00 4001250545.00 JKMD-5.5×4P5.50 4501450605.50 JKMD-5.7×4P5.70 4701550625.70 JKMD-6×4P6.00 5001650646.00 Product Photo:

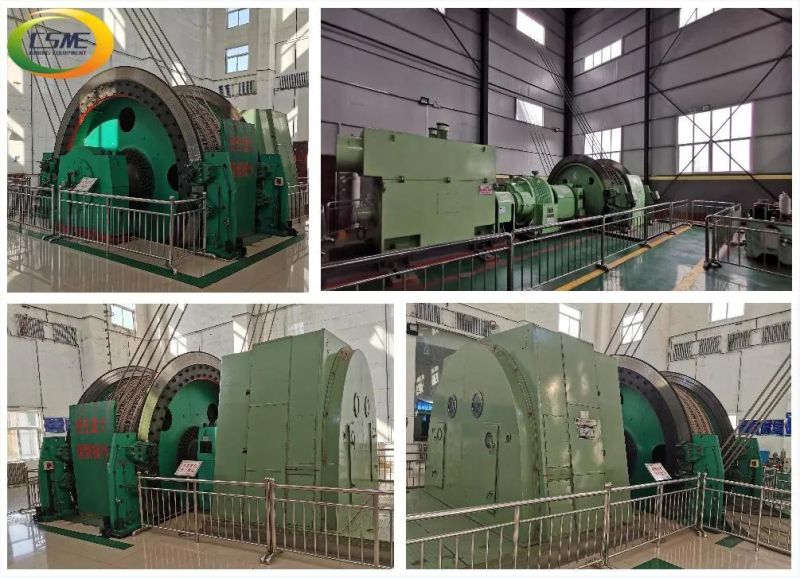

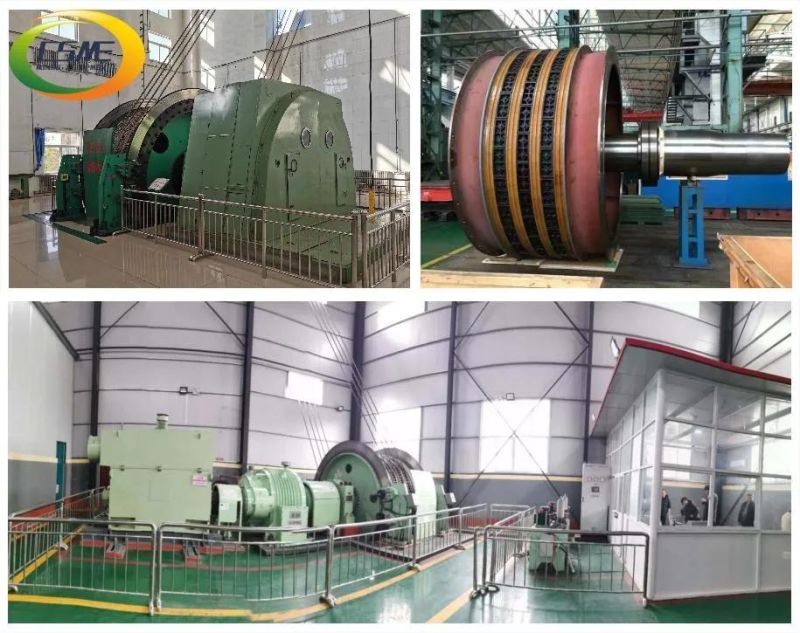

Jkmd Type Safe and Reliable Lifting Hoist for Underground MineJkmd Type Safe and Reliable Lifting Hoist for Underground Mine

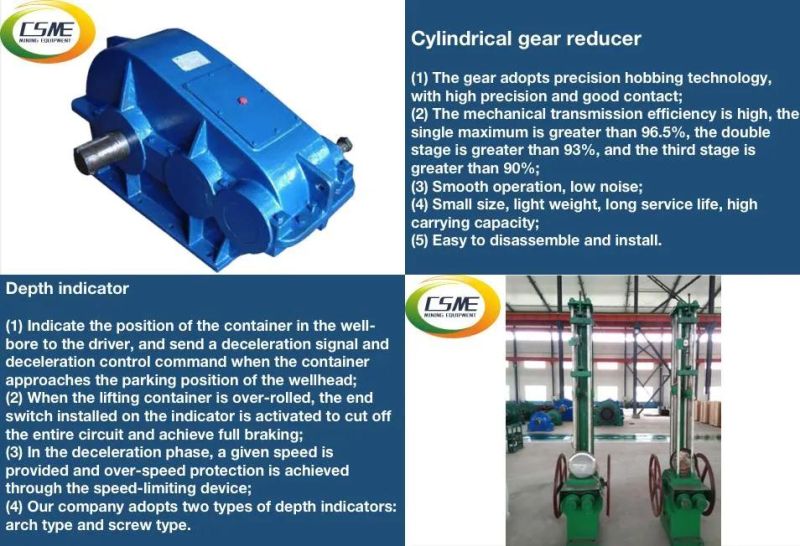

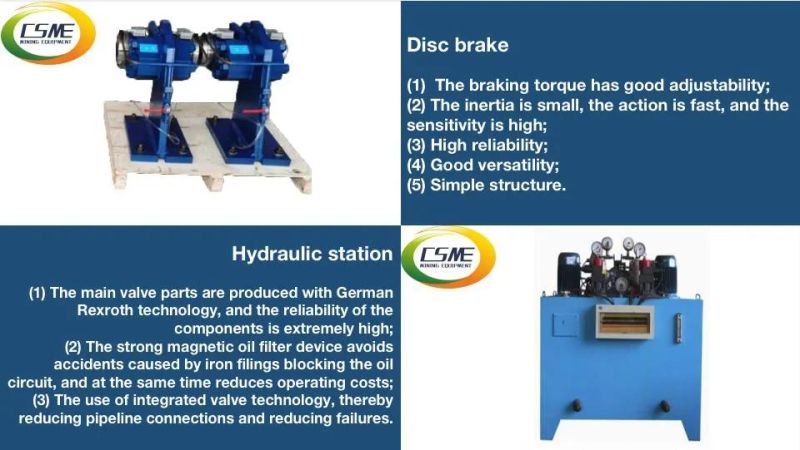

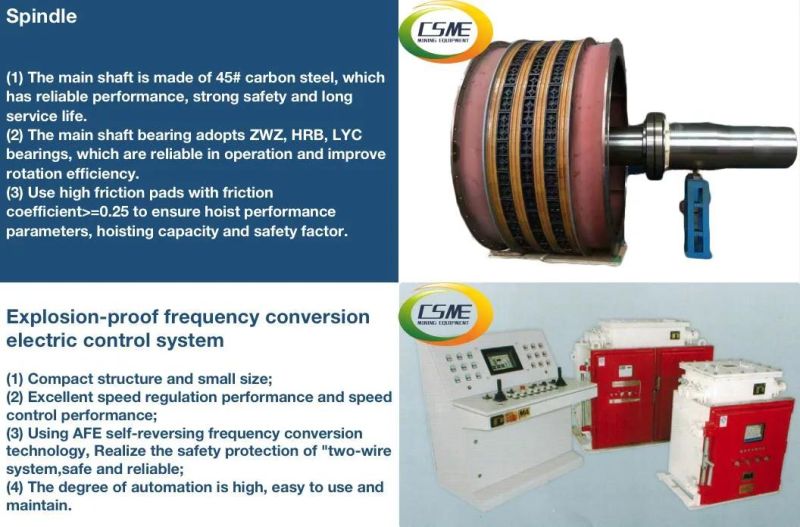

Product Details:Jkmd Type Safe and Reliable Lifting Hoist for Underground Mine
Jkmd Type Safe and Reliable Lifting Hoist for Underground MineJkmd Type Safe and Reliable Lifting Hoist for Underground MineJkmd Type Safe and Reliable Lifting Hoist for Underground Mine

Factory workshop:
Jkmd Type Safe and Reliable Lifting Hoist for Underground Mine
Pakage:
Jkmd Type Safe and Reliable Lifting Hoist for Underground MineJkmd Type Safe and Reliable Lifting Hoist for Underground Mine
Our Service:
1. If you have specific requirements, we will actively discuss the details and implementable solutions with you, and then produce high quality products for you.
2. The company has professional engineers. Provide you with costomized services.
3. The company has professional business staff to answer your questions online 24 hours a day.
4. The after-sales service system is perfect, and solve problems for you in time.

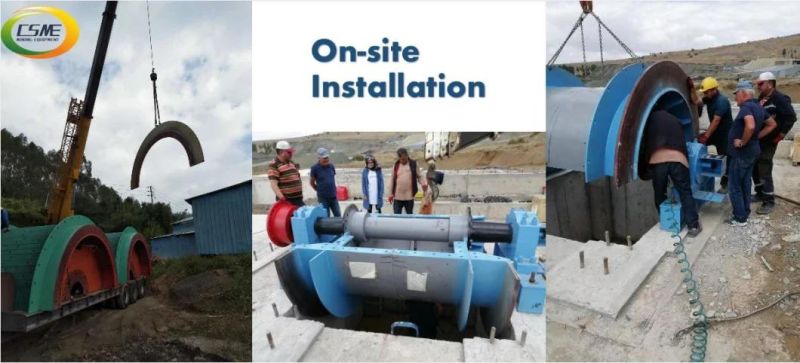

5. If you have installation requirements, we have a dedicated engineer to provide you with overseas guidance installation services.
