Jkmd Series High-Quality Electric Multi-Rope Friction Hoist for Underground Mine

Changsha Mining Equipment Co., Ltd.
  • After-sales Service：Video Training or Send Engineer to The Site
  • Warranty：12 Months
  • Type：Electric Winch
  • Driven Type：AC
  • Speed：10 M,S
  • Carrying Capacity：215 Kn

Base Info

  • Model NO.：JKMD-2.25*4P
  • Reel Number：1
  • Running Mode：Stationary
  • Feature：Explosion-Proof
  • Certification：ISO 9001
  • Standard：National Standards
  • Friction Wheel：2.25 M
  • Number of Steel Wire Rope：4 Piece
  • Friction Coefficient：0.25
  • Max Static Tension Difference：65 Kn
  • Max Diameter of Wire Rope：24 mm
  • Rope Interval：250 mm
  • Hoisting Sheave：2.25 M
  • Wire Rope Elevation Angle (Degree)：>=40 and <90
  • Transport Package：Null
  • Trademark：CSME
  • Origin：Changsha, China(Mainland)
  • HS Code：8425110000
  • Production Capacity：50 Sets,Month

Description

productfrictionNumberfrictionMaximumMaximumMaximumRope
intervalMaximumhoisting
Wirem/sm(40.2530105162508.0≥40

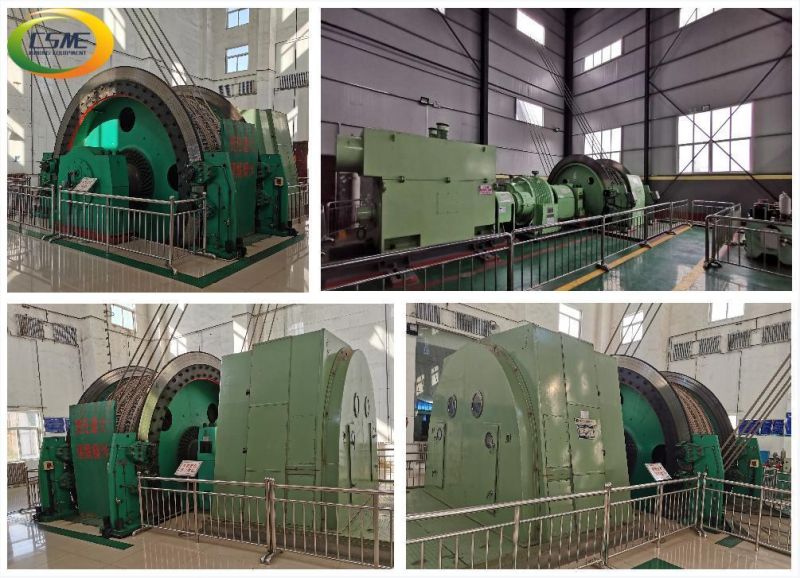

and10.016.030015.0350___4.00 JKMD-4.5×4P4.50 340980504.50 JKMD-5×4P5.00 4001250545.00 JKMD-5.5×4P5.50 4501450605.50 JKMD-5.7×4P5.70 4701550625.70 JKMD-6×4P6.00 5001650646.00 Product Photo:
Jkmd Series High-Quality Electric Multi-Rope Friction Hoist for Underground MineJkmd Series High-Quality Electric Multi-Rope Friction Hoist for Underground Mine

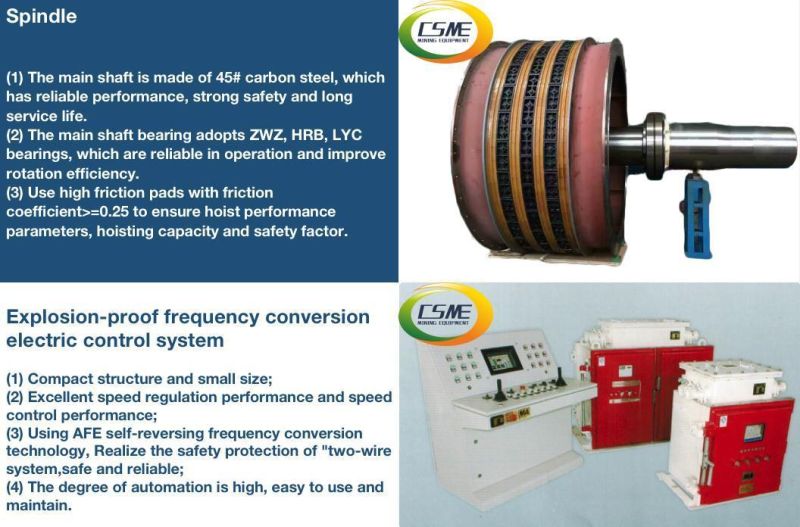

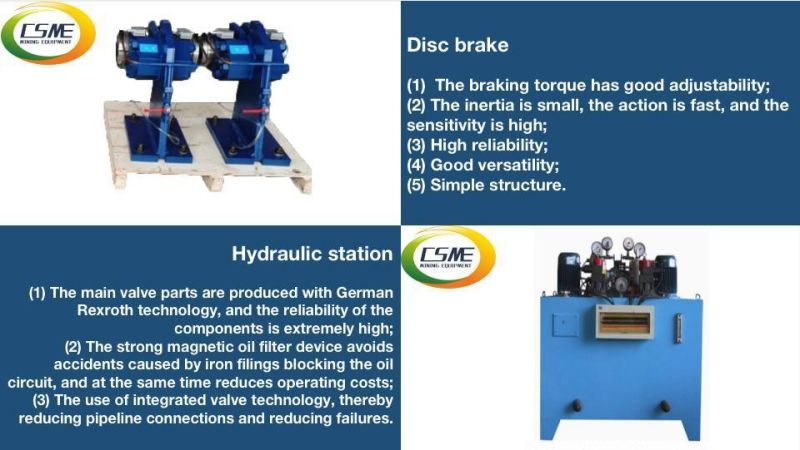

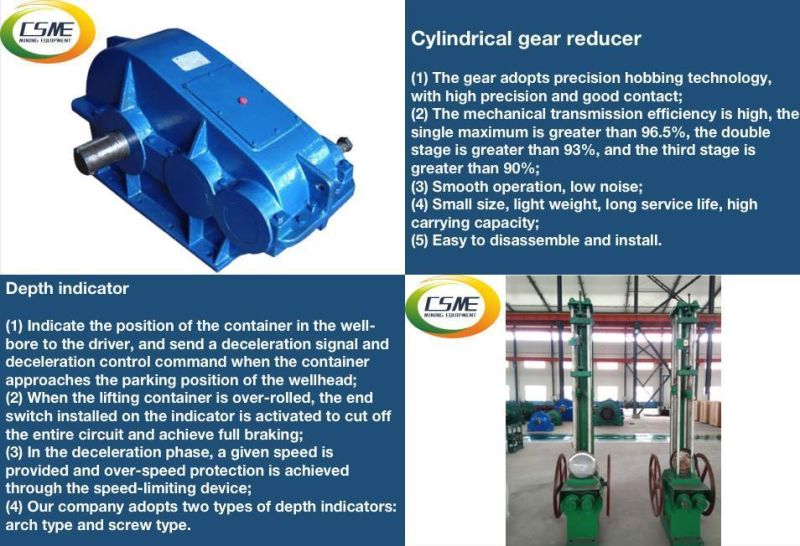

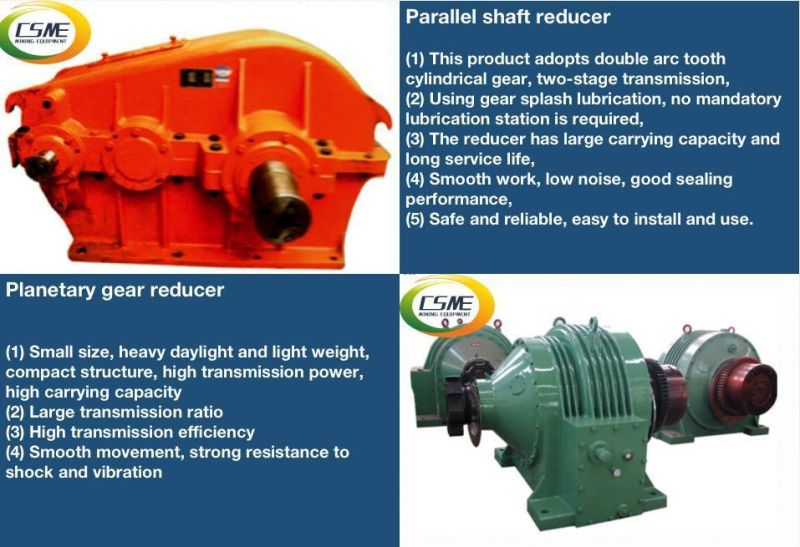

Product Details:Jkmd Series High-Quality Electric Multi-Rope Friction Hoist for Underground Mine
Jkmd Series High-Quality Electric Multi-Rope Friction Hoist for Underground MineJkmd Series High-Quality Electric Multi-Rope Friction Hoist for Underground MineJkmd Series High-Quality Electric Multi-Rope Friction Hoist for Underground Mine

Factory workshop:
Jkmd Series High-Quality Electric Multi-Rope Friction Hoist for Underground Mine
Pakage:
Jkmd Series High-Quality Electric Multi-Rope Friction Hoist for Underground MineJkmd Series High-Quality Electric Multi-Rope Friction Hoist for Underground Mine
Our Service:
1. If you have specific requirements, we will actively discuss the details and implementable solutions with you, and then produce high quality products for you.
2. The company has professional engineers. Provide you with costomized services.
3. The company has professional business staff to answer your questions online 24 hours a day.
4. The after-sales service system is perfect, and solve problems for you in time.
5. If you have installation requirements, we have a dedicated engineer to provide you with overseas guidance installation services.
