Automatic Tank Welding Hydraulic Jack Lifting Equipment
Nanjing Auto Electric Co., Ltd.- Warranty:1 Year Guarantee
- Type:Hydraulic Jack
- Structure:Hydraulic Jack
- Capacity (Load):41-50T
- Power Source:Hydraulic
- Max Height:>400mm
Base Info
- Model NO.:AUTO HLS
- Certification:CE, ISO 9001:2008
- Condition:New
- Product Name:Tank Welding Hydraulic Jack & Lifting Equipment
- Brand Name:Naec
- Place of Origin:Nanjing
- Usage:Automatic Top-to-Bottom Tank Welding Construction
- After-Sales Service Provided:Engineers Available to Service Machinery Overseas
- Transport Package:Packed in Container
- Specification:ISO9001: 2008
- Trademark:NAEC
- Origin:China
- HS Code:85153190
- Production Capacity:200 Sets,Year
Description
Basic Info.
Model NO. AUTO HLS Certification CE, ISO 9001:2008 Condition New Product Name Tank Welding Hydraulic Jack & Lifting Equipment Brand Name Naec Place of Origin Nanjing Usage Automatic Top-to-Bottom Tank Welding Construction After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Packed in Container Specification ISO9001: 2008 Trademark NAEC Origin China HS Code 85153190 Production Capacity 200 Sets/YearProduct Description
Tank Welding Hydraulic jack & lifting equipmentFeatures:
1, Matching with all automatic welding equipments

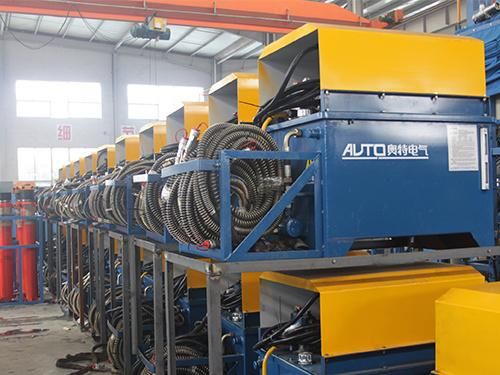

2, Module design, a small hydraulic power pack with 5 cylinders, each module can be connected synchronously
3, The lifting capacity of each cylinder is 25T(18T, 100%) or 15T(12T, 100%)
4, PLC control, automatically test the lifting synchronism.
5.Module design, a small hydraulic power pack with 5 cylinders
6.Single cylinder or single group jacking height can be independently regulated
7.It also can be centralized controlled, effectively reducing labor intensity
8.Cylinder effective stroke: 2500mm, 2800mm
It can match with the following machines to form tank construction line:
1 | Plate cutting & Edge milling machine |
2 | Automatic girth welding machine(AUTO AGW) |
3 | Automatic electro-gas vertical welding machine(AUTO EGW) |
4 | Automatic butt/corner seam welding machine |
5 | Hydraulic lifting system |
6 | Automatic girth seam grinder |
7 | LNG tank welder |

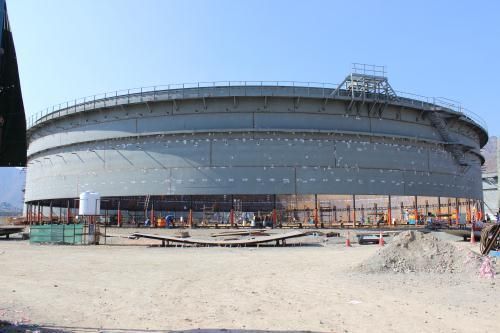

AUTO provides complete solution for tank construction for both bottom-to-top and top-to-bottom construction method.Hydraulic Jacking System is specially designed for lifting of storage tank in top-to-bottom construction method, which is innovated by using advanced modular design concept.

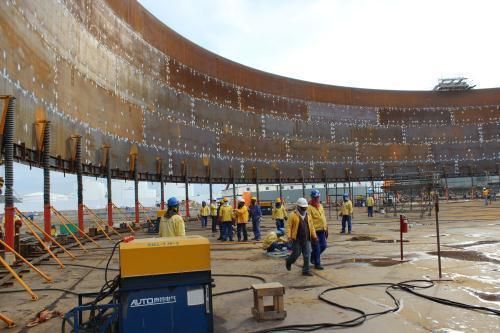

It matches with our specialized top-to-bottom girth welding machine to realize automatic welding of inside girth seam. When used on project site, it is easy to do the installation and operation with reliable quality. It is PLC control, accurate, stable and safe jacking with good synchronicity.
We provide complete solution for tank welding with different construction method, both bottom-to-top and top-to-bottom tank construction, hydraulic lifting system are especially designed for top-to-bottom tank erection.
