8m 10m 12m 14m Working Height 300kg Load Capacity Self Propelled Electric Scissor Lift Mobile Platform Aerial Work Platform

HaoKe (Shanghai) Industrial Co., Ltd.
  • After-sales Service:Video Technical Support, Engineers Available
  • Warranty:One Year for Core Parts
  • Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism:Scissor Lift
  • Carrying Capacity:Weight Level
  • Moves:Moving

Base Info

  • Model NO.:HKG series 0608,0810,1012,1214,1416
  • Driven Type:Hydraulic
  • Running Mode:Moving
  • Feature:Explosion-Proof, Insulating
  • Certification:CE, RoHS, ISO 9001
  • Loading Capacity:300kg
  • Lifting Motor:24,3
  • Driver:Double Front Wheels
  • Grade Ability:20%
  • Battery:210ah
  • Transport Package:by Sea
  • Specification:Work Height: 8m~16m
  • Trademark:Haulke
  • Origin:China
  • Production Capacity:1000000units,Year

Description

Model HKG0608HKG0810HKG1012HKG1214Max working heightmm8000100001200013800Max platform heightmm600080001000011800Max lowered height with guard bar standmm2150227524002525Max lowered height with guard bar foldmm1190131514401565Machine Lengthmm2400240024002400Machine widthmm1150115011501150Platform size L*Wmm2270×11502270×11502270×11502270×1150Platform extensions sizemm900900900900Minimum ground clearance Lowered State mm110110110110Mini ground clearance Lifting Statemm20202020Wheel Basemm1850185018501850Mini Turning Radiusmm2100210021002100Lifting Motorv/kw24/324/324/324/3Travel Speed (Lowered)km/h3.53.53.53.5Travel Speed (Lowered)km/h0.80.80.80.8UP/Down Speed (sec)sec40/5040/5070/8070/80Battery V/Ah4×6/2104×6/2104×6/2104×6/210ChargerV/A24/2524/2524/2524/25Grade ability%20202020Max. Working Slope/2-3°2-3°2-3°2-3°Driver/Double front wheelsDouble front wheelsDouble front wheelsDouble front wheelsHydraulic brake /Double back wheelsDouble back wheelsDouble back wheelsDouble back wheelsTire size/Φ381×127Φ381×127Φ381×127Φ381×127Load capacitykg300300300230Platform extension part loading capacitykg113113113100Total weightkg1900208024902760




Packaging & Shipping:

8m 10m 12m 14m Working Height 300kg Load Capacity Self Propelled Electric Scissor Lift Mobile Platform Aerial Work Platform8m 10m 12m 14m Working Height 300kg Load Capacity Self Propelled Electric Scissor Lift Mobile Platform Aerial Work Platform

After Sales Service:

24-hours online consult service is available here. Once you have any questions, just contact us and our professional staff will reply very quickly.

Market information also will be provided. Since we are an experienced supplier of lift table. For seller, the market information would be very pleased to offer as long as you contact us and ask for it.
8m 10m 12m 14m Working Height 300kg Load Capacity Self Propelled Electric Scissor Lift Mobile Platform Aerial Work Platform

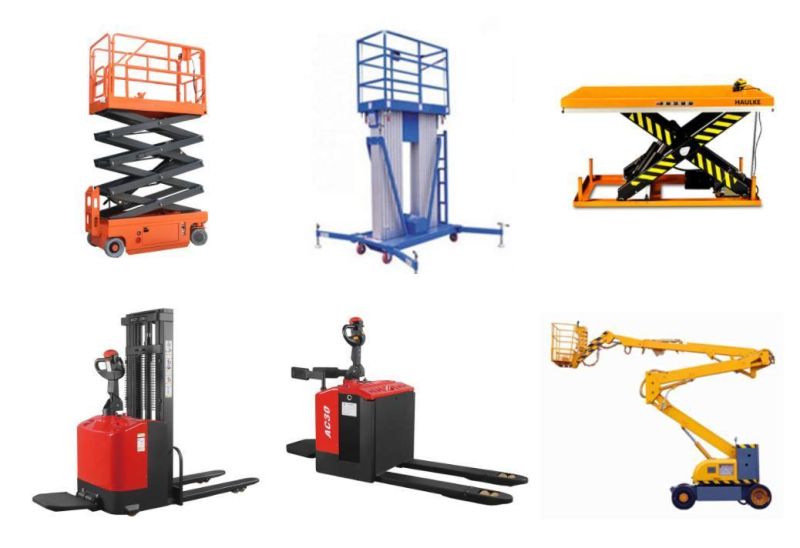

Related machines:

8m 10m 12m 14m Working Height 300kg Load Capacity Self Propelled Electric Scissor Lift Mobile Platform Aerial Work Platform

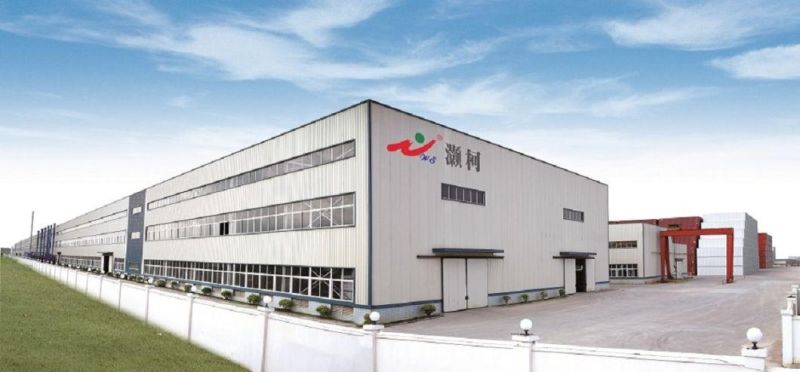

Company Profits:


Haoke is a research and development, production, sales and service in one of the professional manufacturer. Our products mainly include: aerial working platform, scissor type aerial working platform, electric lifting platform, fixed lifting platform,stacker series, lift table series, pallet truck series, forklift attachments series etc.

Our company's products have been certified by a lot of international quality certification, covering an area of 20000 square meters, the annual output has been grown to 30%. In order to better develop overseas market, we had established branch office in Russia, Japan, South Korea, Taiwan, Vietnam.

Haoke would continue to innovate and transform new technologies into products and services with international influence. With pioneering and enterprising spirit of "dare to be the first in the world", which will constantly improves its management methods to precipitate a profound enterprise.

8m 10m 12m 14m Working Height 300kg Load Capacity Self Propelled Electric Scissor Lift Mobile Platform Aerial Work Platform

Certificate:
8m 10m 12m 14m Working Height 300kg Load Capacity Self Propelled Electric Scissor Lift Mobile Platform Aerial Work Platform
FAQ:

1: How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

2: How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

3: Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term,the buyer also can choose Air-transport or Ocean shipping for your requirement. When your
orders reach your local nearest Sea port or River port, the logistics company will inform you.

4: Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feed back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

5: Can I visit your company?

Of course, We always with great pleasure at your service. We have office in Shanghai, China. If you want to order our products and visit our company, please contact us to make an appointment.
