• Model NO.：HD-HYQ10
• Self-Weight：2850kg
• Operate Manner：Manual by Hydraulic Pump
• Hydraulic Pump：Italy Brand
• Color：Optional
• Sosolid Tyres Diameter：600mm
• Material：Main Body:Q235B(Sgc400)+Zinc-Plated Steel Mesh
• Safety Curb Height：250mm
• Transport Package：No Packing
• Specification：2000mm width
• Trademark：GD-Haide
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8428909090
• Production Capacity：100set, Year

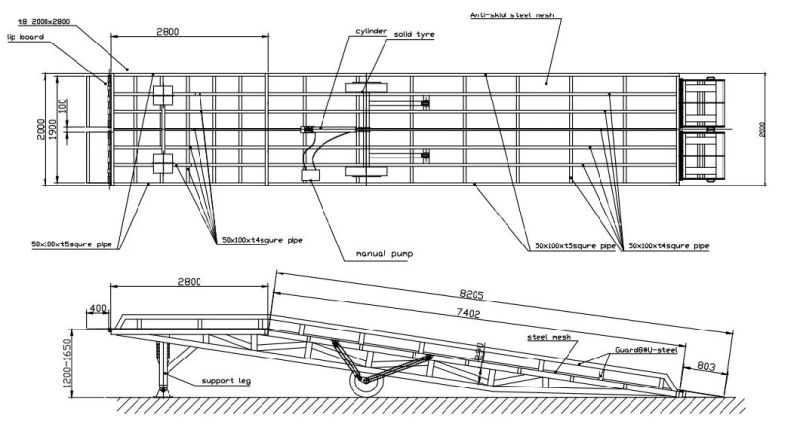

Width 2000mmTotal length11050mmCapacity10ton,15ton,20tonAdjust range1200~1700mmMaterialQ235B(SGC490)Manual pumpImport from Italy, brand is " Oiltec"Ramp weight3200kgWarranty1 year for hydraulic system, 5 years for steel structureColorOptionalTyreSolid tyreCE No.DGS12082902

Description:

1, We have many years experience in designing and customize the dock ramp as per customer's requirement.

2, Two moveabble lip design facilitate the free lateral floating when the truck box floor move up and down.

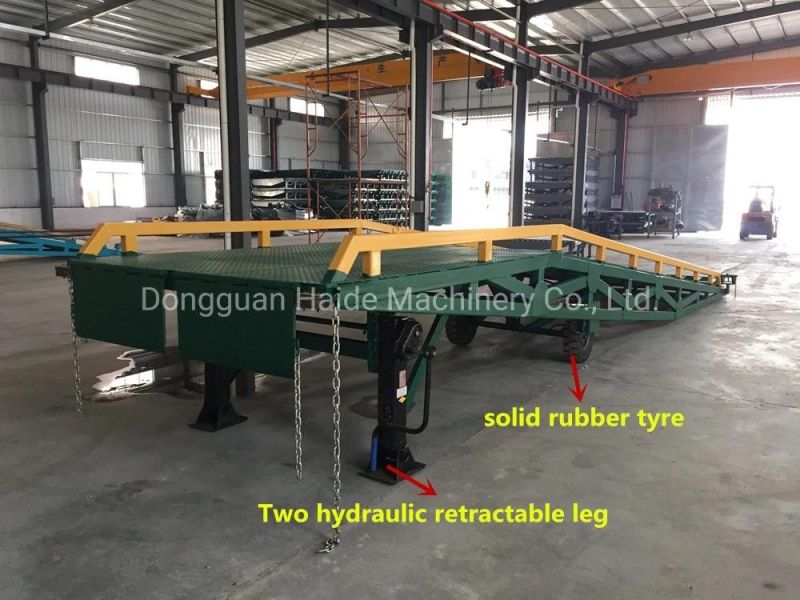

3, Two hydraulic retractable leg help to sustain the passage of heavy load during operation.


4, Two solid tyres provide excellent traction without worry of puncture.

5, The steel structure has been sand-blasted and the painting has been baked under 170ºC temperature,

ensuring the maximum painting adherence and be free of rusting.

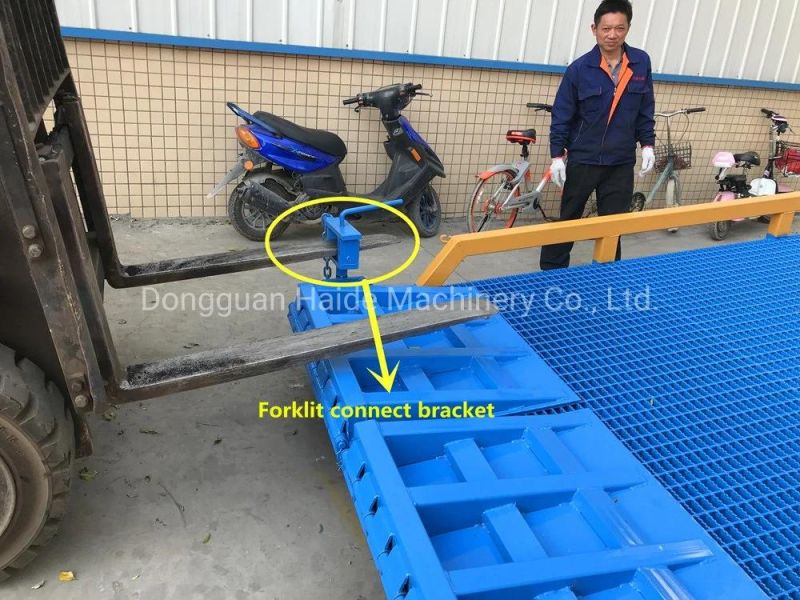

6, The end bracket enable our dock ramp to be towable by forklift.



7, Capacity: 10Ton ,15ton, 20ton.

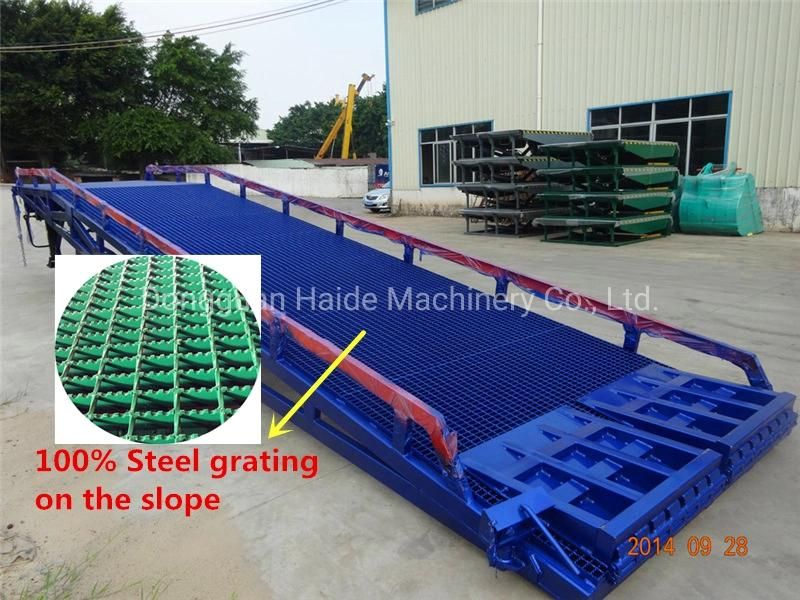

8, Steel grating on the slope floor prevent the forklift from slipping back during operation..


9, Top flat table is made of anti-skid steel plate.

10, We use Italy "Oiltec" hydraulic pump(optional) and it enable our yard ramp to be operated manually

with great ease,  eliminating the need for electrical operation.


11, Tapered lip edge provide a smooth transition between container and ramp.

12, Two safety chain secure the fixing between ramp and truck box.



13, Hydraulic pump adjust the ramp to the desired position.

14, Guard rail(curb) provide safety and direction for forklift movement.

15, Can be 3-side loading or 2-side loading by adding lip on sides.

16, Two rubber bumper absorb the shock between truck box and ramp.

17, The dimension for every part can be customized to suit to actual demand.
