• Model NO.：ATB0.2-16
• Lift Mechanism：Telescoping Lift
• Carrying Capacity：Special Weight Level
• Moves：Moving
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Working Height：18 M
• Outreach：10.5 M
• Load Capacity：200 Kg
• Lift Power：AC , DC , Engine , Dual Power
• Moving：by Car or Truck Tow or Man
• Use：Hydraulic Manual Towable Boom Lift Instead of Ladd
• OEM：Lift Height, Traction Drive, Lift Power
• Safety Parts：Manual Down, Double Brake System
• Spare Parts：Oil Ring, Seal Ring, Travel Switch
• Transport Package：Film Packed and Load in One 20FT Container
• Specification：package size 5.4*1.6*1.9m
• Trademark：MORN BRAND
• Origin：China
• HS Code：8428909090
• Production Capacity：200 Sets Per Month
• Package size per unit product：570.00cm * 168.00cm * 220.00cm
• Gross weight per unit product：2500.000kg

Basic Info.

Model NO. ATB0.2-16 Lift Mechanism Telescoping Lift Carrying Capacity Special Weight Level Moves Moving Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Working Height 18 M Outreach 10.5 M Load Capacity 200 Kg Lift Power AC / DC / Engine / Dual Power Moving by Car or Truck Tow or Man Use Hydraulic Manual Towable Boom Lift Instead of Ladd OEM Lift Height, Traction Drive, Lift Power Safety Parts Manual Down, Double Brake System Spare Parts Oil Ring, Seal Ring, Travel Switch Transport Package Film Packed and Load in One 20FT Container Specification package size 5.4*1.6*1.9m Trademark MORN BRAND Origin China HS Code 8428909090 Production Capacity 200 Sets Per Month

Packaging & Delivery

Package size per unit product 570.00cm * 168.00cm * 220.00cm Gross weight per unit product 2500.000kg

Product Description

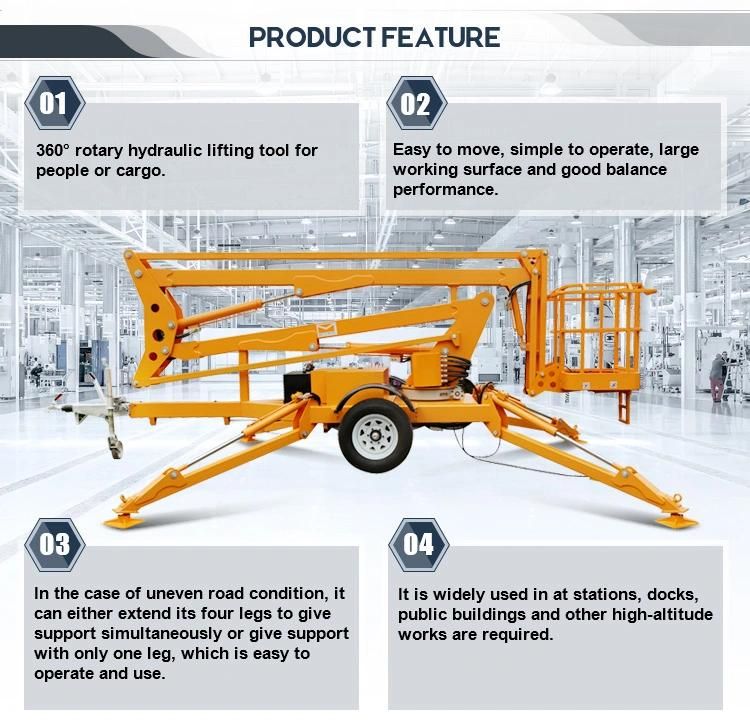

MORN China 16m 10m 12m 14m 18m 20m Towable Hydraulic Aerial Work Platform telescopic Trailer Boom Man Lift Cherry Picker

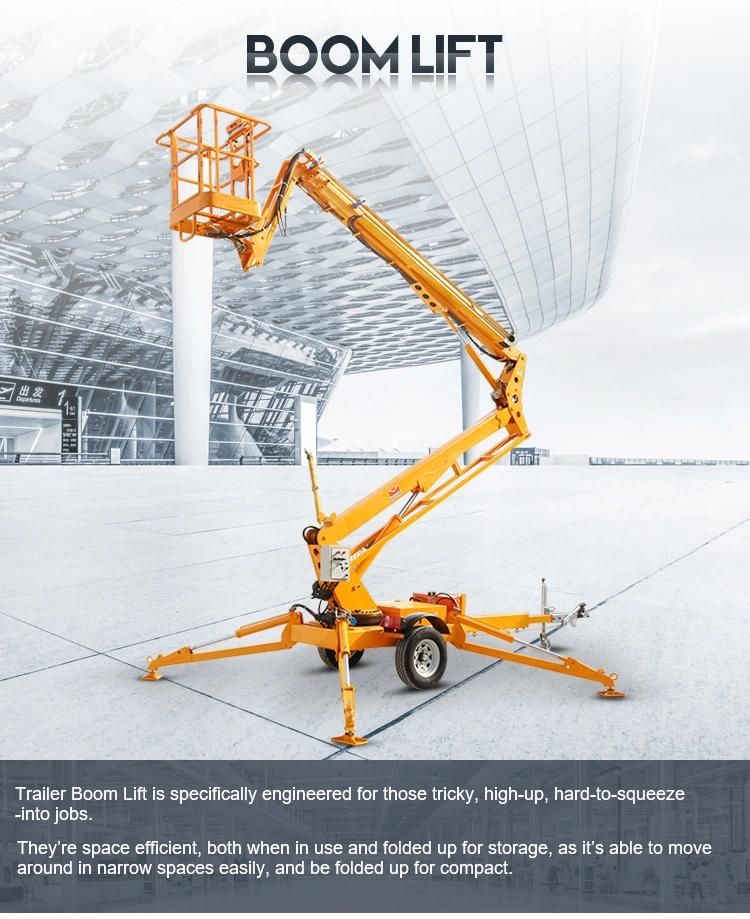

Trailer Boom Lift is specifically engineered for those tricky, high-up, hard-to-squeeze-into jobs.
They're space efficient, both when in use and folded up for storage, as it's able to move around in narrow spaces easily, and be folded up for compact storage.

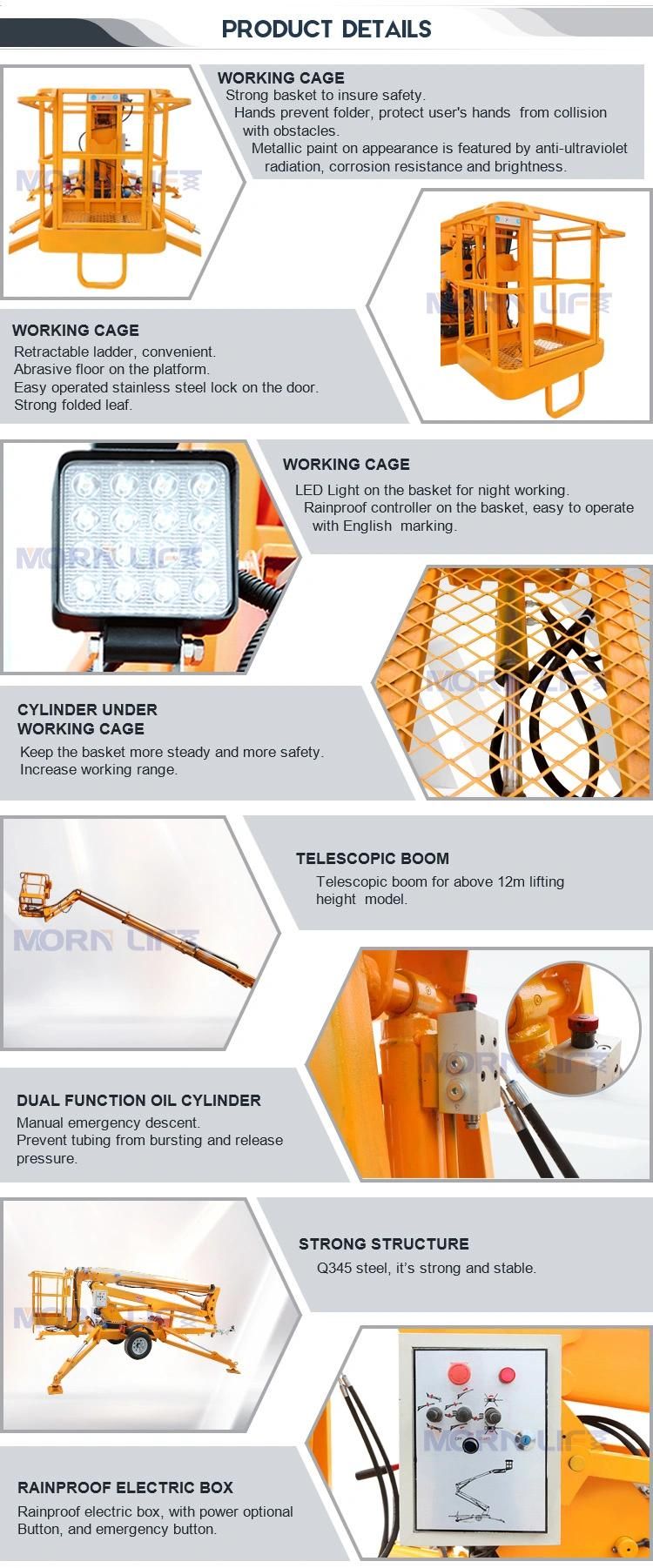

1, WORKING CAGE
Strong basket to insure safety.
Hands prevent folder, protect user's hands from collision with obstacles.
Metallic paint on appearance is featured by anti-ultraviolet radiation, corrosion resistance and brightness.
2, KEY PARTS WORKING CAGE
Retractable ladder, convenient.
Abrasive floor on the platform.
Easy operated stainless steel lock on the door.
Strong folded leaf.
3, KEY PARTS WORKING CAGE
LED Light on the basket for night working.
Rainproof controller on the basket, easy to operate with English marking.
4, CYLINDER UNDER WORKING CAGE
Keep the basket more steady and more safety.
Increase working range.

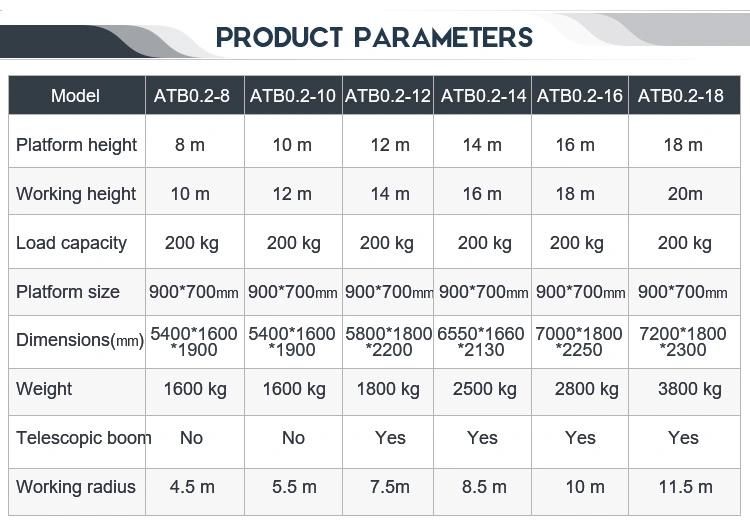

Model	ATB0.2-8	ATB0.2-10	ATB0.2-12	ATB0.2-14	ATB0.2-16	ATB0.2-18
Platform height	8 m	10 m	12 m	14 m	16 m	18 m
Working height	10 m	12 m	14 m	16 m	18 m	20 m
Load capacity	200 kg	200 kg	200 kg	200 kg	200 kg	200 kg
Platform size	900*700 mm	900*700 mm	900*700 mm	900*700 mm	900*700 mm	900*700 mm
Dimensions(mm)	5400*1600*1900	5400*1600*1900	5800*1800*2200	6550*1660*2130	7000*1800*2250	7200*1800*2300
Weight	1600 kg	1600 kg	1800 kg	2500 kg	2800 kg	3800 kg

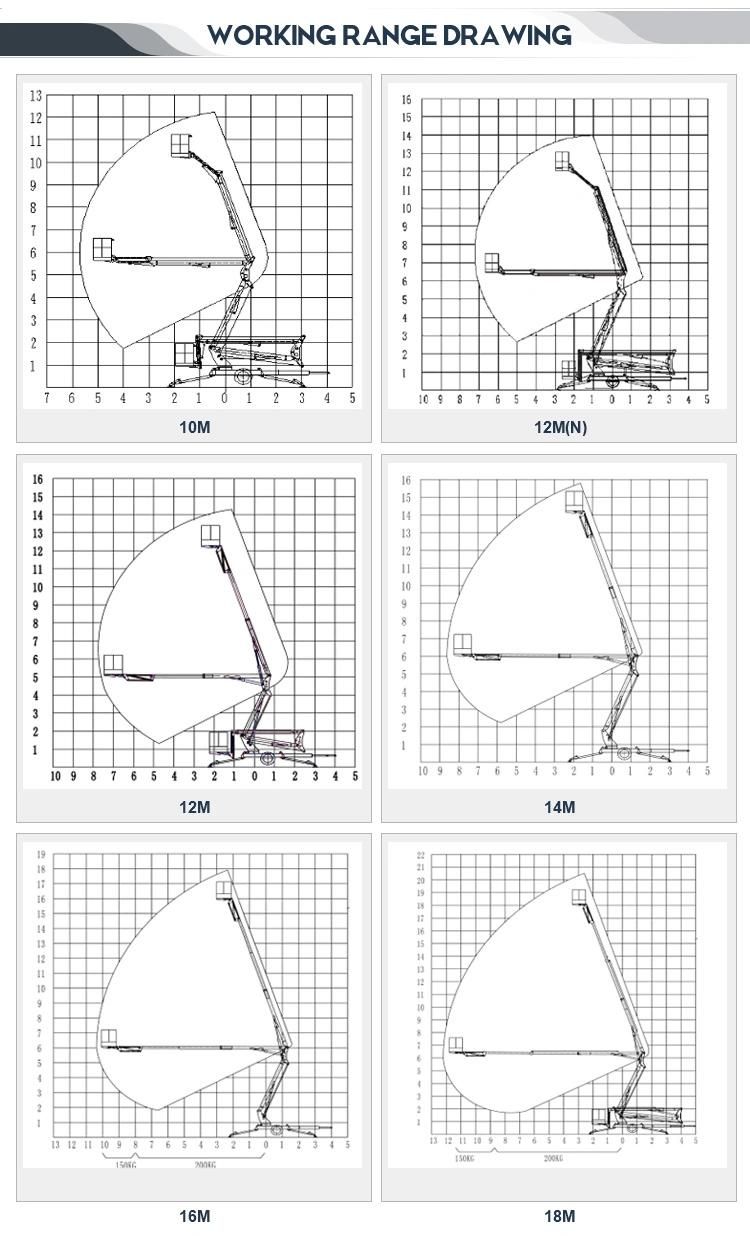

Working radius	4.5 m	4.5 m	7 m	7 m	8 m	8 m
Wind level	<=5	<=5	<=5	<=5	<=5	<=5
Units for 40GP	3 units	3 units	3 units	3 units	2 units	1 units
