• Model NO.：ETJS-C300-2M
• Application：Vacuum Lifter for Work Piece Handlinhg
• Material：Aluminum+Rubber
• Vacuum Source：Oil-Free Vacuum Pump
• Safety Guarantee System：One-Way Vlave , Pressure Holding,Alarm System
• Drive Motor/Lifting Motor：Plug in
• Transport Package：Wooden Case
• Specification：3000mm*1000mm*710mm
• Trademark：Easytech
• Origin：China
• HS Code：8428909090
• Production Capacity：86
• Package size per unit product：120.00cm * 56.00cm * 56.00cm
• Gross weight per unit product：140.000kg

TypeLifterboy-Telescopic Medium load (Powered)Lifterboy-Telescopic Medium load (Plug-in)Lifterboy-Telescopic Medium load (Pneumatic)ModelETJS-J300-2mETJS-J300-3mETJS-C300-2mETJS-C300-3mETJS-B300-2mETJS-B300-3mCapacity300kg300kg300kg300kg300kg300kgSuction pad dia.150mm150mm150mm150mm150mm150mmSuction pad qty.8pcs8pcs8pcs8pcs8pcs8pcsDimension
(L*W*H)mm2200*1360*7403000*1360*7402200*1360*7403000*1360*7402200*1360*7403000*1360*740Turnover//////RotationBy manual 360 degreeBy manual 360 degreeBy manual 360 degreeBy manual 360 degreeBy manual 360 degreeBy manual 360 degreeNet weight78kg83kg73kg77kg64kg69kgMax Workpiece Size*(mm)3000*15004000*20003000*15004000*20003000*15004000*2000Supply power220v/380v220v/380v220v/380v220v/380v//Battery12v12v////Air Pressure Supply(Mpa)////0.6~0.80.6~0.8Package Size(L*W*H)mm1400*650*5001400*650*5001400*650*5001400*650*5001400*650*5001400*650*500Gross weight101kg105kg95kg100kg86kg91kg*Considering the effect of plate span and gravity, for reference only



General Descriptions:

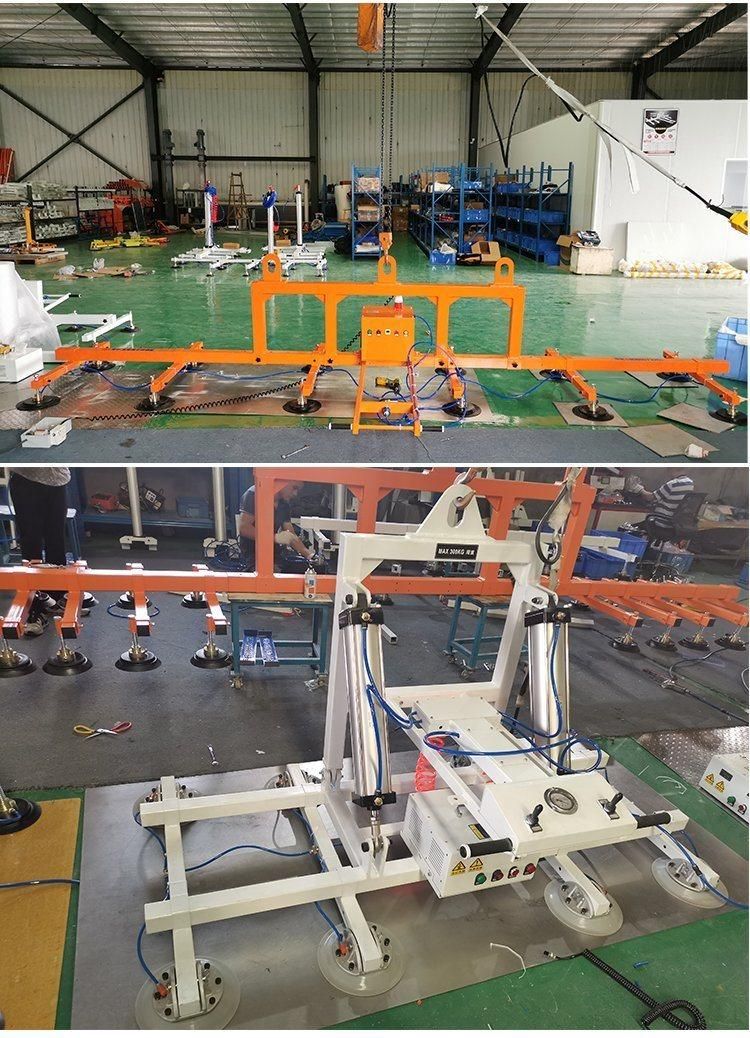

Lifterboy vacuum lifter is specially designed for metal sheet logistics and transportation. They are mainly used for loading and unloading of metal processing equipment such as laser cutting machine and laser machine, as well as warehouse transportation of metal plates, installation of new composite materials such as metal cold storage panels, etc. It can be used with crane, forklift, manipulator, outdoor crane and other equipment, the scope of application is very wide.

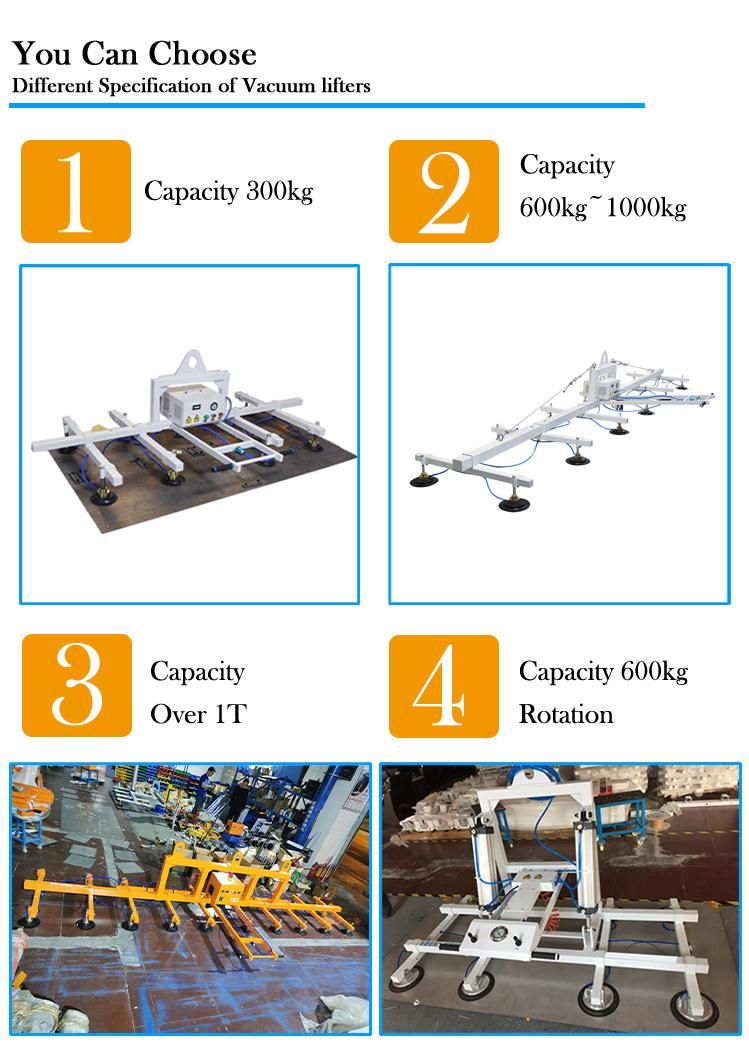

So far, we got 3 models of lifterboy vacuum lifter to cover lifting capacity from 150kg to 1000kg.

l  Lifterboy Basic, capacity 100kg~200kg

l  Lifterboy Light-Load, capacity 300kg

l  Lifterboy Heavy-Load, capacity 600kg~1000kg

And each model has 3 supply modes to choose,

-Plug-in type, sustainable use, stable

-Rechargeable, easy to use, good mobility

-Pneumatic, energy saving and environmental protection (need air compressor)



How to choose a vacuum lifter?

      l  What are you going to lift, size and weight of the workpiece?

l  What are you going to do with your workpiece? To lift, turnover or rotation?

l  What the vacuum lifter shall be equipped with? Crane, forklift, manipulator?

l  Which power supply model do you prefer? Normally, plug-in for in-door use, powered for out-door use, pneumatic needs an air compressor for air supply.

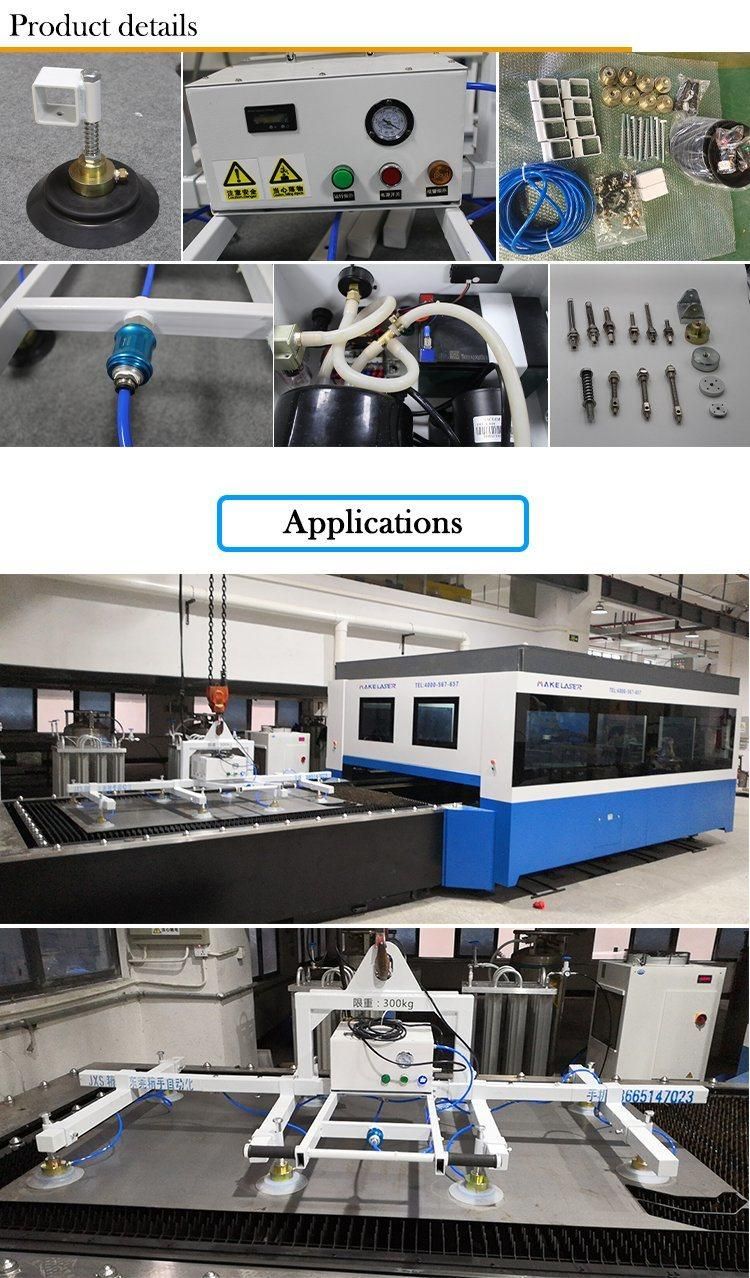

Applications:

# for feeding and unloading to laser cutting machine, flame cutting machine,

shearing machine, etc.

# for stainless copper sheet,aluminum sheet,metal sheet transportation and logistics.

# for stone plate, glass elements, acrylic plate and so on, in-door and out-door use.



FAQ 1.Are you a factory or trading company?We are manufacturer of metal sheet lifters, glass lifters, crane lifters, auto feeding riveter, Spin Press Riveting Machines and welding machine. 2.How can I get the price?

-We usually quote within 24 hours after we get your inquiry.

-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

 3. Can I buy samples placing orders?-Yes.Please feel free to contact us. 4.What is your lead time?

-It depends on the order quantity and the season you place the order.

-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.

 5.What is your payment term?-T/T, Western Union, MoneyGram, and Paypal. This is negotiable. 6.What is the shipping method?-It could be shipped by sea,by air or by express(EMS, UPS, DHL, TNT, FEDEX and ect). Please confirm with us before placing orders. 7.How do you make our business long-term and good relationship?

-1. We keep good quality and competitive price to ensure our customers benefit ;

-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
