• Model NO.：SJY0.3-18
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Lift System：Hydraulic System
• Safety：Explosion-Proof Lock Valve
• Transport Package：Iron Case
• Specification：CE
• Trademark：SDLIFT or OEM
• Origin：China
• HS Code：842890
• Production Capacity：1200units,Year

Basic Info.

Model NO. SJY0.3-18 Running Mode Moving Feature Explosion-Proof Certification CE, ISO 9001 Lift System Hydraulic System Safety Explosion-Proof Lock Valve Transport Package Iron Case Specification CE Trademark SDLIFT or OEM Origin China HS Code 842890 Production Capacity 1200units/Year

Product Description

Hydraulic Mobile Scissor Lift Table with CE:
1. Lift height: 4m, 6m, 8m, 10m, 12m, 14m, 16m, 18m and 20m
2. Load capacity: 300kgs, 500kgs, 1000kgs and 2000kgs

Safety:
1. Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2. The limit switch system helps the lift to stop at accurate position.
3. Overload protection facility is equipped on, the lift will not work when overloaded.
4. All the Hydraulic Mobile Scissor Lift Tables are passed 1.2 times loading test before leaving factory.
5. Guarantee: 24 months, we supply spare parts free and supply technical supporting all the time.

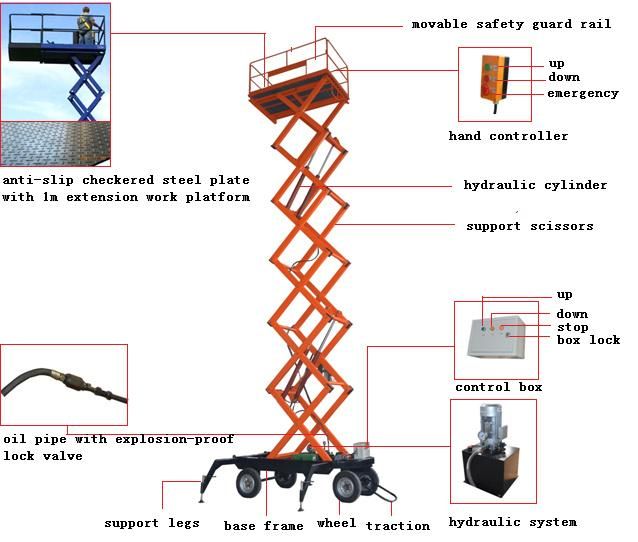

Configuration:
1) Platform Material: rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 220v, 380v or other as your requests.
4) High Precision Hydraulic Cylinder.
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform


Application:
1. It can be moved conveniently, and has bigger platform, bigger lifting capacity to take several people to work on it together.
2. The mobile scissor lift table is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc.
3. Operation is easy, and the electric components are CE certified.
4. Custom-made product are made according to detailed request, please tell us load weight, lift height, and platform size, our engineer will design a suitable lift for you soon.

Model list:


Model	Capacity	Table size	Max height	Work height	Total dimension	Net weight
SJY0.3-4	300Kgs	1500× 750mm	4m	5.7m	1850× 900× 1900mm	400Kgs
SJY0.3-6	300Kgs	1500× 750mm	6m	7.7m	1850× 900× 1970mm	650Kgs
SJY0.3-8	300Kgs	1650× 1000mm	8m	9.7m	2100× 1200× 2460mm	1200Kgs
SJY0.5-8	500Kgs	1980× 1220mm	8m	9.7m	2500× 1550× 2380mm	1400Kgs
SJY0.8-8	800Kgs	2000× 1220mm	8m	9.7m	2600× 1550× 2640mm	1700Kgs
SJY0.3-10	300Kgs	2100× l220mm	10m	11.7m	2700× 1550× 2380mm	1500Kgs
SJY0.5-10	500Kgs	2100× l220mm	10m	11.7m	2700× 1550× 2380mm	1600Kgs
SJY1.0-10	1000Kgs	2220× l220mm	10m	11.7m	2820× 1720× 2850mm	2380Kgs
SIY0.3-12	300Kgs	2550× 1500mm	12m	13.7m	3150× 1860× 2850mm	2580Kgs
SIY0.5-12	500Kgs	2550× 1500mm	12m	13.7m	3150× 1860× 2850mm	2780Kgs
SJY1.0-12	1000Kgs	2600× 1500mm	12m	13.7m	3200× 2015× 3090mm	3580Kgs
SJY0.3-14	300Kgs	2990× 1600mm	14m	15.7m	3600× 2000× 2850mm	3000Kgs
SJY0.5-14	500Kgs	2990× 1600mm	14m	15.7m	3600× 2000× 2850mm	3200Kgs
SJY0.3-16	300Kgs	3230× l600mm	16m	17.7m	3700× 2000× 3030mm	3900Kgs
SJY0.3-18	300Kgs	3230× l600mm	18m	19.7m	3700× 2000× 3250mm	4500Kgs
SJY0.3-20	300Kgs	3230× 1600mm	20m	21.7m	3700× 2000× 3450mm	5100Kgs

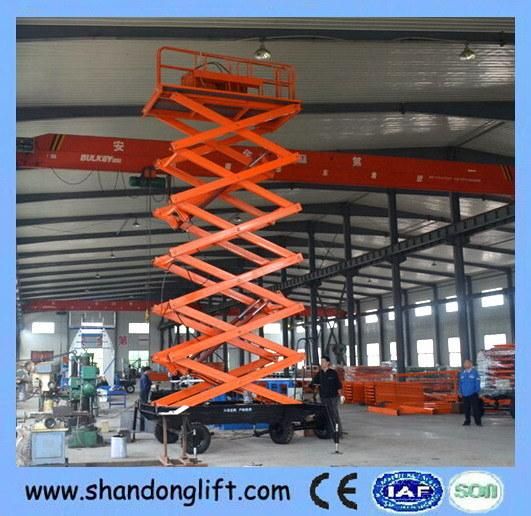

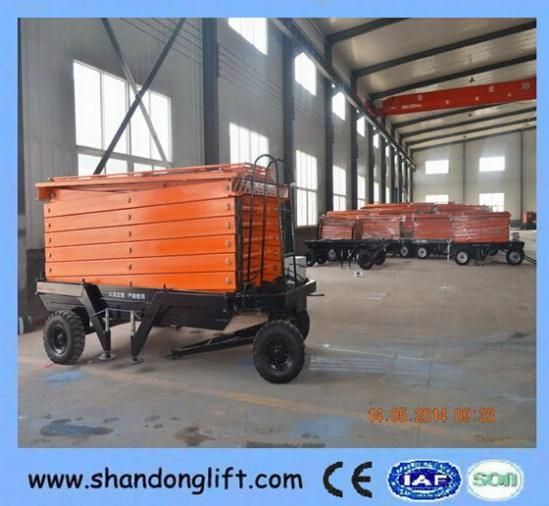

Factory pictures:
