• Model NO.：TQJ3000,1.0-JXW-VVVF
• Specification：Standard , Customizable size
• Trademark：FU JI APSL
• Origin：Jiangsu, China
• HS Code：8428101090
• Production Capacity：3000 Set,Sets Per Year

Basic Info.

Model NO. TQJ3000/1.0-JXW-VVVF Specification Standard / Customizable size Trademark FU JI APSL Origin Jiangsu, China HS Code 8428101090 Production Capacity 3000 Set/Sets Per Year

Product Description

                                                                      FU JI APSL

       Automobile Parking Car Elevator lift lifting equipment 1/2/3/4/5t Cargo elevators
CUSTOMIZE

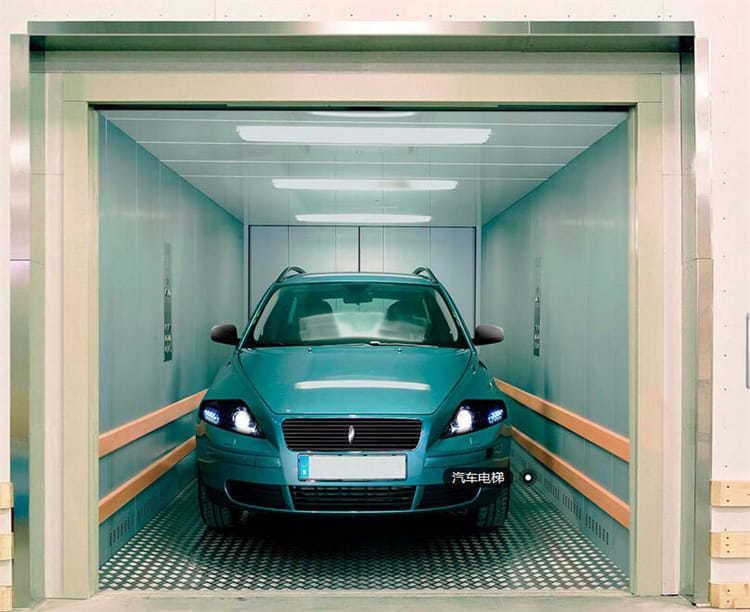

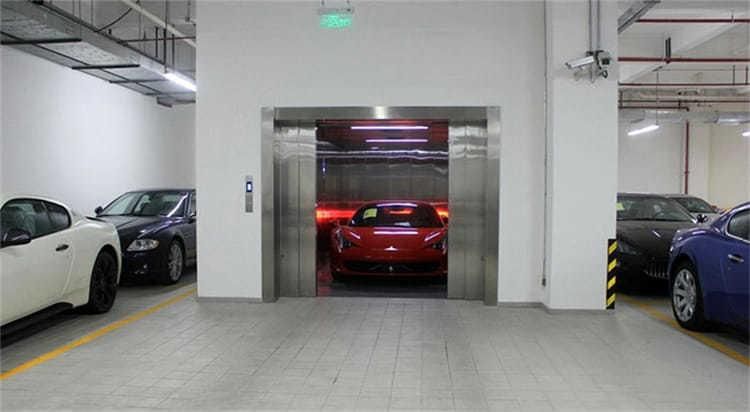

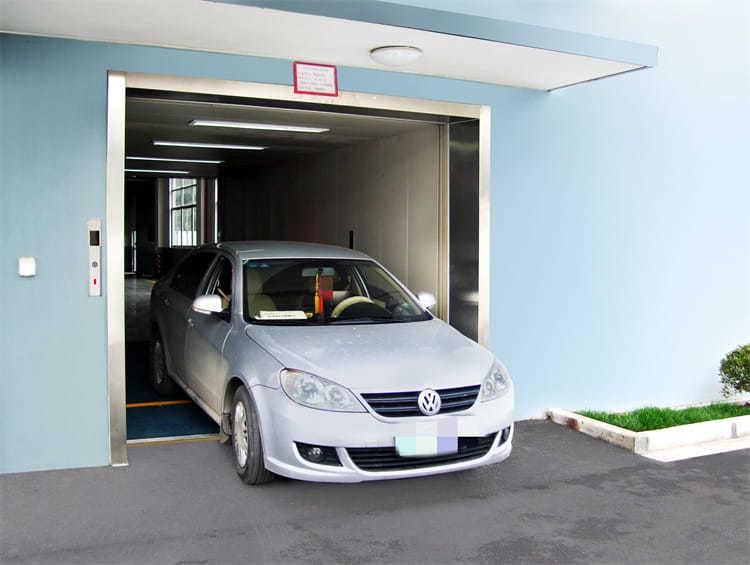

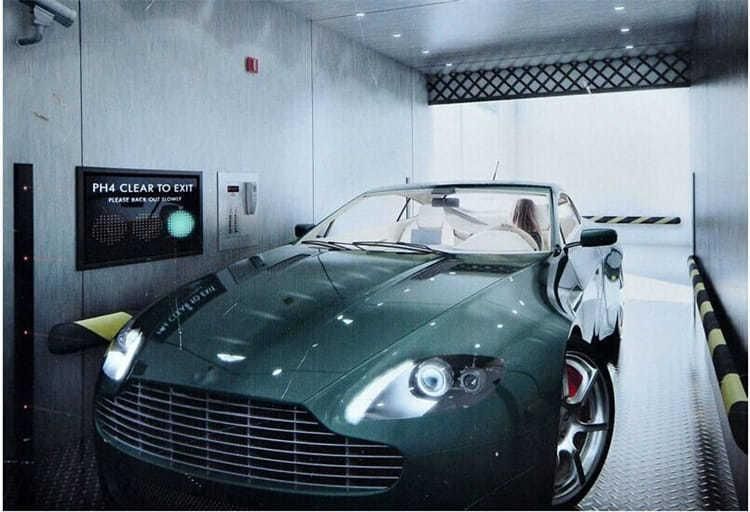

Car elevator is a special elevator to solve the problem of automobile vertical transportation.
Its standard load is 3000kg, 5000kg.
The speed is 0.25-0.5m/s.
As an important vehicle for vertical transportation, compared with the traditional ramp, the car
elevator can save 80% floor area and more than twice the car turnover efficiency.


The new generation frequency conversion technology and permanent magnent synchronous tractor can reduce vibration
and noise during elevator operation, improve transport efficiency and reduce power consumption.
Suitable for shooping malls, hotels, factories and public transportation.

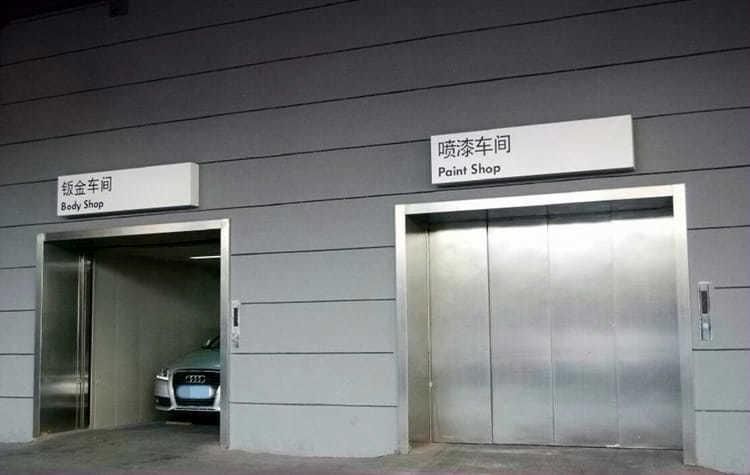

Car elevator designed for non-commercial use for vertical transport between buildings be widely used in automobile 4S shop,

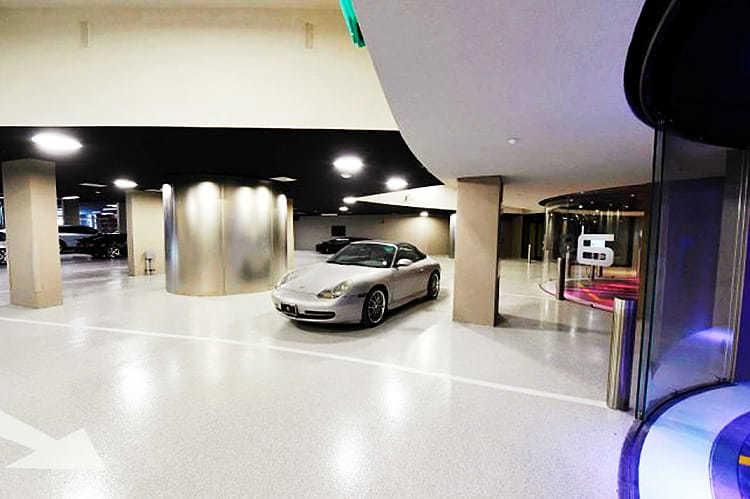

garage, stereo parking and other places.


Origin & Elevator factory address: Suzhou, Jiangsu, P.R.China.

Car Elevator Features
(1) When loading unloading the load of elevator increase decreases sharply, the load in the car is not uniform.
This is quite different from the way of laoding or unloading gradually by ordinary cargo lift.
Automobile elevator structure design should be able to adapt to this characteristic.

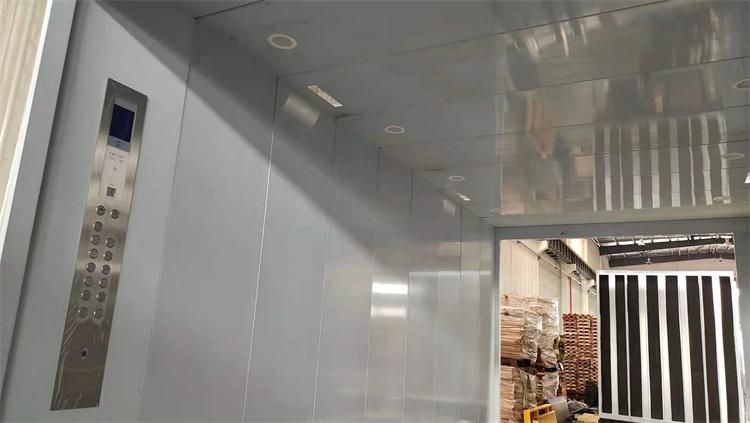

(2) There are two control button boxes in the car.
The driver can control the elevator without getting out of the car.
(3) The rated load capacity is more than 3 tons, the cage area of large enough to carry all kinds of small cars.

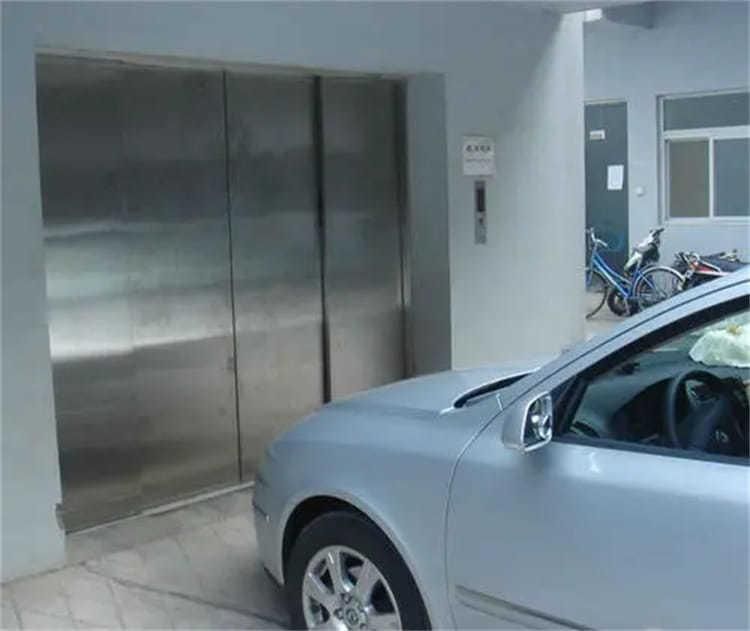

(4) The setting of front and rear connectiong doors facilities the car to get in and out of the elevator.
(5) A car suitable for carring automobiles.


FU JI APSL ADVANTAGES
The car elevator adopts the highly mature VVVF control technology, which is controlled by the special frequency converter
with extremely accurate speed regulation, which greatly improves the running stability and saves energy.
The new low noise module installed in the reverse ficture makes the operation more quiet and enables the car to
enjoy the best service on the way up and down.


APSL CAR ELEVATOR has the characteristics of safety amd reliability, stability and comfort, and high level precision.
In view of the two main points of insufficient stiffness and large torque in the general car lift, the overall structure is designed
from the perspective of decomposition torque, and the elevator guide rail is added to the whole lift, and the symmetrical four or six
guide rail is adopted to guide the lift, which not only improves the overall stiffness of the car but also reduces the torque, thus solving
the unfavourable factors of the car shaking. The door is equipped with a reliable light curtain protection device to unsure that your car
can safely enter and exit without abrasion or collision accidents.


Parameters

Machine room car elevator civil engineering parameters for reference only:


Model	Capacity kg	Speed m/s	Car net width x depth mm	Door width x depth mm	Shaft width x depth mm	MR width x depth mm	PD mm	OH mm
M3	3000	0.25/0.5	2500*6000	2500*2300	4200*6500	4200*6500	1700	4800
M5	5000	0.25/0.5	3200*7000	2800*2300	4800*7500	4800*7500	1700	4800

Machine roomless car elevator civil engineering parameters for reference only:

Model	Capacity kg	Speed m/s	Car net width x depth mm	Door width x depth mm	Shaft width x depth mm	MR width x depth mm	PD mm	OH mm
MRL3	3000	0.5/1.0	2500*6000	2500*2300	4200*6500	4200*6500	1700	5000
MRL5	4000	0.5/1.0	2800*7000	2800*2300	4600*7500	4800*7500	1700	5000

The above unit mm, allowable devision ±50mm.


APSL CARGO GOODS FREIGHT ELEVATORS

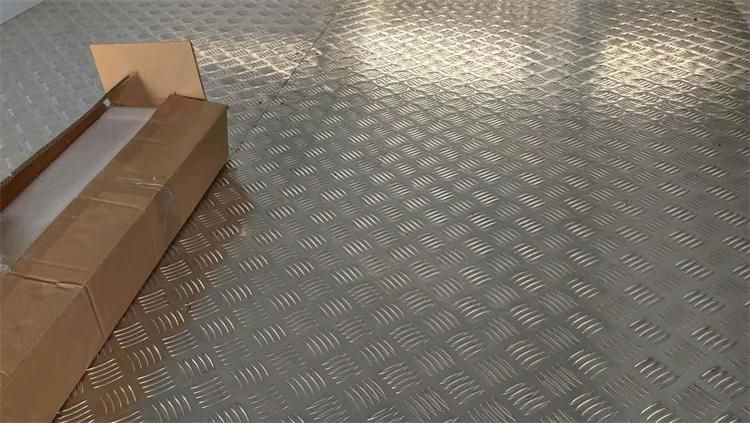

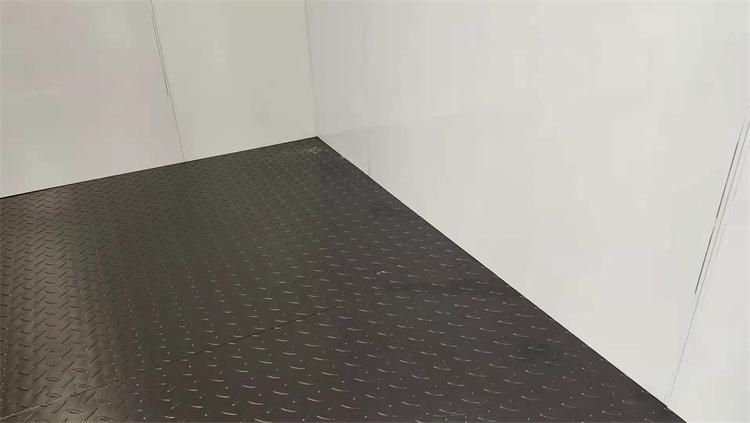

The firm and durable car cabin
China OEM ODM top brand manufacturer
Suzhou, Jiangsu, China


China Traction Hydraulic Standard Quality 3t 5t 3000kg 5000kg Car Elevator Lifts
Parking equipment VVVF heavy cargo elevator with gearless ARD
Customize freight lifters car elevators
Speed 0.25-0.5m/s
Usage: for car cargo goods freight transportation
The firm and durable car cabin
Machine room or machine room less

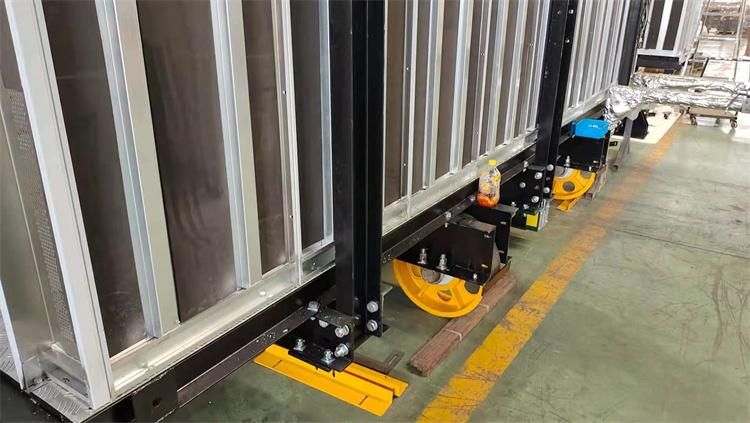

FU JI APSL WORKSHOP PHOTOS




Welcome to contact us!!!
