• Driven Type：Electric
• Running Mode：Stationary
• Feature：Lift Table
• Certification：CE, ISO 9001
• Product Name：Heavy Duty Stationary Electric Scissor Lift Table,
• Platform Height Min：205mm
• Platform Height Max：990mm
• Platform Size：1300*820mm
• Base Size：1240*640mm
• Net Weight：160kg
• Certificates：CE ISO SGS
• Lift Time：20-25s
• Battery：380V,50Hz

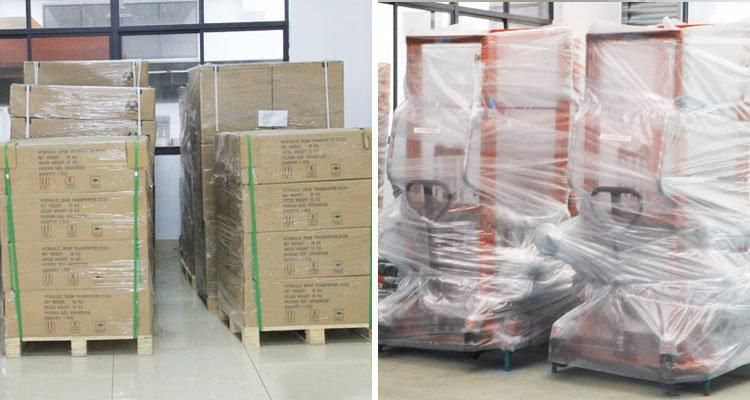

• Transport Package：Pallet with Stretch Film ,Cartons
• Specification：1300*820*990mm
• Trademark：Ying-Lift
• Origin：Jiangsu
• HS Code：8428909090
• Production Capacity：5600sets,Month

Basic Info.

Driven Type Electric Running Mode Stationary Feature Lift Table Certification CE, ISO 9001 Product Name Heavy Duty Stationary Electric Scissor Lift Table/ Platform Height Min 205mm Platform Height Max 990mm Platform Size 1300*820mm Base Size 1240*640mm Net Weight 160kg Certificates CE ISO SGS Lift Time 20-25s Battery 380V/50Hz Transport Package Pallet with Stretch Film /Cartons Specification 1300*820*990mm Trademark Ying-Lift Origin Jiangsu HS Code 8428909090 Production Capacity 5600sets/Month

Product Description

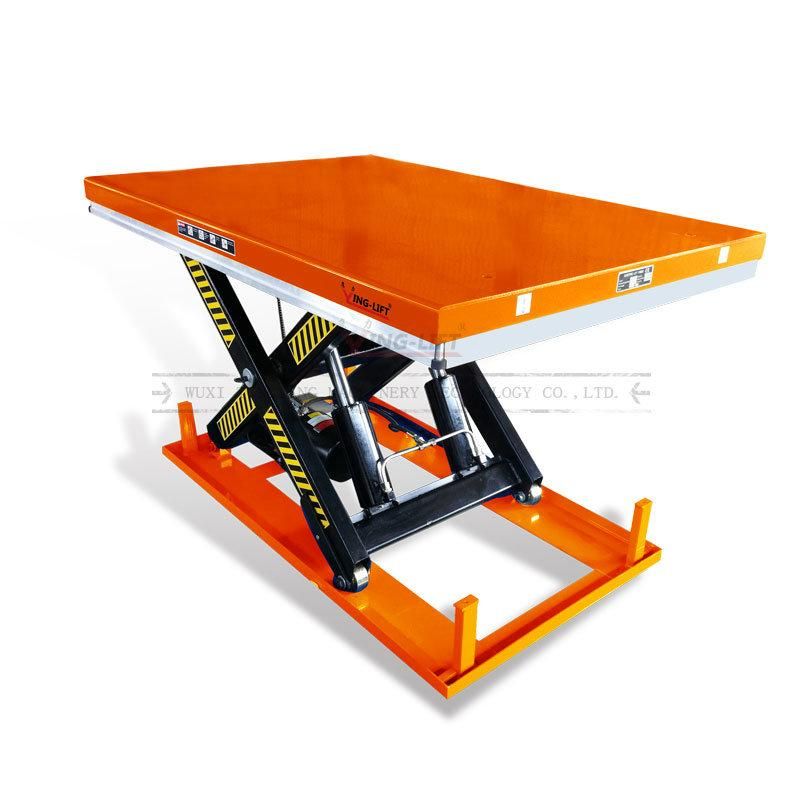

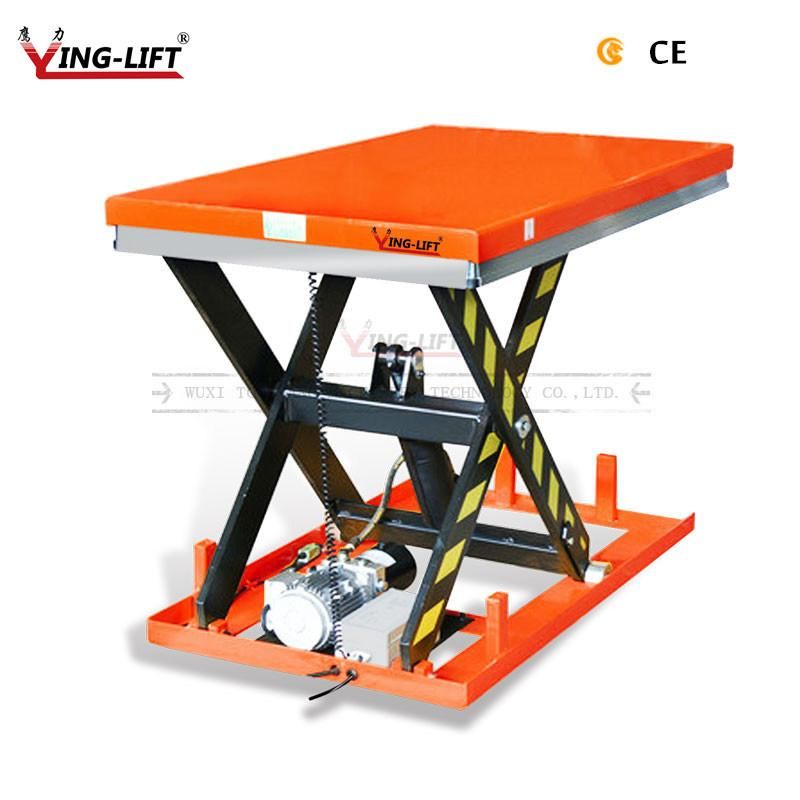

Heavy Duty Stationary Electric Scissor Lift Table/CE ISO Approved Hydraulc Lift Machine Electirc Customized Sicssor (HW Series) Lift Tables

Model	Capacity	Platform Height Min/Max	Platform Size	Base Size	Lift Time	Battery	Net Weight
	Kg	mm	mm	mm	S	V/Hz	Kg
YLF1001	1000	205/990	1300*820	1240*640	20~25	380/50	160
YLF1002	1000	205/990	1600*1000	1240*640	20~25	380/50	186
YLF1003	1000	240/1300	1700*850	1580*640	30~35	380/50	200
YLF1007	1000	240/1300	1700*1500	1580*1320	30~40	380/50	365
YLF1008	1000	240/1300	2000*1700	1580*1320	30~40	380/50	430
YLF2001	2000	230/1000	1300*850	1220*785	20~25	380/50	235
YLF2002	2000	230/1000	1600*1000	1220*785	20~25	380/50	268
YLF2004	2000	250/1300	1700*1000	1600*785	25~35	380/50	300
YLF2006	2000	250/1300	2000*1000	1600*785	25~35	380/50	315
YLF2007	2000	250/1300	1700*1500	1600*1435	25~35	380/50	415
YLF2008	2000	250/1400	2000*1800	1600*1435	25~35	380/50	500

Features:
1. Heavy duty design 1000-4000kg;
2. Strong structure and steady performance;
3. High quality pump station is with smooth lifting feature;
4. With anti-pinch and overload protection function;
5. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed;
6. Upper platform fitted with safety perimeter to prevent descent on contact with obstructions;
7. Emergency drop valve in case of power failure;
8. High intensity manganese steel scissors, not easy to be deformed;










FAQ:
1. Q. Are you factory?
A. Yes. Our factory mainly produce drum handling equipment, drum stacker, drum truck, aluminum hand trolley, kinds lift table, forklift attachment and shop crane with CE approved, pasted Third-party certification(SGS/ISO9001).
2. Q. Can I place mix order?
A. Yes. You can mix different models as your request.
3. Q. Can we order products?
A. Yes. Customers can option size, color, weighing, panel etc. Welcome ODM/OEM orders.
4. Q. Can we visit your factory?
A. Welcome anytime. Our factory address: No. 38, Yansheng Road, Yanqiao Industrial Park, Huishan District, Wuxi, Jiangsu, China (Mainland). You can take the plane, high-speed rail, motor car, train, car.
5. Q. Are the products covered by a warranty?
A. Yes. All our machines carry a full 1 year major parts warranty.

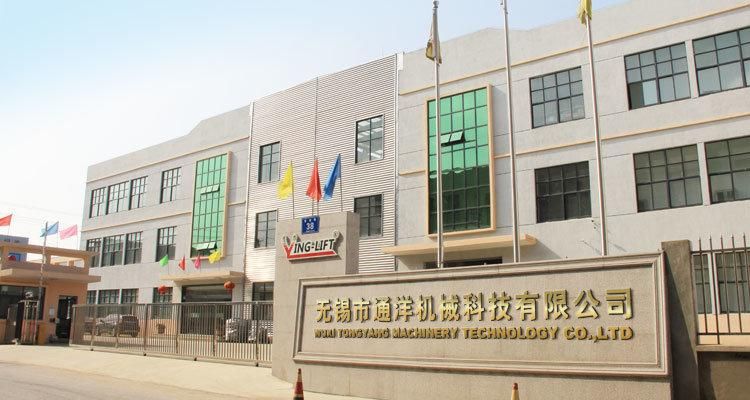

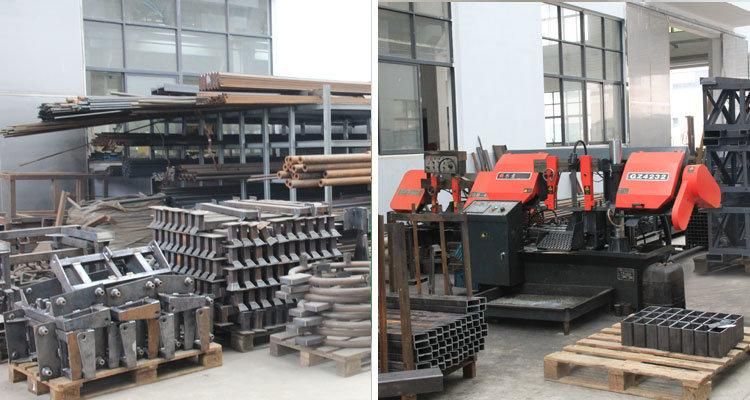

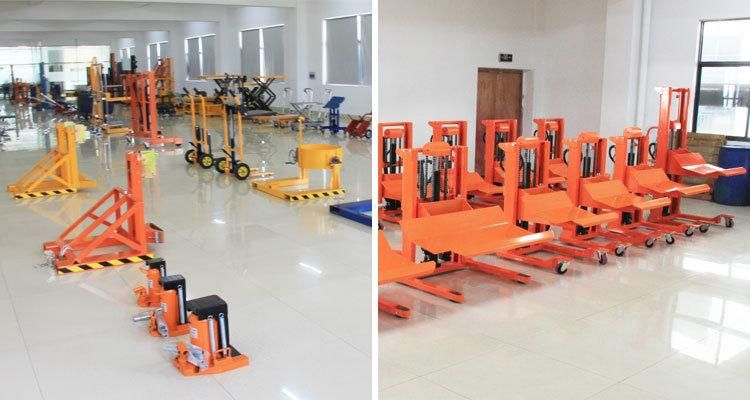

Quality Control in our Wuxi Tongyang:
The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1) Strict quality control system on the whole process of production
2) Imported key arts to ensure the high quality of our products
3) Advanced equipment and tools for examination and quality control
4) 100% strict examining products before shipment
5) All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.


Applications:
1. Stationary hydraulic cargo lift is a professional hydraulic lift table for transporting goods among layers of constructions. It is mainly used to carry goods between various working layers; Auto lifting between layer heights of three-dimensional garage and underground garage, etc.
2. Mainly used for industrial and mining enterprises and the pharmaceutical industry, the production lines of the logistics industry, in other industries as the service elevator to the movement of goods, lifting, loading and unloading of goods between the basement to the floor

Competitive Advantage:
Hydraulic system of our products is set safety protection equipment to fall protect and overload, and it also can realize multiple-point control, for both floor and the table-board of lift table can set operation buttons. Besides, its solid structure, heavy load, stable lifting as well as simple and convenient installation and maintenance, it is the ideal goods transportation equipment which can substitute elevator between floors with low cost. Choose different collocations according to various installation environments and use requirements of lift tables to receive better effect.
