Scissor Electric Lift Platform
Chenlift (Suzhou) Machinery Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Stationary
- Driven Type：AC
- Running Mode：Stationary
Base Info
- Model NO.：SJG-13.6
- Certification：CE, ISO 9001
- Stowed Height：600mm
- Max Height：2400mm
- Load Capacity：6800kg
- Platform Size：7480*3700mm
- Travelling Height：1900mm
- Lift Motor：5.5kw
- Power Voltage：380V 50Hz
- Pit Size：4520*3855*2000mm
- Cylinder：140*2
- Gear Pump：5.8ml,R
- Oil Presure：13.5MPa
- Rise Time：140s
- Roller Diameter：76
- Roller Gap：100
- Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
- Specification：13600kg and 1.9m height
- Trademark：CHEN LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：3000 Units Per Year
Description
Multi-ForksSJG1-4.1 1 913 4100 5013 2200X1000 39 3 1160 SJG2-3.5 2 722 3500 4222 2100X1500 48 5.5 2100 SJG3-7.2 3 1050 7200 8250 3400x1500 117 7.5 5500

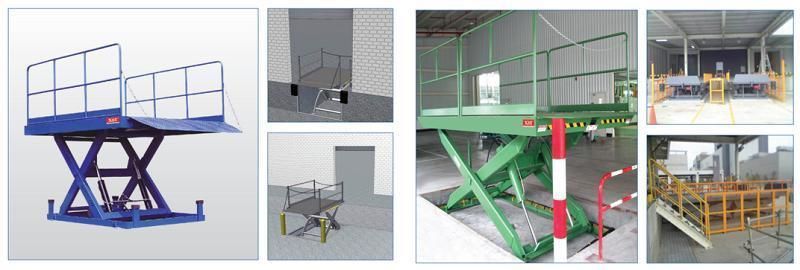

Pit mounted scissor lift with fence and lips
Stationary Scissor Lift with flap sheet
For different application purpose, the stationary scissor lift can be customized upon request
Company IntroductionAs a subsidary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application. We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and Africa
