• Model NO.：HS-VA
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Orange
• Hook：2.0 Manganese Steel
• Chain：80 Grade
• Max Lifting Weight：6 Ton
• Standard Lifting Height：1.5 M
• Request Lifting Height and Weight：Available
• Pulling Angle：360 Degree
• Payment Term：T,T, L,C
• Warranty：1 Year
• Loading Port：Shanghai
• Transport Package：Plywood
• Specification：CE, ISO
• Trademark：Hugong, Yiying
• Origin：Shanghai, China
• HS Code：8425190000
• Production Capacity：100000set,Month

Basic Info.

Model NO. HS-VA Certification CE, ISO9001:2000 Condition New Color Orange Hook 2.0 Manganese Steel Chain 80 Grade Max Lifting Weight 6 Ton Standard Lifting Height 1.5 M Request Lifting Height and Weight Available Pulling Angle 360 Degree Payment Term T/T, L/C Warranty 1 Year Loading Port Shanghai Transport Package Plywood Specification CE, ISO Trademark Hugong/ Yiying Origin Shanghai, China HS Code 8425190000 Production Capacity 100000set/Month

Product Description

1. Features:
The main parts of VA series lever chain hoist/blocks are made of superb steel which has the following characteristics in design and service,
1. Safe, reliable and durable in use
2. Excellent performance and minimum maintenance
3. Small volume, light weight and portable in carrying
4. Small handpull and high efficieccy
5. Advanced structure and attractive appearance




2. Introduction

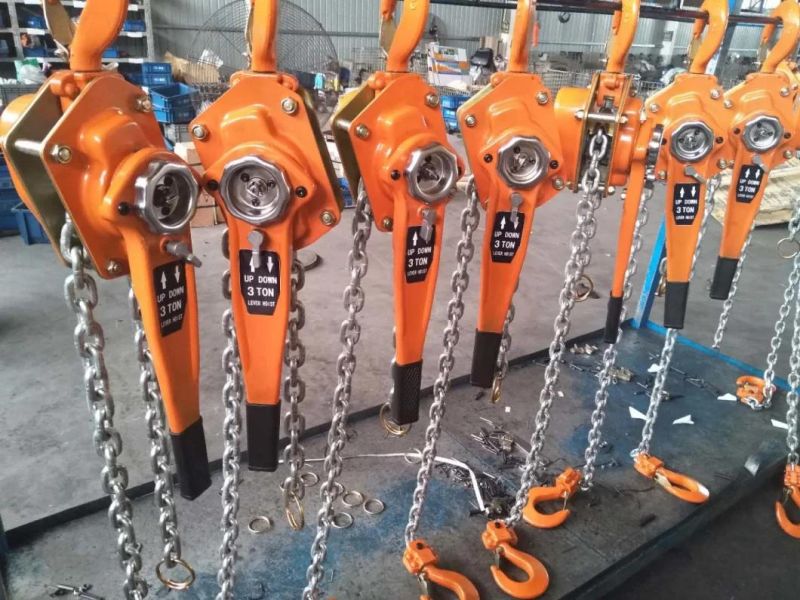

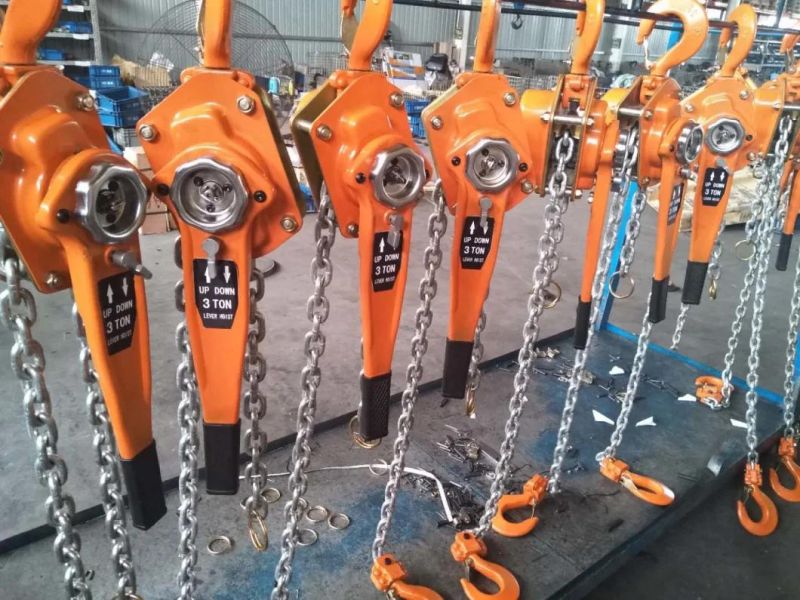

Lever hoist is a hand operated lifting and pulling appliance which is portable and versatile. It is exceptionally convenient for working in narrow places, outdoor aloft work and pulling from different angles.

Shanghai Yiying  Crane machinery Co.,ltd products in strict accordance with the national 3 packets, the quality of the products by the China People's Insurance Company (PICC), Please use it  relieved.

Model	VA0.25	VA0.5	VA0.75	VA1	VA1.5	VA2	VA3	VA6
Capacity    t	0.25	0.5	0.75	1	1.5	2	3	6
Standard Lift    m	1	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Running test load    t	0.375	0.75	1.13	1.5	2.25	3	4.5	9
Min distance between hooks			325	335	380	380	480	620
Effort required to lift max load  N			140	140	220	220	320	3404
Diameter of load chain   mm	4	5	6	6	8	8	10	10
Net weight  kg			7	7.5	11	12	21	31
Extra weight per meter of extra lift cm			0.92	0.92	1.6	1.6	2.4	4.8
