• Model NO.：HS-VT
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Optional
• Hook：Forged
• Usage：Lifting
• Material：Alloy Steel
• Loading Port：Shanghai Tianjin
• Chain：G80
• Transport Package：Plywood Box or Carton
• Specification：net weight 11kgs for 1ton capacity
• Trademark：Hugong, Yiying
• Origin：Shanghai
• HS Code：8425190000
• Production Capacity：2000 Set ,Month

Basic Info.

Model NO. HS-VT Certification CE, ISO9001:2000 Condition New Color Optional Hook Forged Usage Lifting Material Alloy Steel Loading Port Shanghai Tianjin Chain G80 Transport Package Plywood Box or Carton Specification net weight 11kgs for 1ton capacity Trademark Hugong/ Yiying Origin Shanghai HS Code 8425190000 Production Capacity 2000 Set /Month

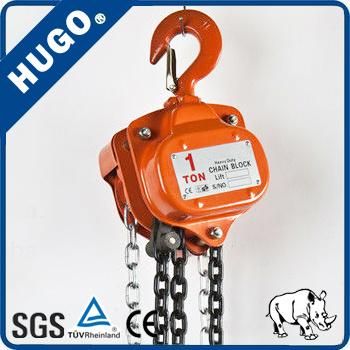

Product Description

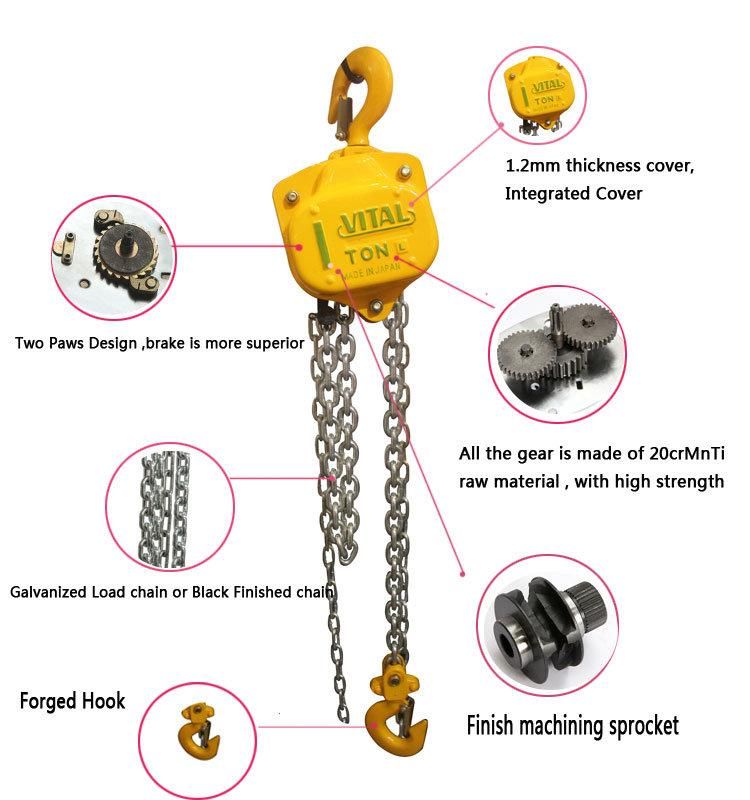

1. Introduction

Gear: Symmetrical arrayed high speed synchronous gears, international standard gear steel

Chain: Adopts high strength chain and high precision welding technology, fits for gusty overload work

Conditions; Multi-angle operation(with 45 degree).

Hook: Made of high-class alloy steel, strength and security

Switch: Limit switch to protect chain and ensure security.

Components: Main components are all made of high-class alloy steel, with high precision and security.

Plastic Plating: Advanced plastic plating technology inside and outside,

Encloser: Made of high-classed steel, more firmly and dexterous

2. Features

Heat treated low-wear, 80 grade chain

Forged upper and lower hooks

Ratchet type brake warrants, safe and dependable operation

Standard lift heights is 2.5-3.5 meters and optional lift heights also available upon request

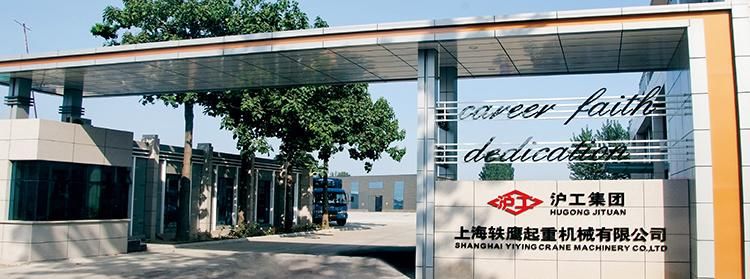

Shanghai Yiying Crane machinery Co., ltd products in strict accordance with the national 3 packets, the quality of the products by the China People's Insurance Company (PICC), Please use it relieved.

Model	HS-VT	HS-VT1	HS-VT1	HS-VT2	HS-VT3	HS-VT5	HS-VT10
Capacity   t	0.5	1	1.5	2	3	5	10
Standard lifting height   m	2.5	2.5	2.5	3	3	3	3.5
Test load   t	0.75	1.5	2.25	3	4.5	7.5	15
Min distance (hook to hook)  mm	285	315	340	380	475	600	700
Chain pull to lift full load   N	25	33	34	34	35	39	41
No. of load chain fall lines	1	1	1	1	2	2	4
Diameter of load chain   mm	1.6	7.1	7.1	8	7.1	9	9
Net weight   Kg	8.4	11	13.5	21	22	40	77
Gross Weight   Kg	9.4	12	14.5	22	23	41.5	85
Packing measurement  (L*W*H)   cm	30*17*32	30*17*32	30*17*32	28*19*23	30*17*32	40*20*34	62*50*26
