Lifting Equipment

Hydraulic Vertical Wheelchair Platform Lift

Jinan Morn Technology Co., Ltd.
  • Application:Passenger Elevator
  • Lift Mechanism:Lift Chain
  • Carrying Capacity:Light Level
  • Moves:Stationary
  • Driven Type:Hydraulic
  • Running Mode:Stationary

Base Info

  • Model NO.:WL0.25-2.4
  • Feature:Aluminum Ally
  • Certification:ISO 9001
  • Transport Package:Veneer Case
  • Specification:WL0.25-2.4
  • Trademark:MORN LIFT
  • Origin:Shandong, China
  • HS Code:842890
  • Production Capacity:40set,Month

Description

Basic Info.

Model NO. WL0.25-2.4 Feature Aluminum Ally Certification ISO 9001 Transport Package Veneer Case Specification WL0.25-2.4 Trademark MORN LIFT Origin Shandong, China HS Code 842890 Production Capacity 40set/Month

Product Description

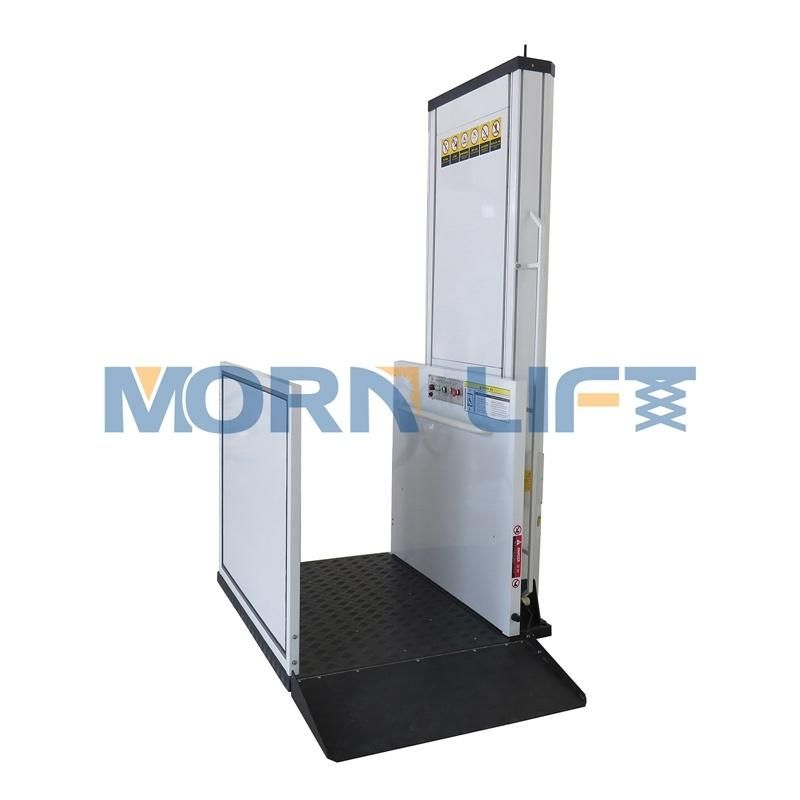

Hydraulic Vertical Wheelchair Platform LiftHydraulic Vertical Wheelchair Platform Lift
  1. platform sizes: 1300*900mm
  2. Lifting height:2.4m
  3. Loading capacity: 250kg
  4. In or out direction
    180 degree/90 degree/one side open
  5. Ramp: Automatic ramp/fixed ramp
  6. Voltage: Ordinary:220v single-phase 50H / Factory:380v three-phase 50Hz

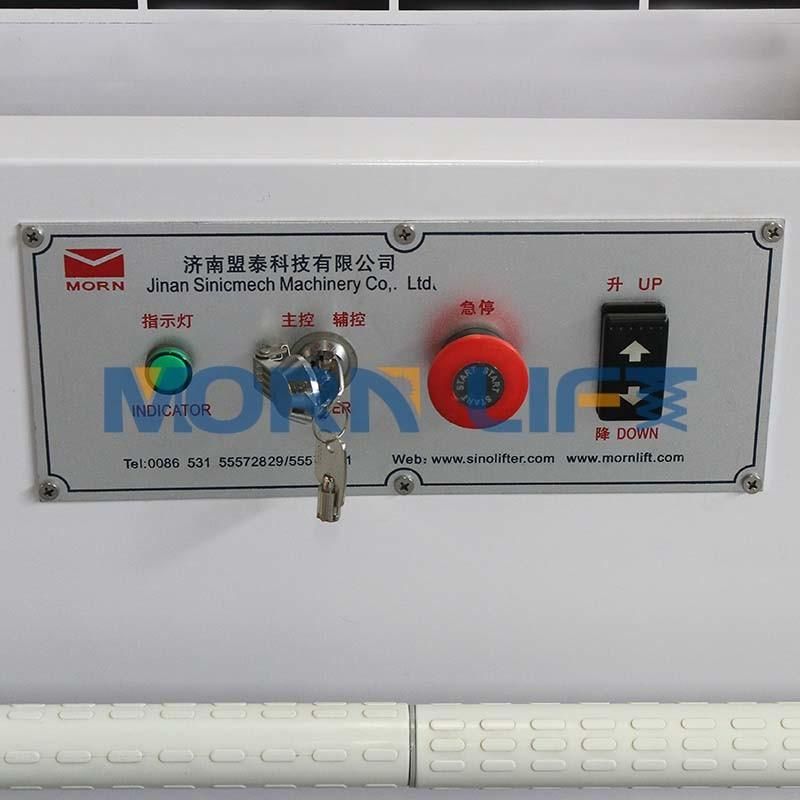

  7. Control system

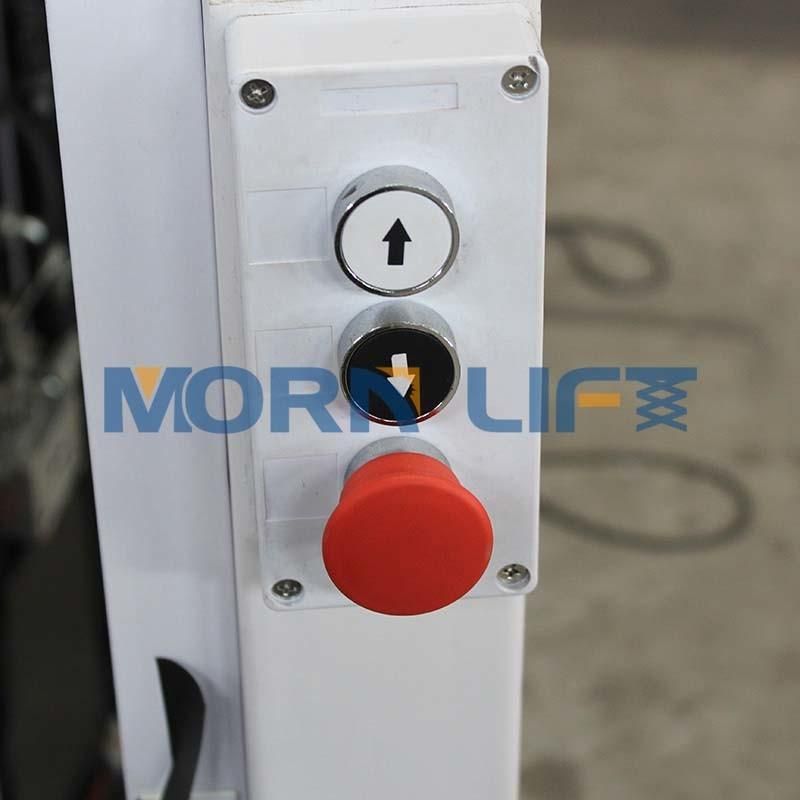

    Platform system/remote system/post system
    Key:  left-platform and post system(main control)
    right-remote system(auxiliary control)
    Middle-off


Hydraulic Vertical Wheelchair Platform LiftHydraulic Vertical Wheelchair Platform LiftHydraulic Vertical Wheelchair Platform Lift



safety
  1. safety sensor on the platform bottom
    Safety sensor connect limit switch,once touch the bottom,the lift will stop.
    In the process of descending the lift ,once the Children or pet enters the bottom of lift,the lift can stop and protect them.
  2. Interlocking and electromagnetic lock
         Interlocking:the lift won't work if the door is open,lift only work when the door is completely closed
         Electromagnetic lock:the door won't be opened during the lift working
  3. Mechanical platform lock
         It is a double safe design to people on platform
  4. Emergency stop
         The first can be stopped immediately in case of any emergency when up or down
    And all three control system have an emergency stop.

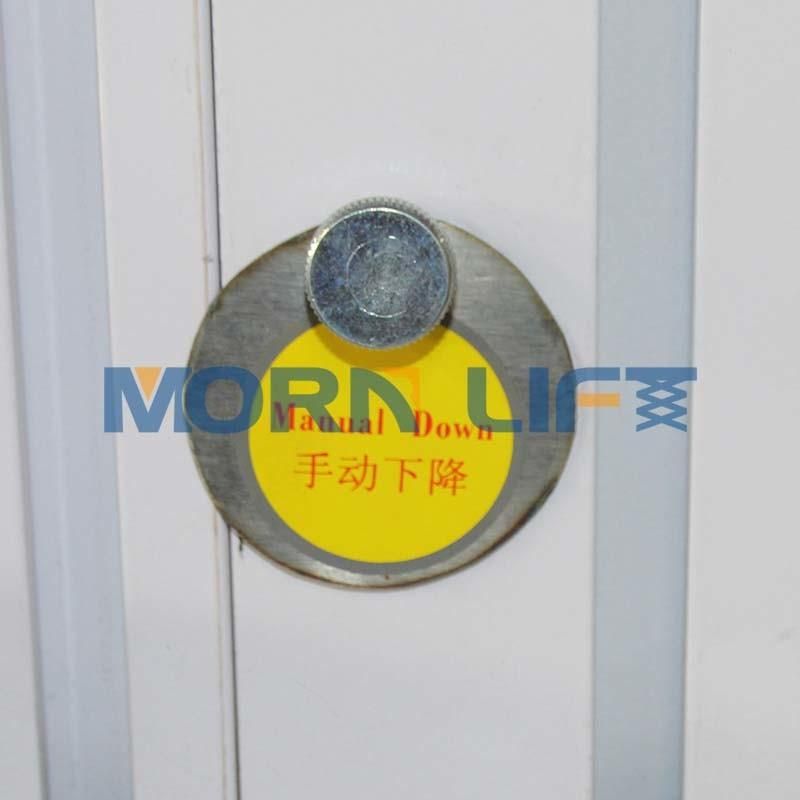

  5. Manual down
          the platform can be lowered by manual down button in case of power failure
  6. Landing door
          Prevent the elderly and children from falling into well while waiting for the lift.
  7. Non-slip platform
          Prevent the wheelchair sliding from platform during the lift ride.
  8. Installation
    A,Easier for installation and transportation
    The body can be cut into two sections, there are iron plates in the tracks, just use screws to link the two sections instead of welding.
    Firstly it is easier for installation(indoor use),On the other hand, it can be easily put in a wooden box for transportation, can save some cost for you.
    B, Easier for fixation
    The connect beam that used to connect the lift and wall can be moved on
    the track, so it can be fixed on the wall at any height you want.
    C,Lifting hook
    The lift can be lifted up by this hook, it can also be taken down if you do not need it
     The machine and ground are respectively fixed and easy to install.
  9. Material and packaging
    The first used T6030 aluminum ally,it has good mechanical intensity and corrosion resistance and weather resistance,which ensure the lift 15 years structural warranty at least.
    Hardness>2h,it is not easy to be scratched
    We make it white powder coating,it looks more beautiful,it can match with all kinds of buildings.

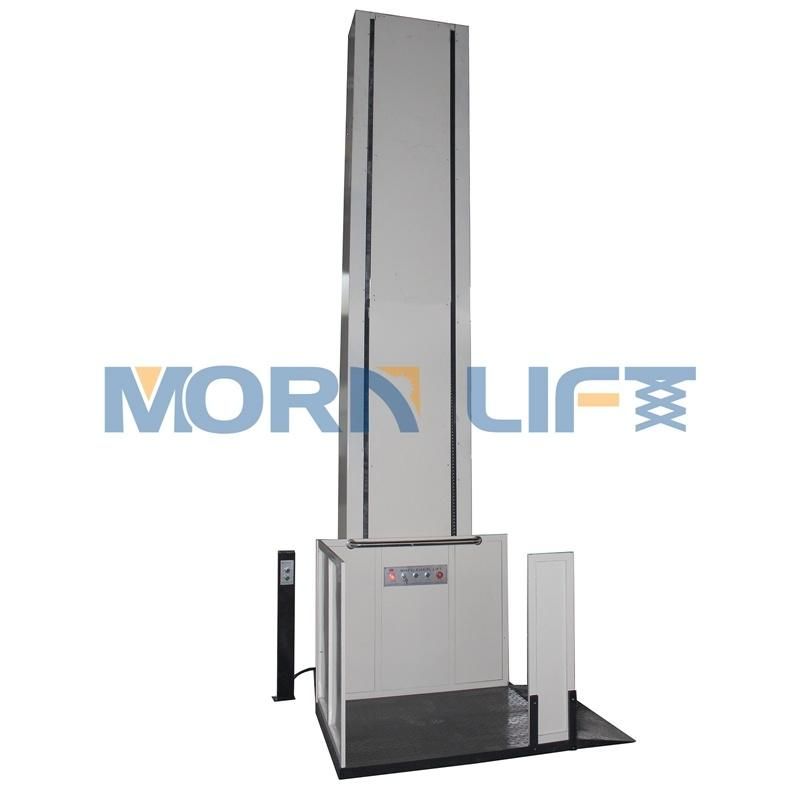

Hydraulic Vertical Wheelchair Platform Lift

Optional :

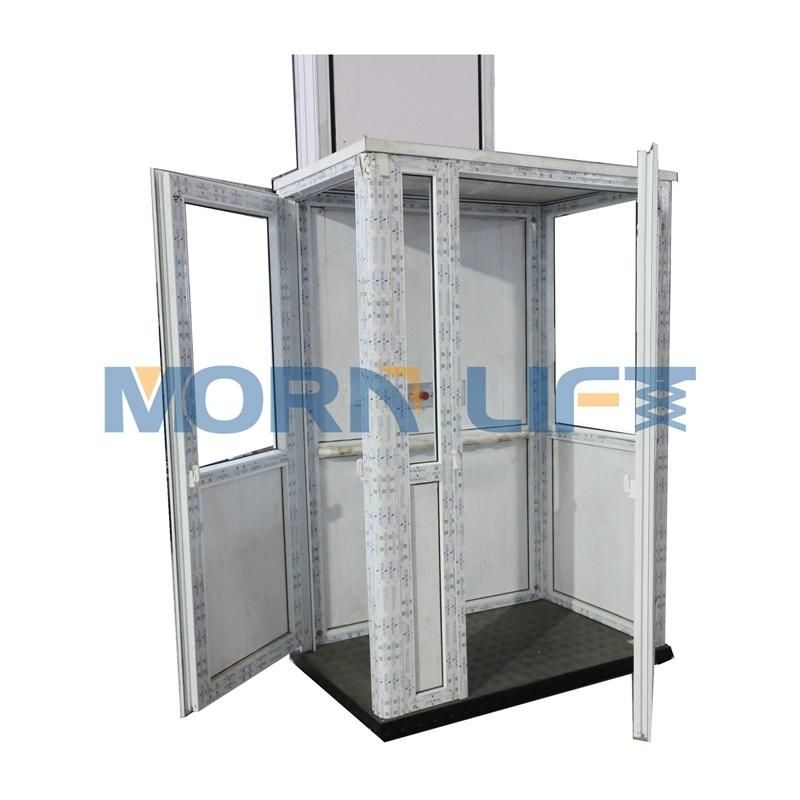

enclosed wheelchair lift
home cabin wheelchair lift
