• Model NO.：VPL0.25-2.0
• Feature：Explosion-Proof, Insulating
• Certification：CE
• Model：Vpl0.25-2.0
• Loading Capacity：250kg
• Max. Lifting Height：2m
• Min. Lifting Height：60mm
• Self-Weight：550kg
• Platform Size：1430*1000mm
• Warranty：12 Months
• Certificate：Ce
• Voltary：220V ,240V,380V,415V, Optional
• Control：Post Control, Platform Control, Remote Control
• Transport Package：Stretch Film & Plywood Case Outside of Wheelchair
• Specification：3100*1430*1400MM
• Trademark：MORN LIFT
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：20 Units Per Month

Basic Info.

Model NO. VPL0.25-2.0 Feature Explosion-Proof, Insulating Certification CE Model Vpl0.25-2.0 Loading Capacity 250kg Max. Lifting Height 2m Min. Lifting Height 60mm Self-Weight 550kg Platform Size 1430*1000mm Warranty 12 Months Certificate Ce Voltary 220V /240V/380V/415V, Optional Control Post Control, Platform Control, Remote Control Transport Package Stretch Film & Plywood Case Outside of Wheelchair Specification 3100*1430*1400MM Trademark MORN LIFT Origin Shandong, China HS Code 842890 Production Capacity 20 Units Per Month

Product Description

Product Detail

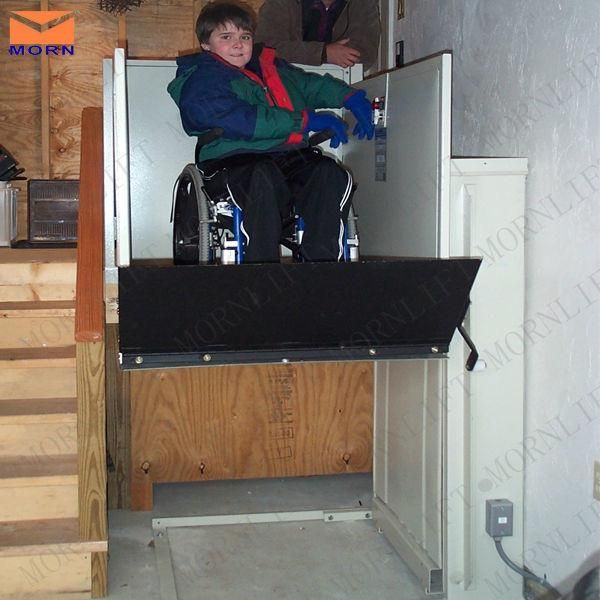

2m outside vertical wheelchair lift for disabled

Our hydraulic vertical wheelchair lift consists of a platform with high side walls, an upper landing gate, a platform mounted gate, a drive system and easy-to-use operating controls.
The platform walls and the platform gate travel with the platform creating a barrier around the passenger. This wheelchair lift can be installed with little to no site modifications.
Its hydraulic system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.

Satety devices for 2m outside vertical wheelchair lift for disabled

   Safety sensor on the platform bottom
    It could make sure the machine stop immediately when touching something under the platform, especially there is children or pet. This could avoid many accidents because of sightless spot vision.



   The interlocking, electromagnetic lock and manual lock

    The machine would not start if the interlock is open.

    And the electromagnetic lock would make sure that the in and out door would not open when the machine up and down.

   Manual lock is a lock by hand after getting onto the lift to protect the safety in case of falling down.

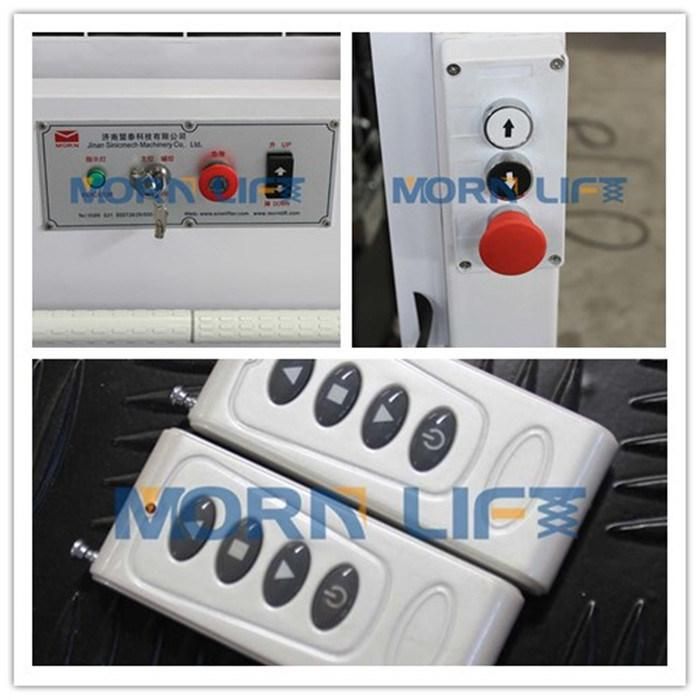

Three kinds of control:post control, platform control, remote control

Packing

 2m outside vertical wheelchair lift for disabled will be packed into steel framed veneer case for safety shipment.



Application

This lift is specifically designed to provide convenient and safe access for those in wheelchairs, or those who cannot use the stairs because of a physical disability.
