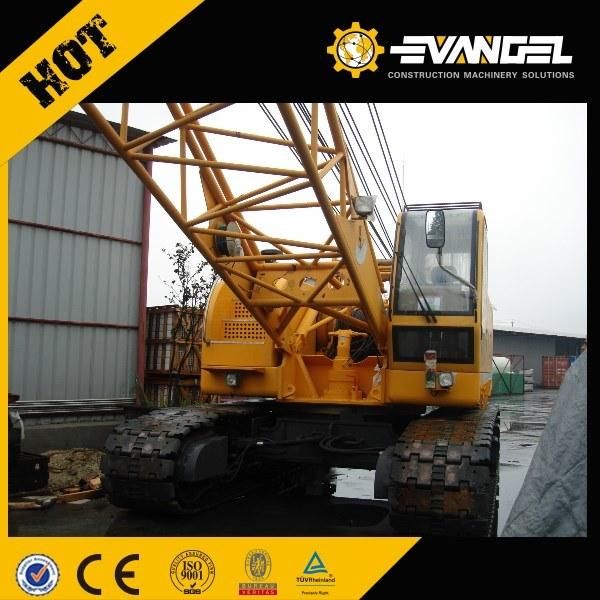

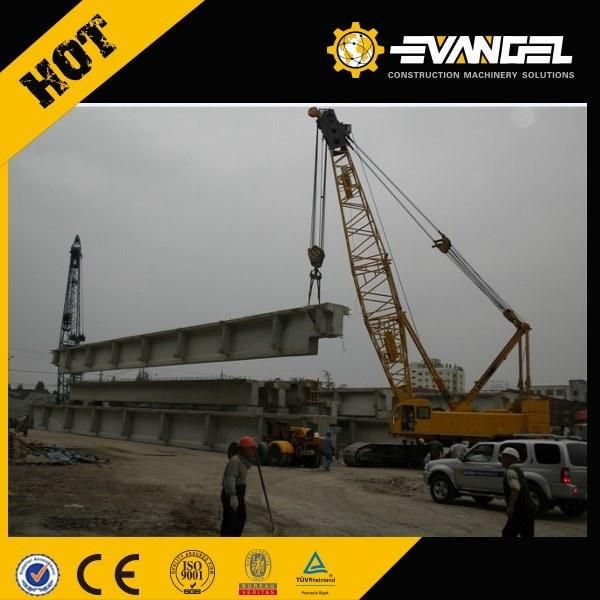

China Best Small 55 Ton Crawler Crane (QUY55)
Evangel Industrial (Shanghai) Co., Ltd.- Lifting Capacity：55ton
- Max Loading Moment：203.5t.M
- Boom Length：13~52m
- Fixed Jib Length：9.15~12.25m
- Max Slewing Speed：1.5r,Min
- Max Travelling Speed：1.35km,H
Base Info
- Model NO.：QUY55
- Grade Ability：40%
- Engine Power：125,158kw
- Max Mass of Single Unit in Travel：31ton
- Dimension：11.5*3.47*3.4m
- Transport Package：Nude(RO~RO and Container)
- Specification：Exporting standard
- Trademark：EVANGEL
- Origin：Xuzhou, China
- HS Code：87051091
- Production Capacity：50000sets,Months
Description
Item Unit Parameter Max. rated lifting capacity Basic boom t 55 Fixed jib t 5 Max. lifting moment t. m 203.5 Boom length m 13~52 Boom luffing angle ° -3~80 Fixed jib length m 9.15~15.25 Max. single line speed for hoist mechanism (no load, at 5th layer ) m/min 121 Max. single line speed for boom luffing mechanism(at 1st layer) m/min 52 Max. swing speed r/min 1.5 Max. travel speed km/h 1.3 Gradeability % 30 Average ground pressure MPa 0.069 Engine power kW 115 Overall weight (main lifting hook, 13m boom) t 51 Max. single unit weight for transportation t 31 Max. single unit dimensions for transportation (L× W× H) m 11.5× 3.45× 3.4
