Wholesale CD1&MD1 Model 1 Ton Electric Wire Rope Hoist
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Single Beam Crane
- Type：Electric Hoist
- Sling Type：Wire Rope
- Lift Speed：8m,Min 0.8m,Min
- Maximum Lifting Height：>20m
- Chain Falls：Wire Rope 1 or 2
Base Info
- Model NO.：CD1
- Certification：CE
- Condition：New
- Color：Blue
- Brand Name：Hugo
- Phase：3
- Standard Lifting：8 M,Min
- Loading Port：Shanghai Port Tianjin Port
- Warranty：1 Year
- Frequency Hz：50
- Capacity：10 Ton
- Lifting Height：8m,Min
- Delivery Time：10 Days
- Payment Term：L,C, T,T
- Transport Package：Packaged by High Quality Plywood Crate
- Specification：CE, ISO, TUV
- Trademark：HUGO
- Origin：Shanghai, China
- HS Code：8425110000
- Production Capacity：10000,Month
Description
The Parameters of CD1 3T 12M Electric Wire rope hoist
Model
0.25TON
0.5TON
1TON
2TON
3TON
5TON
10TON
Capacity ton
0.25
0.5
1
2
3
5
10
Standard lift m
3-9
6-12
6-30
6-30
6-30
6-30
6-30
Lifting Height m/min
88/0.8
88/0.8
88/0.8
88/0.8
88/0.8
88/0.8
77/0.7
Running Speed m/min
20/30
Wire Rope type
6*19-3.6
6*37-4.8-180
6*37-7.4-180
6*37-11-155
6*37-13-170
6*37-15-200
6*37-15-200
I beam track type
16-22b
16-28b
16-28b
20a-32c
20a-32c
25a-63c
28a-63c
Loop track minimum Radius m
0.8
1.5
1.5-4
2-4
2-4
2.5-5
3.5-9
Voltage V
380
380
380
380
380
380
380
Frequency HZ
50
50
50
50
50
50
50
Phase
3
3
3
3
3
3
3
Certificate for the electric wire rope hoist

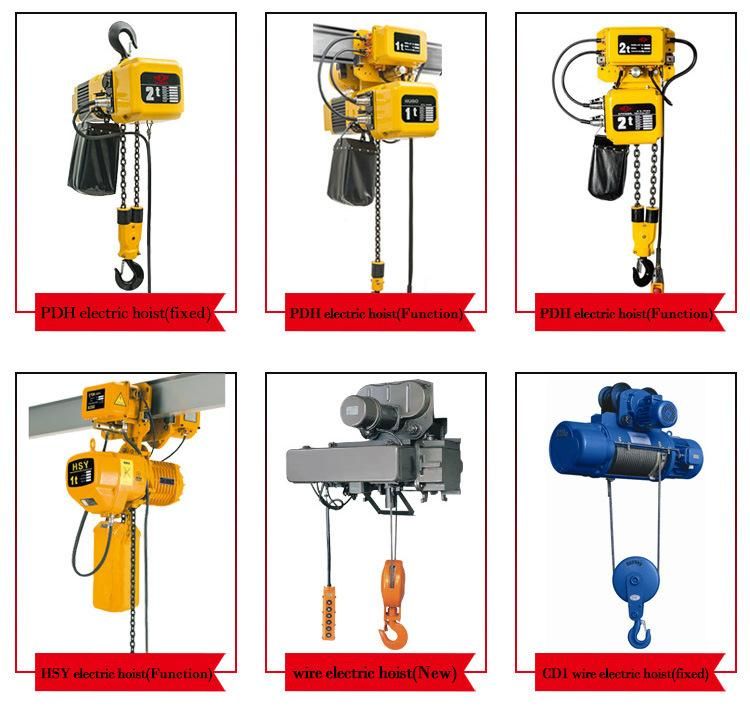

Related product for the electric wire rope hoist
