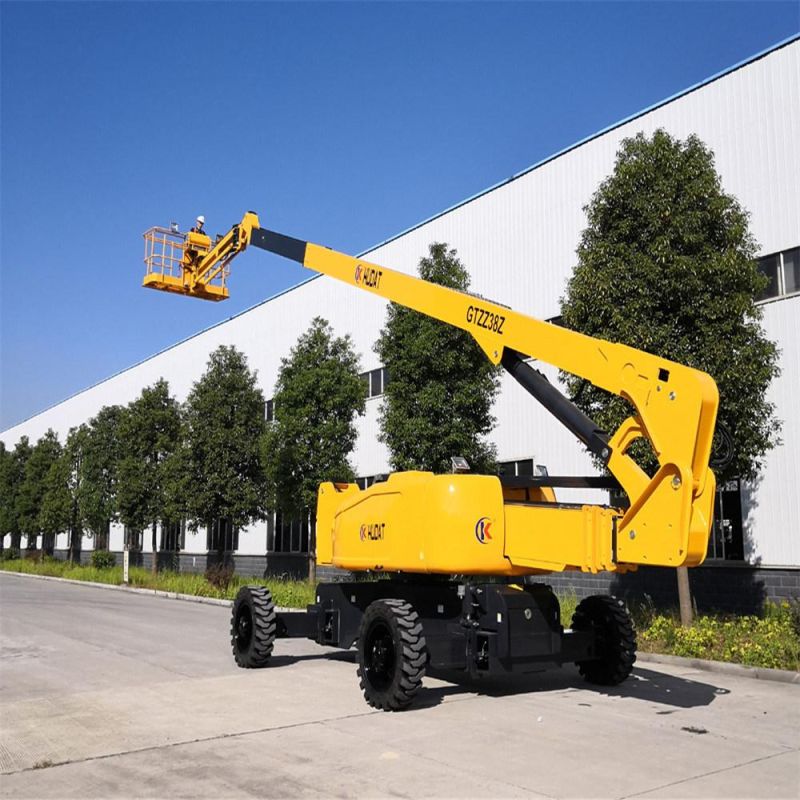

38m Diesel Hydraulic Aerial Work Platform Lift Platform for Port (GTZZ38Z)
Wuhan Kudat Industry & Trade Co., Ltd.- Lift Mechanism：Articulated Lift
- Carrying Capacity：Light Level
Base Info
- Model NO.：GTZZ38Z
- Moves：Self-propelled
- Driven Type：Hydraulic
- Running Mode：Moving
- Feature：Aerial Work Platform
- Certification：CE, ISO 9001
- Structure：Aerial Work Platform
- Horizontal Reach Maximum：18.1m
- Platform Height Maximum：38.1m
- Wheelbase：3.9m
- Ground Clearance-Center：430mm
- Lift Capacity (Restricted)：480kg
- Transport Package：Bulk
- Specification：SGS CE
- Trademark：KUDAT
- Origin：China
- HS Code：8428909090
- Production Capacity：50units,Month
- Package size per unit product：225.00cm * 198.00cm * 280.00cm
- Gross weight per unit product：2000.000kg
Description
1. Functions of positioning upward&outward and crossing
1. Functions of positioningupward&outward and crossingThearticulating boom machine offers
muti-faceted functions of positioningupward,outward and crossing, so that you can reach whatever placeyouwant to go through various ways.
2. Complete safety devices
Standard configuration include four-link weighing devices, overload protection, automated detection device for detecting platform amplitude and height (automatic amplitude limiter), automatic control of
the movement speed of the boom and traveling speed, and high-precision load sensor, to ensure the safety and stability of operation in all directions.
Thestructures with size lower than 16m and electric motor type arecompact,which
make the boom can go through small opening and operateinsmall space.

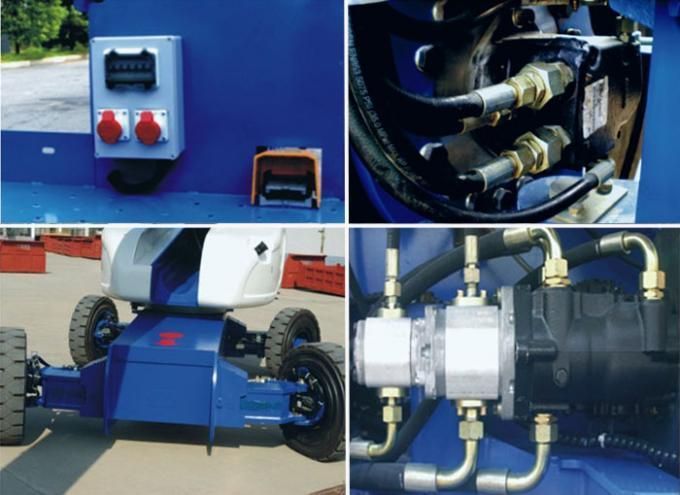

4. Control box
Fullproportion joysticks and CAN bus as well as PLC control system With high
positioning accuracy are easy to be controlled and can beoperatedby the users
at will. The stainless steel control box with sealingcoverand box cap, which can
help prevent the electrical components formoistureand prevent the damage from
welding slag.

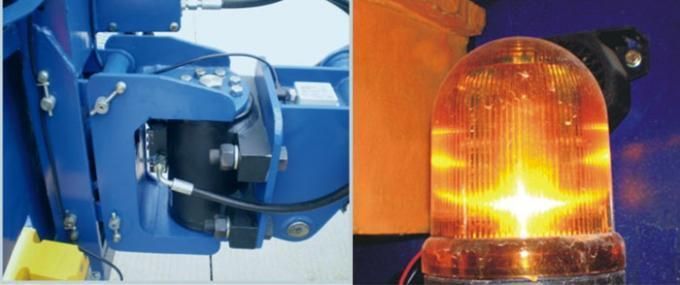

5. Strobe light------Give alerting signal when working

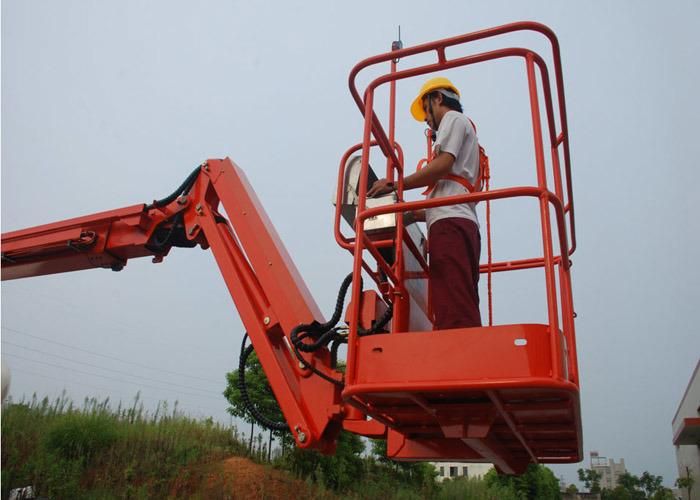

6. Rotary platform------The rotary actuator with standard configuration can make the rotation range
of the platform reach ±80°, which makes your work more flexible.

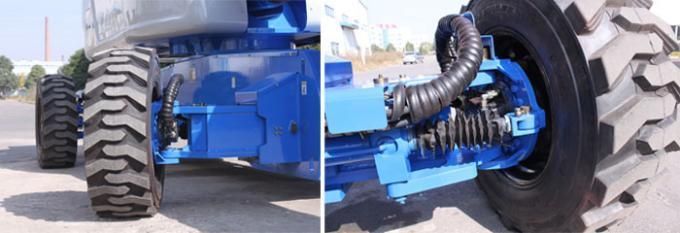

7. Active oscillation axle
Active oscillation axle can preceive the terrain, and can guarantee that the
machine can land on four wheels even on uneven road without reducing the
driving force
8. Swing-out engine tray It is easy for maintenance and repair
9. Hydraulic system
Closed circuit hydraulic traveling system has speed easily to be adjusted, wide speed range; the boom's hydraulic
system adopts double value core circuit. which enhance the safety. The
hydraulic components adopt European and North American pure brands.
10. Driving mode 4*4
The four-wheel drive is powerful with great grade-ability
11. Production plant
