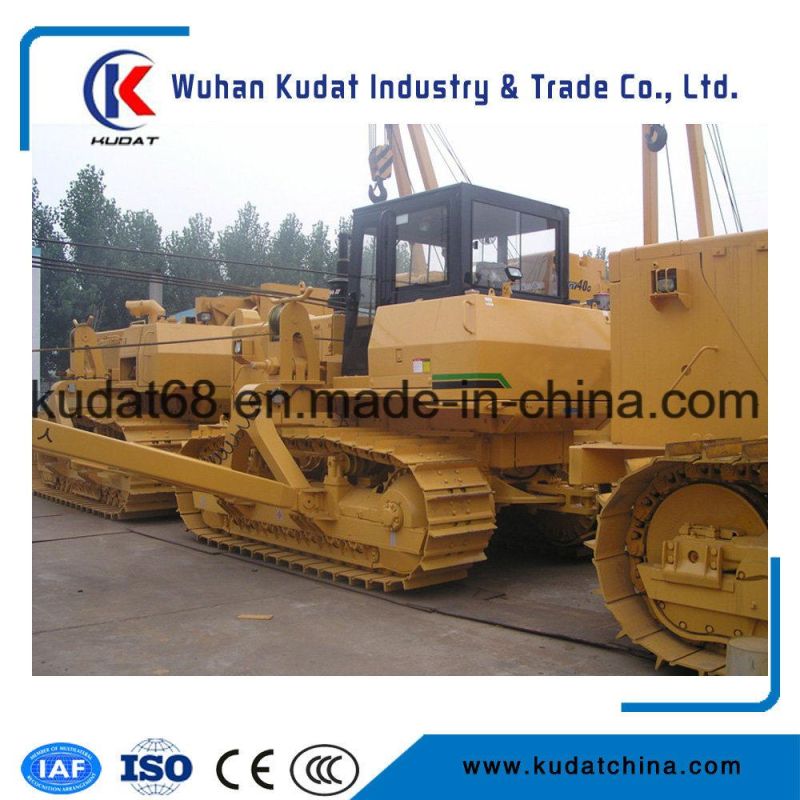

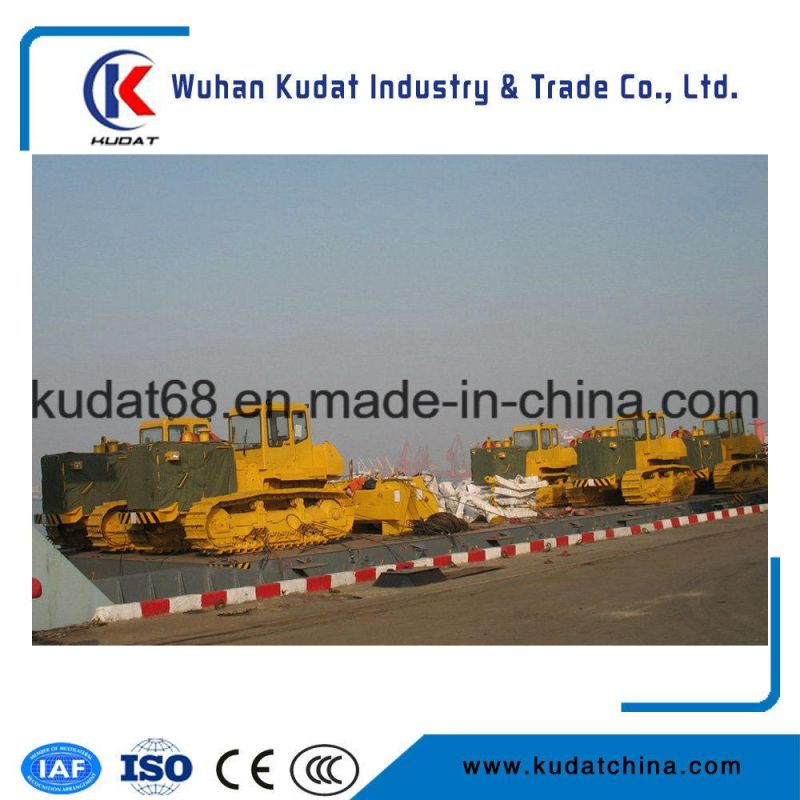

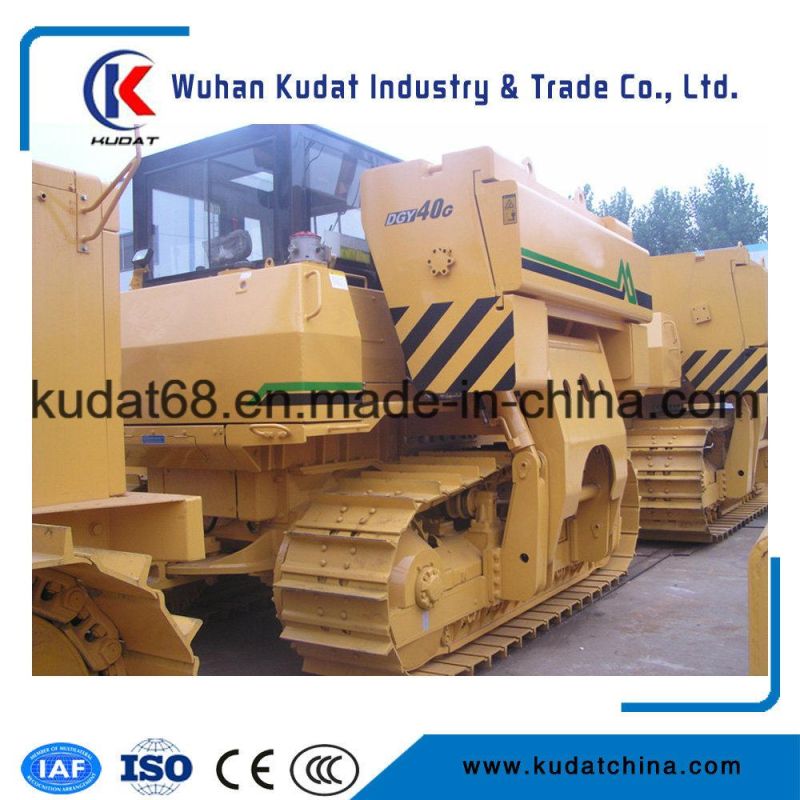

40tons Side Boom Pipe Crane (DGY40G)

Wuhan Kudat Industry & Trade Co., Ltd.
  • Max. Lifting Capacity：40, 000 Kg
  • Boom Length：7.0 M
  • Max. Lifting Height of Boom：5.3 M
  • Engine：Cummins Nt855-C280
  • Max. Lifting Capacity of Boom：Ton 40
  • Hoisting Speed (6times) M/Min：7

Base Info

  • Model NO.：DGY40G
  • Chassis Model：Dgy40g
  • Engine Model：Cummins Nt855-C280
  • Engine Power Kw/Rpm：169,1800
  • Hydraulic Pump Model：Cby4140,2020
  • Transport Package：in Nude Package
  • Specification：CE
  • Trademark：Kudat
  • Origin：China
  • HS Code：84269900
  • Production Capacity：1000PCS,Year

Description

Max. lifting capacity of boom  Ton
 40  Max. lifting moment at min. range of the boom (392kN * 1.22M)kN.m478Max. lifting moment at max. range of the boom (73.5kN * 5.50M)kN.m404Boom lengthm7.0Max. lifting height of the boomm5.3Hoisting speed (6times)m/min7Time of change ranges35Chassis model DGY40GEngine model CUMMINS NT855-C280Engine powerkW/rpm 169/1800Track gaugemm2250Track length on groundmm3150Track shoe widthmm660Hydraulic pump model CBY4140/2020Hydraulic pump pressureMpa20Lifting winchHydraulic driven, planetary transmission, free-fall functionRated pulling force of single rope (3rd layer)N72,000Wire rope diametermm20Ranging winchHydraulic driven, planetary transmissionRated pulling force of single rope (2nd layer)N55,000Max. grade abilityo18Operation temperature (std.)o C-20 ~ +40Overall dimension
(LxWxH)with boommm4850*4540*7700without boom
 mm
 4840*3240*3250Ground pressurewithout loadMpa0.082Operation weightkg33,00040tons Side Boom Pipe Crane (DGY40G)
