• Model NO.：GTBZ14J
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Model：Gtbz14j
• Weight：6900kg
• Wheel Base：2100mm
• Maximum Working Height：15.75m
• Maximum Working Range：8.22m
• Maximum Load Capacity：230kg
• Platform Size：1830*760*1150mm
• Maximum Travel Speed：6.1km,H
• Transport Package：40′hq Container
• Specification：CE, ISO
• Trademark：ORIEMAC
• Origin：Jiangsu, China
• Production Capacity：1000unit,Month

Basic Info.

Model NO. GTBZ14J Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Model Gtbz14j Weight 6900kg Wheel Base 2100mm Maximum Working Height 15.75m Maximum Working Range 8.22m Maximum Load Capacity 230kg Platform Size 1830*760*1150mm Maximum Travel Speed 6.1km/H Transport Package 40′hq Container Specification CE, ISO Trademark ORIEMAC Origin Jiangsu, China Production Capacity 1000unit/Month

Product Description

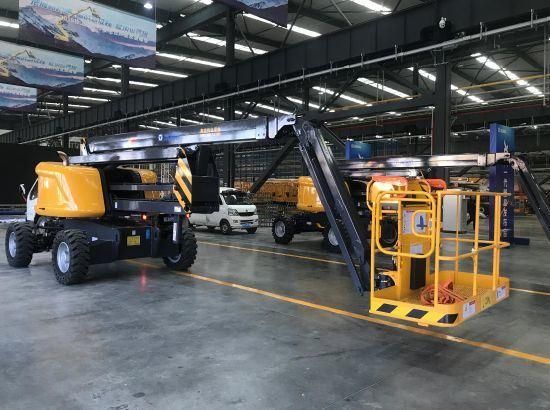

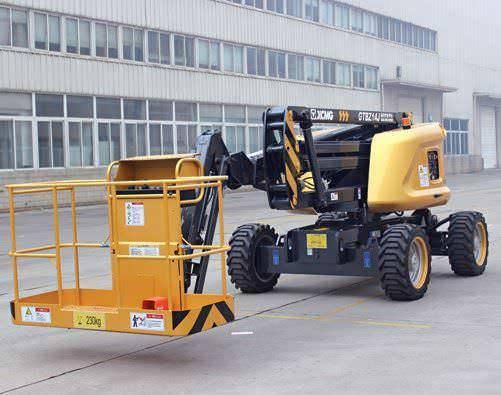

ORIEMAC Telescopic Boom Lift GTBZ14J 14m Payload at 340kg Self-Propelled Mobile Aerial Work Platform for Sale

14m-level articulated boom aerial work platform aiming at meeting customer demand has intelligent and perfect control system, adopts humanized layout and lubrication-free design, is easy for use and maintenance and provides comprehensive safety protection and abundant configuration options.

(1)Flexibility and efficiency

"Σ-type"double link jib has characteristics of compact structure and flexible extension, which can achieve vertical lifting and horizontal extension and has very strong obstacle climbing ability;180° rotatable platform provides bigger operation range;Narrow-type rotary table with compact structure canachieve"zero tail wagging"and improve operation efficiency

(2) Super strong site adaptability

Cross-country type chassis,four-wheel drive system, pouring-type cross-country wide tyre,full-time axle balanced system and 38kw strong power are configured so that the equipment has excellent terrain adaptability.

(3) Advanced performance, safety andreliability

Full-range operation, visual and friendly control panel and easy operation; Electro-hydraulic proportional system control is accurate and efficient. Protective measures such as chassis incline protection, platform overload alarming, emergency landing,safety speed limit, flexibility start-stop technology, etc. are provided.



Itmm	Parameter
Overall Length(mm)	6690
Overall Width(mm)	2260
Overall Height(mm)	2130
Wheel Base(mm)	2100
Maximum Working	15.75
Maximum Platform	14.05
Maximum Working	8.22
Maximum Load Capacity	230
1st Boom luffing Range(°)	0~+60
2nd Boom luffing Range(°)	-8~+75
Crank Arm luffing Range(°)	-60~+80
Rotation Angle of Rotation	355
Maximum Tail	0
Platform Size(mm)	1830*760*1150
Platform Turning Angle(°)	180
Total Weight(kg)	6900
Maximum Travel	6.1
Minimum Turning Radius(m)	4.5
Minimum Ground	250
Maximum Grade Ability(%)	45
Tire Specification	315/55D20
Engine Model	Perkins 404D-22
Rated Power of Engine(kw/(r/min))	38/(3000)
