• Model NO.：GTBZ58S
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Overall Weight：27200kg
• Engine：Deutz
• Engine Rated Power：74.4kw,2300r,Min
• Table Size：2.4*0.9 M
• Wheelbase：5.22,4.59m
• Maximum Gradeability：45%
• Maximum Platform Height：56.6m
• Maximum Working Range：25.1m
• Maximum Rearward Slewing：2.32m
• Transport Package：Comply with Export Packaging Requirements
• Specification：19450*2490*3050 mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：1000,Year

Basic Info.

Model NO. GTBZ58S Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Overall Weight 27200kg Engine Deutz Engine Rated Power 74.4kw/2300r/Min Table Size 2.4*0.9 M Wheelbase 5.22/4.59m Maximum Gradeability 45% Maximum Platform Height 56.6m Maximum Working Range 25.1m Maximum Rearward Slewing 2.32m Transport Package Comply with Export Packaging Requirements Specification 19450*2490*3050 mm Trademark XCMG Origin Jiangsu, China Production Capacity 1000/Year

Product Description

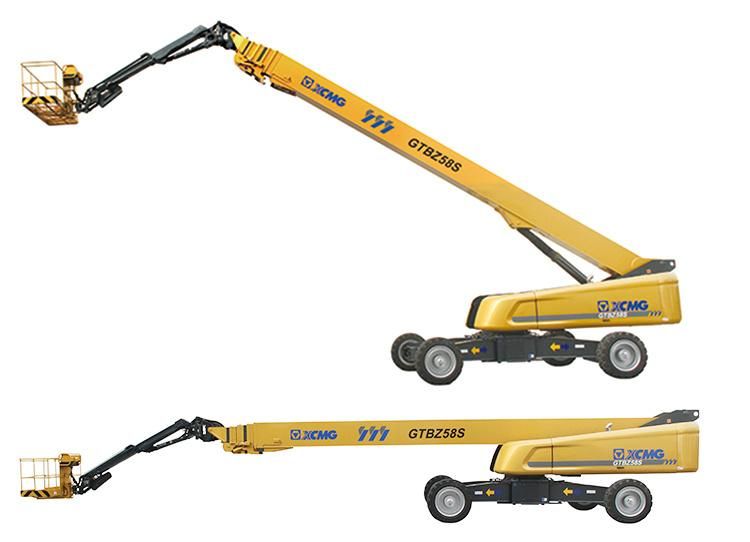

XCMG Factory GTBZ58S China 58m High Hydraulic Mobile Folding Boom Aerial Work Platform Lifts.

This machine developed independently by XCMG is the presently world's highest 58m-level product that covers nearly 85,000m2 operation space.

With maximum working height at 58.6m and maximum loading capacity at 450kg, its work platform allows the operator to carry more tools and materials to the aerial workplace.

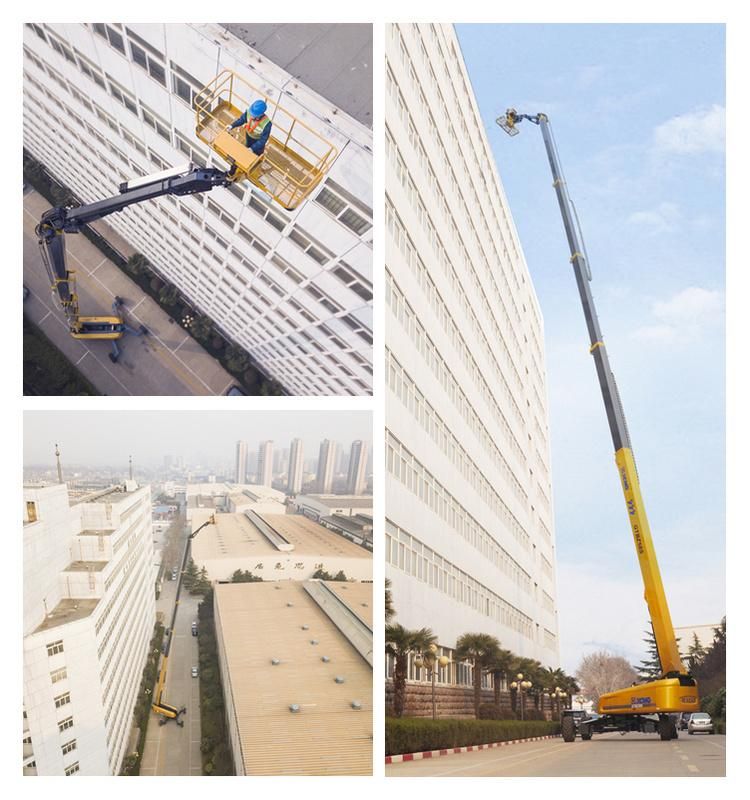

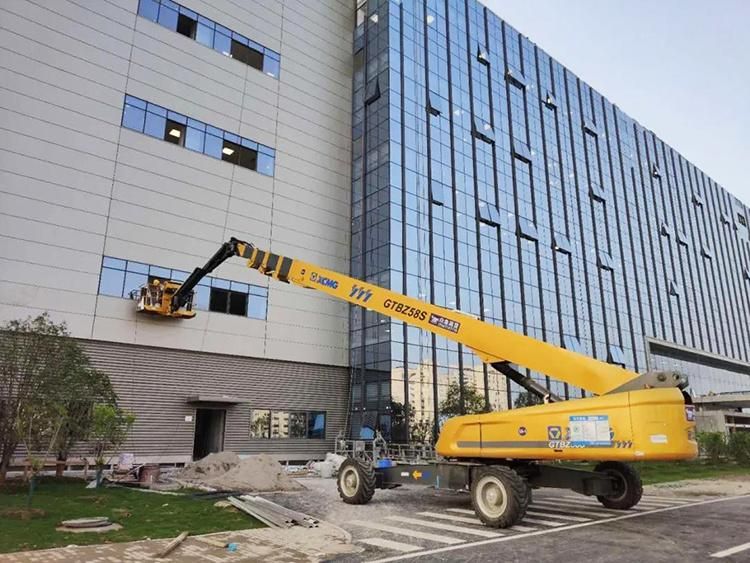

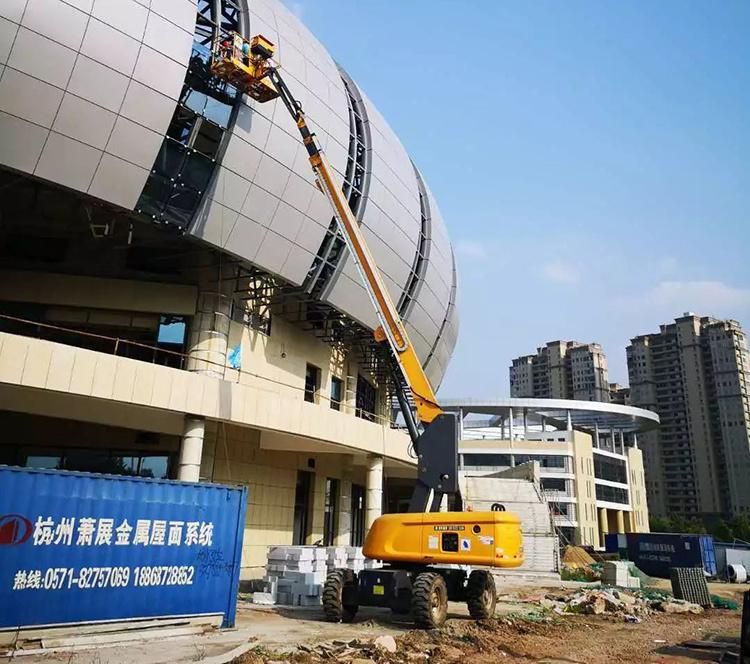

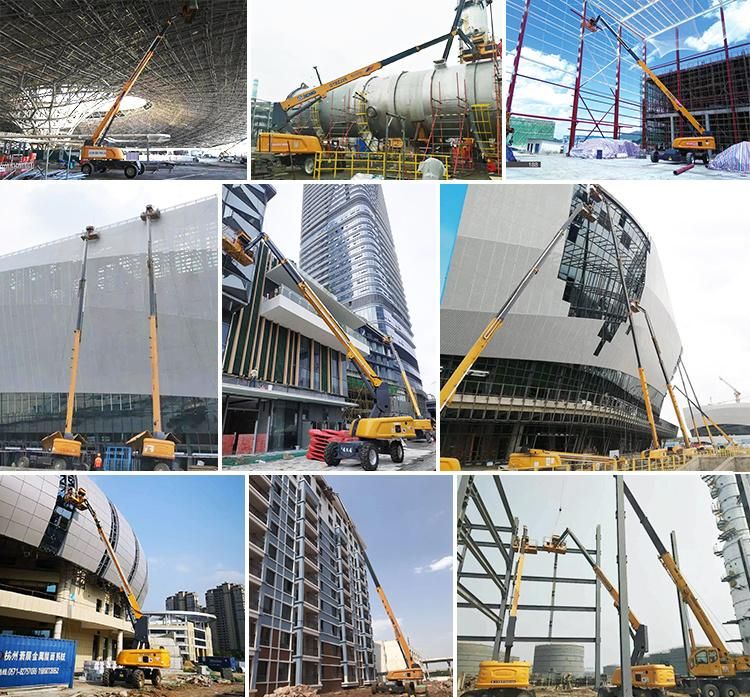

The flexible telescoping boom can also span or access diversified application structures, including the steel structure, petrochemical engineering, and power generation, wind power plant, and energy related building, stadium, convention center, and theater.

Performance Characteristics:

1. X-shaped Swinging Legs And Full-wheel Steering
Four axles could swing independently, which features the advantages shown below: the overall width should be narrowed during transportation and storage; large wheelbase could be realized for low-altitude or slope traveling; wide span could be reached for superstructure boom, keeping the support steady. In addition, while the axles are swinging, the full wheels could auto- matically match their angles for straight traveling, with three steering modes coordinated with each other.

2. Proportional Dual Leveling
Dual leveling mode of telescopic crank and work platform, improving the product precision that could be controlled within 2.5 ° and hence promoting the aerial safety.

3. Precise And Steady Control
Customized proportional valves have the flow curve designed according to action features, ensuring the excellent micro
manipulation. The pressure com- pensation behind valve and the anti-saturation design of flow could make the composite movement more effective and steady.

[Parameter]


Item	Unit	GTBZ58S
a.  Overall length (Transport status)	m	19.45(14.6)
b.  Overall width (With shaft retracted/extended)	m	2.49/5.03
c.  Overall height	m	3.05
d.  Wheelbase	m	5.22/4.59
Maximum working height	m	58.6
Maximum platform height	m	56.6
Maximum working range	m	25.1
Maximum carrying weight	kg	230 (Without limit)/450 (With limit)
Luffing range of boom	°	-1 ~ 80
Slewing angle of turntable	°	360°
Maximum rearward slewing	m	2.32
Dimension of platform	m	2.4×0.9
Slewing angle of platform	°	180
Overall weight	kg	27200
Maximum traveling speed	km/h	4.5
Minimum turning radius (With shaft retracted/extended)	m	9.5/6.6 (Four-wheel steering)
Minimum ground clearance	m	0.25
Maximum gradeability	%	45
Specification of tire	-	445/50D710 24-ply
Engine model	-	Deutz TCD3.6 L4
Engine rated power	kW/(r/min)	74.4/2300
