• Model NO.：XGS28
• Driven Type：DC
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Maximum Working Height：28.2m
• Maximum Carrying Weight：230 (Unrestricted),340 (Restricted)Kg
• Power：53kw
• Table Size：2400*900mm
• Weight：16600kg
• Min. Lifting Height：400mm
• Lift Drive / Actuation：Hydraulic
• Transport Package：Comply with Export Packaging Requirements
• Specification：12100*2490*3050mm
• Trademark：XCMG
• Origin：Xuzhou, China
• Production Capacity：10000

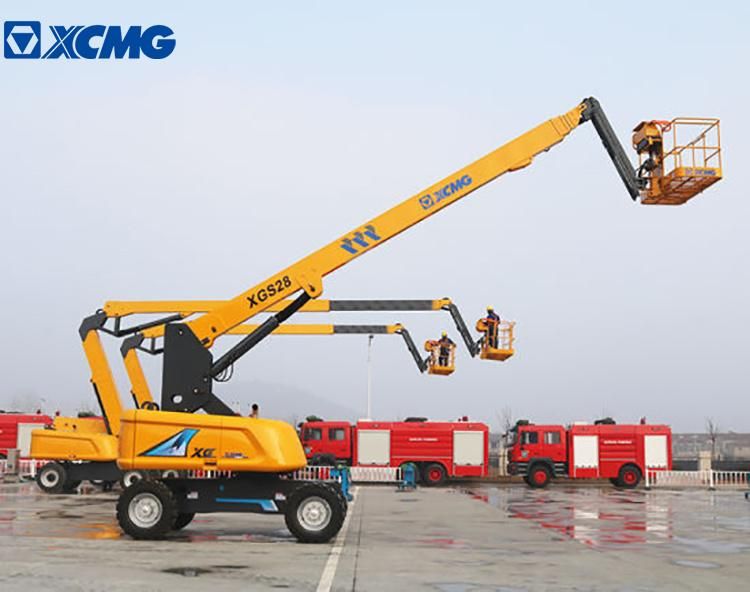

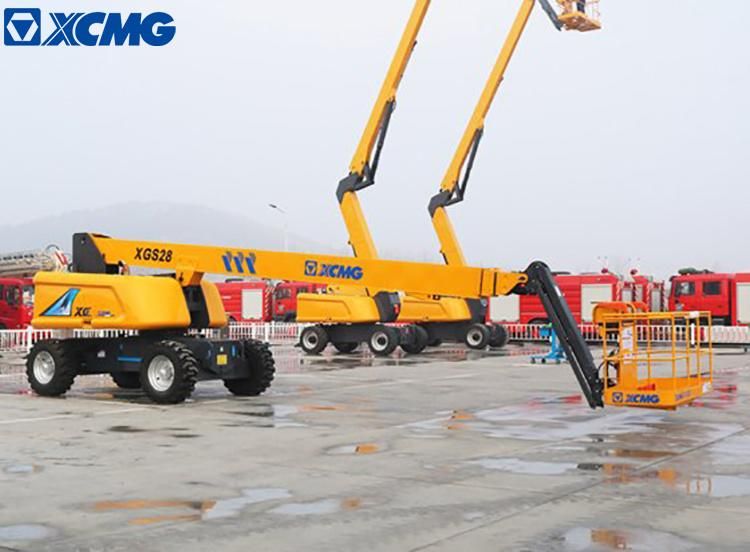

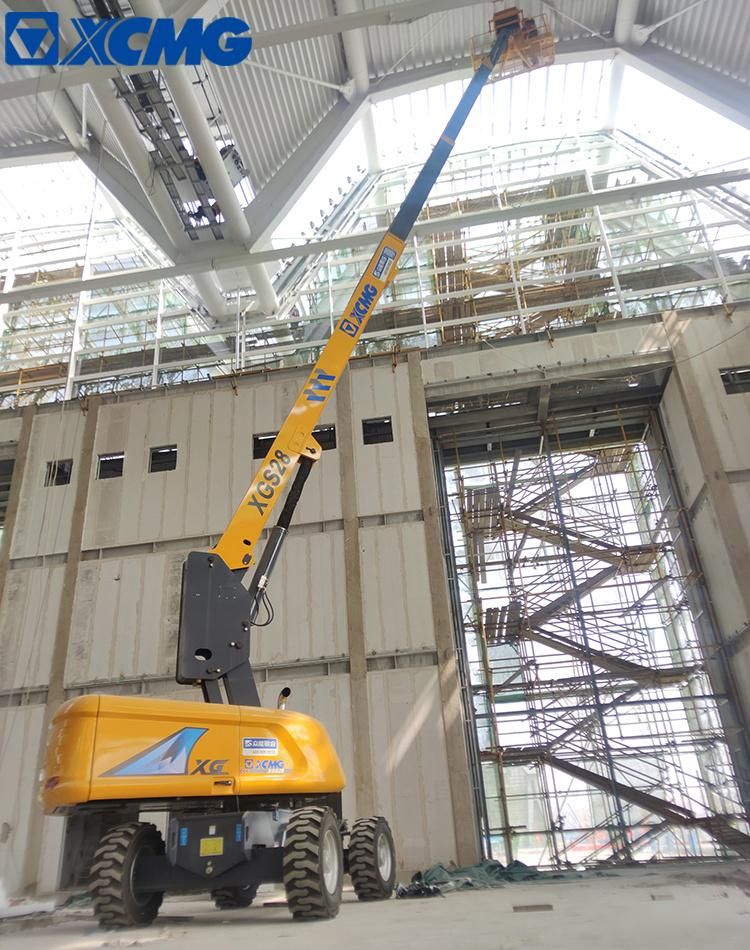

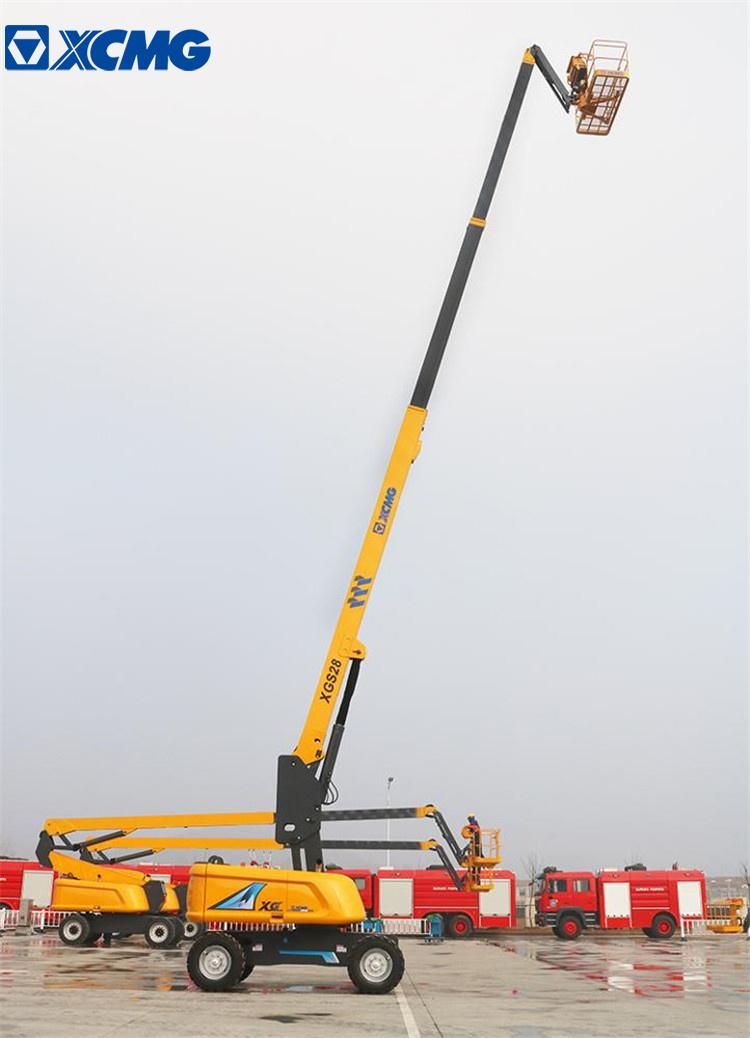

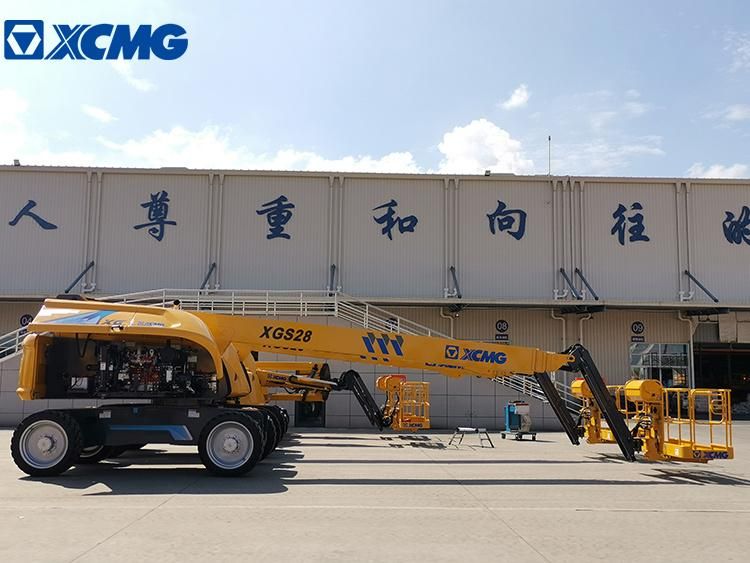

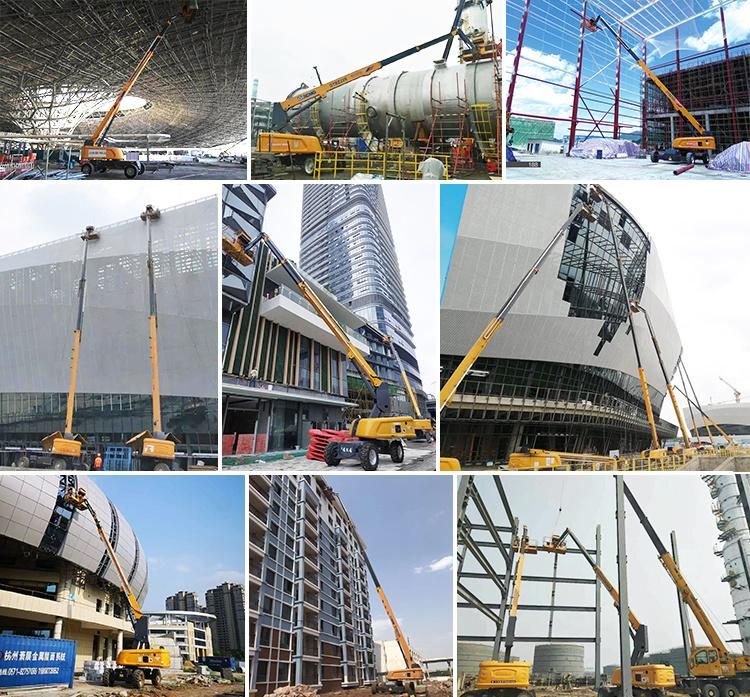

Overview Product ParametersItemUnitParametera. Overall length of complete machinemm12100b. Overall width of complete machinemm2490c. Overall heightmm3050d. Wheelbasemm3000Maximum working heightm28.2Maximum platform heightm26.2Maximum working rangem23.2Maximum carrying weightkg230 (unrestricted)/340 (restricted)Luffing range of boom°-5~+75Slewing angle of turntable°360Maximum tail swingmm1500Platform sizemm2400×900Slewing angle of platform°160Overall weightkg16600Maximum traveling speedkm/h6.1Minimum turning radiusm6.7Minimum ground clearancemm310Maximum gradeability%45Tire specification-Foam tire 385/65-22.5Engine model-QSF2.8t3TC71Engine rated powerkW/(r/min)53/(2200) Detailed Photos



Company Profile

FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
