CE Manual Wheelchair Ramp (BMWR-3)
Changzhou Xinder-Tech Electronics Co., Ltd.- Application:Van, Minivan, Truck
- Lift Mechanism:Manual
- Carrying Capacity:350kg
- Moves:Stationary
- Driven Type:Manual
- Running Mode:Stationary
Base Info
- Model NO.:BMWR-3
- Certification:CE
- Loading Capacity:350kg
- Driving Mode:Manual
- Transport Package:Wooden Case
- Specification:CE
- Trademark:Xinder
- Origin:Changzhou Jiangsu China
- HS Code:8428909090
- Production Capacity:500 Sets Per Month
Description
Basic Info.
Model NO. BMWR-3 Certification CE Loading Capacity 350kg Driving Mode Manual Transport Package Wooden Case Specification CE Trademark Xinder Origin Changzhou Jiangsu China HS Code 8428909090 Production Capacity 500 Sets Per MonthProduct Description
Introductions:

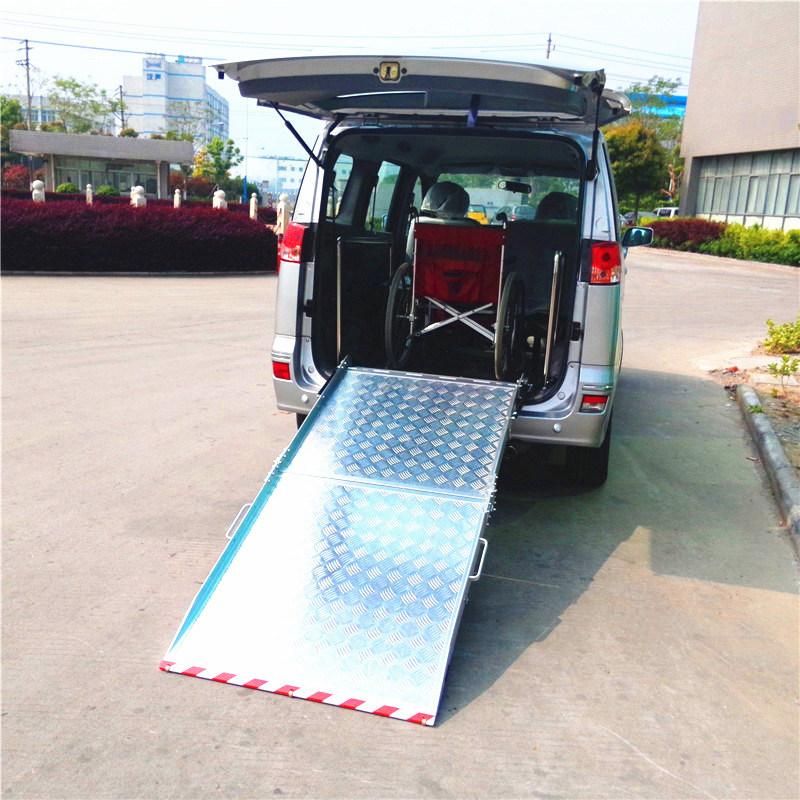

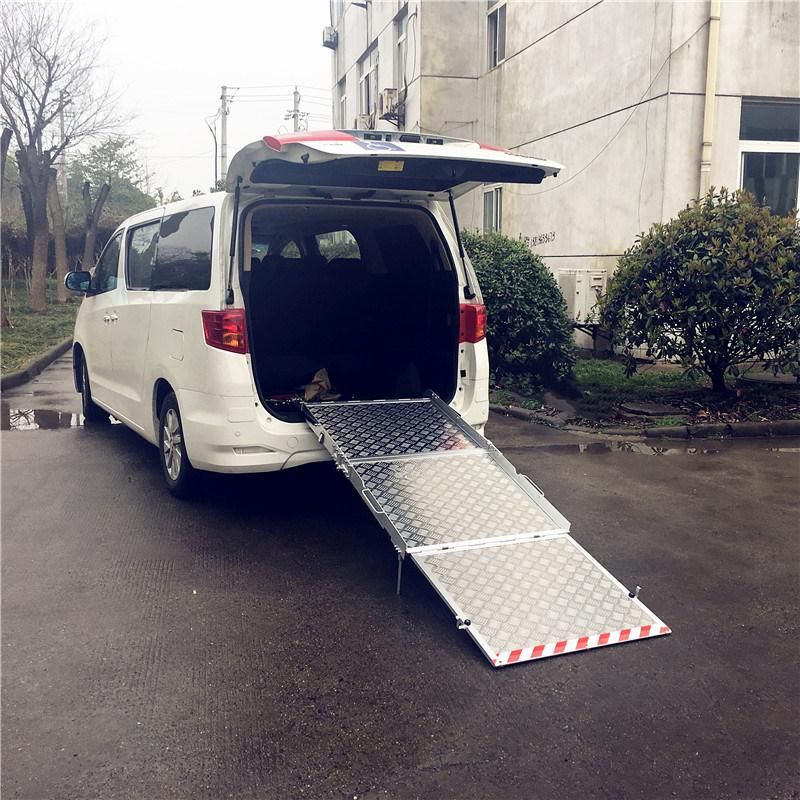

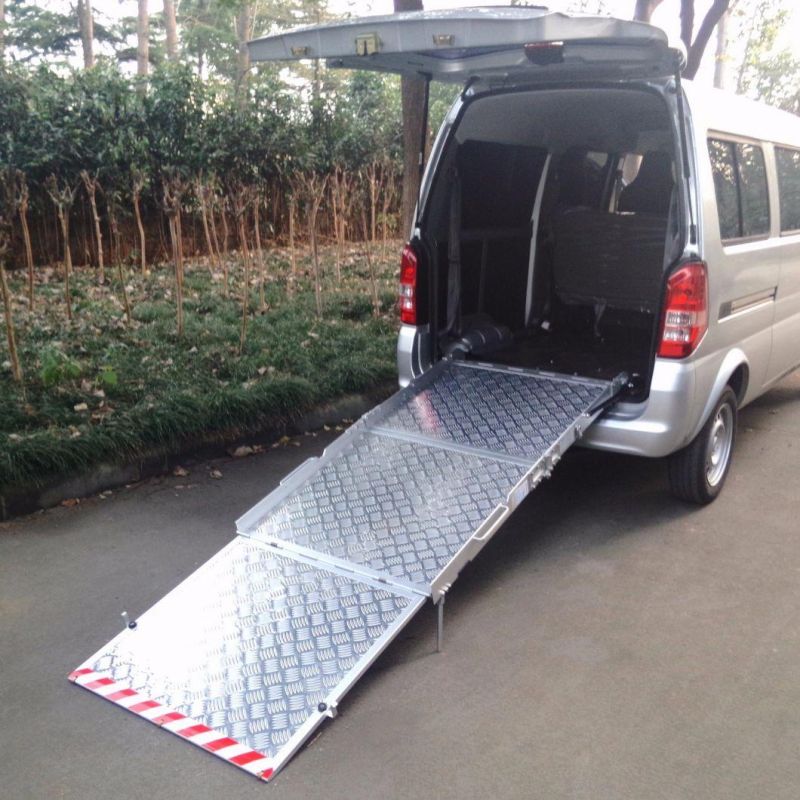

This wheelchair ramp is a kind of manual ramp which can be used for rear door of commercial vehicle.
It can help a person to get on vehicle easily and comfortably while seated in a wheelchair.

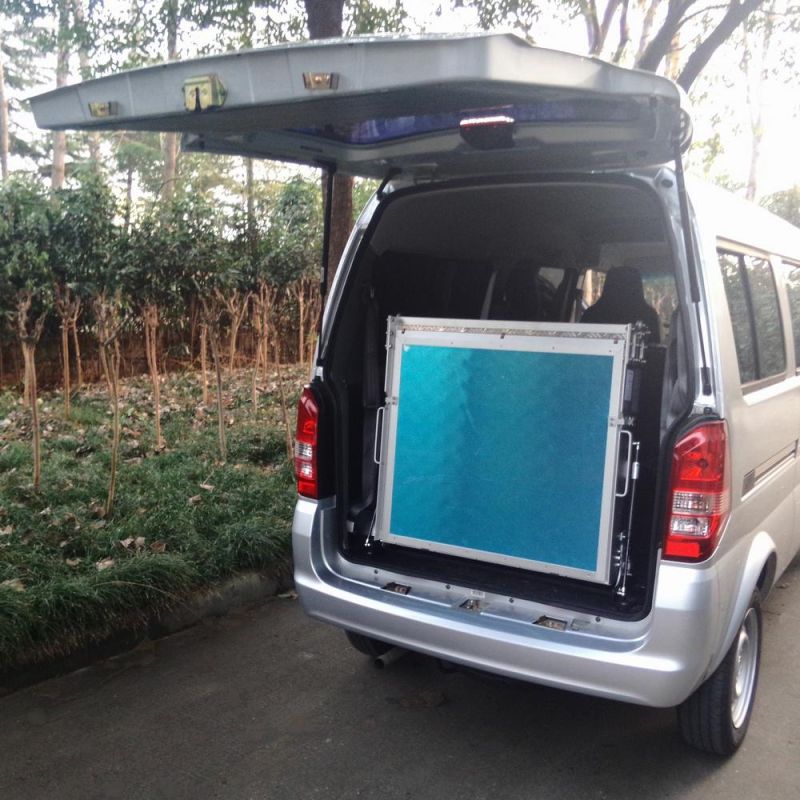

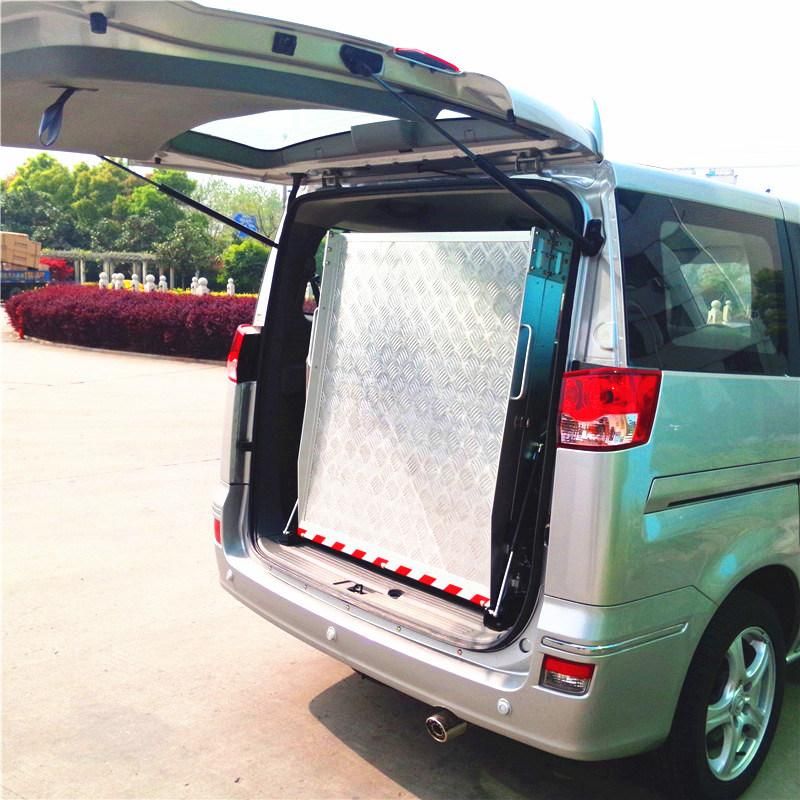

This ramp consists of three honeycombs plates which are hinged joint to fold and unfold.
Main material is aluminum which is light and with high corrosion resistance.
Platform equips with black-yellow anti-skip covering, which is more beautiful.
Advantages.
two gas springs at the two sides of ramp, which make the operation easy;
anti-skip platform;
Technical Specifications:
Loading capacity: 350kg;
Model | Platform Net Size (A×B) | Overall width (C) | Overall height (D) | Overall Length (E) | Loading capacity | Own weight |
BMWR-301 | 2240×810 | 880 mm | 850 mm | 265 mm | 350 Kg | 40 Kg |
BMWR-302 | 2700×810 | 880 mm | 1050 mm | 265 mm | 350 Kg | 45 Kg |
BMWR-303 | 3300×810 | 880 mm | 1250 mm | 265 mm | 350 Kg | 50 Kg |
BMWR-304 | 3900×810 | 880 mm | 1450 mm | 265 mm | 350 Kg | 55 Kg |
